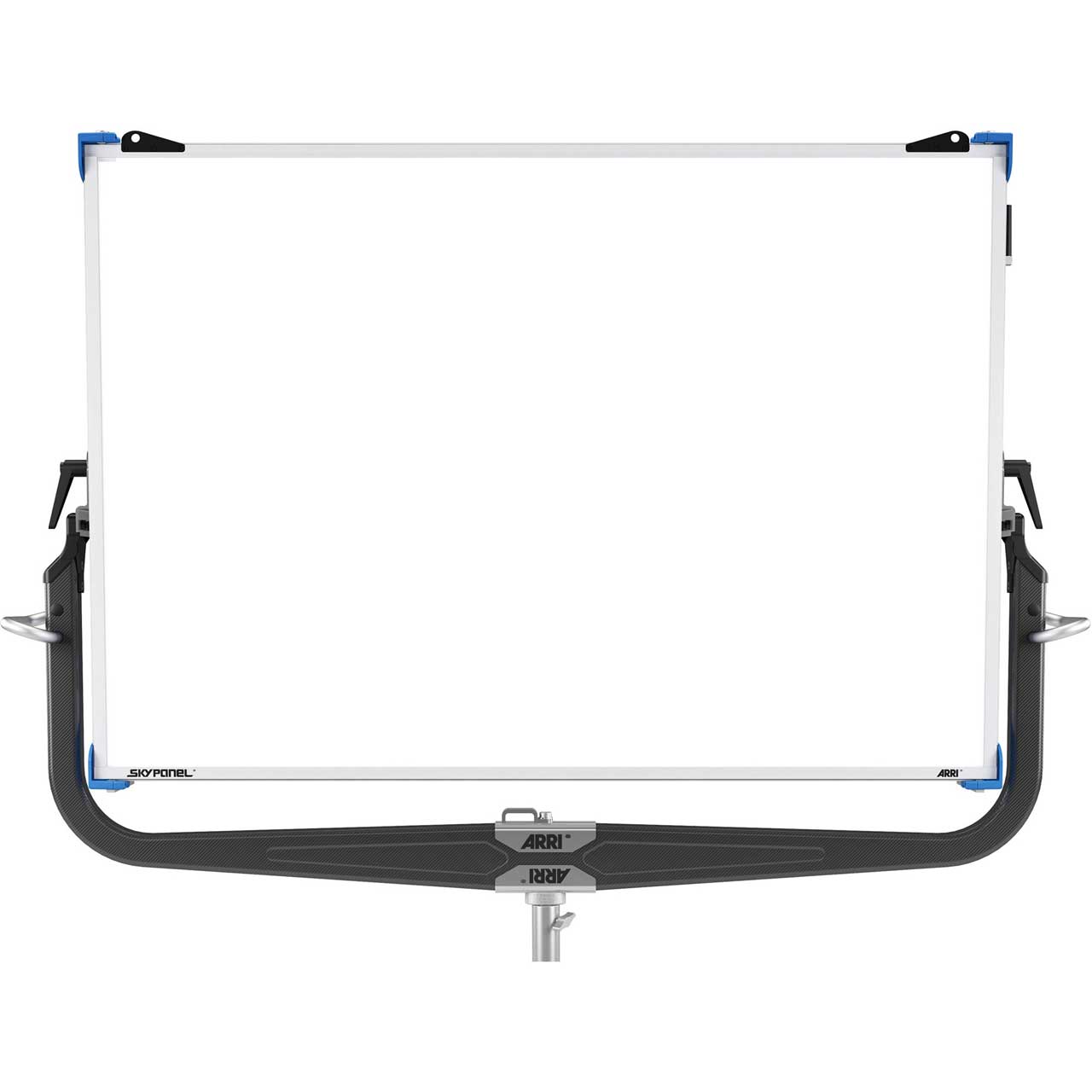

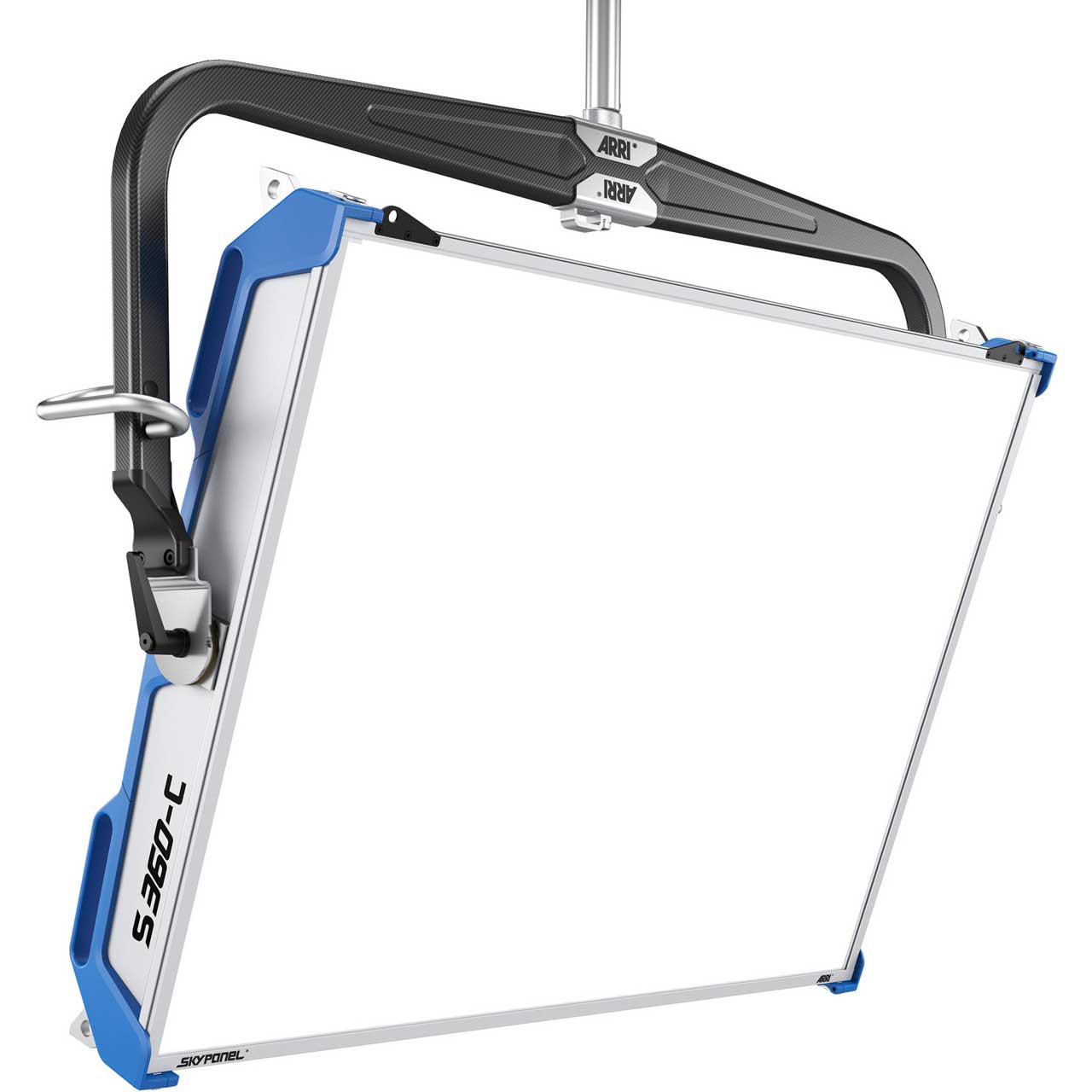

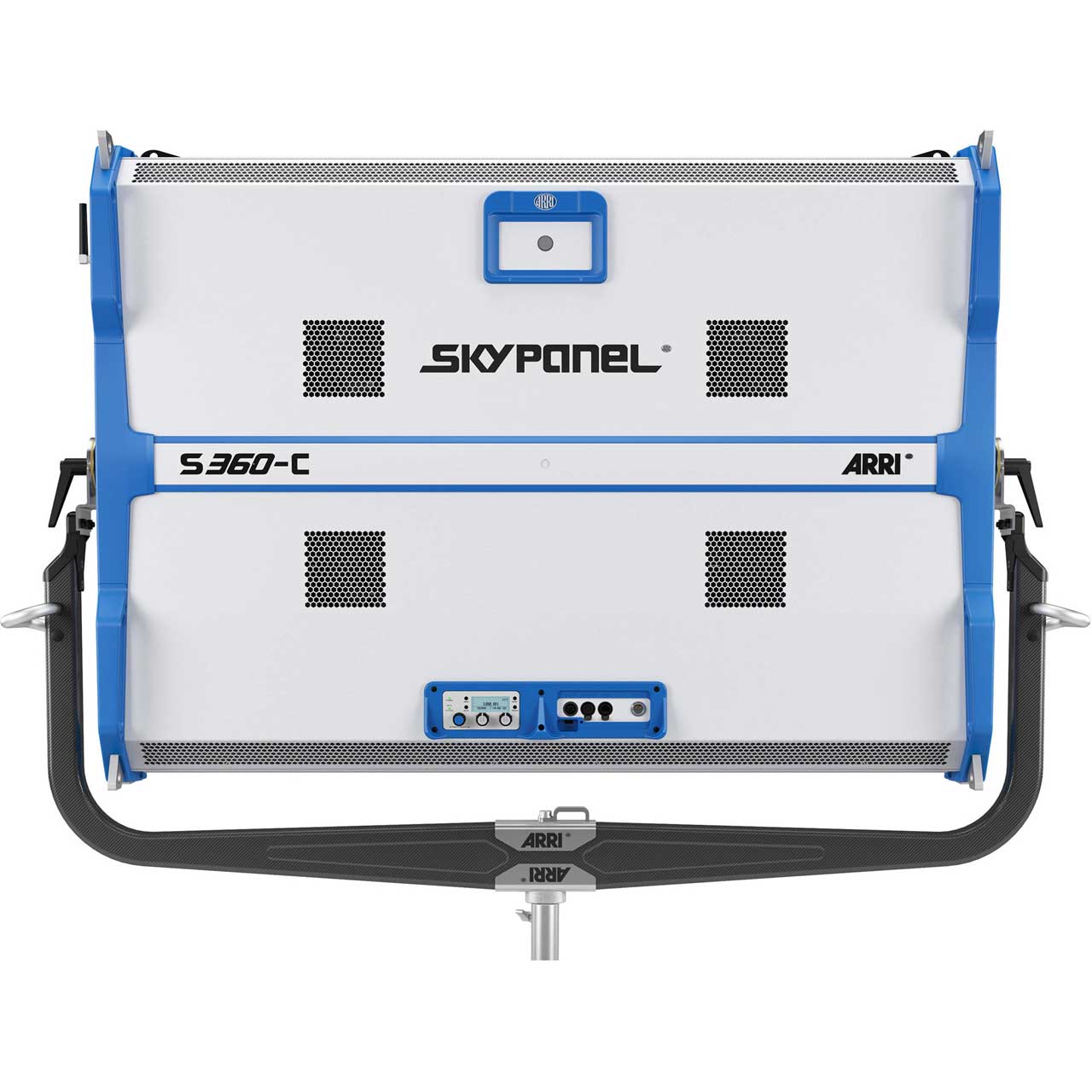

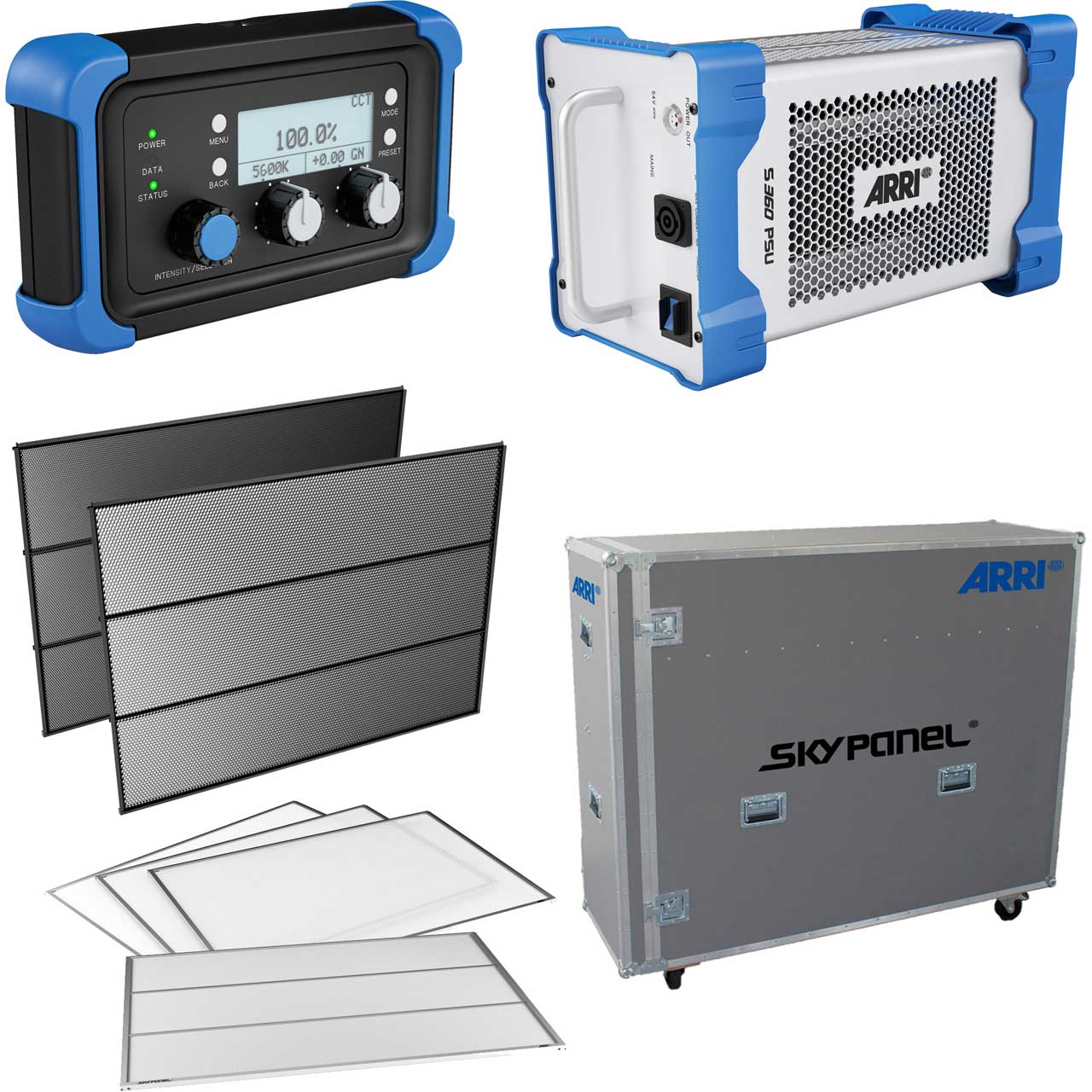

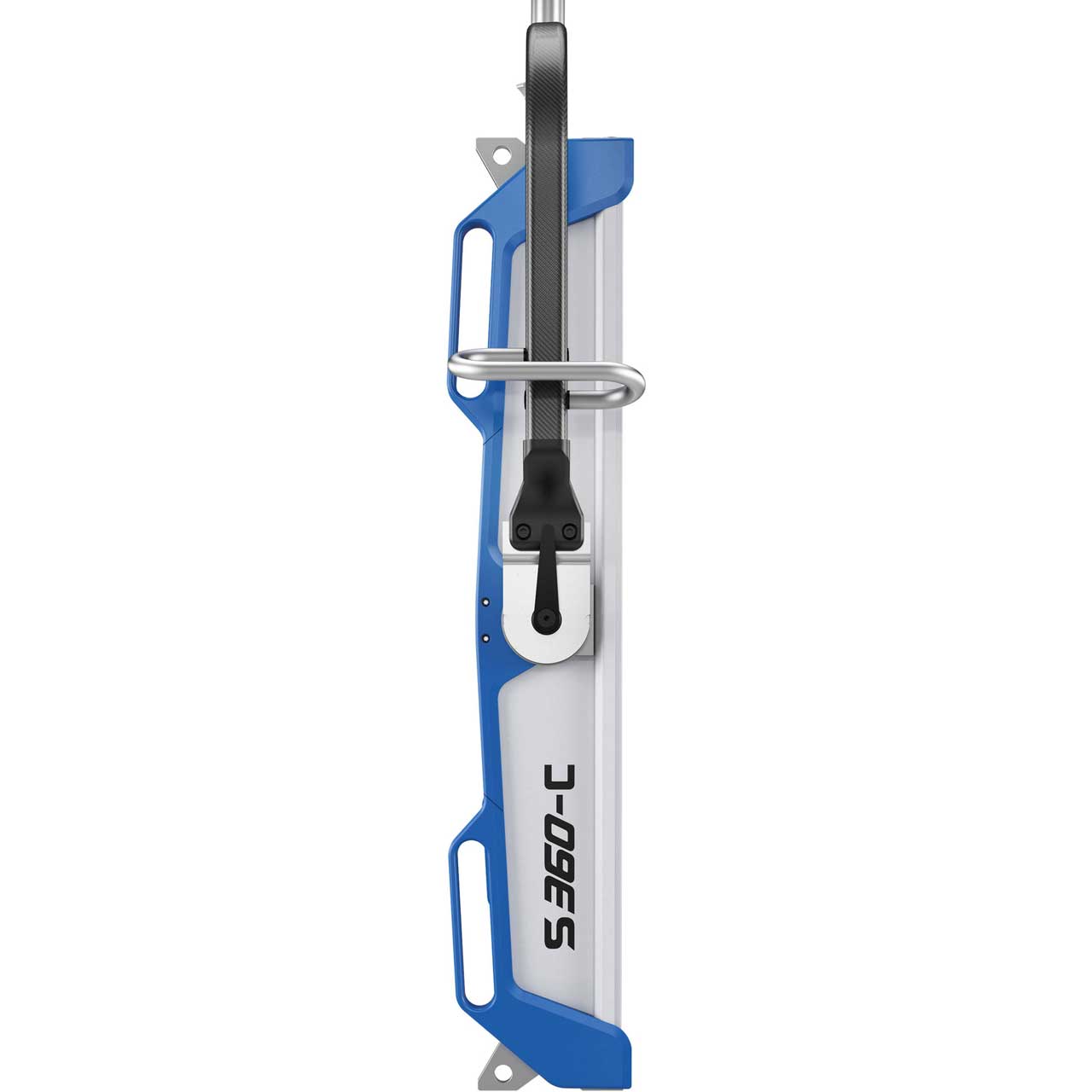

ARRI L0.0016335 SkyPanel S360-C Kit w/ Lamphead & Case Manual & Short Yoke PSU & Cables Standard Lite & Heavy Diffusion

L0.0016335 - Overview

• Features:

  • Fully Tuneable from 2,800 K to 10,000 K
  • Vibrant Color Selection (RGB+W Color Gamut)
  • High Color Rendering
  • Enormous Aperture (1290 x 870 mm)
  • LumenRadio Wireless DMX Built In
  • Tremendous Output - Over 120,000 Lumens
  • Fully Dimmable from 0 to 100%
  • Light Weight Carbon Fiber Yoke
  • Beautiful Soft Beam of Light
  • Interchangeable Diffusion Panels
  • Wide Range of Accessories Available
  • Thin Profile
  • Onboard Simple Control Panel
  • Onboard DMX In and Out
  • RDM Implementation
  • USB-A Connection for Firmware Updates
  • EtherCon port for network connectivity
  • Available in Blue/Silver
  • Fan Mode Selection
  • External PSU
  • powerCON 32 A Power Connector


• Specifications:

  • Optical System: Swappable Soft Diffusion Panels
  • Light Aperture: 1280 x 870 mm / 50.4 x 34.4"
  • Beam Angle: 105° (Half Peak Angle)
  • Weight: 41 kg / 90.4 lbs (incl. Carbon Fiber Yoke and Spigot)
  • Handling: Carbon Fiber Yoke, Dual High-Strength Tilt Lock
  • Mounting: 28 mm Spigot (Junior Pin)
  • Tilt Angle: +/- 90°
  • Lamphead Voltage Input: 54 V DC
  • Power Consumption: 1,500 W Nominal, 1,600 W Maximum
  • Lamphead Power Connection: Male 4-Pin Metal Locking - 30 Amp
  • White Light: 2,800 K to 10,000 K continuously variable correlated color temperature
  • Colored Light: Full RBG+W color gamut with Hue and Saturation control
  • Lamphead Power Connection: Male 3-Pin XLR to 15 Amp (Pin 1: Negative / Pin 2: Positive)
  • Battery Connector: Male 4-Pin XLR to 10 Amp (Pin 1: Negative / Pin 4: Positive)
  • Battery DC Voltage Range: 23 to 36 V DC
  • Battery Mode Light Output: 50 % of total output
  • White Light: 2,800 K to 10,000 K continuously variable correlated color temperature
  • Colored Light: Full RBG+W color gamut with Hue and Saturation control
  • Color Temperature Tolerance: +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
  • Color Rendition: CRI Average > 95 TLCI Average > 90
  • Green-Magenta Adjustment: continuously adjustable (Full Minusgreen to Full Plusgreen)
  • Dimming: 0 to 100 % continuous
  • Control: On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net
  • Wireless Control: LumenRadio CRMX (DMX & RDM)
  • Remote Device Management (RDM): DMX Setup, Hour Counter and Standard RDM commands
  • Software Interface Ethernet: DMX Setup, Fixture Status & Control, and Firmware Upgrade through PC or Mac
  • USB-A: Software Upgrade via flash drive
  • Housing Color: Blue/Silver
  • Ambient Temperature Operation: -20 to +45° C (minus4 to +113° F)
