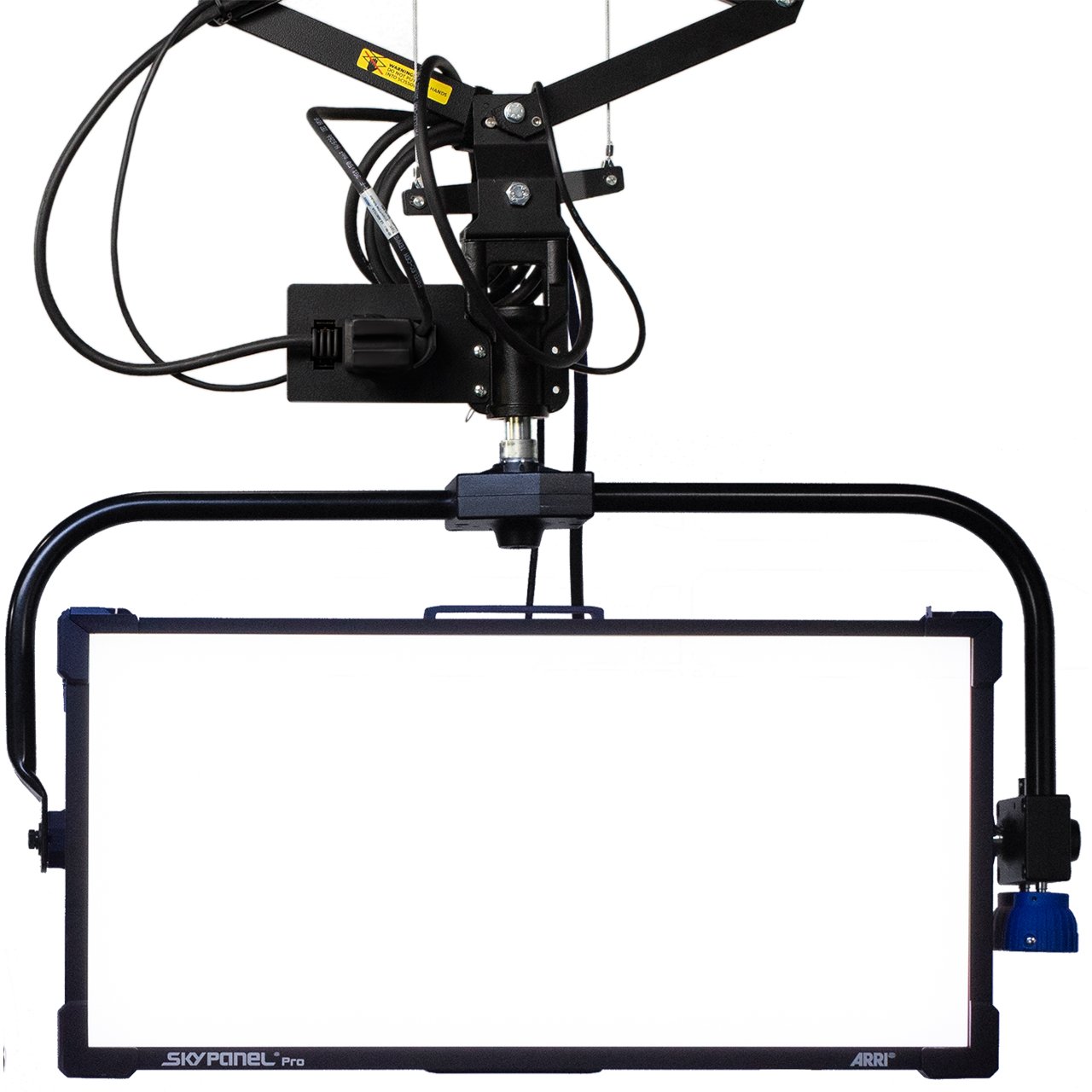

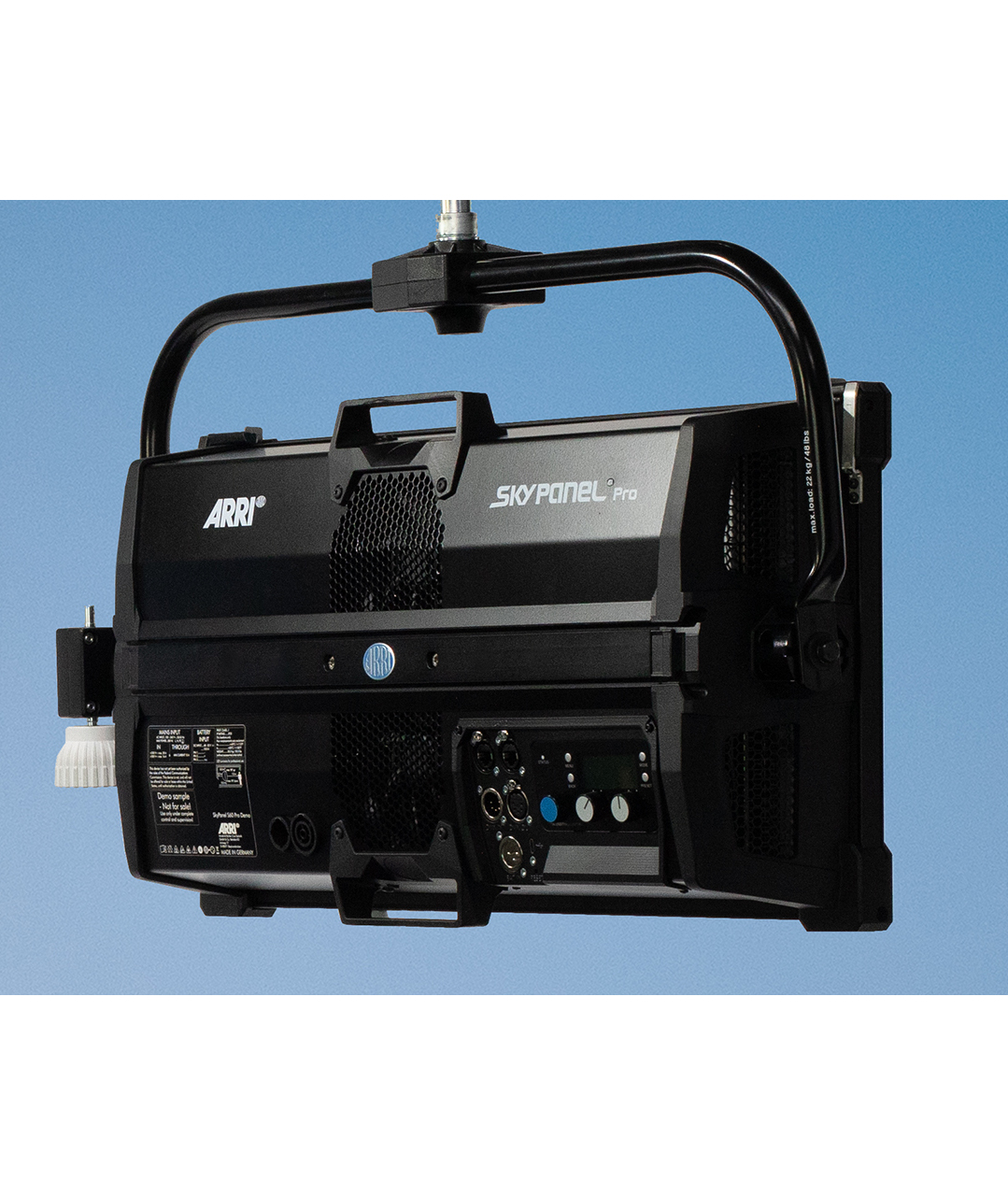

ARRI SkyPanel S60 Pro LED Soft Light with Manual Yoke - Edison Plug - Black Housing

ITEM #: ARR-L0-0052502 MFG #: L0.0052502

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$4,280.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


L0.0052502 - Overview

Introducing ARRI SkyPanel S60 Pro - building on the legacy of the iconic SkyPanel S60-C, the S60 Pro delivers smarter, faster solutions with cutting-edge technology for enhanced efficiency. The ARRI S60 Pro is designed to meet the demands of modern productions, offering everything you loved about the S60-C, but better - with no learning curve required.

The SkyPanel S60 Pro represents the perfect blend of the familiar and the new, combining the renowned benefits of the iconic S60-C with innovative updates that meet the demands of today's professionals.

Seamless Integration
The S60 Pro fits effortlessly into your sets, studios, and rental inventories, with color consistency across all SkyPanel models and generations, plus full compatibility with S60-C optical accessories.

Improved Workflow
Elevate your productions with enhanced dimming and light output, built-in wireless and PSU, new software features, and expanded connectivity.

Advanced Virtual Tools
Embrace the future with our digital twin, enabling unmatched customization and control in pre-visualization and virtual production.

Continuous Reliability
CloudIO ensures your S60 Pro stays updated and problem-free with dependable, easy remote maintenance.

Various Lighting Control Options
Seamlessly integrate SkyPanel S60 Pro into your wireless setup with built-in CRMX and Bluetooth for app-based control. Experience a wider range of wired interfaces, including 5-pin DMX for traditional control options and Ethernet for advanced studio installation.

Software
Based on ARRI's software platform LiOS, the lighting software for SkyPanel Pro was adapted from well-known user interface of the SkyPanel Classic. The S60 Pro provides new features and possibilities such as ARRI ALEXA Modes, LumenRadio CRMX2, Bluetooth 5.0 and more.

Please Note: Images are for reference only. Housing is black in color.

  • Features:

    • Native soft light for natural skin tones
    • 20% more output than its predecessor
    • Size and weight comparable to S60-C
    • Enhanced low-dimming performance
    • RGBW LED light engine
    • CCT range between 2,800 - 10,000K
    • Four LED zones for better pixel control
    • Re-use of SkyPanel S60-C front and mounting accessories
    • Housing color black
    • Integrated power supply
    • Digital twin for real-time simulation and control
    • Integrated wireless connectivity with LumenRadio's CRMX and Bluetooth
    • Remote service and maintenance tool CloudIO from Claypaky
    • Hardwired Ethernet/LAN in and out continue to pass data while powered off
    • Based on LiOS software with on-board user interface from SkyPanel Classic
    • Wide range of interfaces (AC In/thru, 48V Battery input, DMX/RDM In/Out, 2 Ethernet ports, USB-C)

  • Specifications:

    • Light
    • Type of Lamphead: LED Soft Light
    • Optical System: Swappable Diffusion Panels
    • Light Aperture: Approx. 25.4" x 11.8" (645mm x 300mm)
    • Beam Angle: 103° (Standard Diffusion)
    • Light Engine: RGBW LED Light Engine
    • White Light: 2,800 K to 10,000 K (Continuously Variable CCT with Full +/- Green)
    • Color Modes: CCT, HSI, RGBW, Effects, xy, Gel, Source Matching
    • Pixel Zones: 4
    • Color Rendition:
      - CRI Average >95
      - TLCI Average >90
      - TM30Rf Average >91
    • Camera Sensor Matching: Yes, via ARRI ALEXA Mode
    • Dimming:
      - 0% - 100% Continuous
      - High Resolution Low End Dimming
    • Accessory Compatibility: All SkyPanel Classic S60-C front and mounting accessories

      Mechanical
    • Version: Manual
    • Handling:
      - Aluminum Yoke with High-Strength Tilt Lock
      - Rail for Fixed and Center Mount Yokes
    • Mounting: 28mm spigot (Junior Pin)
    • Housing Color: Black
    • Tilt Angle: ±90°
    • Weight with Manual Yoke: Approx. 33.1lbs (15kg)(Internal PSU)

      Control Options
    • On-Board Control: On-Board Control Panel on Bottom of Fixture
    • Wired Control:
      - 5-Pin DMX/RDM In and Through
      - DMX-512A, RDM, Art-Net 4, sACN, LAN (Web-control, ALSM, mDNS Bonjour, PTP, NTP)
      - Data Continues to Pass While Fixture is Powered Off
    • Wireless Control: CRMX Classic, CRMX2, W-DMX G3/G4/G4S/G5, BL, Native Bluetooth 5.0
    • Software Interface: LAN/EtherCon and USB-C
    • Digital Twin Available: Yes
    • CloudIO Remote Maintenence Tool: Yes
    • Software: LiOS

      Electrical (Lamphead)
    • Power Supply: Internal
    • Power Consumption: 500W Maximum
    • AC Voltage Range: 110V - 240V~, 50/60 Hz
    • AC Power Connection: In and Through, PowerCON TRUE1 TOP Compatible
    • DC Voltage Range: 48V - 52V = (100% Output)
    • DC Power Connector: 3-Pin XLR (Pin 1: Negative, Pin 2: Positive)
    • Protection Class/IP Rating: I/IP20
    • Ambient Temperature Operation: -4°F - 113°F (-20°C - 45°C)
    • Estimated LED Lifetime (L70): 40,000 Hours
    • Estimated Color Shift Over Lifetime (CCT): ±5%
    • Certifications and Declarations of Conformity: CE, CB, ENEC, cNRTLus, FCC, FCC, PSE & More

      Photometrical Data with Standard Diffusion (103°)
    • 16.4 Foot/5 Meter:
      - 3200 K: 608 lux/56 fc
      - 5600 K: 636 lux/59 fc

  • Item Includes:

    • 1x SkyPanel S60 Pro LED Softlight Fixture
    • 1x Diffuser
    • 1x Manual Yoke
    • 1x Edison Plug

  • Warranty:

    • 3 Year Warranty
