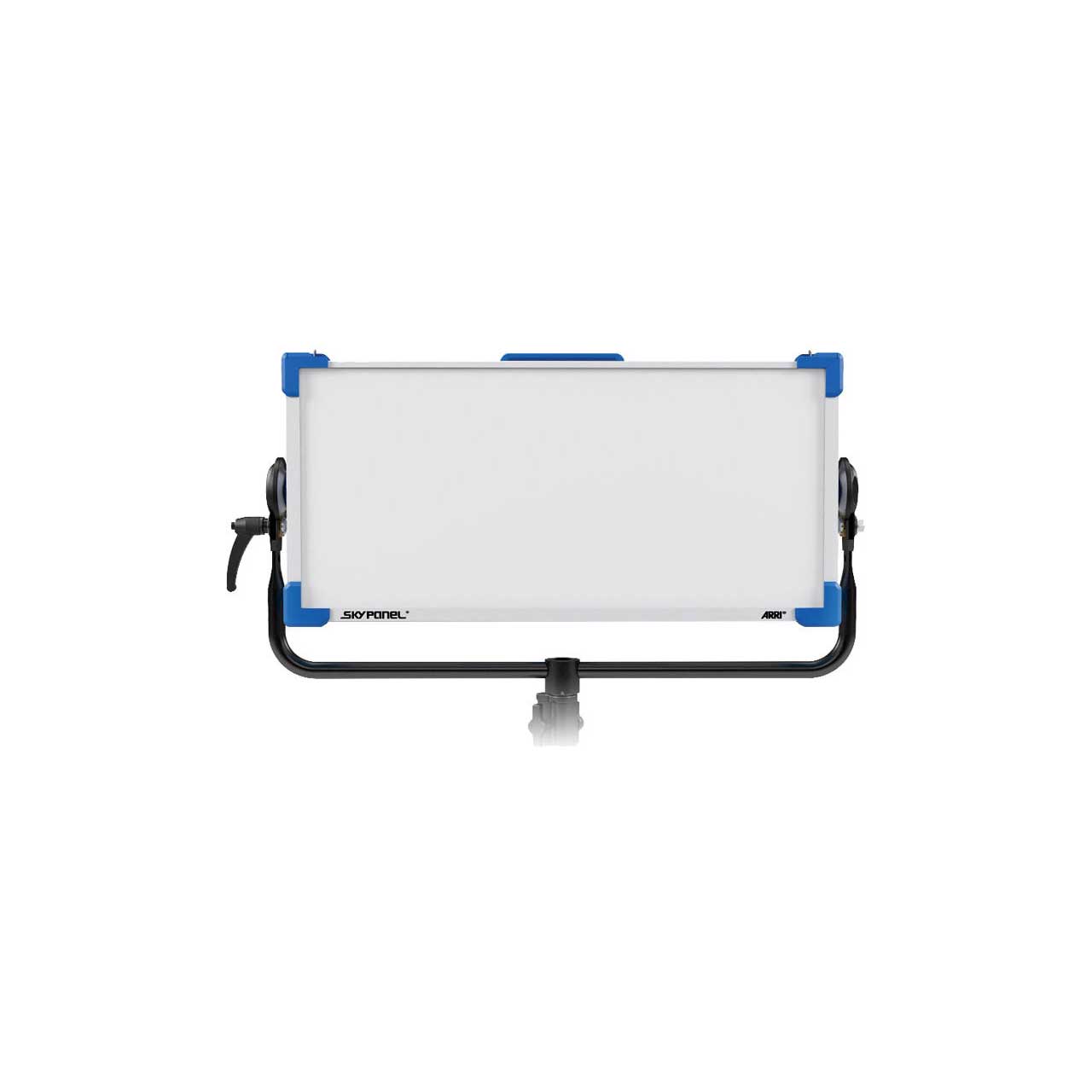

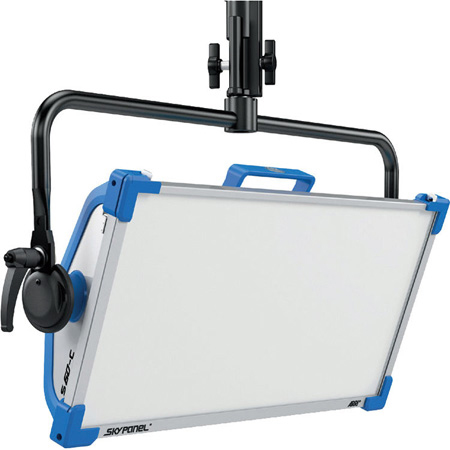

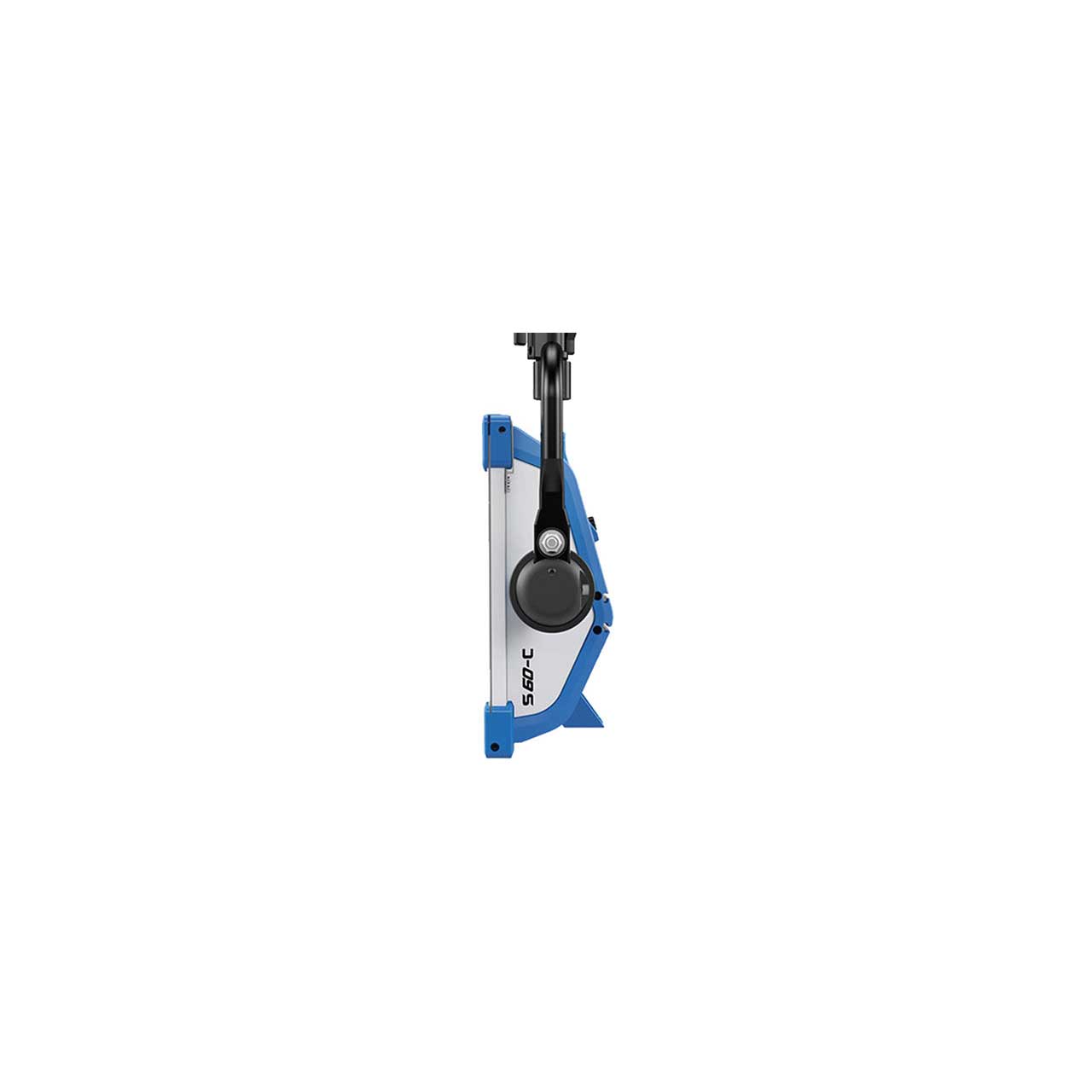

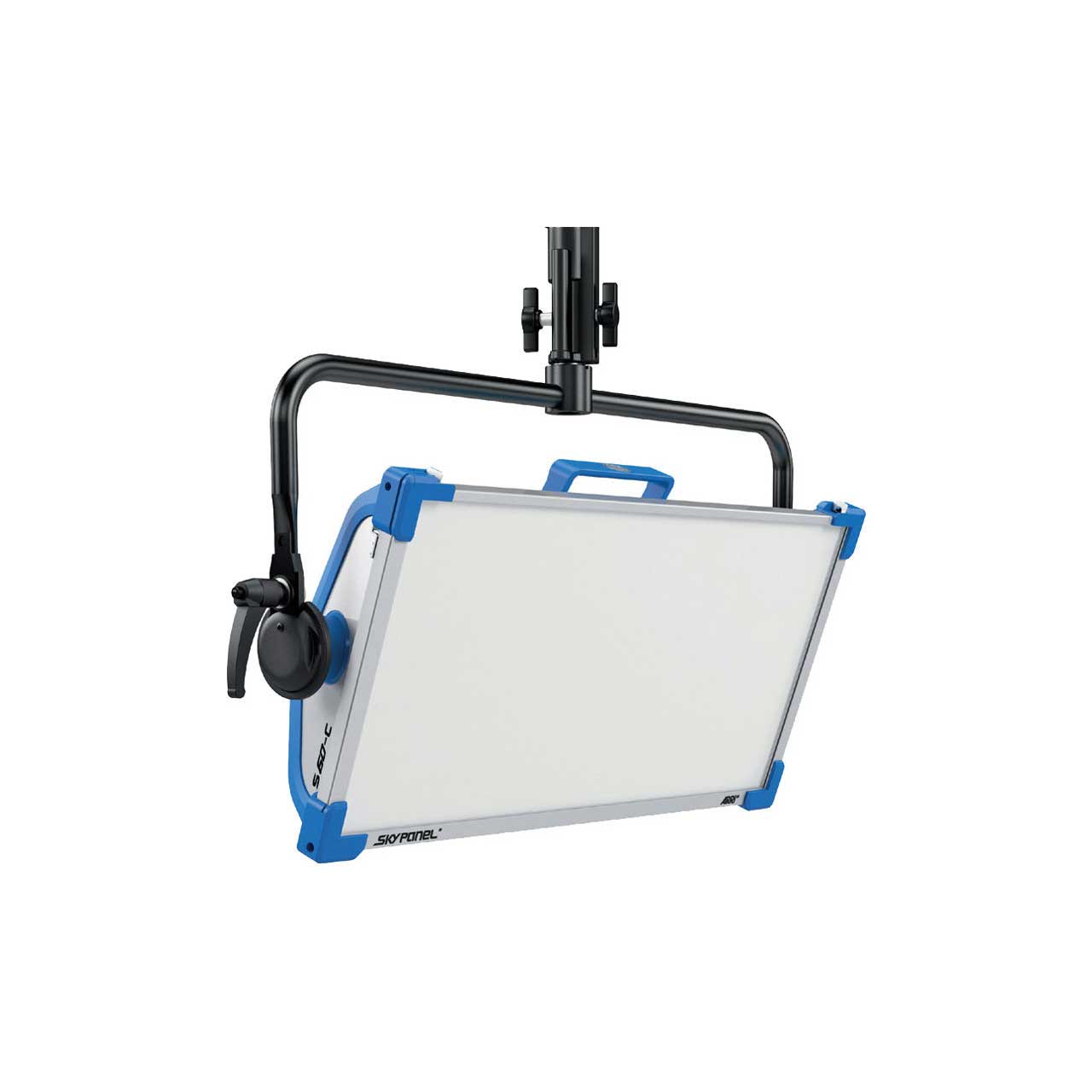

ARRI L0.0007066 SkyPanel S60-C Pole Op Blue/Silver 1.5 Meter (5 Foot) with Bare Ends powerCON

ITEM #: ARR-L00007066 MFG #: L0.0007066

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ARR-L00007066

L0.0007066 - Overview

SkyPanel is available in three sizes: the S120, S60 and S30. The S120 is twice as long as the S60, but weighs nearly the same. Its larger light aperture makes a great soft light even better. Retaining the same features and color tuneability as its smaller counterparts, the S120 consumes less than 400 watts, yet it is slightly brighter than the S60-C and has an outstanding efficacy of 90 lumens per watt. The S60 is a mid- range model, featuring a light aperture of 645 x 300 mm and accommodating the vast majority of applications. The S30 is a smaller, more portable version; half the length of the S60, it is perfect for on-the-go mobile applications. The S60 and the S30 are available in fully color tuneable and remote phosphor versions.

Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. Brighter than a 2 kW tungsten soft light or a 6 kW tungsten space light, the SkyPanel S60 has more than enough light for most applications. At the same time, the lamphead is able to perform beautifully at lower light levels. This range of illumination and color gives users an unprecedented amount of control.

  • Features:

    • Fully Tuneable from 2,800 K to 10,000 K
    • Vibrant Color Selection (RGB+W Color Gamut)
    • High Color Rendering
    • Low Power Consumption (420 W Nominal)
    • Tremendous Output - Brighter than 2 kW Tungsten Soft Light
    • Fully Dimmable from 0 to 100 %
    • Lightweight and Compact
    • Beautiful Soft Beam of Light
    • Interchangeable Diffusion Panels
    • Wide Range of Accessories Available
    • Thin Profile
    • On-Board Battery Connection (23 - 36V DC)
    • Onboard Simple Control Panel
    • Onboard DMX In and Out
    • RDM Implementation
    • USB-A Connection for Firmware Updates
    • EtherCon port for network connectivity
    • Available in Blue/Silver and Black
    • Fan Mode Selection
    • External Lightweight PSU
    • powerCON TRUE1 Power Connector

  • Specifications:

    • Lamphead: S60-C
    • Optical System: Soft Diffusion Panel
    • Light Aperture: 645 x 300 mm / 25.4 x 11.8"
    • Beam Angle: 115 (Half Peak Angle)
    • Weight Manual Version: approx. 13 kg / 29 lbs
    • Pole Op Version: approx. 14 kg / 31 lbs
    • Packed Weight: Manual Version: approx. 21 kg / 46 lbs
    • Pole Op Version: approx. 22 kg / 49 lbs
    • Size (H x W x L): 433 x 133 x 825 mm / 17 x 5.3 x 32.5"
    • Packed Size (H x W x L): 460 x 300 x 856 mm / 18 x 11.8 x 33.7"
    • Handling: Aluminium Yoke, High Strength Tilt Lock; Pole Operation Option (Pan & Tilt)
    • Mounting: 28 mm Spigot (Junior Pin)
    • Tilt Angle: +/- 90°
    • Lamphead Voltage Input: 48 V DC
    • Power Consumption: 420 W Nominal, 450 W Maximum
    • Lamphead Power Connection: Male 3-Pin XLR - 15 Amp (Pin 1: Negative / Pin 2: Positive)
    • Battery Connector: Male 4-Pin XLR - 10 Amp (Pin 1: Negative / Pin 4: Positive)
    • Battery DC Voltage Range: 23 to 36 V DC
    • Battery Mode Light Output: 50 % of total output
    • White Light: 2,800 K to 10,000 K continuously variable correlated color temperature
    • Colored Light: Full RBG+W Color Gamut with Hue and Saturation Control
    • Color Temperature Tolerance: +/-100 K (nominal), +/-1/8 Green-Magenta (nominal)
    • Color Rendition CRI Average: > 95; TLCI Average > 90
    • Green-Magenta Adjustment: Continuously adjustable (Full Minusgreen to Full Plusgreen)
    • Dimming: 0 to 100 % continuous
    • Control: On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net
    • Remote Device Management (RDM*): DMX Setup, Hour Counter and Standard RDM Commands
    • Software Interface: Ethernet: DMX Setup, Fixture Status and Firmware Upgrade through PC, Mac USB-A: Software upgrade via flash drive
    • Housing Color: Blue/Silver, Black
    • Ambient Temperature Operation: -20 to +45°C / -4 to +113°F
    • Protection Class / IP Rating: III / IP20
    • Estimated LED Lifetime (L70): 50,000 hours
    • Estimated Color Shift Over Liftetime: +/- 5 %
    • Certifications: CE, CB, ENEC, cNRTLus, FCC, PSE

      Power Supply Unit
    • Power Supply Input Range: 110 to 240 V ~, 50/60 Hz
    • Power Supply Output Range: 48 V DC
    • Power Input Connection: powerCON TRUE1 (Bare Ends / Schuko / Edison cables available)
    • Power Output Connection: Female 3-Pin XLR - 10 Amp (Pin 1: Negative / Pin 2: Positive) powerCON TRUE1 (mains power through)
    • Weight: 3.5 kg / 7.7 lbs
    • Dimension: 383 x 191 x 91 mm / 15 x 7.5 x 3.6"
    • Control: On-Board On/Off Switch
    • Mounting: SkyPanel PSU Super Clamp Adapter / Rail Mount Adapter
    • Certifications: CE, CB, ENEC, cNRTLus, PSE
