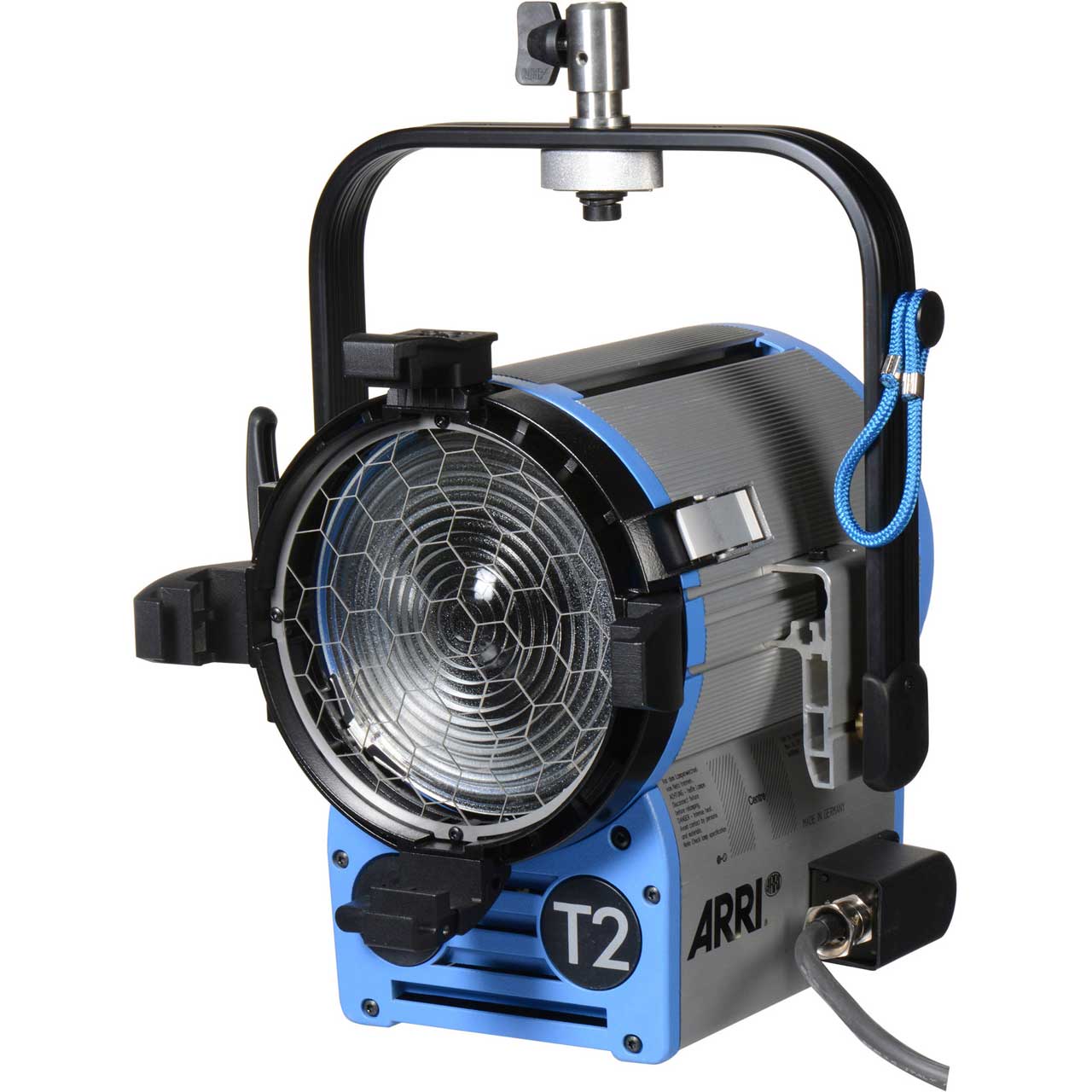

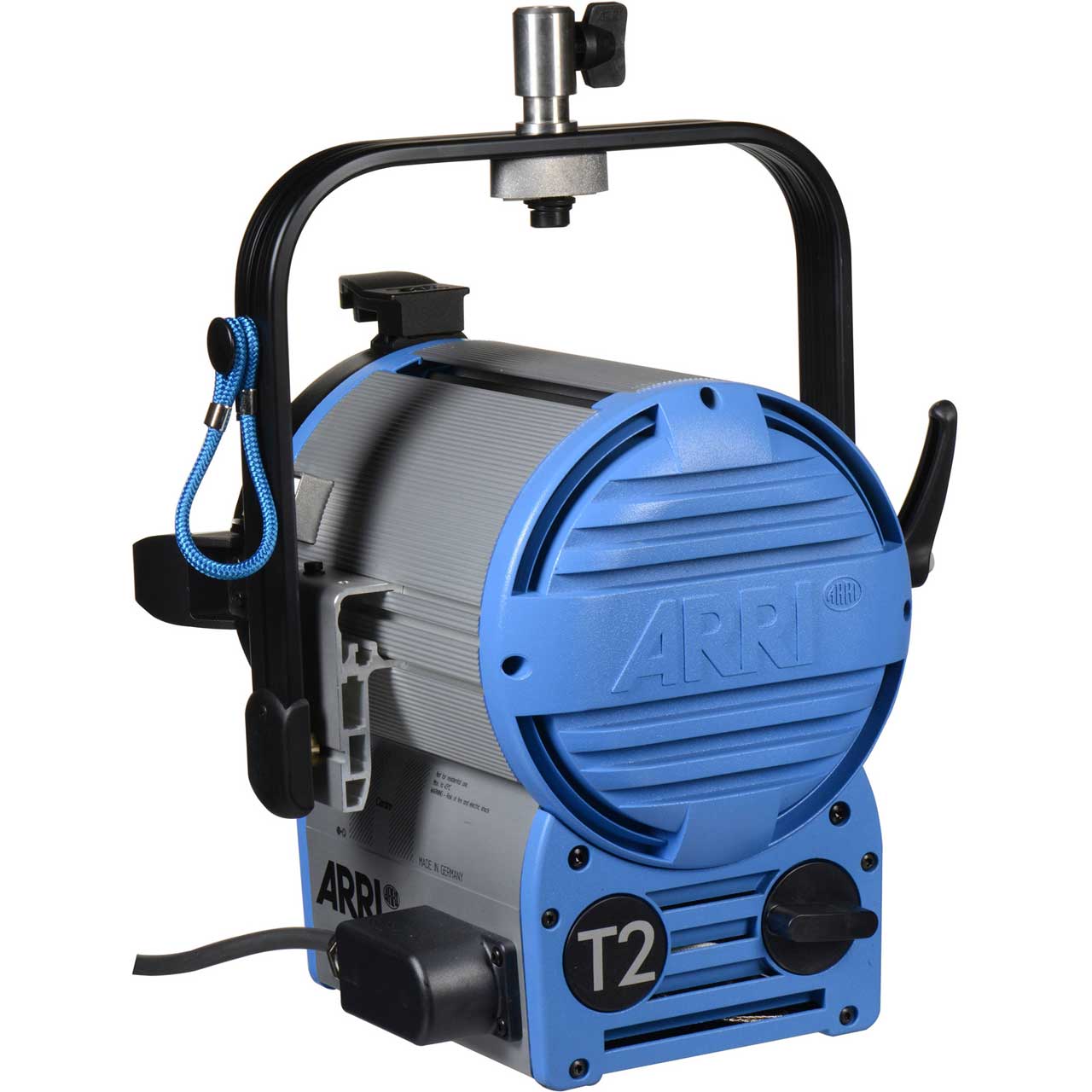

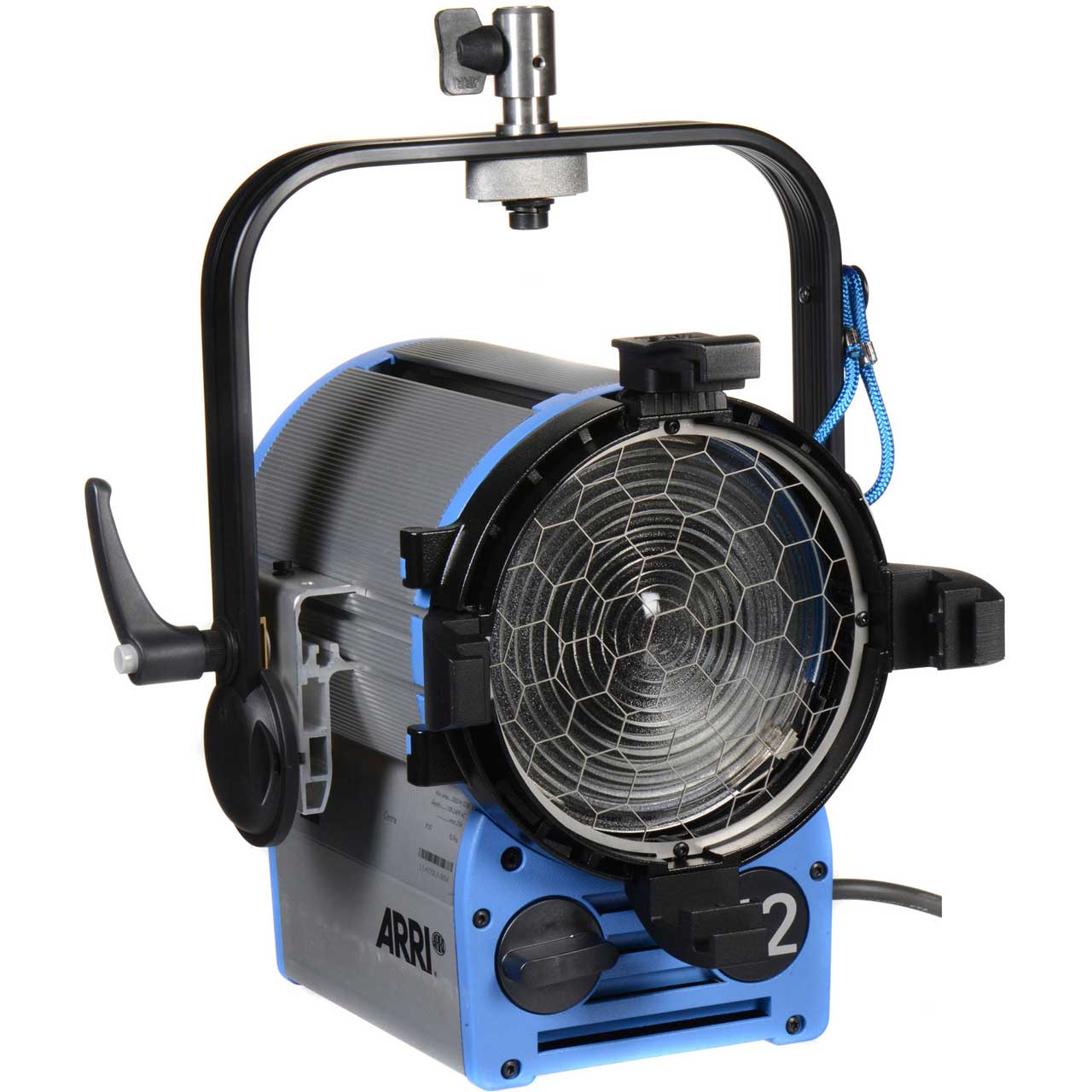

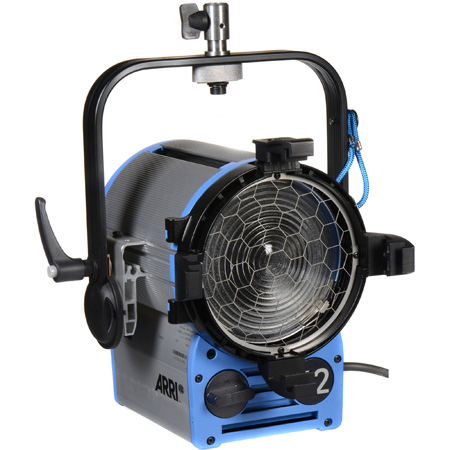

Arri L1.41250.A T2 2000W True Blue ST2/3 Fresnel Stand Model - 7 Inch Lens - 15.4lbs

ITEM #: ARRI-L1-41250-A MFG #: L1.41250.A

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$1,259.00

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


L1.41250.A - Overview

ARRI L1.41250.A True Blue represent an unprecedented evolution of the studio fixtures that have been popular workhorses for over two decades. Following extensive research and feedback from lighting professionals around the world, combined with advances in technology, ARRI has designed a series of six highly innovative lampheads with over 30 new improvements for studio and location lighting. ARRI Fresnels are available in both manual and pole-operated versions.

Using a 3,000 W lamp allows a 65 % higher light output while maintaining the size and weight of the fixture. Modern studio dimmer systems have the capacity to support 3,000 W, and in contrast to 5,000 W lamps, this power class can be operated within the standard 16 V - 230 V power grid of most countries. This saves costs in cabling and energy, and purchase costs of the fixture itself. Another possible scenario is a switch to HD recording systems, which are still less sensitive than SD cameras. In these situations the 2,000 W lamps can simply be replaced with 3,000 W lamps to provide the illumination headroom required.

Note: This change does not apply to the 120 V version!

  • Features:

    • Cross Cooling System: new, highly effective cooling streams in addition to conventional cooling
    • Sliding Stirrup: centre of gravity adjustment
    • Tilt Lock: stainless steel friction disc for rigid lock-off
    • Top Latches: application-oriented Top Latches for location or studio use
    • Adjustable Accessory Brackets: adjustable 2-scrim and 4-scrim position
    • Stainless Steel Lens Protection: maximised light transmission and high temperature stability
    • Extremely Robust Barndoors: made of special alloy with high strength-to-weight ratio and effective tightening function
    • Maintenance: more shared parts, very fast access to all interior workings with three torx drivers only
    • Protection Class IP23: safe indoor and outdoor use
    • Safety Certification: CE, GS, cNRTLus

  • Specifications:

    • Model: True Blue ST2/3
    • Mains Plug: Schuko, Bare Ends
    • Lamphead Type: Fresnel, 3,000 W
    • Reflector: Spherical specular high purity aluminium
    • Lamp Type: only 230 V: 2,000 W (FKK), 3,000 W (HX48)
    • Power Consumption: 3,000 W, 2,000 W
    • Voltage Range: 220 to 240 V
    • Lamp Base: G38
    • Dimming: yes, 0 to 100 % via external dimming system
    • Correlated Color Temperature: 3,200 K
    • Beam Angle: 7.9° to 56° / 11.6° to 56.3° (with 2 kW / 3 kW lamp)
    • Weight in kg net: approx. 12 kg
    • Weight in kg packed: approx. 15 kg
    • Weight in lbs. net: approx. 26 lbs
    • Weight in lbs. Packed: approx. 33 lbs
    • Measurements (HxWxL) excl. Pin in mm: 522 x 448 x 380 mm
    • Measurements (HxWxL) excl. Pin in inch: 20.6 x 17.6 x 15.0"
    • Measurements (HxWxL) Packed size in mm: 495 x 515 x 550 mm
    • Measurements (HxWxL) Packed size in inch: 14.5 x 20.3 x 21.7"
    • Lens / UV-Protection Glass Diameter in mm: 250 mm
    • Lens Diameter in inch: 9.8"
    • Accessory Diameter in mm: 330 mm
    • Accessory Diameter in inch: 13.0" (Scrim)
    • Barndoor in mm: 344 mm
    • Barndoor in inch: 13.5"
    • Mounting: Spigot 28 mm / 1 1/8" (1.1")
    • Housing Color: Blue/Silver, Black
    • Protection Class / IP Rating: I / IP23
    • Certifications: CE, CB, GS, cNRTLus
