ART AVDirect Multi-Input Audio/Video Direct Box - 1/4 Inch TRS / 1/8 Inch TRS and Stereo RCA Line Level

ITEM #: ART-AVDIRECT MFG #: AVDIRECT

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$99.99

Our Price:

$85.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


AVDIRECT - Overview

With a comprehensive range of inputs, the ART AV Direct lets you connect virtually any analog audio source to a mixer or PA system without added noise or signal loss.

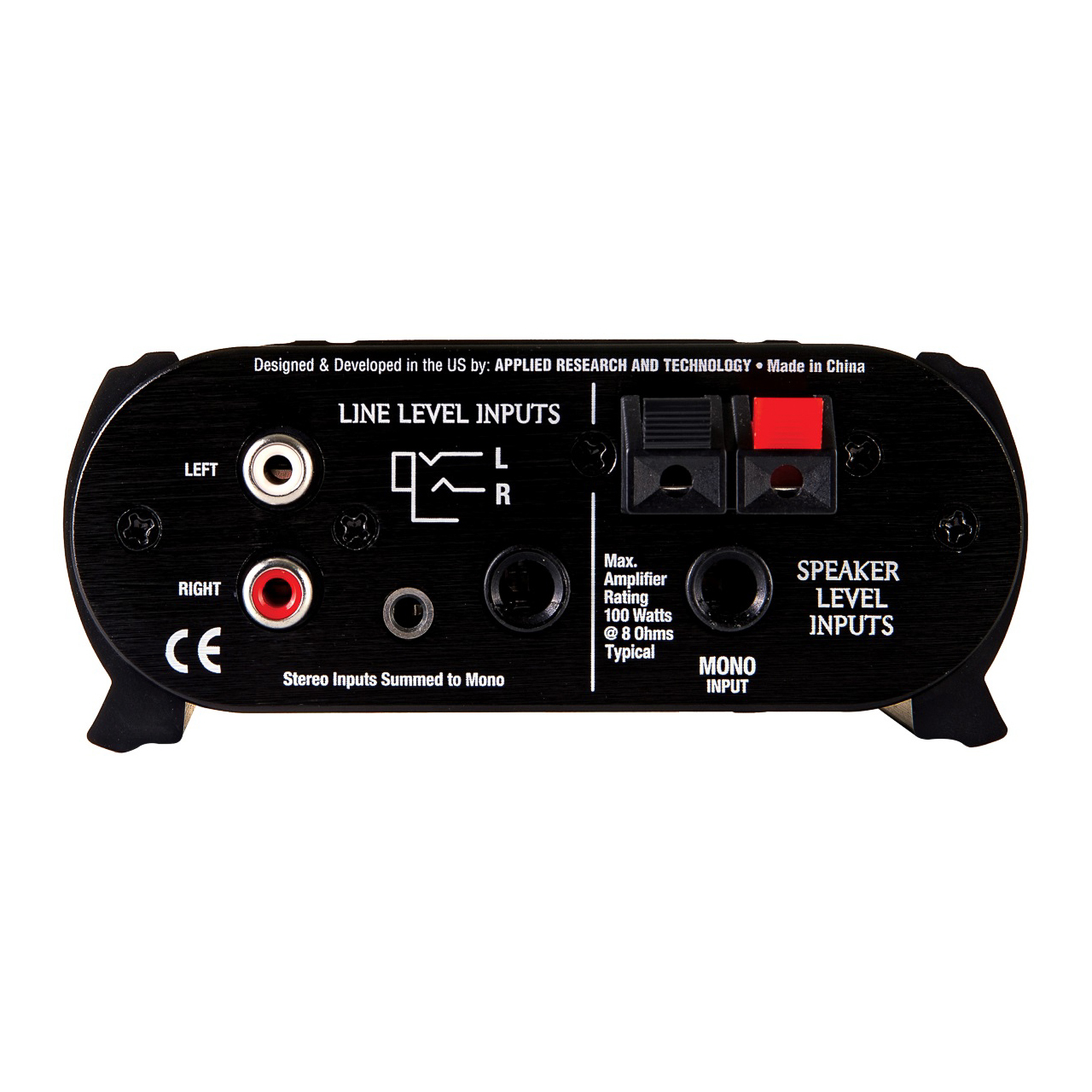

There are 1/4" TRS, 1/8" TRS, and stereo RCA inputs for line level sources, and both 1/4" TRS and pressure clip connectors for speaker level sources.

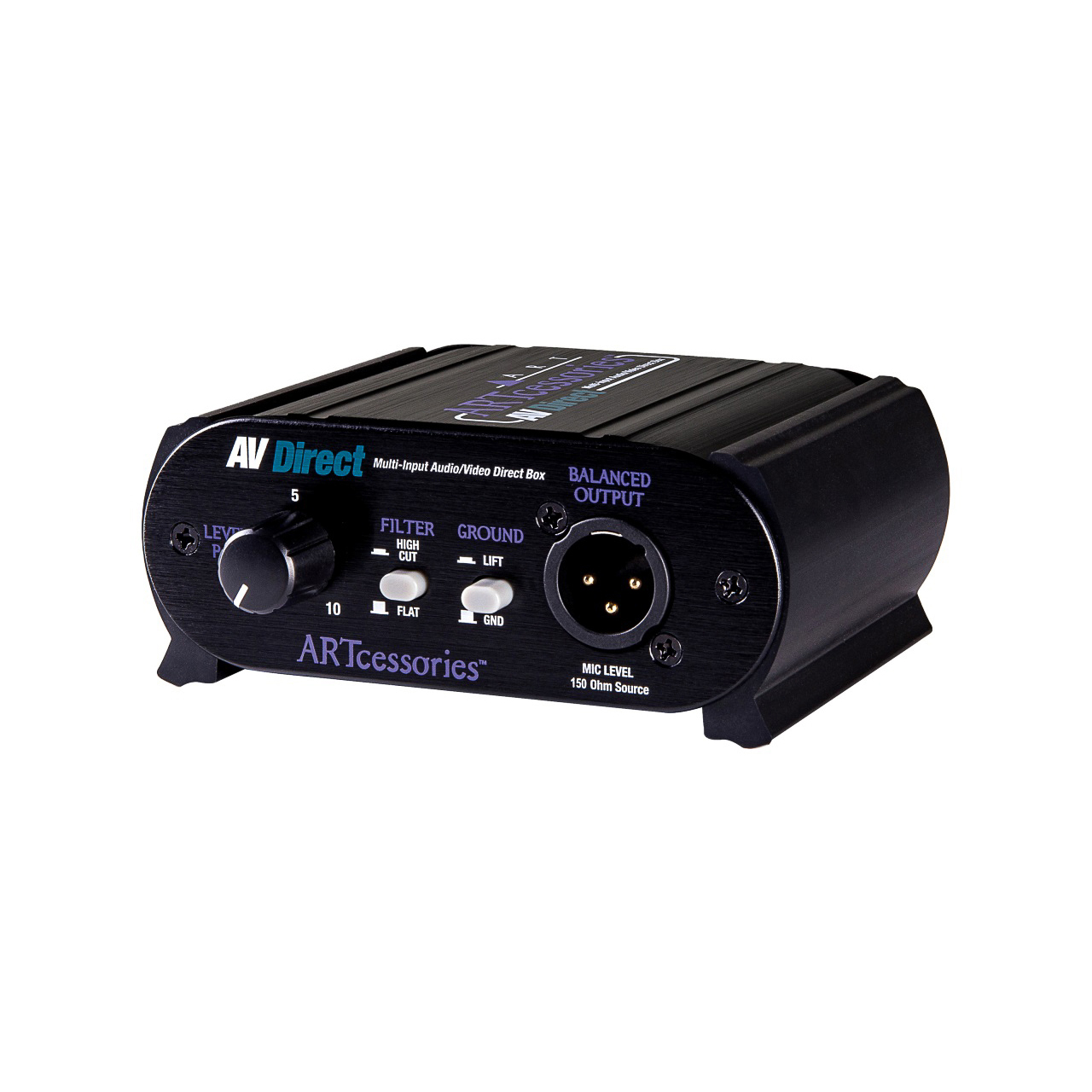

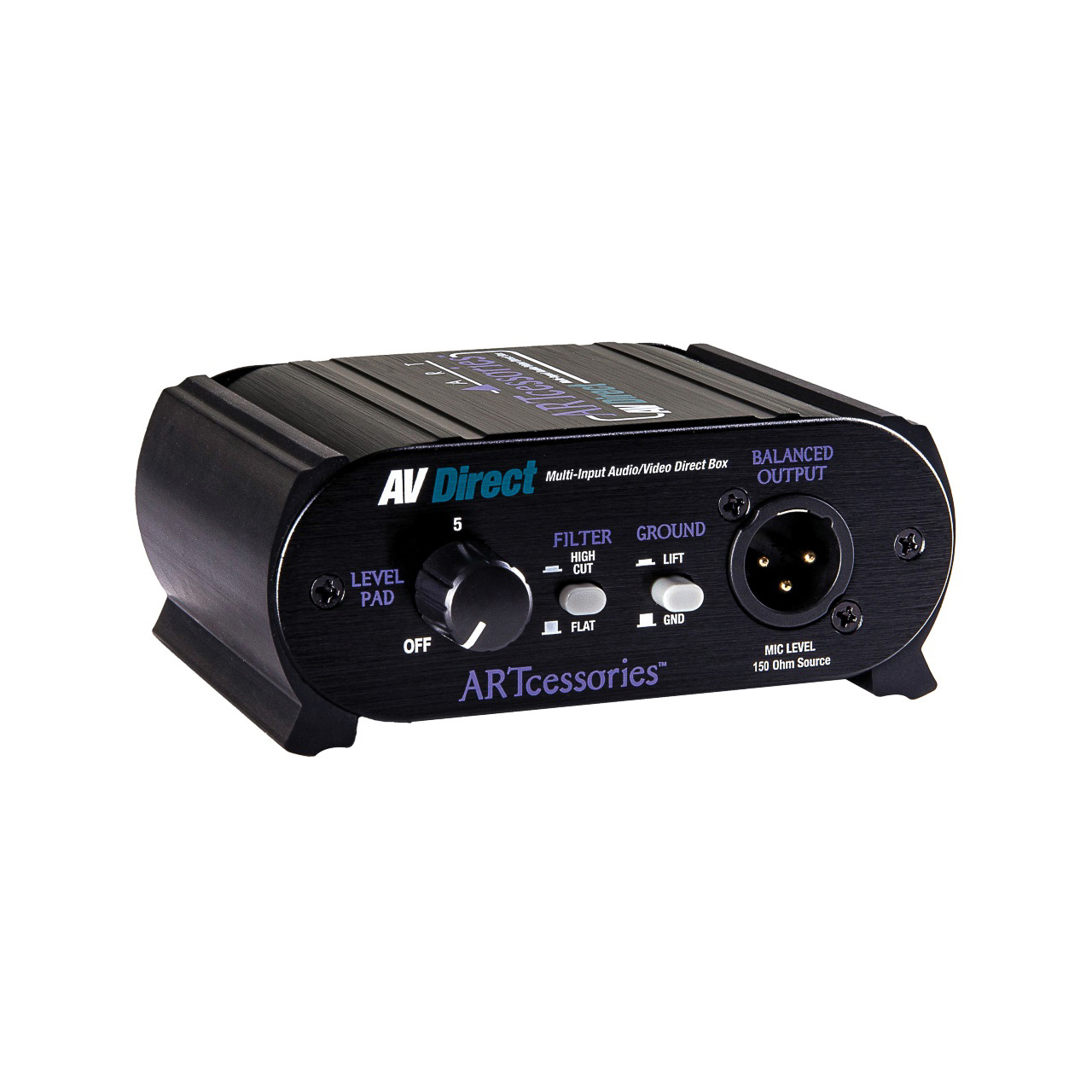

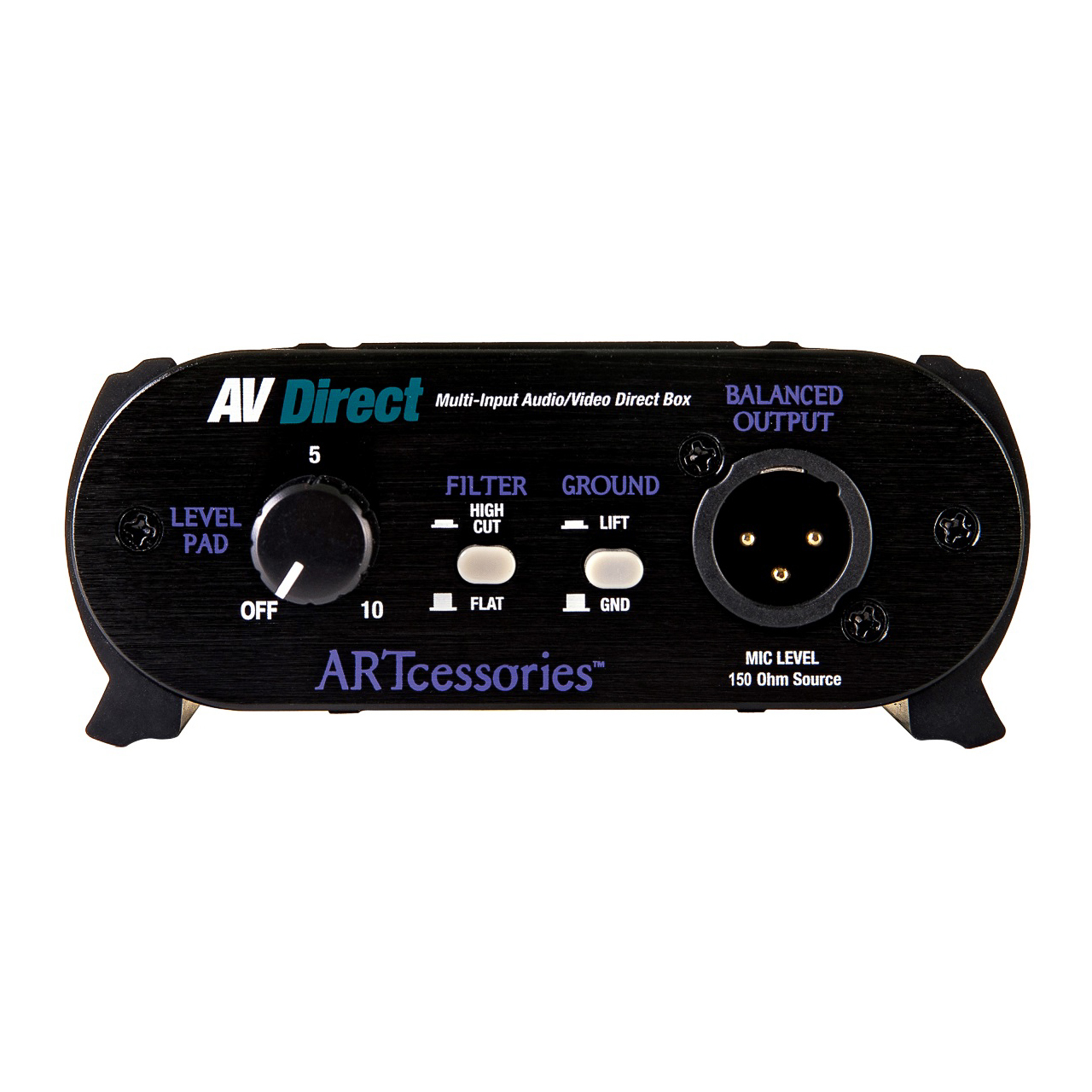

To reduce buzzes and hums, the front panel features a ground lift and high-frequency filter, and the balanced XLR output is isolated by a transformer.

The passive circuitry doesn't require batteries or an external power supply, the metal enclosure provides durable protection, and the compact footprint fits easily into almost any space.

Whether you need to connect a CD or DVD player, phono preamp, computer, or mobile device, the AV Direct will provide clear, powerful audio to your sound system.

Need to connect a Bluetooth® or USB audio source? Check out the BT-DI and USB DI.

  • Features:

    • 1/4" TRS, 1/8" TRS, and Stereo RCA Line Level Inputs
    • 1/4" and Pressure Clip Speaker Level Inputs
    • Transformer-Isolated XLR Output
    • Level Control
    • 4.8 kHz High-Frequency Filter
    • Ground Lift
    • 20 Hz - 20 kHz Frequency Response
    • Passive Design - No Power Required

  • Specifications:

    • Active or Passive: Passive
    • Inputs: 1/8" TRS, 1/4" TRS, Stereo RCA (Line Level), 1/4", Pressure Posts (Speaker Level)
    • Outputs: 1x XLR
    • Output Impedance: 150Ω Nominal @ 1 kHz
    • Maximum Input Level: 100 W Rated @ 8Ω (Speaker)
    • Controls: Level, Filter, Ground Lift
    • Filter: 4.8 kHz High Cut
    • Frequency Response: 20 Hz - 20 kHz (+/- 1 dB)
    • Dimensions (HWD): 1.85" x 4.6" x 4.4" (4.7 cm x 11.7 cm x 11.2 cm)
    • Weight: 1 lb (460 g)

  • GTIN:

    0840402018193
