Ashly Audio AW5.2T+W AW Series IP54 5 Inch Passive 2 Way Wall-Mount Speaker w/DOC Crossover - 8 Ohm/50W - Pair - Black

ITEM #: ASH-AW5-2TPLUS MFG #: AW5.2T+

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ASH-AW5-2TPLUS

AW5.2T+ - Overview

Born of a passion for live music and sound, Ashly Audio has been a provider of state-of-the-art amplifiers and DSP for almost 50 years and is used world-wide in a range of live performance and commercial installations. Ashly now proudly adds several families of loudspeakers to compliment its audio solutions. The Ashly Audio AW 5.2T+ is a compact 5" 2-way wall-mount speaker designed to deliver high-quality playback for paging and background music in retail store, restaurant, meeting space, school and HoW applications. A proprietary Directivity-Optimized Crossover provides a wider, more even "sweet spot" for consistent area coverage. A built-in transformer allows power tap adjustments for use with 70V & 100V distributed sound systems. Its IP54 rated enclosure also makes it suitable for outdoor environments such as patios and entryways. Custom speaker optimization presets are available for download when AW Speakers are used with Ashly DSP & DSP-enabled amplifiers. Sold in pairs. Wall Mounts are included.

For this type of speaker, music and speech are equally important. Both rely on a large “sweet spot” and off-axis intelligibility. Many speakers strive only for ON-axis frequency response and pay too little attention to OFF-axis system response. Directivity Optimization, a new, proprietary approach to crossover design, significantly improves vertical axis response. More listeners on the extreme left and right can hear the spoken word better. Music in a restaurant or bar is more immersive and less directional. DOC avoids the lock-step “studio monitor” configuration that is less than optimal for longer-throw applications and creates a noticeably wider sweet spot that is perfect for speech throughout a room, patio or bar area.

  • Features:

    • 5" 2-way with D.O.C. design provides wide "sweet spot" coverage and full-range sound quality
    • Built-in 60W transformer allows 8 Ohm or selectable 70/100V operation

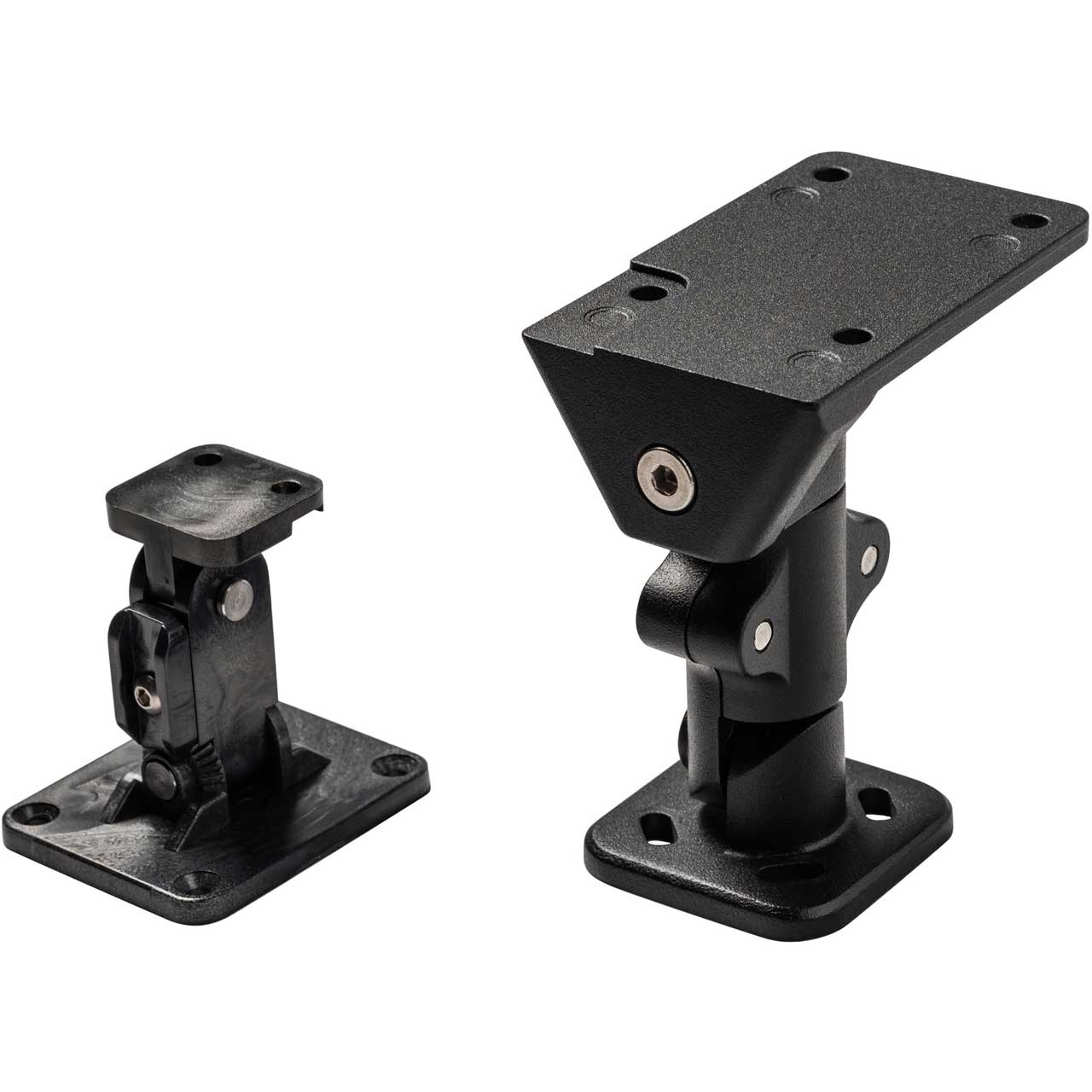

    • Highly adjustable wall-mounts for precise angle adjusted (supplied)
    • Speaker presets for Ashly DSP available for free download, providing easy sound optimization
    • IP54-rated for use both indoors and outdoors
    • Sold-in pairs

  • Specifications:

    • Speaker Type: Passive, 2-way
    • Frequency Response: 80Hz~19KHz (-10dB)
    • Power Handling (RMS):
      - 50W @ 8ω
      - 70V (30W/15W/7.5W/3.5W)
      - 100V (60W/30W/15W/7.55W
    • Impedance: 8ω
    • Sensitivity(2.83V/1M): 87dB
    • Max SPL: 104dB
    • Crossover Type: Passive
    • Crossover Slope:
      - HF – 18 dB/oct
      - LF – 12 dB/oct
    • Crossover Point: 2200Hz
    • Beam Width: 165"H x 160"V
    • Directivity Index: 5.6dB
    • Cabinet Material: Polypropylene
    • Grille Material: Steel (Painted)
    • Environmental: IP54

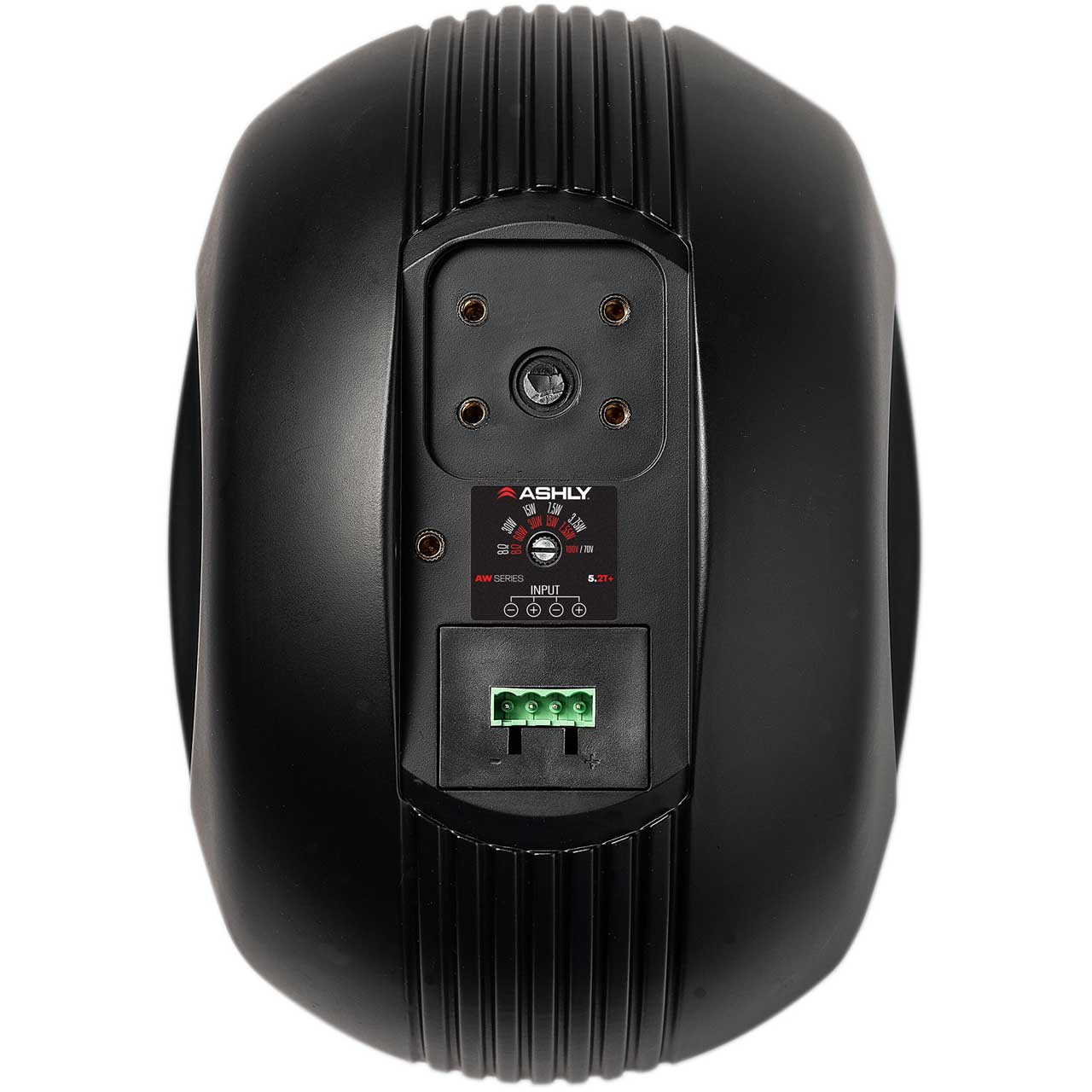

    • Input Connection: Removable 2-pole Euroblock
    • HF: .75” Silk Dometweeter
    • LF:
      - 5.25”, 1” voice coil
      - 8 oz magnet
    • Dimensions (WxHxD): 7.23 x 10.23 x 7.04"
    • Net Weight: 5.29 lbs
    • Supplied Accessories: Wall-Mount Bracket, Safety Cable

  • Item Includes:

    • Speaker wall-mounts
    • Safety tether
    • Removable Euroblock connector
    • Mounting screws
    • Adjustment wrenches

  • Warranty:

    • 5 Year Part & Labor

  • Applications

    :

    • Restaurants and Bars
    • Hearing Rooms
    • Exhibits
    • Schools
    • Auditorium Fill

  • GTIN:

    0694970004474
