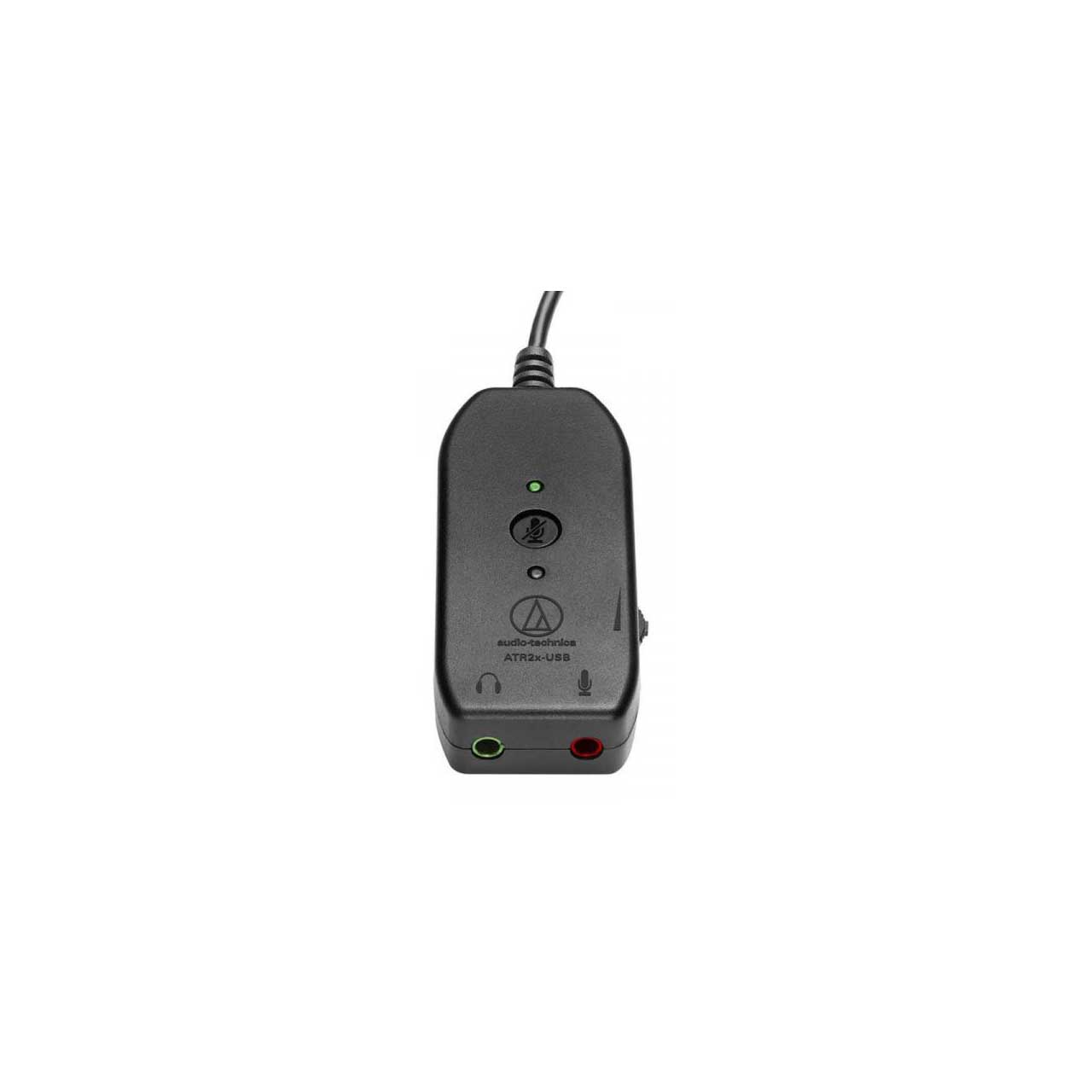

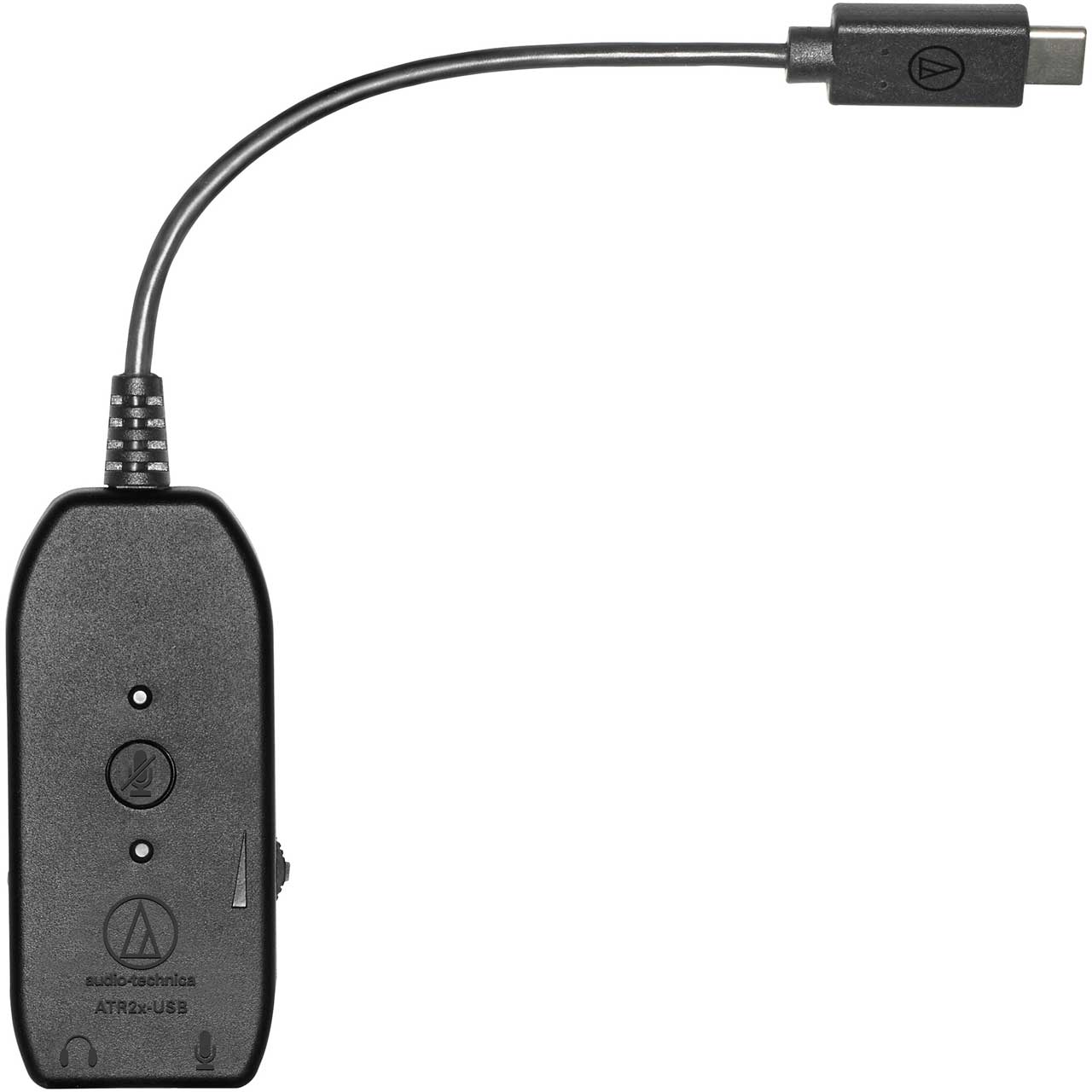

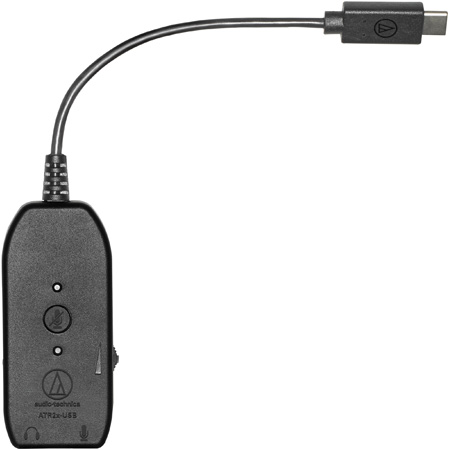

Audio Technica ATR2X-USB 3.5mm to USB Digital Audio Adapter

ATR2X-USB - Overview

• Features:

  • Analog-to-digital adapter for microphones, headphones, and headsets
  • Equipped with 3.5 mm (1/8") microphone and headphone inputs and a USB-C output
  • Mute button and volume control; USB-C full speed operation
  • Provides plug-in power for mics that require it
  • Includes USB-C to USB-A adapter


• Specifications:

  • Interface
  • Channels of I/O: Analog / USB: 1 Input / 1 Output
  • Max Sample Rate/Resolution: 48 kHz / 16-Bit
  • Input Level Adjustment: 1 x Knob
  • Display and Indicators: 1 x LED

    Connectivity
  • Host Connection: 1 x USB Type-C (USB 2.0), 1 x USB Type-A (USB 2.0)
  • Analog I/O: 1 x 1/8" / 3.5 mm Unbalanced Mic Input, 1 x 1/8" / 3.5 mm TRS Headphone Output

    Performance
  • Frequency Response: 20 Hz to 20 kHz ±1 dB
  • Headphone Output Power: 13 mW into 16 Ohms
  • SNR: 70 dB

    Digital Audio
  • Sample Rates: Up to 48 kHz
  • Bit Depth: Up to 16-Bit


• GTIN:

  0042005204915
