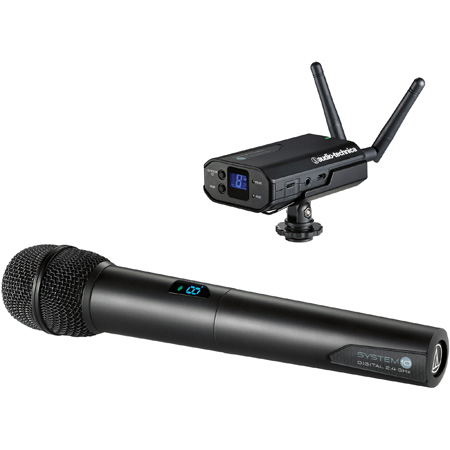

Audio-Technica ATW-1702 Portable Camera-Mount Digital Wireless System w/ ATW-T1002 Dynamic Unidirectional Microphone

ATW-1702 - Overview

• Features:

  • Digital 24-bit/48kHz wireless operation for ultimate sound quality and dependable performance
  • Operates in the 2.4GHz range - completely free from TV interference
  • Ultra compact receiver size with multiple mounting options
  • Selectable balanced and unbalanced output jacks with level control for use with most cameras and recording devices
  • Internal rechargeable 12 hour battery
  • Separate headphone port and volume control for local audio monitoring
  • Multi-pairing function to link a single receiver with up to eight body-pack or handheld transmitters
  • Three levels of diversity assurance: frequency, time & space
  • Automatic frequency selection for seamless, interference-free operation
  • Extremely easy operation with instantaneous channel selection, sync and setup


• Specifications:

  • Overall System Specifications
  • Operating Frequencies: 2.4GHz ISM band (2400 - 2483.5MHz)
  • Dynamic Range: >109dB (A-weighted), typical
  • Total Harmonic Distortion: <0.05% typical
  • Operating Range: 100ft radius, 200ft diameter typical, Open range environment with no interfering signals
  • Operating Temperature Range: 32°F - 104°F, Battery performance may be reduced at very low temperatures
  • Frequency Response: 20Hz - 20kHz, Depending on microphone type
  • Maximum Simultaneous Use (Recommended): 200ft minimum
  • Audio Sampling: 24 bits/48kHz

    Receiver Specifications
  • Receiving System: Diversity (frequency/time/space)
  • Maximum Output Level: 3.5mm, TRS balanced: +6dBV Dual mono, unbalanced: 0dBV
  • Power Supply: 100 - 240V AC (50/60Hz) to 5V DC 0.5A switched mode external USB-type external power supply
  • Battery: Internal Battery: 3.7V rechargeable Li-ion battery; Battery Rating: 5.5Wh; 1,460mAh
  • Battery Life: 12 hours, Depending on environmental conditions
  • Battery Charging Time: 4 hours 30 minutes, Depending on environmental conditions
  • Charging Temperature Range: 41°F - 95°F
  • Operating Temperature Range: 40°F - 110°F
  • Dimensions (HxWxD): 3.60" x 2.20" x 1.09"
  • Net Weight: 3.7oz

    Handheld Transmitter Specifications
  • RF Power Output: 10mW
  • Spurious Emissions: Following federal and national regulations
  • Batteries: Two 1.5V AA, not included
  • Battery Life: >7 hours (alkaline), Depending on battery type and use pattern
  • Dimensions: 10.03" long, 1.97" diameter
  • Net Weight: 9.9oz, without batteries


• Item Includes:

  • Two antennas

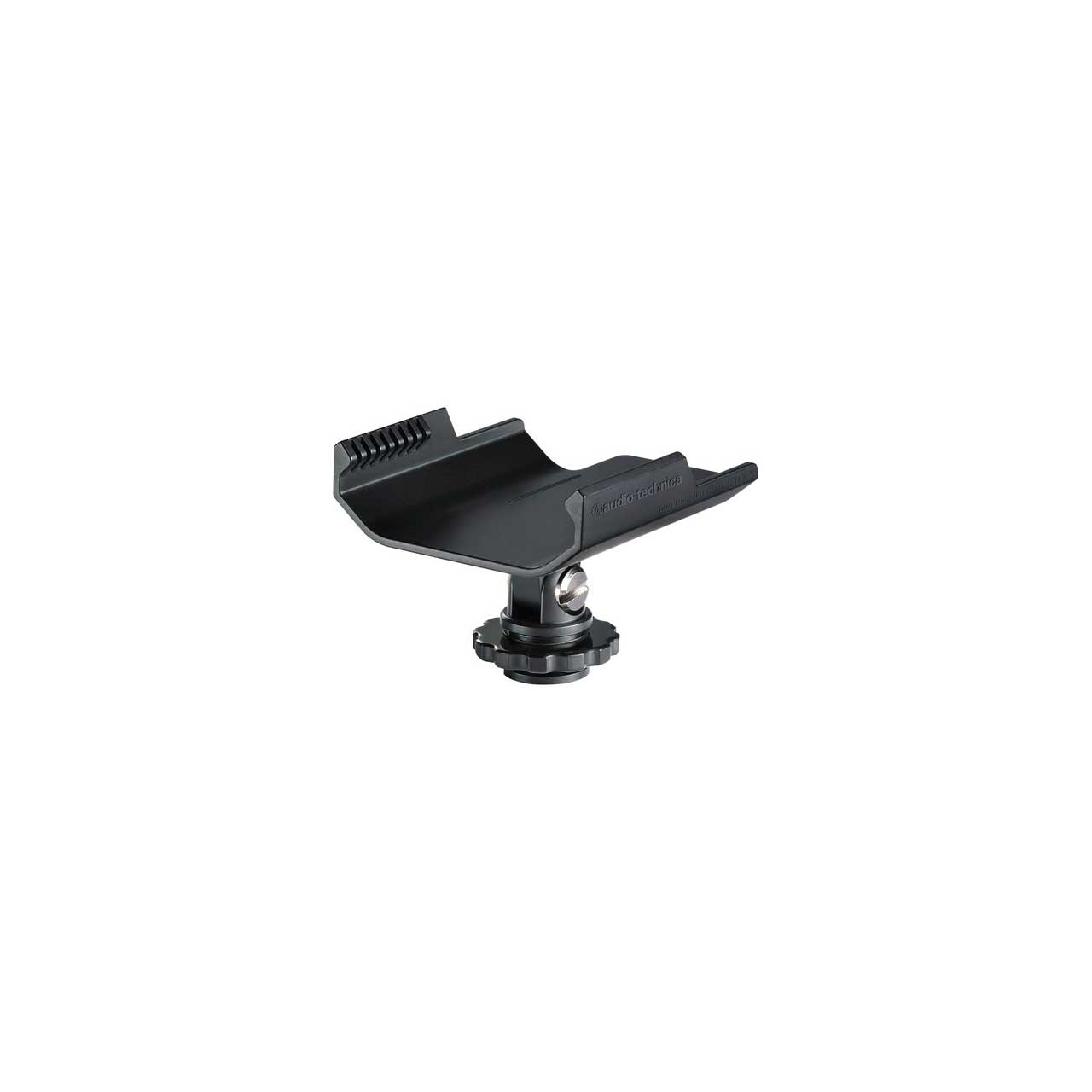

  • camera shoe mount
  • AC adapter (USB-type)
  • USB cable
  • 3.5mm stereo cable

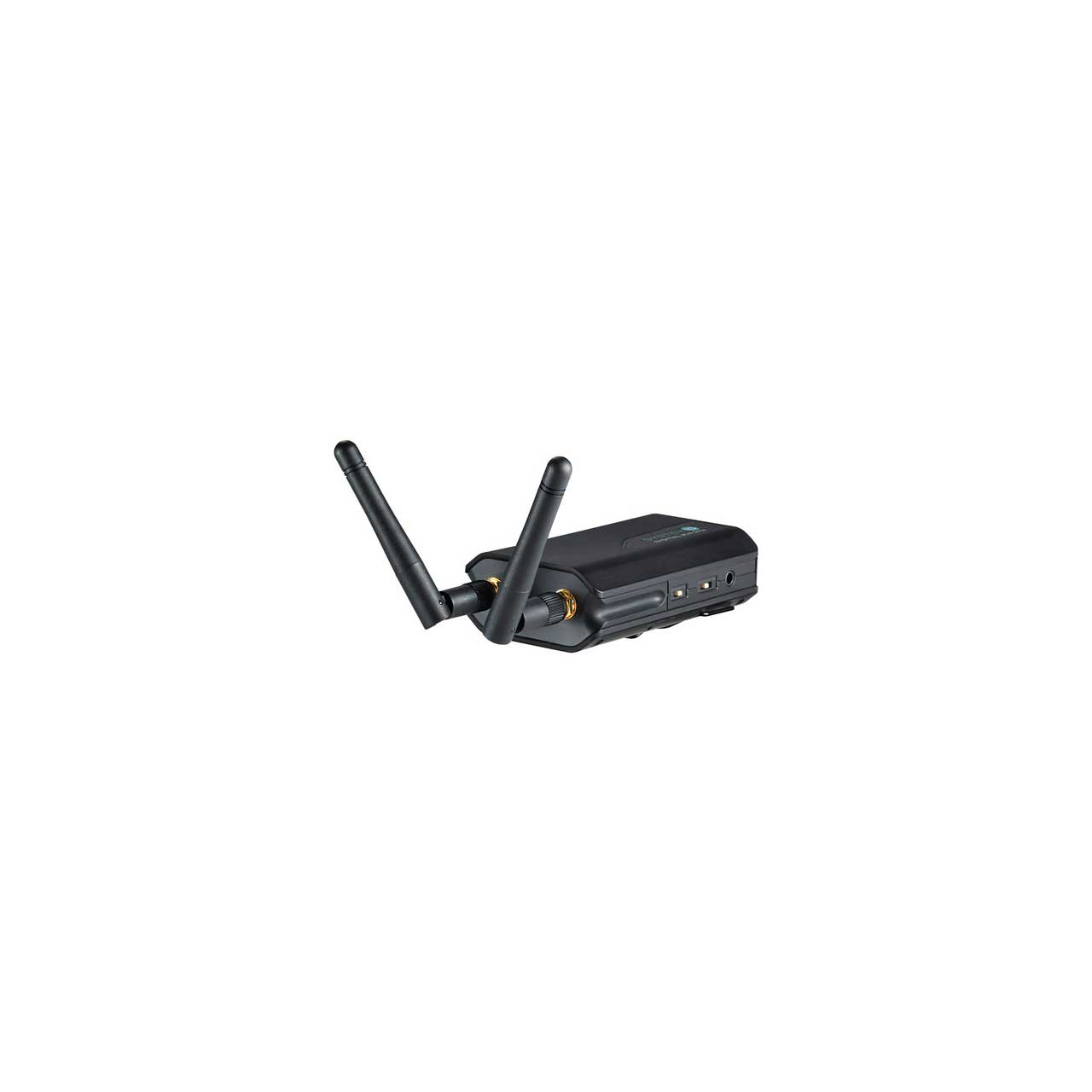

  • ATW-R1700 Receiver

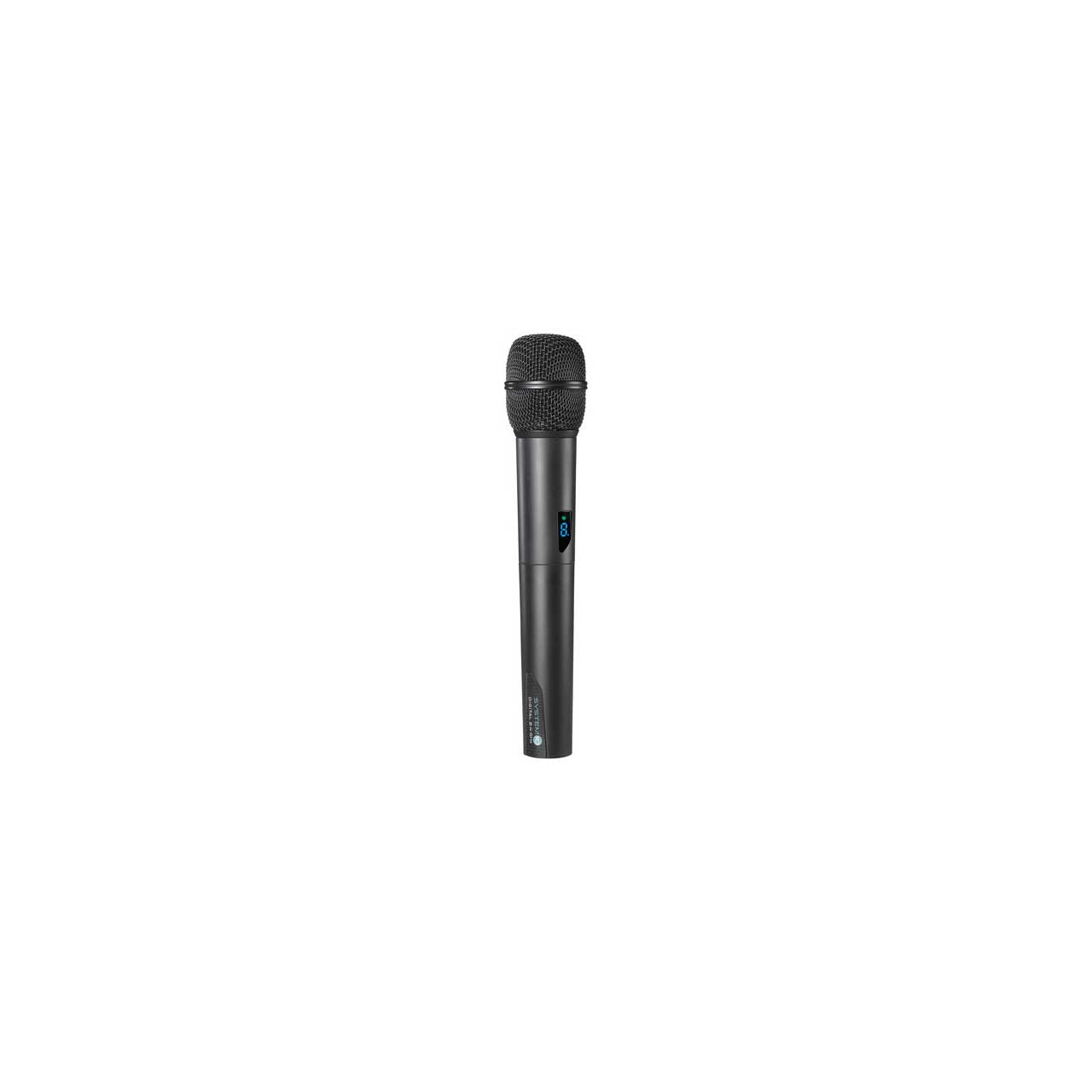

  • ATW-T1002 Handheld dynamic unidirectional microphone/transmitter
  • AT8456a Quiet-Flex™ stand clamp


• Warranty:

  • 2 Year Limited End-User


• GTIN:

  4961310127688
