Audio-Technica ESW-T4107/925C6 Engineered Sound Wireless Desk Stand Transmitter with ES925C 6-In Gooseneck Cardioid Mic

ITEM #: AT-ESWT4107925C6 MFG #: ESW-T4107/925C6

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order


We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


ESW-T4107/925C6 - Overview

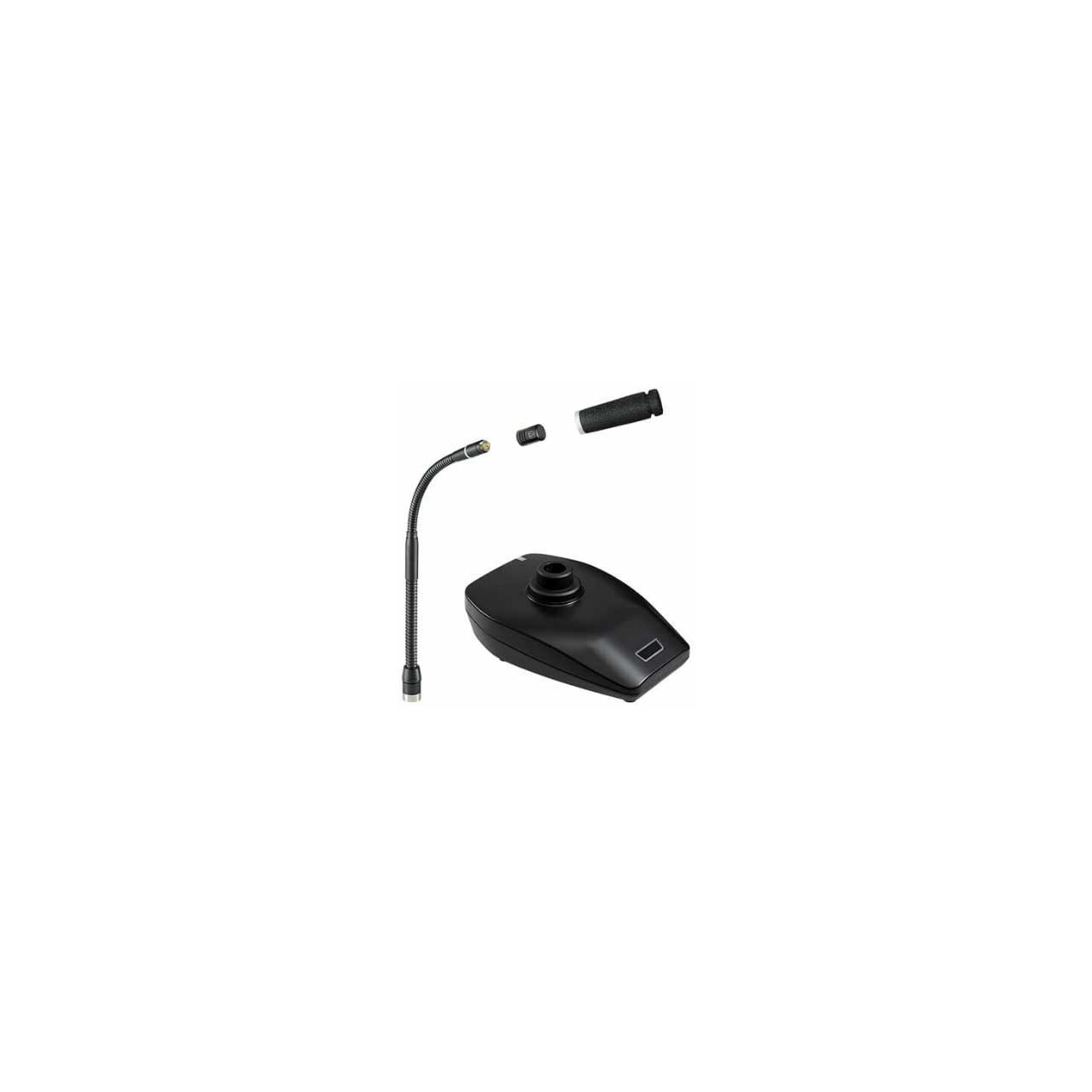

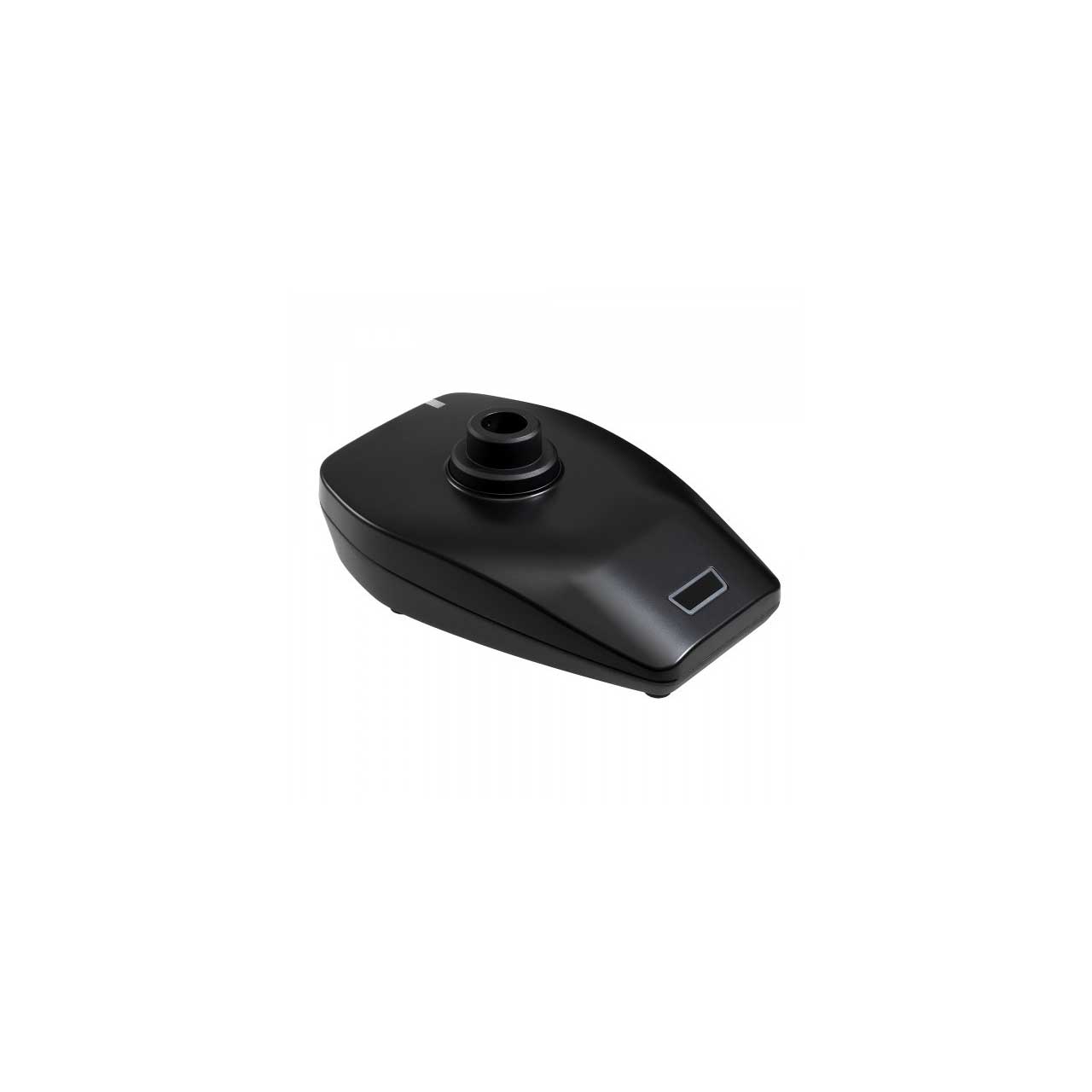

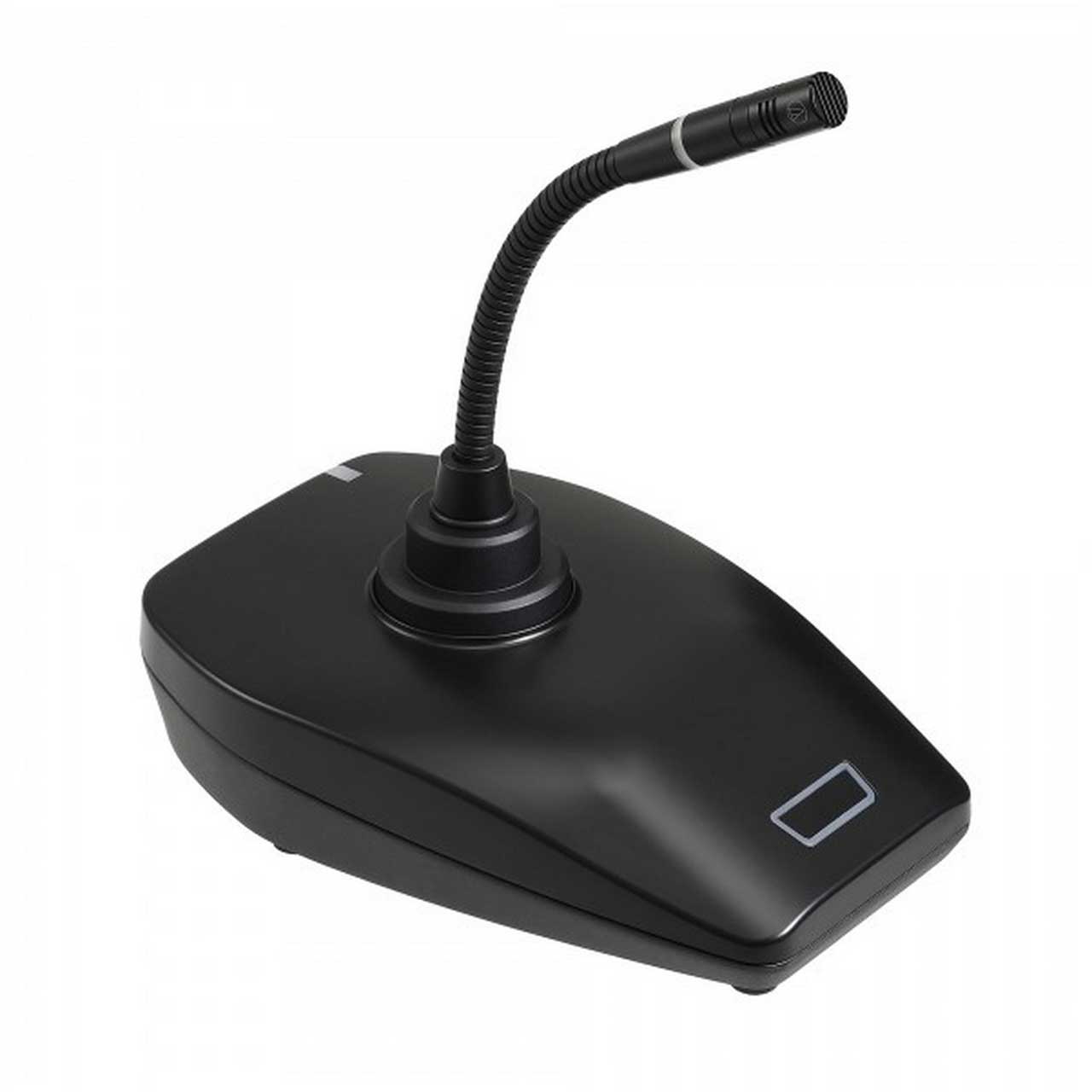

The compact ESW-T4107-925C6 Desk Stand transmitter with microphone is an optional component for use with Audio-Technica's Engineered Sound Wireless systems (sold separately). The transmitter comes with a 6" cardioid ES925 gooseneck microphone that delivers clear, present dialog capture with a moderate level of surrounding noise rejection. There's a two-state LED mute status indicator light on the top panel with seven selectable custom colors for at-a-glance verification. The transmitter supports use while charging via USB for always-on availability. ESW systems (sold separately) employ DECT automatic frequency management technology, so there's no channel programming necessary. Remove the transmitter from the charger (sold separately), and it's ready to deliver interference-free wireless audio performance.

  • Features:

    • 2-state RGB LED mute status indicator (7 selectable colors or off)
    • Microphone reflects mute status color selection

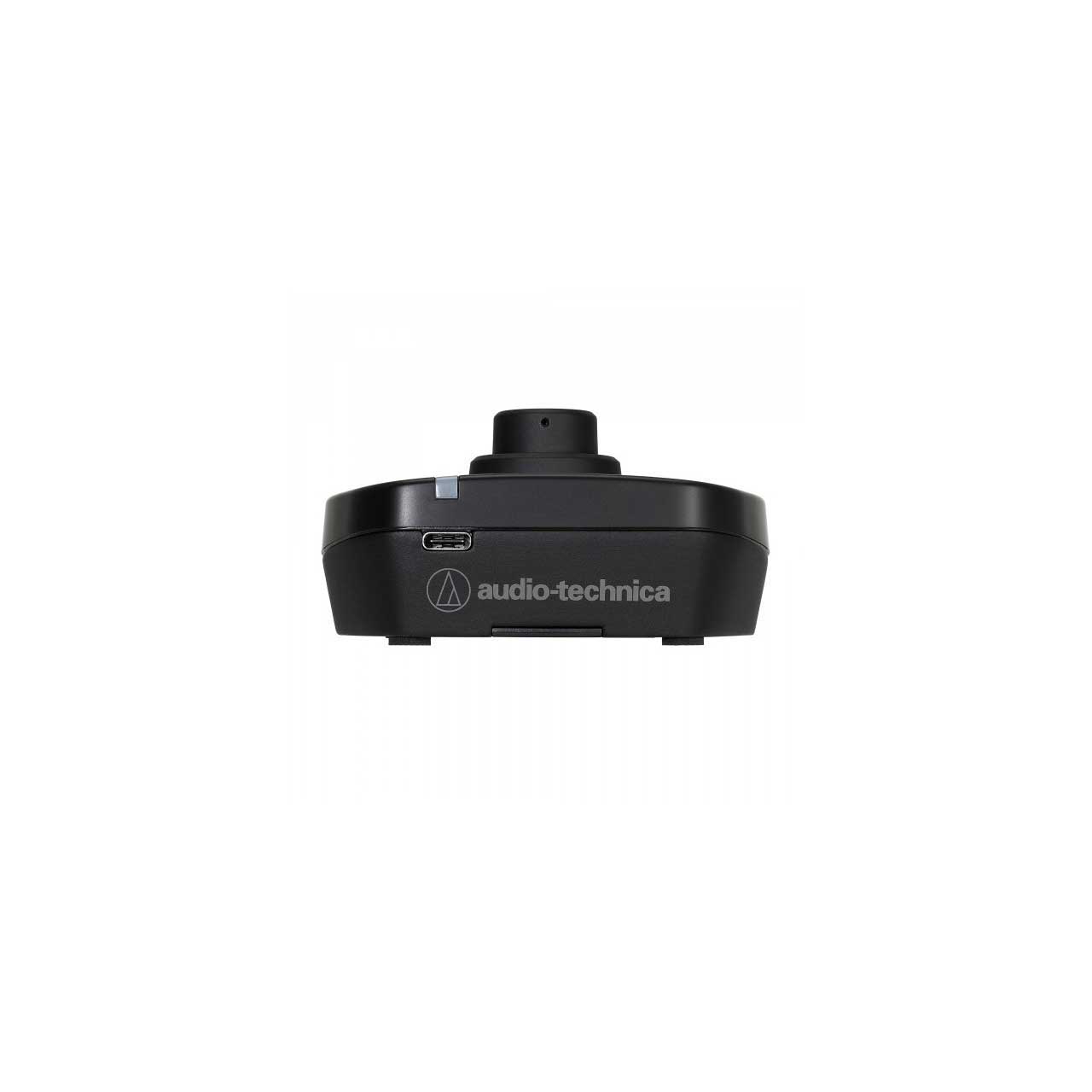

    • Transmitter can be used while charging via USB-C type connection
    • Selectable mute operation (toggle, touch-to-talk, or touch-to-mute)
    • Transmitter can be set to start either muted or unmuted
    • Interchangeable ESW system microphone
    • Cardioid pickup pattern for a moderate degree of isolation

  • Specifications:

    • ESW-4107 Specs
    • Modulation Mode:
      A-field: Π / 2-BPSK
      B-field: Π / 4-QPSK
    • Microphone: ES Series modular gooseneck microphone-compatible
    • Battery: Lithium-ion battery LI-220 (included)
    • Battery Life: 17 hours, This varies depending on usage conditions.
    • Charging Time(USB): Approx. 2 hours 40 minutes, This varies depending on usage conditions.
    • USB Charging Connector: USB Type-C (USB 3.0)
    • Operating Temperature Range: -5° to +45°C (23° to 113° F)
    • Dimensions (WxDxH): 90.5 mm (3.6") x 129.4 mm (5.1") x 47.4 mm (1.9")
    • Weight (with battery): 535 g (19 oz)

      ES925 6-Inch Cardioid
    • Element: Fixed-charge back plate, permanently polarized condenser
    • Frequency Response: 30-20,000 Hz
    • Low Frequency Roll Off: 80 Hz, 18 dB/octave
    • Open Circuit Sensitivity: -40 dB (10.0 mV) re 1V at 1 Pa
    • Maximum Input Sound Level: 140 dB SPL
    • Dynamic Range: 112 dB
    • Signal-to-Noise Ratio: 66 dB
    • Phantom Power Requirements: 22-52V DC
    • Switches:
      Activation: on/off; LED Color: mic on, mic off;
      Switch function: touch on/off, momentary on, momentary off;
      Control: local, remote, LED remote; Flat, roll-off
    • Current Consumption: 8 mA
    • Weight: ES925C6/DS5: 674 g (23.8 oz)
    • Dimensions: ES925C6/DS5: 97.0 mm (3.82") W x 130.0 mm (5.12") D x 150.6 mm (5.93") H
    • Output Connector: TB5M-type
    • Pickup Pattern: ESE-Ca cardioid (120°)


ESW-T4107/925C6 - Required Accessories
