AtlasIED AS-10ST-W AS Series 10-Inch Weather Resistant Surface Mount 1200 Watt Subwoofer - Passive - White

ITEM #: ATL-AS-10ST-W MFG #: AS-10ST-W

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$900.00

Our Price:

$720.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    AS-10ST-W - Overview

    The AtlasIED AS-10ST is a high-performance direct radiating subwoofer, designed to extend low frequency response, and increase system headroom in conjunction with AtlasIED AS Series of full range loudspeakers. Ideal for applications where durability, modern, understated aesthetics, and outstanding sonic performance are prerequisites.

    Featuring a high excursion weather treated 10" woofer with highly damped butyl rubber surround, the AS-10T delivers consistent impactful bass.

    Complimenting the form factor of AS Series full range loudspeakers, the AS-10ST is available in textured black or white. The outstandingly durable and scuff resistant, high impact ABS enclosure with UV inhibiter is weather resistant (IP55), for consistent performance in adverse conditions, both indoors and out.

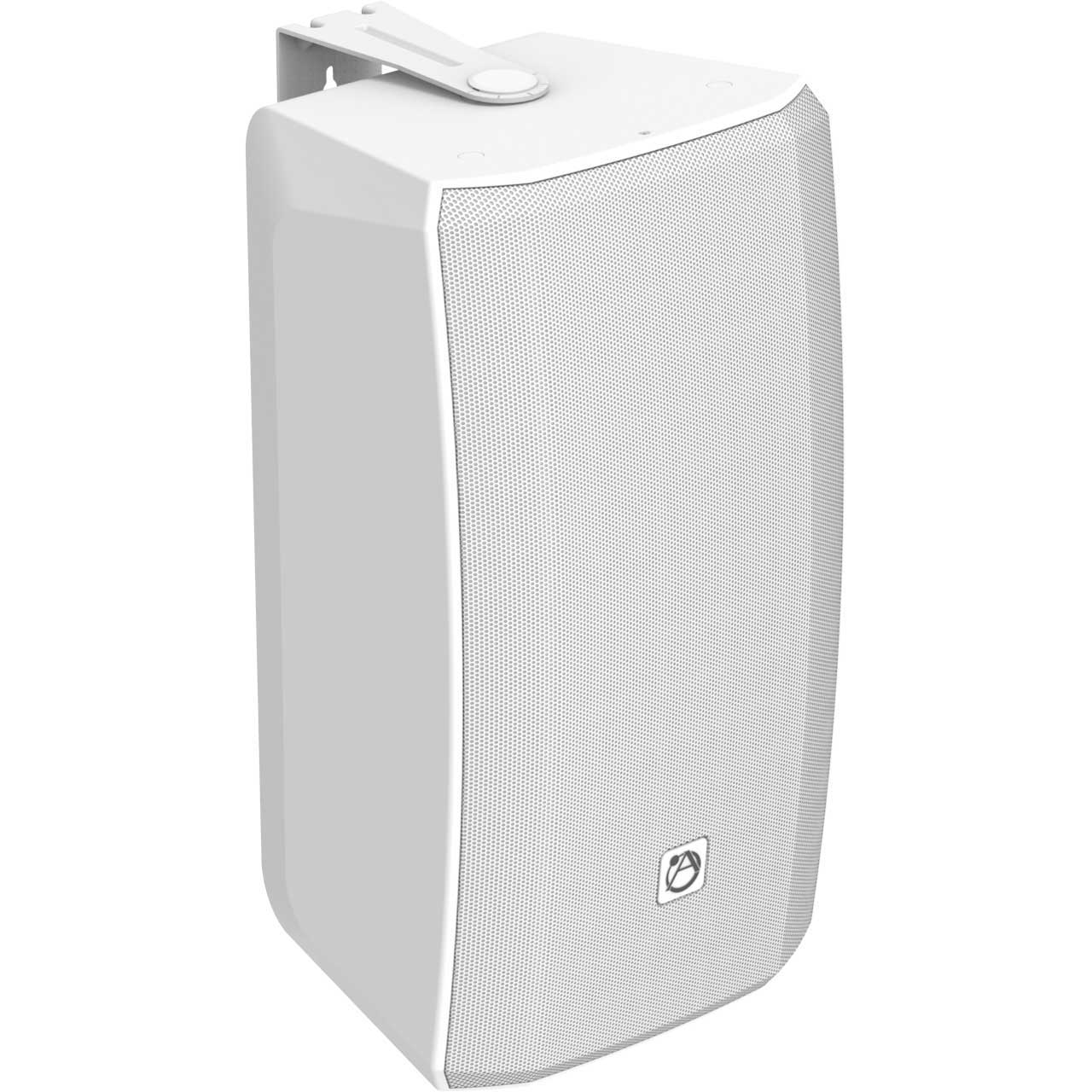

    Safe and effective Installation of the AS-10ST is made simple by way of the included slip free yoke mount.

    Equipped with a low insertion loss 200W transformer for 70V or 100V distributed applications, wattage tap selection and low impedance bypass is easily configurable via a rear mounted slide selector switch with security cover.

    • Features:

      • Minimalistic and clean industrial design for sensitive architectural constraints
      • Effective foreground coverage for systems with space limitations
      • Ultra-low insertion loss 200W transformer for dynamic performance in distributed systems
      • High impact ABS enclosure with UV inhibitor
      • IP55 & UL1480A rated
      • Slip-Free yoke mount supplied.
      • Advanced tunings available via AtlasIED Atmosphere DSP platform

    • Specifications:

      • System Specification
      • Type: Direct Radiating Subwoofer
      • Frequency Range (-10dB): 34Hz-800Hz
      • Frequency Response (+/- 3dB): 43Hz-600Hz
      • System Sensitivity (1W @ 1m): 93dB
      • Nominal Coverage Angle (HxV -6dB): Omnidirectional

        Power Handling
      • Average: 300W
      • Programme: 600W
      • Peak: 1200W
      • Recommended Amplifier Power: 600W @ 4 Ohms
      • Nominal Impedance: 4 Ohms (Min 4.9 Ohms)

        Rated Maximum SPL
      • Average: 118dB
      • Peak: 124dB
      • With Max. Transformer Tap - Average: 116dB
      • Transformer Taps- via slide selector switch: 200W, 100W, 50W ( 25W 70V) & Low Z operation
      • Directivity Index (dB): N/Amplifier

        Transducers
      • Low Frequency: 10" (250mm) Weather Treated Paper, Butyl Rubber Surround

        Physical Specifications
      • Enclosure: High Impact ABS UL-V0
      • Grille Material: Aluminum, Powder Coated
      • Connectors: Euroblock with screw connections and loop output
      • Safety Agency Rating: UL1480A, CE
      • Ingress Protection: IP55
      • Operating Temperature: -40°F to 140°F (-40° C to 60° C)
      • Environmental Testing: Conforms to MIL-STD-810 for salt spray & humidity
      • Product Dimensions (HxWxD): 23.4" x 12.25" x 11.74" (594.4mm x 311.2mm x 298.2mm)
      • Net Weight - (per unit): 35.27 lbs (16.0kg)

    • Item Includes:

      • 1x AtlasIED AS-10ST-W 10-Inch AS Series Surface Mount Subwoofer - White
      • 1x Slip Free U-Bracket

    • Warranty:

      • 5-Year Limited Warranty
