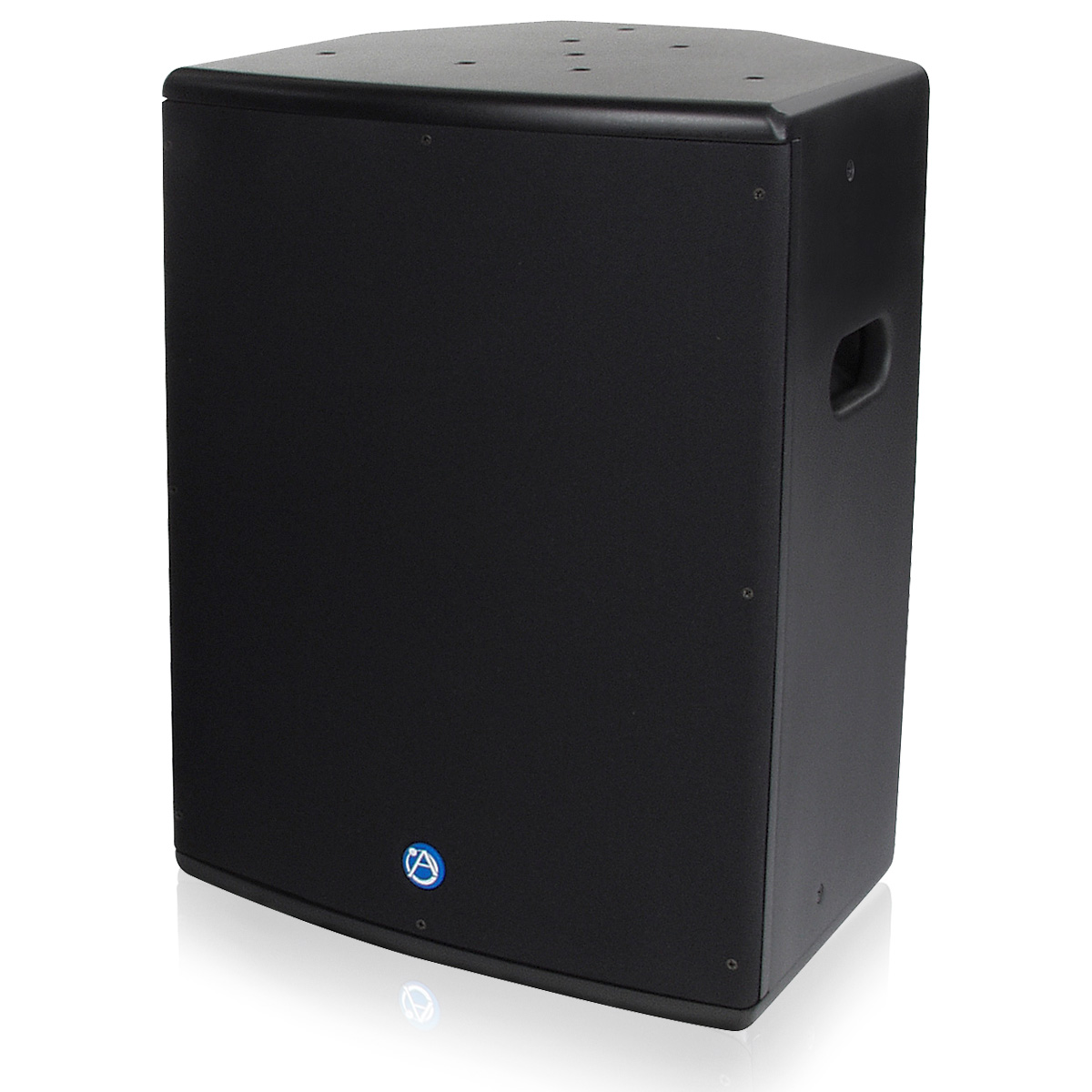

The AtlasIED SM12SUB70 is designed for 8O and 70.7V distributed audio applications where low frequency enhancement is desired. This model features a unique compact cabinet design with multiple 1/4"-20 inserts to allow easy suspension or wall mounting.
The SM12SUB70 includes a built in 18dB / octave three-pole passive crossover network coupled to a long-excursion 12" woofer housed in multi-angle wood enclosure system. The passive crossover eliminates the need for a separate crossover or dedicated amplifier to power the loudspeaker.
A premium 70.7V transformer allows the SM12SUB70 to be paralleled with any 70.7V commercial audio system to provide extended low frequency response and more overall audio impact for foreground music systems.
(Unit is also 8ohm compatible).
