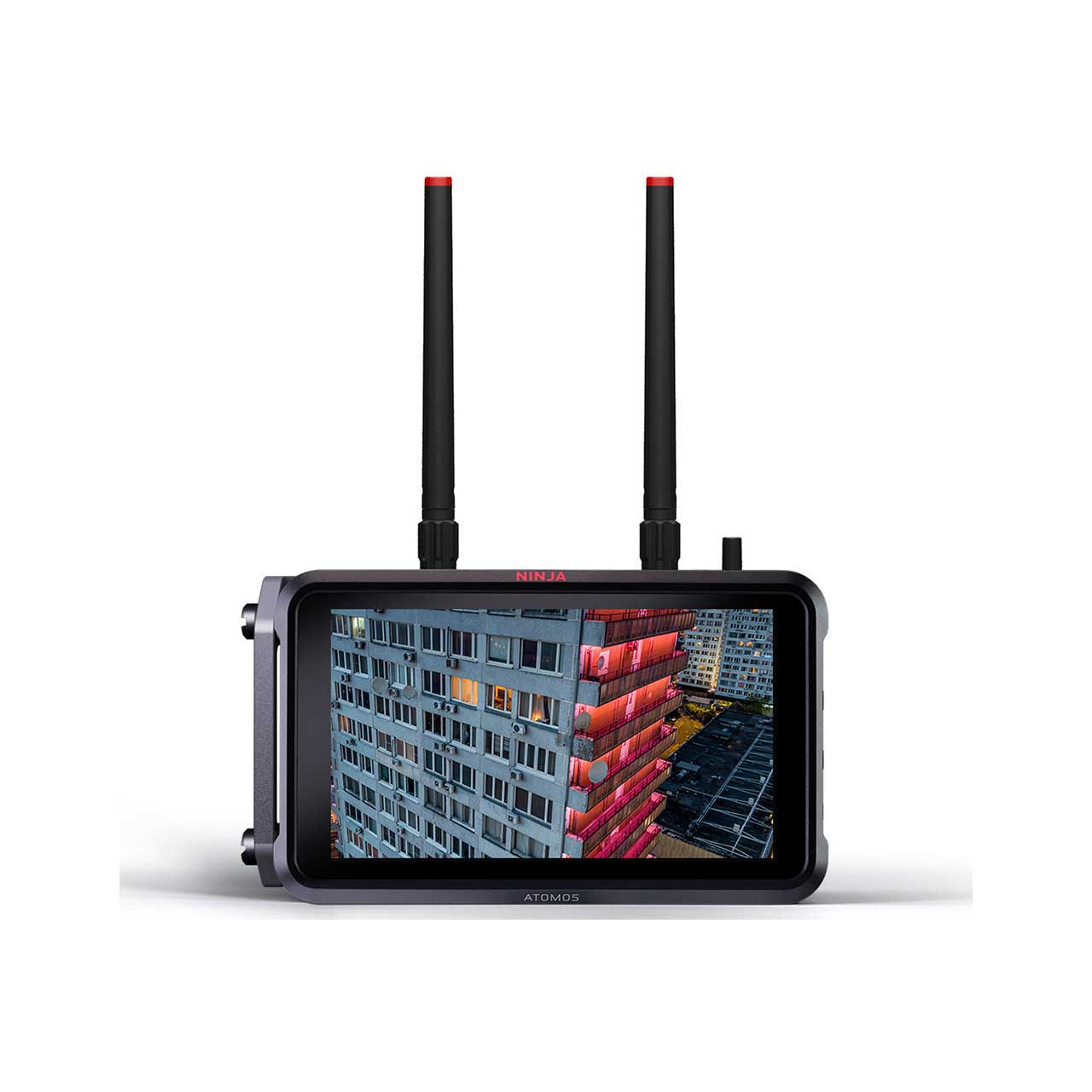

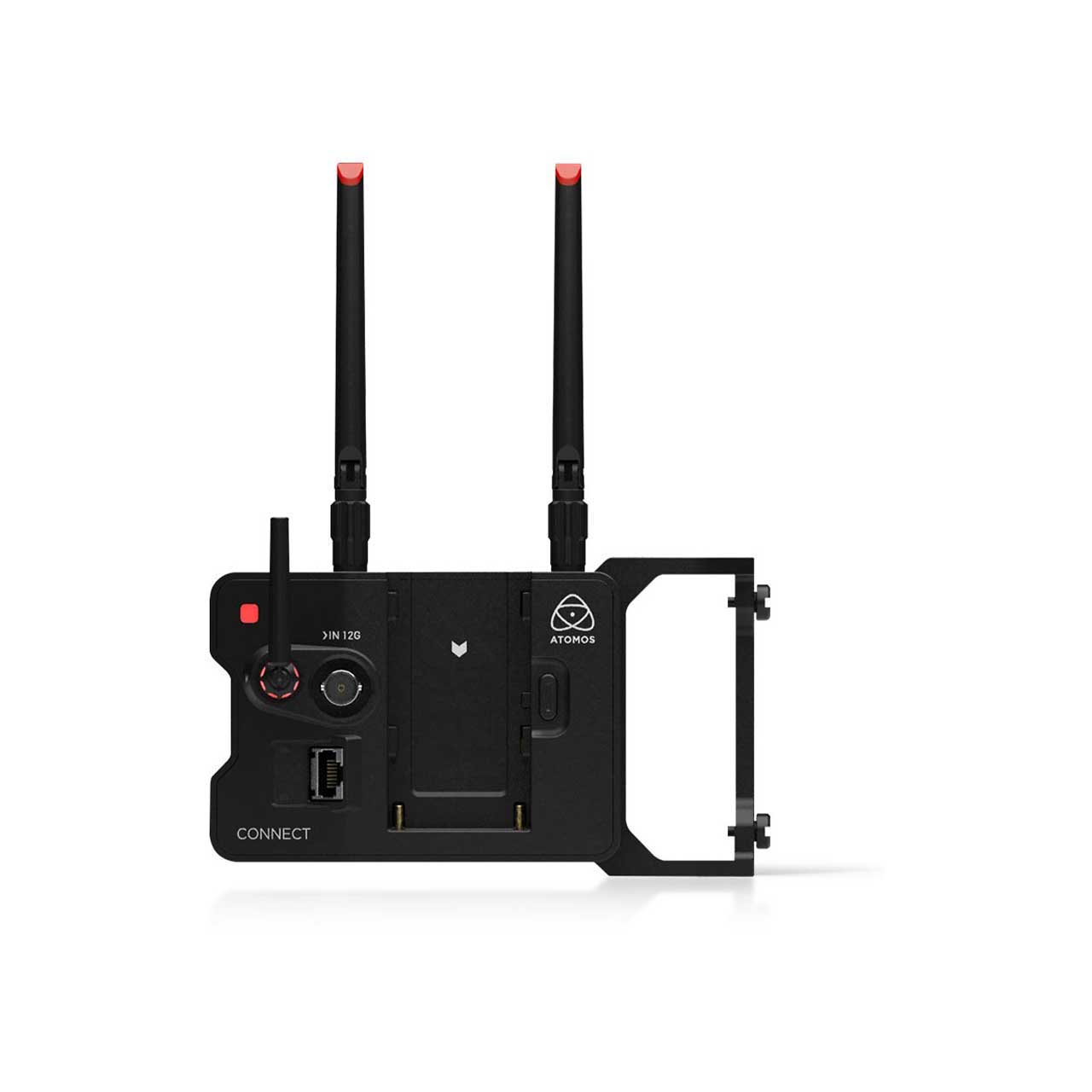

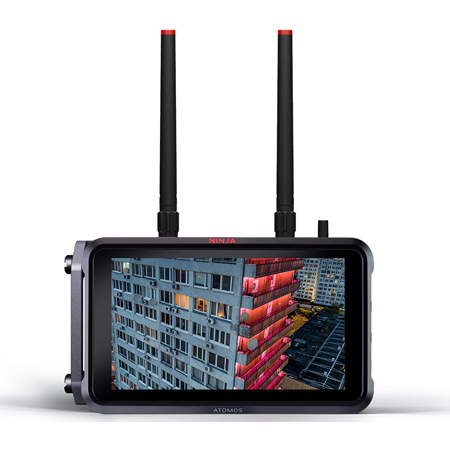

Atomos ATOMCON003 CONNECT Network - Wireless Streaming & SDI expansion for NINJA V & V+

ATOMCON003 - Overview

• Features:

  • CONNECT your NINJA V and NINJA V+ to ATOMOS Cloud Studio
  • Livestream to Facebook Live, Twitch, YouTube, and more, directly from your network-connected device
  • Wi-Fi 6 provides high performance wireless connection and the ability to connect to a mobile hotspot
  • 1GbE Ethernet for high-speed robust hardwired network connection
  • 12G SDI IN with support for video 4K up to 60fps, with option for upgrade to support SDI RAW (Resolution and frame rate are device dependant)
  • Long range ATOMOS AirGlu™ sync technology for wireless timecode via RF and Bluetooth LE
  • Flexible power option NPF battery power or DC input via battery eliminator (support for DC to D-Tap cable)?
  • Link and control monitor assist tools via the AtomRemote iOS app


• Specifications:

  • Physical Specifications
  • Dimensions (WxHxD): 3.4 x 5.9 x 2.11"
  • Weight without Battery: 0.5Lbs
  • Mount Points: 2 x Thumb screws to mount to NINJA

    Environmental
  • Operating Temperature: 32° to 104°F

    Construction & Control
  • Body: ABS Polycarbonate
  • Tally Light: Yes

    Power
  • Input Voltage Range: 6.2 - 16.8v
  • Compatible Batteries: NP-F / L-Series
  • DC In Connector: via locking DC Jack on Battery Eliminator (5.5mm OD & 2.1mm ID)
  • D-Tap: Via optional D-Tap to DC cable

    Video Input
  • SDI In: 1 x 12G SDI
  • SDI RAW: Optional Upgrade Activation - Resolutions & Frame rate Support is NINJA Dependent

    Network
  • Ethernet: 1GbE RJ45
  • Wi-fi: WI-FI 6
  • Wireless RF: AirGlu SYNC Time code Network
  • Cellular: Connect to Hot Spot via Wi-Fi

    Web Streaming
  • RTMP: Yes
  • RTMP/S: Yes

    Video Signal Conversion
  • HDMI to SDI: No
  • SDI to HDMI: Yes, via NINJA

    Timecode / Sync
  • SDI Embedded: Embedded
  • Wireless SYNC: AirGlu™ SYNC Time code Network
  • RF Network Range: 300m
  • RF Frequency: Region dependant
  • Number of Channels: 12 RF Channels per Region
  • Number of RF Clients: 100 clients
  • Bluetooth Network Range: 10-15m (line of sight)
  • Number of BT Clients: 6 clients per device
  • LTC: No BNC input


• Item Includes:

  • 1x ATOMOS CONNECT
  • 1x AtomX SSDmini Handle
  • 1x MasterCaddy III with screws
  • 1x Wifi Antenna with Black caps
  • 1x RF antenna, Antenna storage Pouch
  • 1x 3.5mm audio jack to jack cable
  • 1x Antenna colored caps
  • 1x Antenna mount covers


• Warranty:

  • 1 Year Warranty


• GTIN:

  0814164022712
