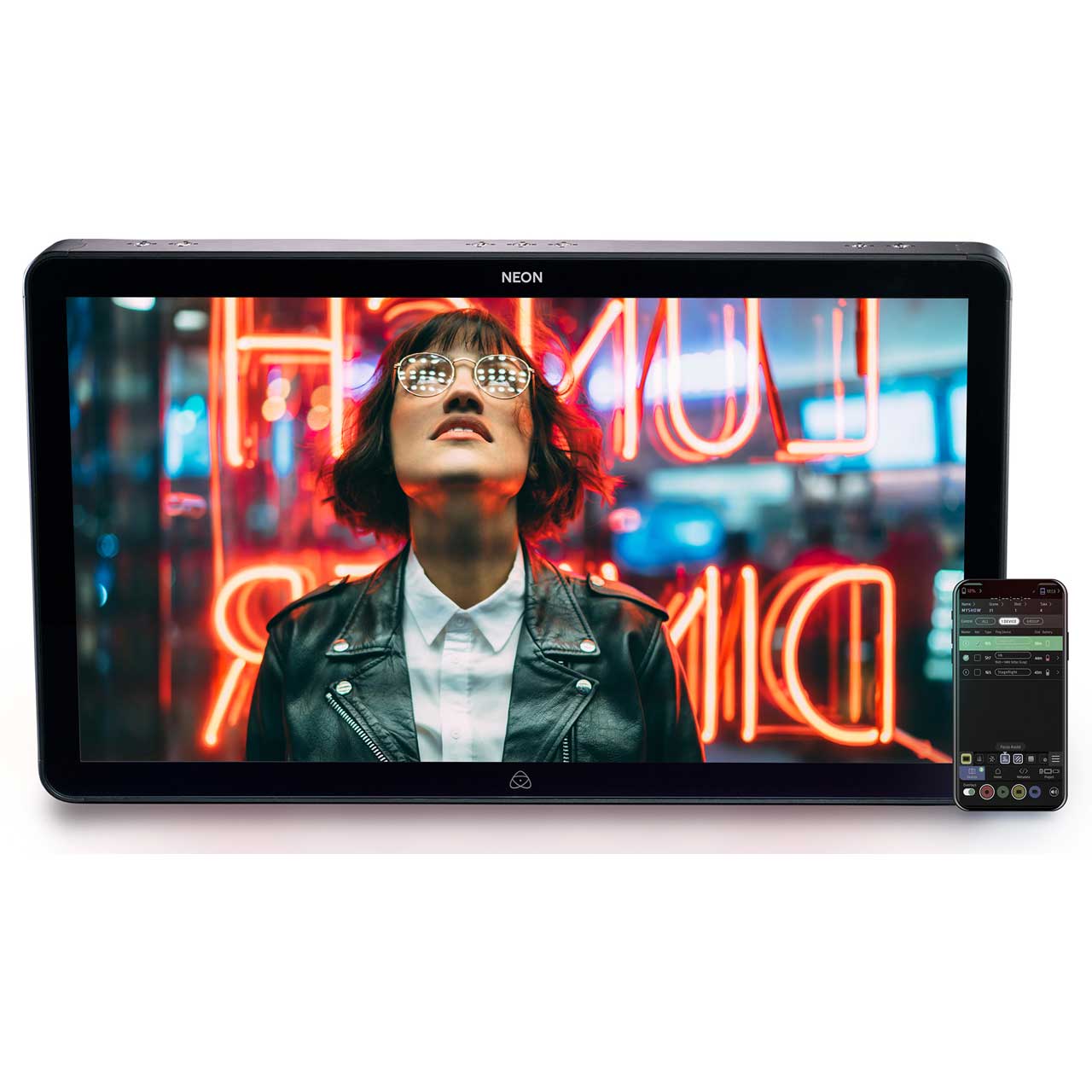

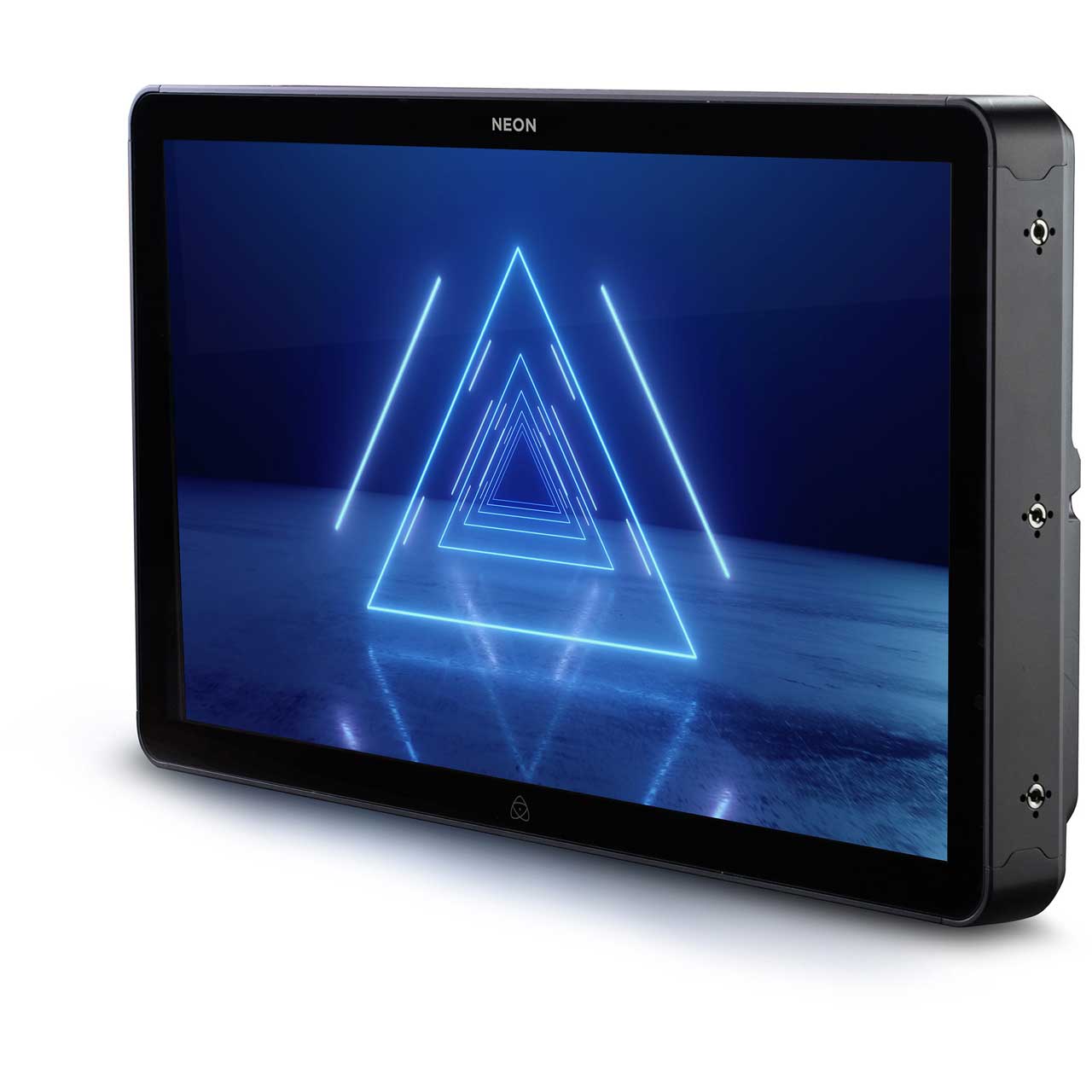

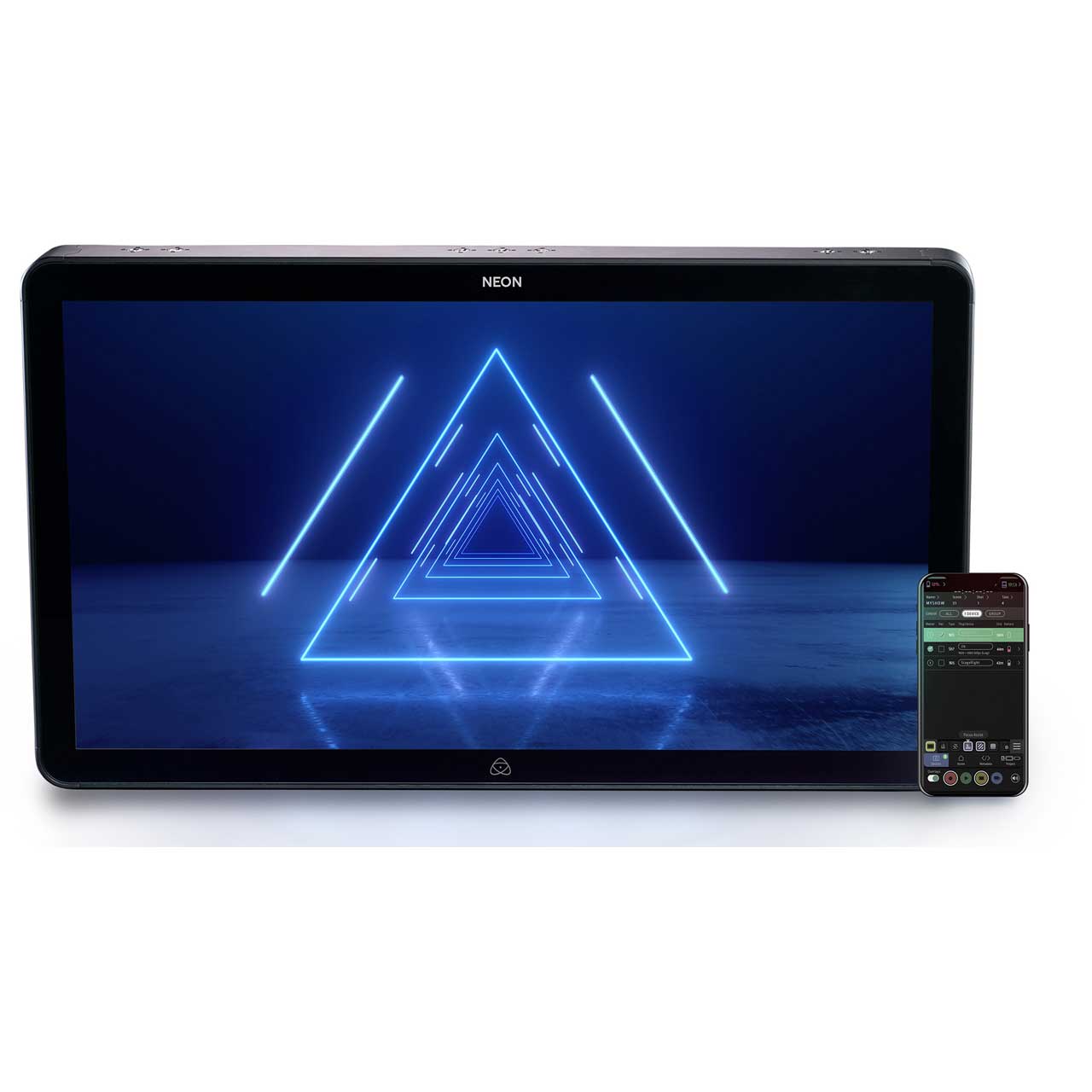

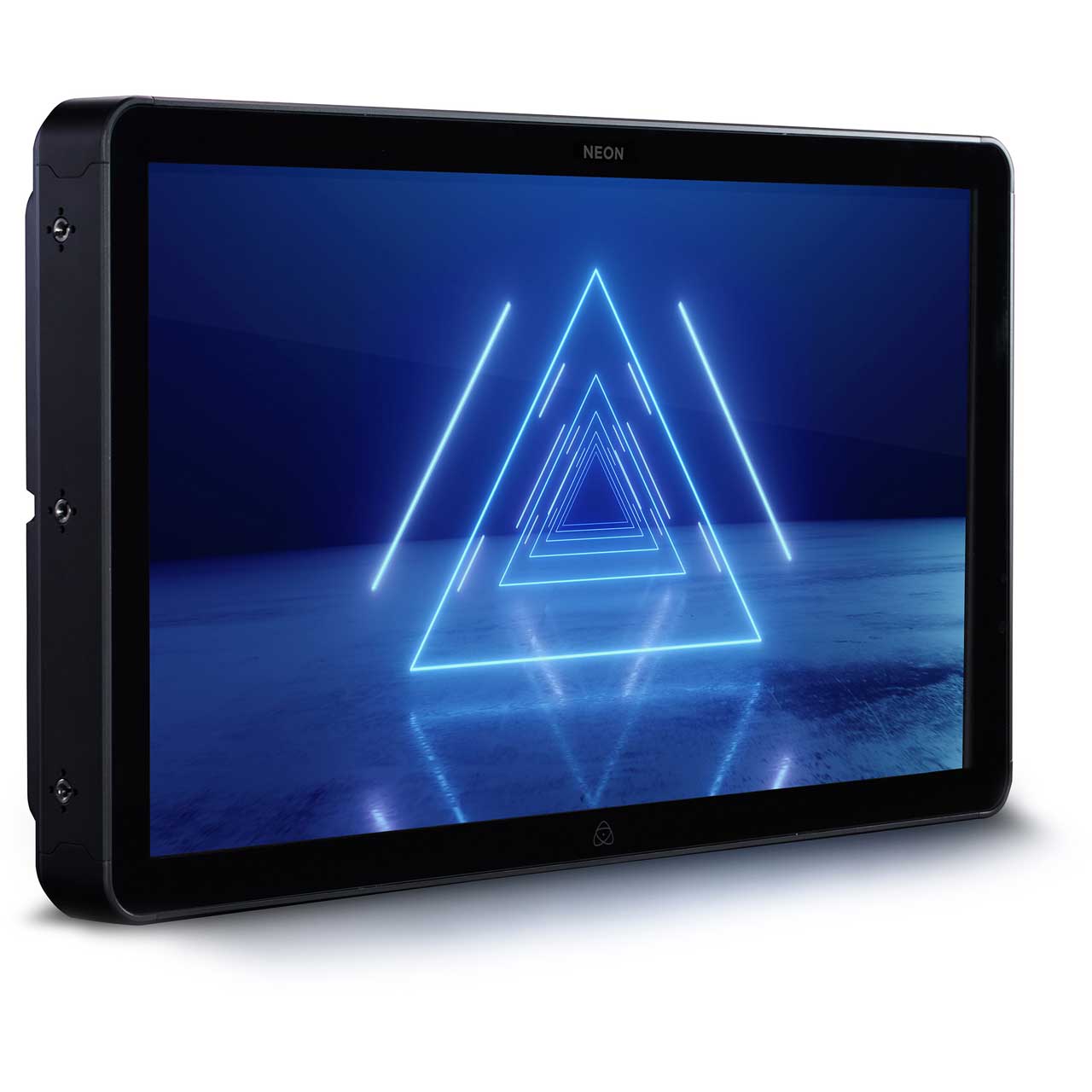

Atomos ATOMNEO171-US Neon 17-Inch Monitor - 2048x1080 Resolution

ITEM #: ATO-ATOMNEO171US MFG #: ATOMNEO171US

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,499.00

Our Price:

$1,499.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ATOMNEO171US - Overview

The Atomos ATOMNEO171US is part of the Neon series and is the beginning of a new journey for filmmakers by bringing together traditional filmmaking roles and pairing it with Atomos innovation and technology. We do this by combining RAW recording with cinema display technology for monitoring, on-screen production checking and review of creative intent, story flow and matching continuity between scenes. Neon streamlines the creative workflow from lens to viewing. We have adopted industry standard formats like ProRes RAW from major camera makers enabling the performance of ProRes and the flexibility of RAW into cinema productions and built for computer finishing. Neon performs real-time Dolby Vision processing to enable down-stream viewing on any Dolby Vision capable TV or monitor. The upshot is an on-set computer replacement merged with an ecosystem of field monitors that saves the creator time by allowing them to make more decisions in the moment of recording, playback, monitoring and editing.

  • Features:

    • 17" 16:9 FHD 1920 x 1080 display with DCI P3 wide gamut and with 1,000,000:1 Dynamic contrast ratio
    • 1000 Nits of full screen brightness
    • HDR with Dynamic Full Array Local Dimming (FALD) to achieve full panel uniformity and deep blacks
    • AtomHDR Display colour pipeline management for LOG to PQ (HDR10), HLG with 3DLut for SDR workflows
    • Support up to 4k60p via HDMI 2.0 or 12G SDI with 10Bit signal
    • Anti glare screen coating, with a wide viewing angle 178 degrees Horizontal and Ve rtical enables colour uniformity
    • HD and 4k image processing allows for 4k images to be scaled for HD display and the output with DCI Crop or Down convert to HD
    • AtomRemote OS provides control of all NEON functions from iOS via Bluetooth*
    • Factory calibrated with adaptive modes to match input settings. Simple Automated Calibration Application with support for Xrite i1Display Pro Plus
    • Image Quality 0.01 cdm2 / Nits Black Level. 1000 cdm2 / Nits full screen back light. 99.99% pixel efficiency . ISO 13406-2 Type 2 classification
    • *iOS Running iOS12

  • Specifications:

    • General
    • Neon 17 Weight: 9.92Lbs
    • Master Control Weight: 0.66Lbs
    • Dimensions (WxHxD): 16.26x9.96x2.81"
    • Master Control Unit: 5.94x3.60x1.22"
    • Construction: Aluminum alloy chassis w/ABS Polycarbonate back plate
    • Mounting Points: Full ARRI compatible, 3 Left, 3 Right, 7 Top, 7 Bottom VESA Mount
    • Operating Power: 10-22W TBC
    • Power Adapter: TBC
    • Size: 17"
    • Resolution/PPI: 2048x1080/142ppi
    • Aspect Ratio: 17:9
    • Color Gamut: DCI-P3 100% Coverage, D65 or D93 White Point, Calibrated
    • Look Up Table (LUT) Support: 1D/3D LUTs (.cube format)
    • Anamorphic De-Squeeze: 2x, 1.5x, 1.33x, Panasonic 4:3
    • Calibration: Calibration to DCI-P3 with optional calibration unit
    • User Interface: iOS App via Bluetooth, IR Remote control of focus peaking, exposure, calibration, zoom, waveform monitor, RGB monitor, vector scope

      Dynamic AtomHDR Technology
    • Backlight: Direct LED
    • Zones: 128 direct backlight individual LEDs
    • LEDs: Wide Color Calibrated D65 or D95
    • Bit Depth: True 10bit
    • Color: DCI-P3 100% coverage
    • Brightness: 1000nit (±10%)
    • Control: Dynamic backlight control
    • HDR Conversion: Log/RAW to HLG or PQ

      HDR Monitoring Technology
    • HDR Monitoring: Log/RAW to HLG or PQ
    • SDR Monitoring: Native Rec.709, Log/RAW to Rec.709
    • Supported Input Log/Gamma: Sony: SLog/SLog2/SLog3, Canon: CLog/CLog2/Clog3, ARRI: Log CEI160/LogCEI200/LogCEI250/LogCEI320/LogCEI400/LogCEI500/LogCEI640/LogCEI800/LogCEI1000/LogCEI1280/LogCEI1600, Panasonic: Vlog, JVC: JLog1, RED Log3G10/RED LogFilm, FujiFilm: F-log, PQ1000 up to PQ10,000, HLG
    • Supported Input Log/Gamut: Sony: SGamut/SGamut3/SGamut3.cine, Canon: Cinema/DCI P3/DCI P3+, Nikon: NLog, Panasonic: V Gamut, Arri: Alexa Wide Gamut, Rec709/BT.2020, JVC, RED WideGamut/RED DragonColor/DragonColor2/RED Color2/RED Color3/RED Color4
    • Supported Input RAW/Gamma: Sony: SLog/SLog2/SLog3, Canon: CLog/CLog2/Clog3, Panasonic: Vlog, Sony: SGamut/SGamut3/SGamut3.cine, Canon: Cinema/DCI P3/DCI P3+, Nikon: NLog, Panasonic: V Gamut, Video Output: Rec.709, HLG, PQ, LUT
    • Video In/Output Loop Out: HDMI: 1x HDMI 2.0b, SDI: SDI Expansion Module required 2x config. BNC, Signal: Up to uncompressed true 10bit

      Video Signal Conversion
    • HDMI-HDMI: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120, 4kUHD/4kDCI 24/25/30/50/60
    • SDI-SDI Expansion Module required: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120, 4kUHD/4kDCI 24/25/30/50/60
    • HDMI-SDI: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120, 4kUHD/4kDCI 24/25/30/50/60
    • Note: No simultaneous HDMI out possible
    • Dolby Vision Tunneling: Selectable on HDMI

      Supported Codecs & Frame Rates (Record & Playback)
    • Video to ProRes/DNxHR: Apple ProRes RAW, ProRes HQ, 422, LT AVID DNx, HQX, HQ, SQ, LB, Cinema DNG RAW
    • Resolution/Frame Rate: 4K DCI/UHD 24/25/30/50/60p 2K 24/25/30/50/60/100/120p 1080p 24/25/30/50/60/100/120/200/240p 1080i 50/60i, 720p 50/60p

      Onboard Processing
    • Pull-Down Removal: 24/25/30pSF > 24/25/30p (2:2 pull-down) 60i > 24p (3:2 pull-down)
    • 4K DCI > UHD: Yes: Loop-out & playback
    • 4K UHD Downscaling: Yes: Loop-out & playback
    • HDMI: 2 or 8ch 24bit, camera dependent
    • SDI Expansion Module Required: 12ch 48kHz 24bit
    • Audio: Line/mic in
    • Headphone Out: 3.5mm Headphone out 2ch 48kHz 24bit
    • Built-In Speakers: No

      Remote Start/Stop
    • HDMI: Auto HDMI Trigger, Supported Protocols - Canon, Sony, Atomos Open Standard - Panasonic, Nikon, Olympus, Fuji, Leica; SDI: SDI trigger camera selectable; Genlock/LTC: Yes: Bluetooth/iOS App; Serial Control: LANC control - Slave RS232; Playback: Playback Features: Jog control, slow motion, scheduled, tag-based scheduling

  • Item Includes:

    • 1x 17" Neon Series Unit
    • 1x Master Control Unit
    • 1x IR Remote
    • 1x Master Caddy II
    • 1x 12V-3A AC power supply
    • 1x AtomX SDI Expansion Module
    • 1x Feet
    • 1x Quick Start Guide
    • 1x Road Case

  • GTIN:

    0814164022125
