SHARK-S4 - Overview

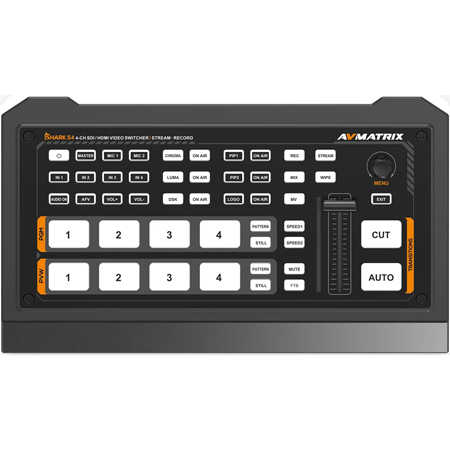

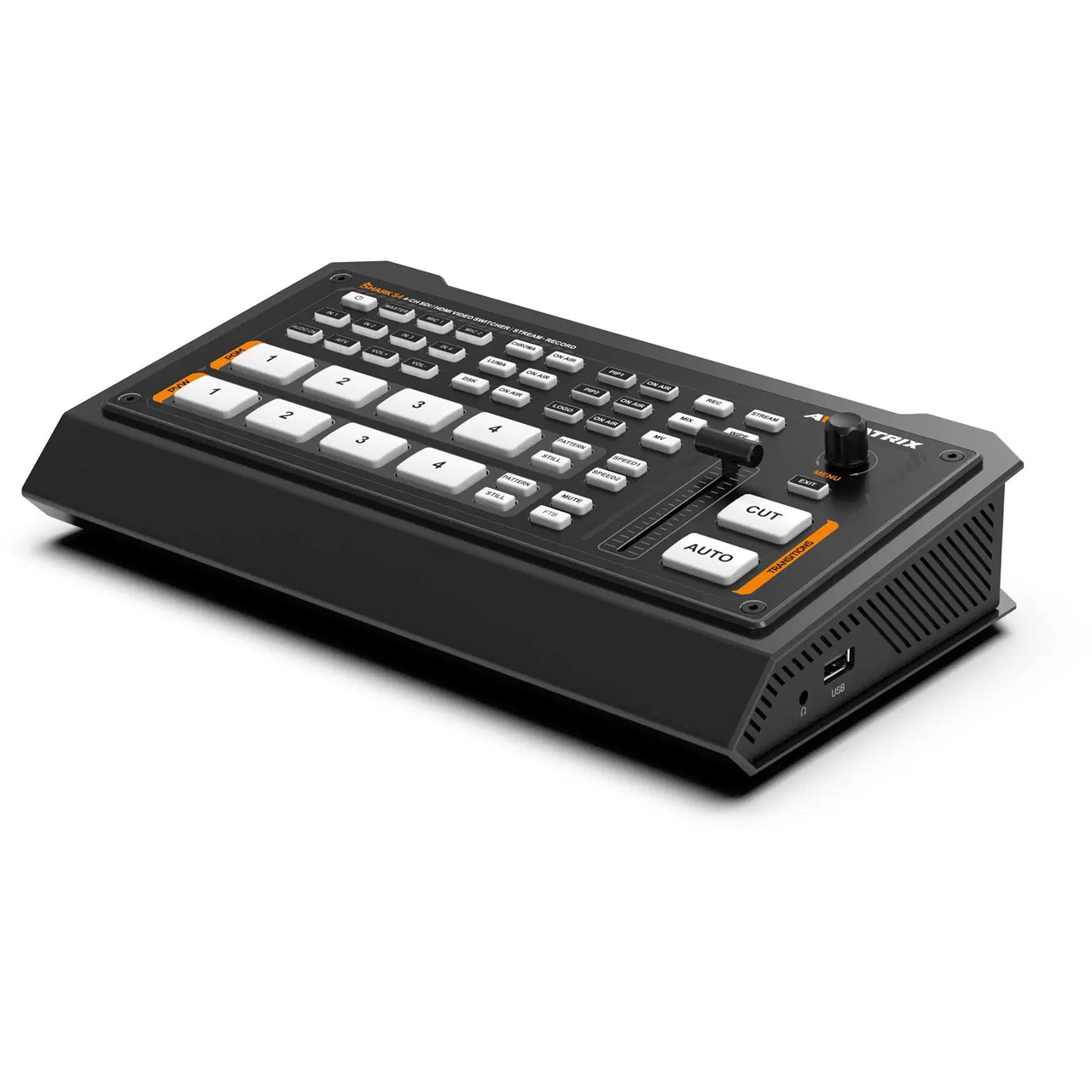

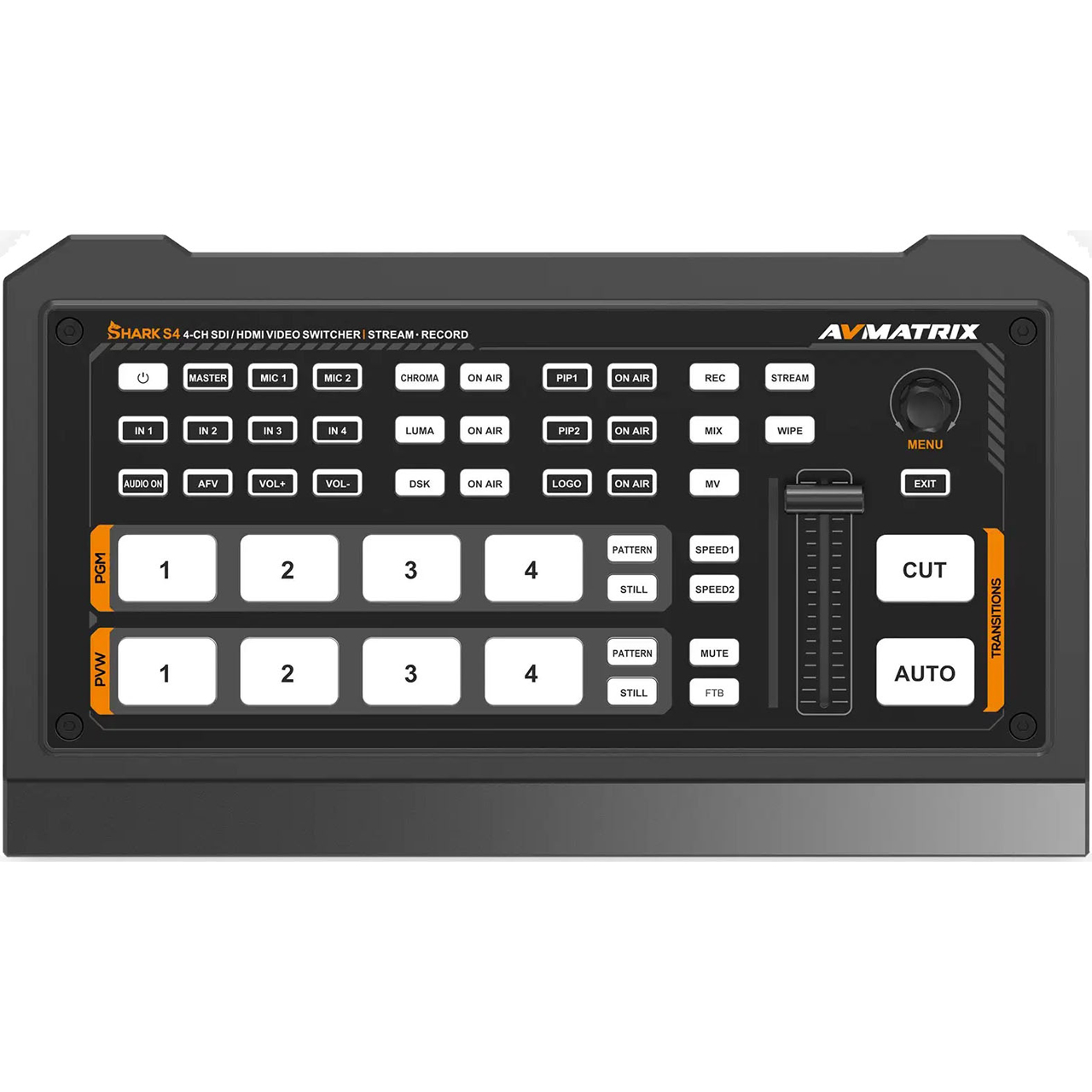

The AVMATRIX SHARK S4 is a compact design 4-channel HDMI and SDI multi-format video switcher with metal housing. It supports various functions including LAN streaming, recording, video switching, audio mixing, PGM/multiview/Aux out, different transition effects, Luma Key, Chroma Key, DSK, LOGO, PIP/ POP, media library and more. Inputs support multi-format while the output can be scaled and configured. Enjoy flexible live streaming and recording options, stream directly over Ethernet or USB, and record to USB disk or SD card, all at up to 1080P resolution and 32Mbps bitrate. Users can also customize different settings and import or export the configuration quickly for various scenarios. It's a powerful and professional video switcher for maximizing your choices.

Configurable Output
With the four auto-detected inputs and three scaling outputs, the video switcher is quite flexible and connects with a variety of devices and signals. Besides, all the three outputs can be configured to IN1-4, PVW, PGM, Clean PGM, Color Bar and Multiview out to meet your various application needs.

Live Stream via Ethernet
The LAN port supports IP streaming transmission through the RTMP, SRT protocol, allowing users to easily live stream video programs to platforms such as YouTube, SKype, Facebook, Twitch, and get high-quilty videos.

USB Capture for Streaming
The USB type-C can be used as a webcame to capture video, audio and stream to various softwares and platforms such as: OBS, vMIX, ZOOM, Teams, Skype and VLC. It is compatible with Windows, Linus, and Mac.

USB and SD Card Recording
SD card and USB interface enable direct recording of PGM signals, making it easy to record high-quality videos with Bitrate encoding up to 32Mbps, and supported file formats are MP4/TS.

Professional Audio Mixer
The switcher's integrated audio mixer enhances the audio effect of your productions by combining two external MIC inputs and 4 input embedded audio. Users can also set the AFV and utilize the audio delay feature to ensure the audio-video synchronization.

Media Management
Ignite your creativity with the built-in media library, which provides a wealth of content for productions, including 39 default patterns, 16 imported images, 6 captured images, and 2 color generators. You can easily import and manage images via USB to personalize your productions.

Rich Interface

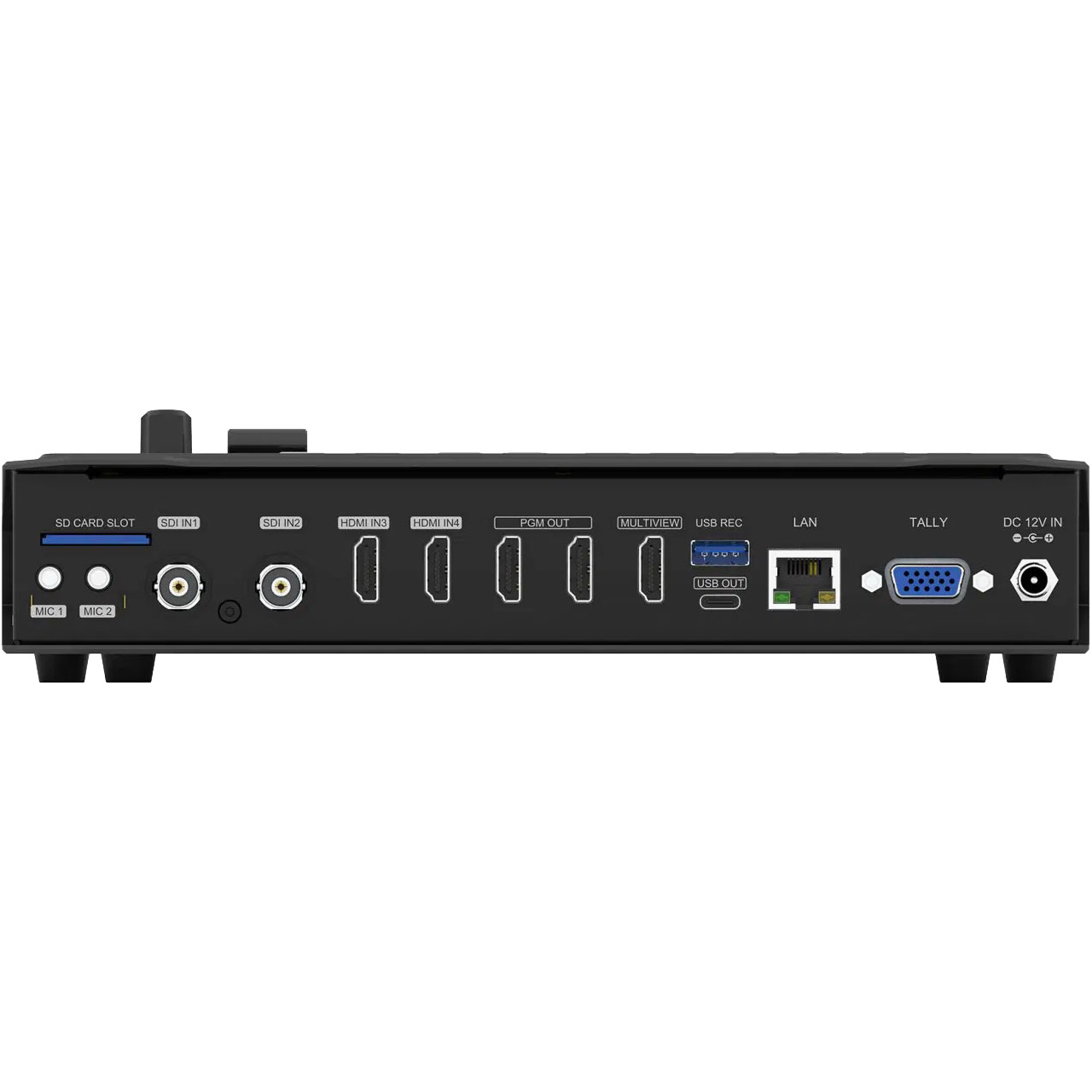

Compact design with a variety of interfaces, including SDI inputs, HDMI inputs, PGM outputs, multiview output, audio inputs, streaming interfaces, and recording ports. The hidden interfaces protect from damage.

Widespread Application
The video switcher can be widely used in various field events, such as live sports, virtual studios, education, internet, concerts, and so on.

  • Features:

    • 2x HDMI & 2x 3G-SDI inputs, support auto-detected
    • 2x HDMI PGM output, 1x HDMI multiview out, 1x USB type-C output
    • RTMP/SRT stream & USB disk/ SD card record
    • AUX output configurable and assignable
    • USB for capturing and streaming on PC
    • Upstream key: Luma key, Chroma key, PIP 2x/ POP
    • Downstream key and LOGO overlay
    • T-bar/Auto/Cut transitions; various effects: WIPE(11x3 patterns)/MIX/DIP
    • Audio mixer: 2x HDMI, 2x SDI embedded audio and 2-Ch MIC/line in; audio delay available
    • Media library: 39 default patterns, 16 imported images, 16 captured images, 2 color generators
    • Customer configuration import andexport
    • FTB/MUTE/STILL/GPIO for tally

  • Specifications:

    • Connections
    • Video In:
      - 2x HDMI
      - 2x SD
    • Video Out:
      - 2x HDMI PGM
      - 1x HDMI Multiview
      - 1x USB Capture: USB type-C
      - Streaming: 1x LAN
    • Audio In: 2x MIC/Line level (3.5mm stereo audio)
    • PC Control Port: 1x LAN
    • Media Library: 1x USB type-A (USB disk port for image import and firmware upgrade)
    • Tally Port: 1x DB-15
    • Power In: 1x DC 12V

      Stream & Rec
    • Bitrate: 2M - 32Mbps
    • Rate Control: CBR/VBR
    • Control Protocols: RTMP, RTMPS,SRT
    • REC SD Card Format: FAT32/exFAT/NTFS
    • REC U Disk Format: FAT32/exFAT/NTFS
    • REC File Segment: 1/5/10/20/30/60/90/120mins

      Functions
    • Transitions: T-Bar/AUTO/CUT
    • Effects: Wipe (11x3 patterns)/Mix/DIP/Still(freeze)/MUTE/FTB
    • Layouts: 2 styles of Multiview layout (6 windows and status)
    • Keys:
      - Upstream Key: 1x Luma Key/1x Chroma Key/ 2x PIP/POP
      - Downstream Key: 1x DSK/1x Logo
    • Audio Mixer:
      - 2x HDMI, 2x SDI and 2x MIC/Line level
      - Audio Delay: 0ms - 500ms
    • Media:
      - Default Image: 39 preset patterns
      - Local Image: Up to 16 imported images
      - Capture Image: Up to 16 captured images
    • Generators:
      - 1x Pattern generator
      - 2x Color generators

      Standards
    • HDMI In Format: 1080p: 60/59.94/50/30/29.97/25/24/23
    • Support:
      - 1080i: 50/59.94/60
      - 720p: 60/59.94/50/30/25/24
      - 576i: 50, 576p 50
      - 480p: 59.94/60
      - 480i: 59.94/60
    • HDMI PGM Out: 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98; 1080i 60/59.94/50
    • HDMI Multiview Out: 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98; 1080i 60/59.94/50
    • HDMI Color Space: RGB/YUV
    • SDI In Format Support:
      - 1080p 60/59.94/50/30/29.97/25/24/23.98
      - 1080psF 30/29.97/25/24/23.98
      - 1080i 60/59.94/50
      - 720p 60/59.94/50/30/29.97/25/24/23.98
      - 625i 50 PAL, 525i 59.94 NTSC
    • SDI Color Space: YUV
    • USB Capture Out: Up to 1080p 60
    • Media Format:
      - USB Disk Format Support: FAT32, Ext3, Ext4, up to 256GB
      - Image Format Support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga
      - Logo Format Support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga
      - Logo Size Support: 10x10 pixel to 600x600 pixel

      Others
    • Power Wide Voltage: 7V - 24V; Operating Power:16.8W (12V 1.4A)
    • Dimensions (LxWxD) 9.62" x 5.63" x 1.75" (244.5mm x 143.2mm x 44.5mm)
    • Weight Net: 2.22lbs (1009.5g)
    • Weight Gross: 2.99lbs (1360g)
    • Working Temperature: -4°F - 140°F (-20°C - 60°C)
    • Storage Temperature: -22°F - 158°F (-30°C - 70°C)

  • Item Includes:

    • 1x AVMatrix SHARK S4 4-Channel HDMI/SDI Streaming Video Switcher
    • 1x Power supply (12V 2A)
    • 1x USB type A-C cable
    • 1x Tally connector (DB-15)

  • GTIN:

    0697111800240
