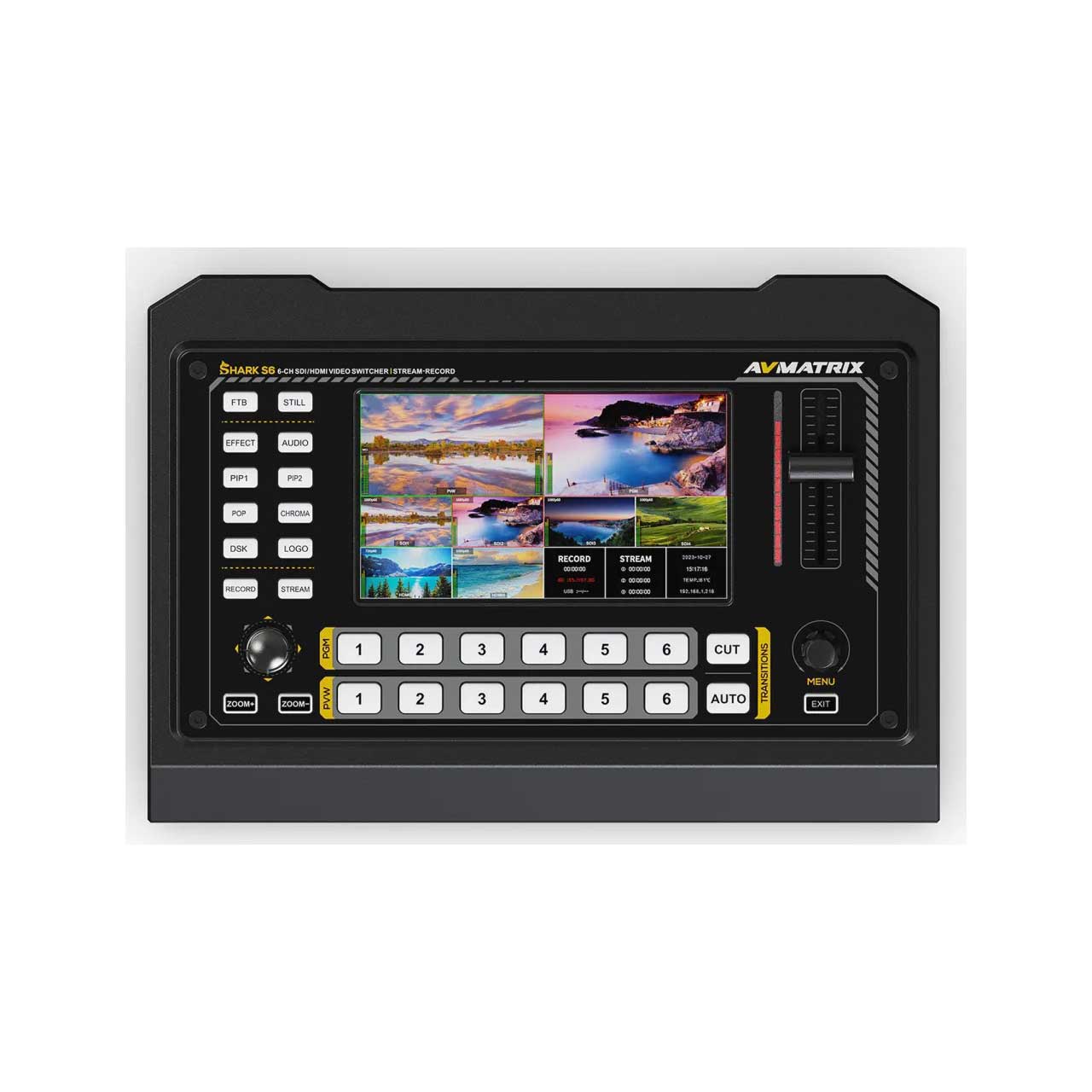

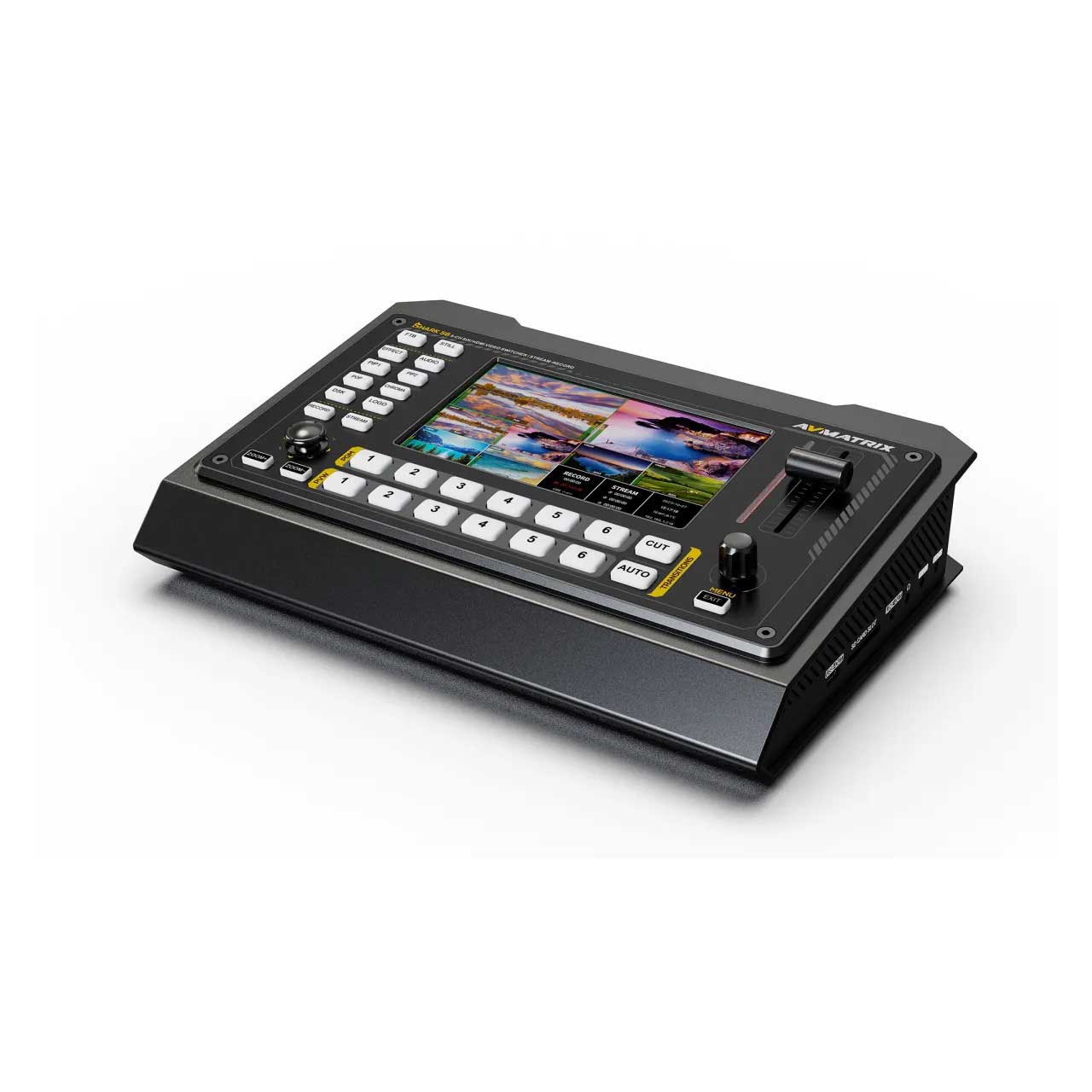

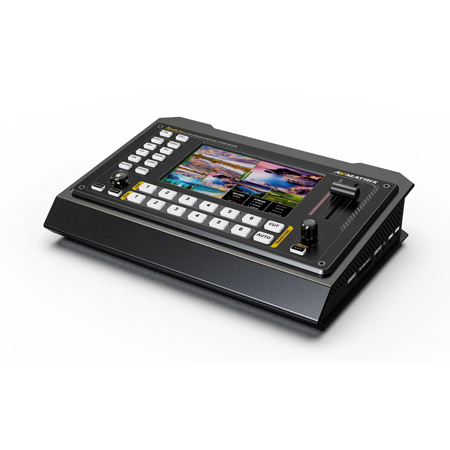

AVMatrix Shark S6 6-Channel HDMI/SDI Streaming Video Switcher with USB - Audio and PTZ Control

SHARK S6 - Overview

The All-In-One Solution for Live Streamers

• Features:

  • Plug-and-Play, driver free & power free
  • HDMI in, and USB 3.1 Gen1(USB3.0) out
  • Automatic input signal detection, up to 1080p60
  • Uncompressed transmission rate up to 200MB/s via USB 3.1 Gen1
  • Comply with UVC video capture and YUY2 video output
  • Comply with UAC audio out from HDMI embedded audio or line in
  • Compatible with Windows, Linux, macOS
  • Compatible with OBS, ZOOM, Teams & Twitch, etc


• Specifications:

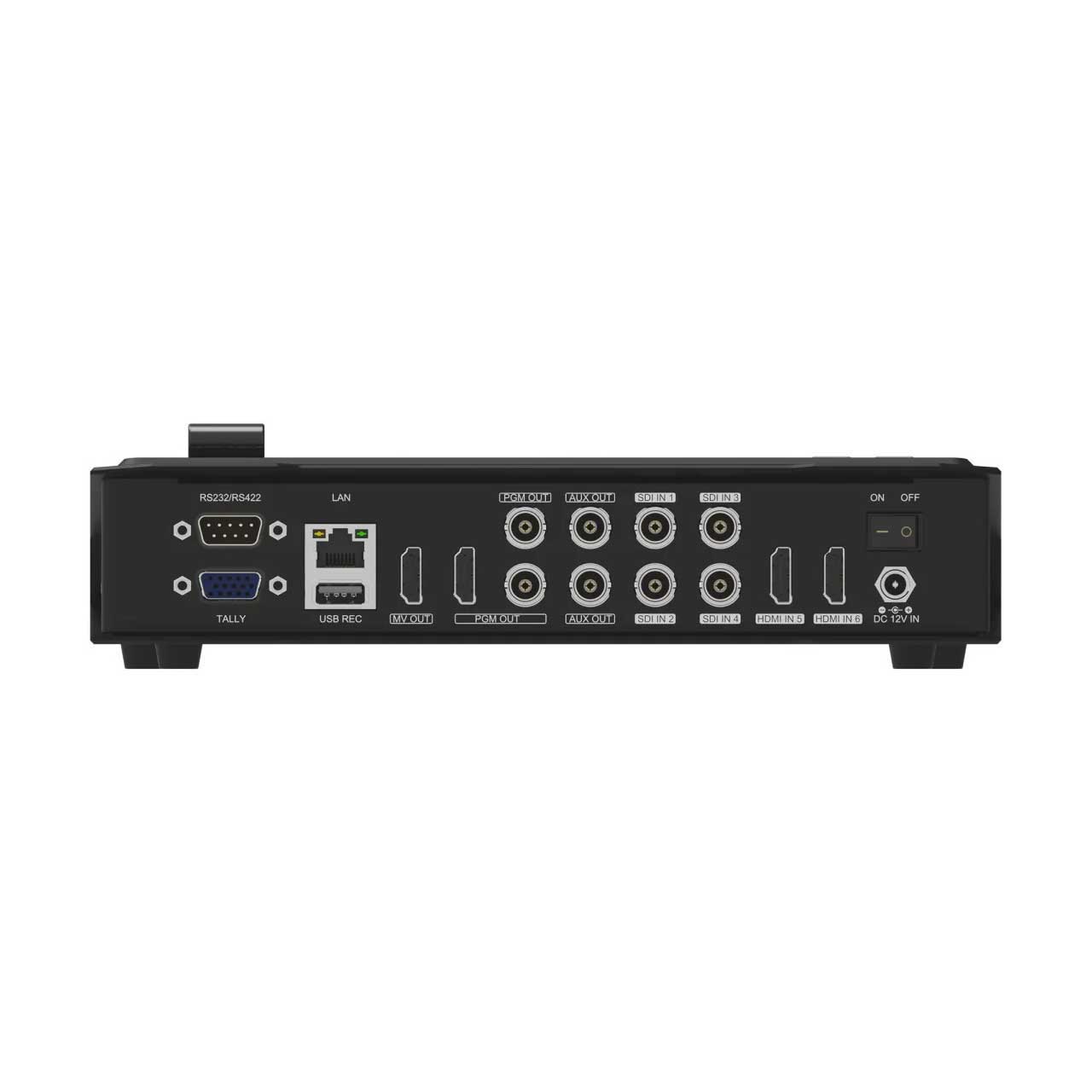

  • Connections
  • Video Input:
    - 4x SD/HD/3G-SDI (75Ω)
    - 2x HDMI (100Ω)
  • Media Port: USB-A
  • Stream Output: LAN
  • Capture Output: USB-C
  • PGM Output:
    - 2x HD/3G-SDI (75Ω)
    - 1x HDMI
  • Multiview Outputs: 1x HDMI (100Ω)
  • AUX Outputs: 2x 3G-SDI (75Ω), Including IN1~6, PVW, PGM, Color Bar, Multiview

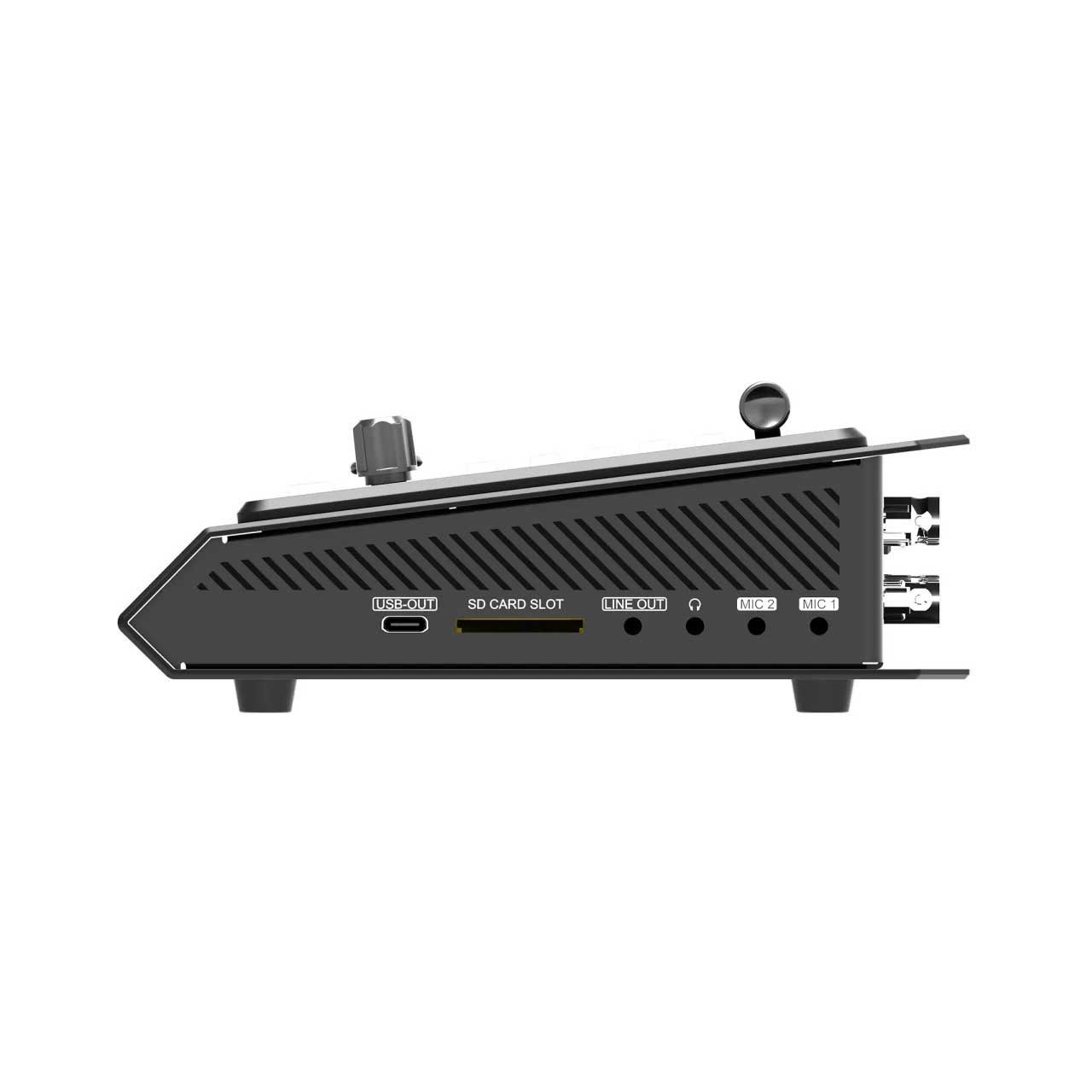

  • Audio Input: 2x MIC
  • Audio Output:
    - 1x Line
    - 1x Earphone Slot
  • Camera Control Port: LAN, RS-232/RS-422/RS-485
  • Tally Port: DB-15
  • Power In: DC 12V

    Stream & Recording
  • Bitrate: 2M-32Mbps
  • Rate Control: CBR/VBR
  • Stream Protocols: RTMP(S)/RTSP/SRT
  • REC SD Card Format: FAT32/exFAT/NTFS
  • REC USB Disk Format: FAT32/exFAT/NTFS
  • REC File Segment: 1min - 120mins

    Function
  • Transitions: T-Bar/AUTO/CUT
  • Effect: WIPE (11x3 patterns)/ Mix/ DIP/ STILL(freeze)/ FTB
  • Multiviewer Layout: Landscape & Portrait Mode
  • Upstream Key:
    - 1x Chroma Key
    - 2x PIP, POP
  • Downstream Key:
    - 1x DSK
    - 1x Logo
  • Audio Function: AFV, Mix, Audio Delay
  • Logo Library: Up to 8 PNG Images
  • Record: USB Disk, SD card, Record for PGM up to 1080p60
  • Display: 5" HD LCD Display

    Physical
  • Power: DC 12V 1.5A, 18W
  • Dimensions (LxWxD): 9.3" x 6.62" x 1.87" (238.5mm x 168.2mm x 47.5mm)
  • Weight: 3.19lbs (1.44kg)


• Item Includes:

  • 1x AVMatrix Shark S6 Video Switcher
  • 1x 12v 3A Power Supply
  • 1x Type A - C USB Cable
  • 1x Tally Connector (DB-15)
  • 1x Handbag


• Warranty:

  • 2 Year Limited Warranty


• GTIN:

  6971118002337
