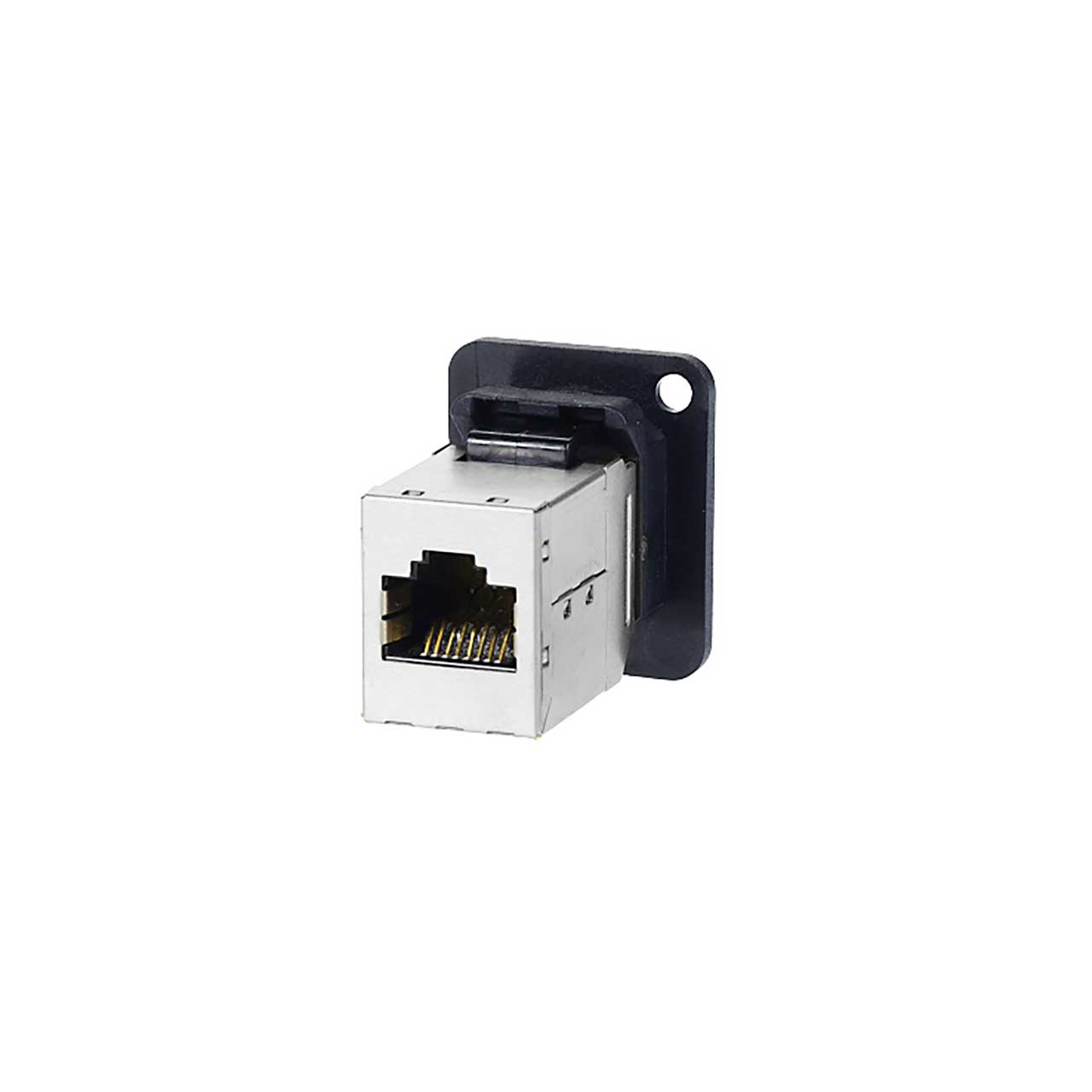

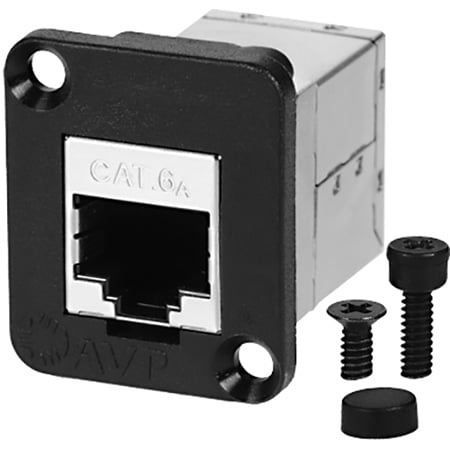

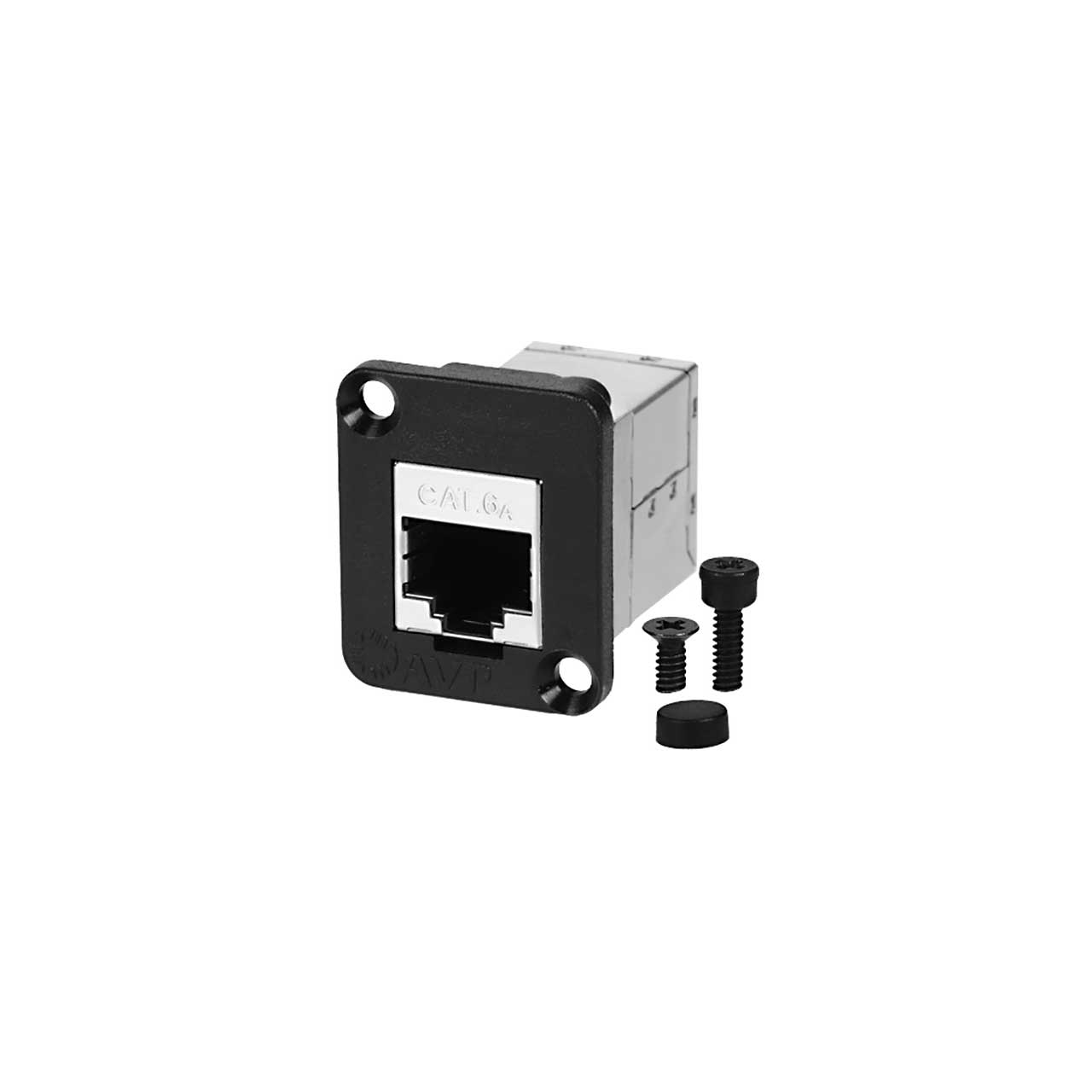

AVP UM2RJ45-6AFS Maxxum Cat6A RJ45 Feedthru Female to Female Shielded Adapter Plate(s) and/or Hardware MIS Color-Code

UM2RJ45-6AFS - Overview

• Features:

  • 50 Micro-Inch Gold plated Contacts
  • Nickel Plated Bronze Shielding
  • Fem to Fem Feedthru
  • 750 Cycles Mechanical Durability


• Specifications:

  • Jack Housing: ABS + PC UL 94V-0
  • Contact Bracket: PC UL 94V-0
  • Nickel Plated Bronze Shield
  • Nickel plated Phosphor Bronze contacts with 50 Micro-Inch Gold plate
  • PCB FR4 UL 94V-0
  • Insertion Force: 30N Max IEC 60603-7-5
  • Retention Strength: 7.7Kg between jack and plug
  • Operating Temperature: -10°C to 60°C
  • 750 Mating Cycles Minimum
  • TIA/EIA 568C.2 10G & ISO/IEC 11801


• Item Includes:

  • Maxxum Adapter Plate(s) and/or hardware
  • MIS Color-Code
  • MIS hardware


• Warranty:

  • 5 Years
