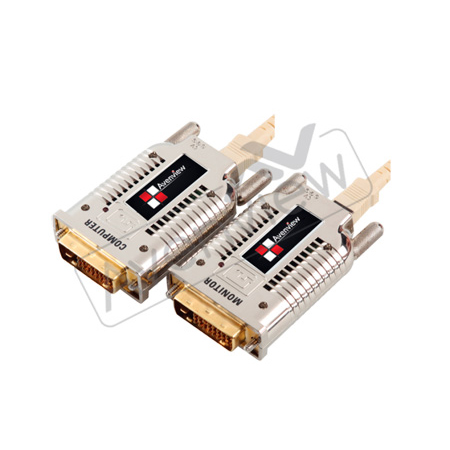

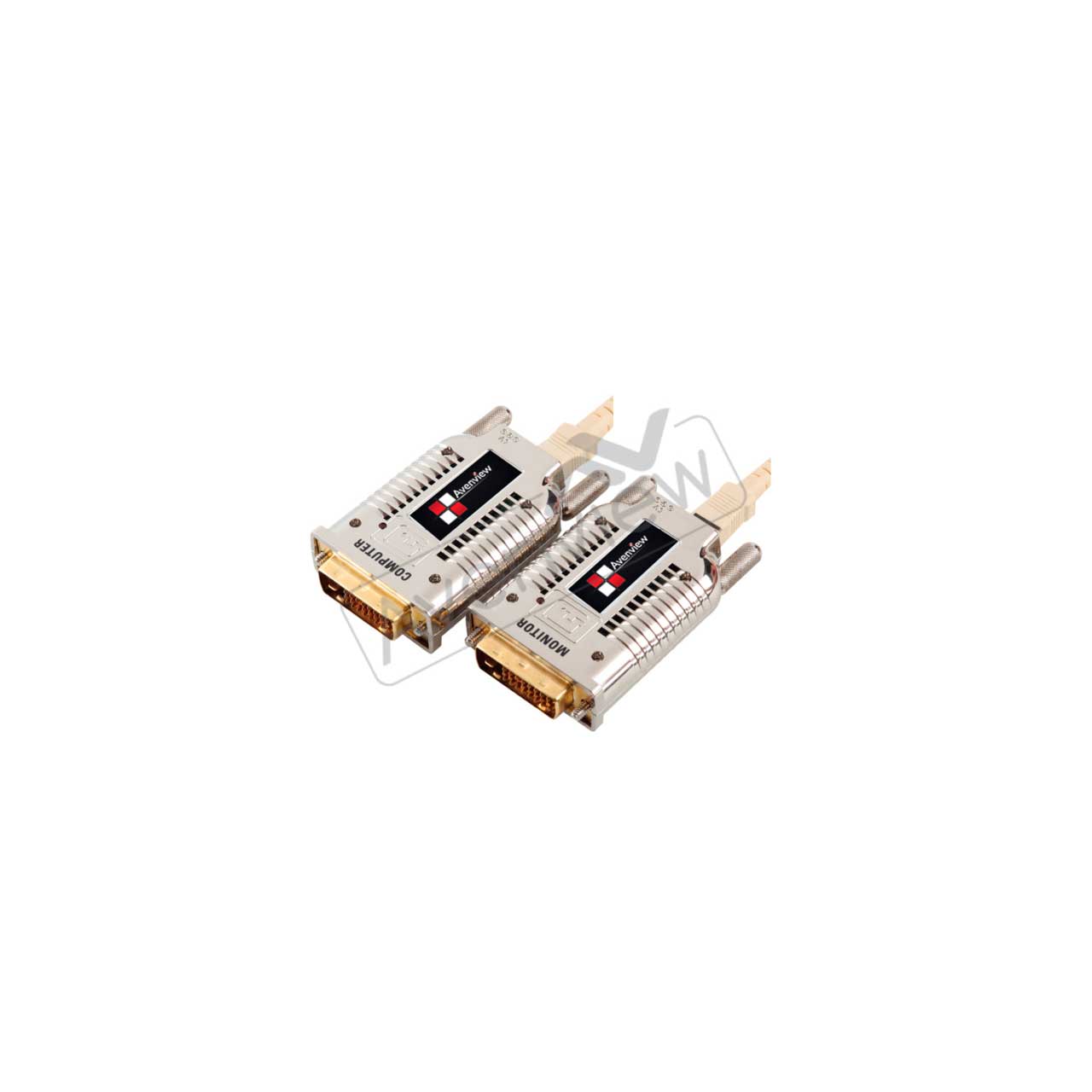

Avenview FO-DVI-1000M-EMI 1000 Meter DVI Over SC Fiber Optic Extender

Name: Avenview FO-DVI-1000M-EMI 1000 Meter DVI Over SC Fiber Optic Extender
Brand: Avenview Corp
SKU: AVW-D-1000M-EMI
Price: 999.00 USD
Availability: InStock

ITEM #: AVW-D-1000M-EMI MFG #: FO-DVI-1000M-EMI

Avenview Corp

Our Price:

$999.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

FO-DVI-1000M-EMI - Overview

Avenview FO-DVI-1000M-EMI DVI Extender over Fiber lets you extend digital flat panel signal up to 500 meters (1650 feet) at 1920 x 1200 and 1000 meters (3300 feet) at 1280 x 1024 away from host by TMDS digital signal and EDID transmission with only 1 fiber.

FO-DVI-1000M-EMI consists of both Receiver and Transmitter. This is an excellent solution for applications where signal needs to transmitted long distance.

Features:
- High speed and long distance transmission by optical system
- SC type Multi-Mode Fiber (1 Fiber)
- Fully compatible with DVI standard
- With EMI Shielding
- Corresponding to T.M.D.S signal (Single Link)
- R, G, B, Clock signal is transmitted by 1 Multi-Mode Optical Fiber
- Self detecting function for EDID information
- Small form factor
Specifications:
- Frequency Bandwidth 1.65 Gbps (Single Link)
- Connector DVI 24 Pin Plug and SC Connector
- Power Consumption Transmitter 1.0 Watt (max)
- Receiver 1.0 Watt (max)
- Supported Resolution & Distance WUXGA 1920 x 1200 @ 500 meters ( 1650 feet)
- UXGA 1600 x 1200 @ 700 meters (2300 feet)
- SXGA 1280 x 1024 @ 1000m meters (3300 feet)
- Optical
- Optical Source 850nm VCSEL
- Fiber Type 50/125 or 62.5/125
- O/E Converter PIN Photo Diode
- Environmental
- Operating Temperature 0° to 50°C Degree
- Storage Temperature -20° to 70°C Degree
GTIN:
0606825934683
