Barix Exstreamer 500 Professional Mulitprotocol IP Audio de-/encoder B-Stock (Vendor Repair)

ITEM #: BARIX-EXST-500-B MFG #: 2010.9096 B-STOCK

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BARIX-EXST-500-B

2010.9096 B-STOCK - Overview

Professional Multiprotocol IP Audio de-/encoder with I/O, balanced audio. Support of Internet Radio and VoIP(SIP, RTP) codecs and protocols make the products the ideal choice for broadcast, professional and VoIP applications.

Applications:
Live IP Audio Encoder for Streaming Applications.
Generic, bidirectional full-duplex VoIP module for Paging and Intercom Applications.
Paging and Audio Distribution with Amplifier control and monitoring
Shoutcast/Icecast Source Encoder.
Confidence Monitoring and Vox Switch for Broadcast Applications.
Commercial Audio Streaming Applications.
Multiroom IP Audio System Receiver.
Low latency IP Audio Encoder for multichannel applications.
Background Music and Music-on-Hold encoder for VoIP Applications.
Source Encoder for IP Audio Distribution Applications.
Digital Annunciator, Message Player, Message Repeater.
SIP and IP Paging Zone Device.

Note: Bstock item.This was a vendor repair. There is some cosmetic wear but is fully functional.

  • Features:

    • MP3, G.711, PCM Encoding
    • MP3, G.711, PCM, AACplus*, Ogg Vorbis* Decoding
    • Shoutcast/Icecast Source capability
    • Audio Level Supervision with SNMP Trap generation
    • IP Streaming via TCP, UDP, RTP, Multicast
    • Balanced Line Level Input (Stereo)
    • Balanced Line Level Output (Stereo)
    • Relay Output (4)
    • Contact Closure Input (4)
    • RS-232 / RS-485 Serial Port
    • USB Flash Memory Interface
    • Supply Voltage 24...48 VDC
    • Note: Bstock item.This was a vendor repair. There is some cosmetic wear but is fully functional.

  • Specifications:

    • Electrical
    • 24 to 48 VDC ± 20%
    • Power requirement: 8 Watt max.
    • 2 pin screw terminal connector
      Ethernet
    • 10/100Mbps auto,
    • RJ-45 connetor with integrated Link & Activity LEDs
    • Protocols: TCP/IP, UDP, RTP, DHCP, Multicast capable
      RS-485
    • 4 pin screw terminal connector
    • 300..230`400 Baud asynchronous, 7/8 bit
      Analog Inputs & Outputs (stereo)
    • DB9 female socket
      Analog Inputs
    • Differential input, 18kOhm input impedance
    • Clipping level 15dBu, 12.3 Vpp
    • Frequency response (-3dB) 20..20`000 Hz**
    • Signal to Noise Ratio 87 dB, THD 0.01%
    • Stereo crosstalk -88 dB
    • Input level software controllable (-3.. +19.5dB)
      Analog Outputs
    • Differential output, 40..60 Ohm output impedance
    • Output level software controllable
    • Full scale output voltage: 15dBu, 12.3 Vpp
    • Frequency response (-3dB) 20..20`000 Hz**
    • Signal to Noise Ratio 92dB, THD 0.03%

  • Item Includes:

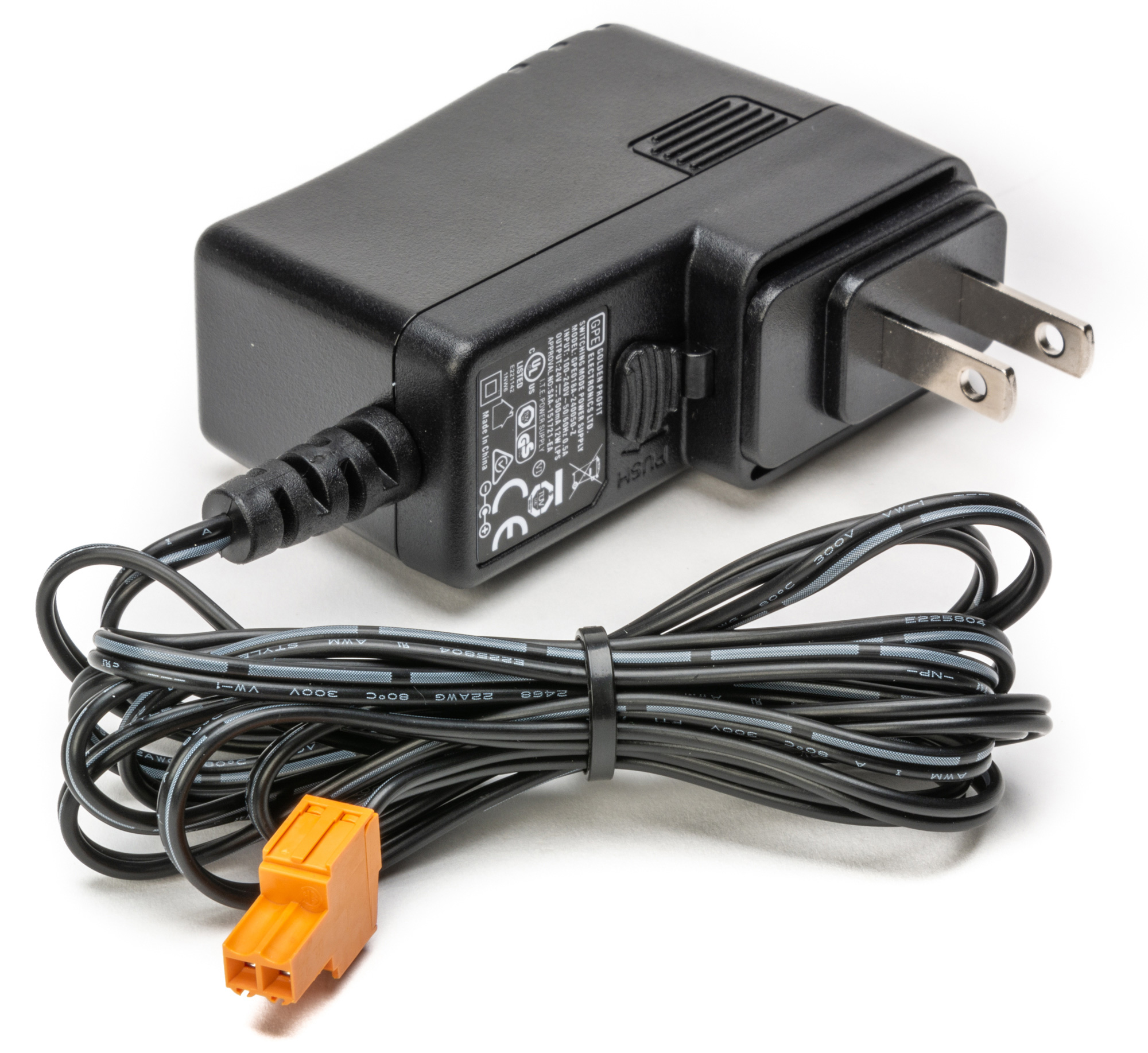

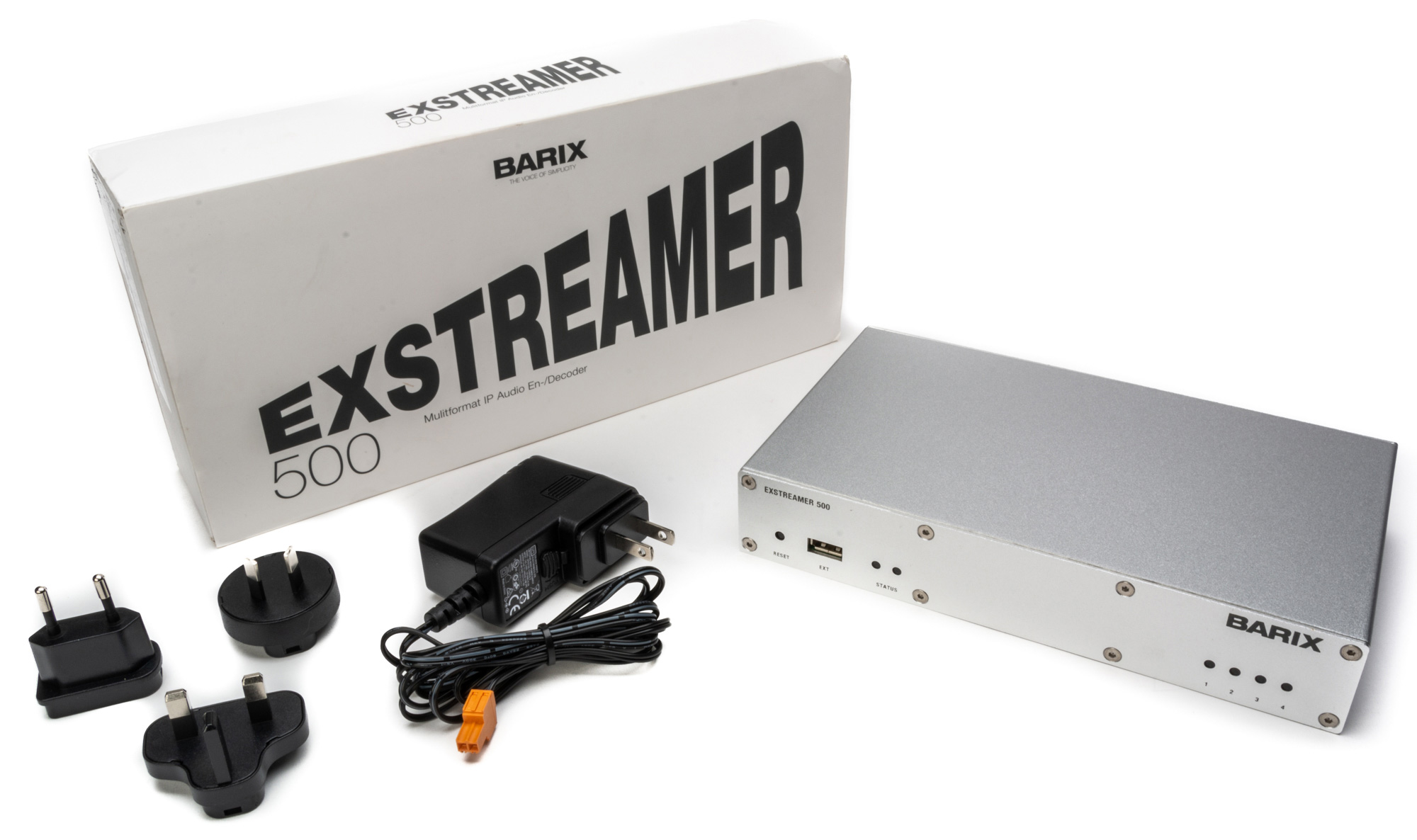

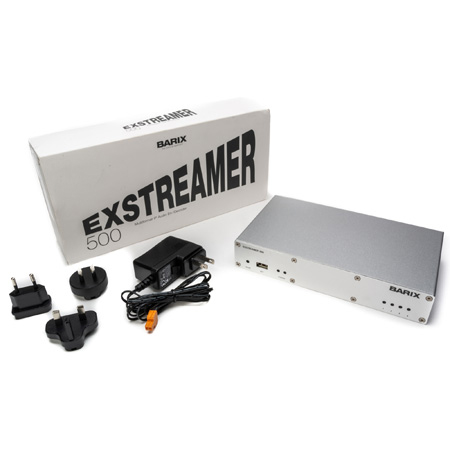

    • Exstreamer 500, Power supply, Y-Cable Analog (DSub9 to 4 x XLR), screw terminal black connectors, quick install guide

  • GTIN:

    7640113550967
