Barix Annuncicom MPI400 Dante Intercom/Paging Device with Dante License - Audio-over-IP EndPoint/Gateway

ITEM #: BARIX-MPI400-D MFG #: 2023.9413P

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$470.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


2023.9413P - Overview

Intercom and Paging device with contact closure inputs, relay outputs, Line and Mic and Speaker support!

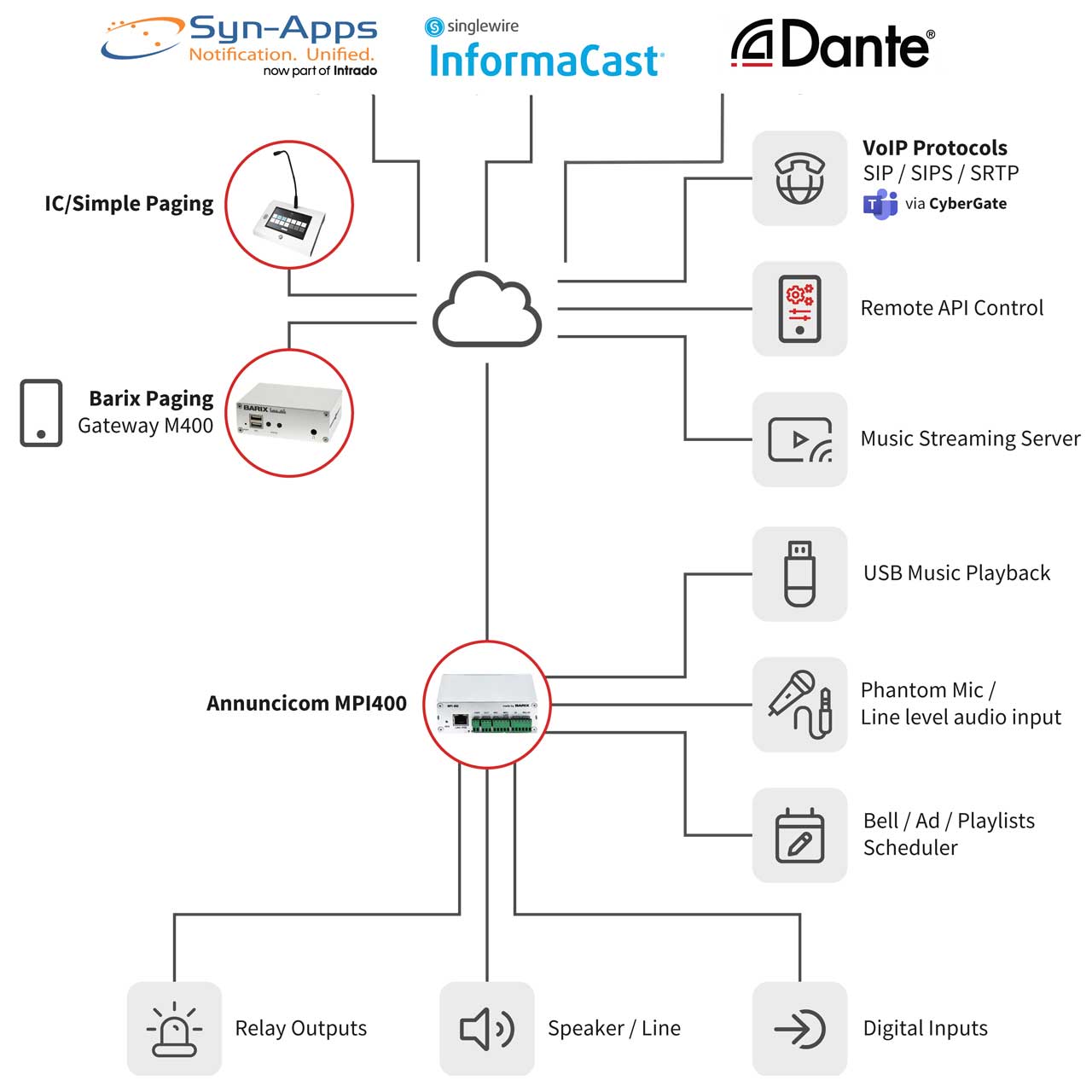

The Barix Annuncicom MPI400 with Dante is a versatile Audio over IP device designed to serve as an end point or gateway between IP based intercom (VoIP/SIP or streaming) and traditional paging/intercom systems, microphone/speakers or an amplifier. The modern, robust & powerful hardware/software architecture provides a future proof platform that meets modern internet security requirements and can easily be adapted to individual customer needs. A wide variety of audio environments, such as Dante ®, SIP, InformaCast and Syn-Apps are supported. Codecs include PCM, AACplus, MP3, OPUS, G.711, G.722 that can be streamed using HTTP and RTP. Audio files can be stored on the internal memory and their playback can be triggered via a simple UDP command or scheduled. Thanks to the priority handler, the Annuncicom MPI400 can be configured to switch between sources according to one of the five priority settings and therefore eliminates the need for an audio matrix device.

Perfect for:
Paging / intercom device with talkback for classrooms or factory buildings.
Door Intercom station
Paging/ intercom endpoint for public transportation
Help Point/SOS call box device
Generic, bidirectional half and full-duplex VoIP module for Paging and Intercom applications
IP based Audio Surveillance
Digital Annunciator, Message Player
VHF Radio interface to IP networks
Dante® support - requires extra license
MS Teams endpoint via CyberGate service

  • Features:

    • SIP VoIP client support
    • IP Streaming via HTTP, UDP, RTP, Multicast, Uni- or Broadcast
    • Variety of Audio codecs supported (e.g. AAC+, MP3, PCM, G.711, G.722, OPUS .)
    • Internet security supported (HTTPS, SRTP, SIPS)
    • Low voltage Relay Outputs (2) for example to activate amplifier upon SIP call received
    • Dry Contact Inputs (2), expandable via USB for example to establish a connection or to select a target
    • Microphone Inputs (2x)
    • Line Level Input (mono, unbalanced)
    • Audio Output (mono, balanced) or amplified output 1W @8 Ohm
    • PoE and 24VDC redundancy powered

  • Specifications:

    • CPU / MEMORY
    • Barix IPAM400 Processor Module
    • Quad-Core ARM CortexTM -A7
    • 256 MB DDR3 SDRAM
    • 16 MB SPI Flash

      OPERATING SYSTEM
    • Embedded Linux based on Yocto

      POWER INTERFACE on detachable screw terminal block
    • 24 VDC, +/- 20%, 12 Watt max.
    • IEEE 802.3af PoE

      NETWORK INTERFACE
    • 10/100Mbps auto-sensing
    • RJ-45 connector with integrated Link /Activity LED
    • IPv4/IPv6 capable

      PROTOCOLS
    • TCP/IP, HTTP, UDP, RTP, SIP, DHCP, Multicast capable
    • Dante ® Support - Requires extra license
    • Singlewire InformaCast compatibility - requires extra license - sold separately
    • SynApps Revolution compatibility

      USB INTERFACE
    • 2x USB 2.0 type A interfaces

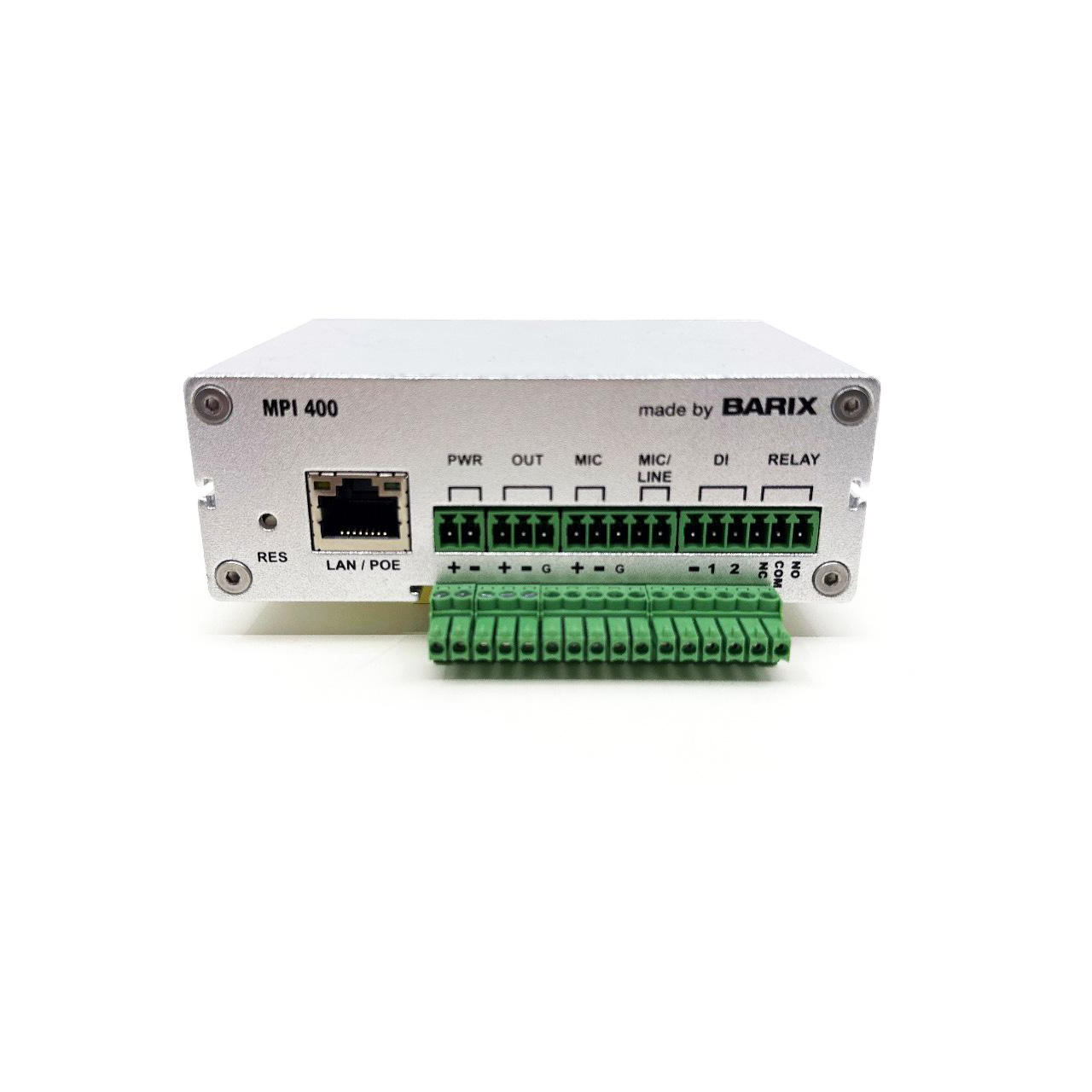

      DISCRETE I/O On detachable screw terminal block:
    • 1x Normally open relay 30V 0.5A
    • 1x Normally closed relay 30V 0.5A
    • 2x digital dry contact inputs

      AUDIO INPUT INTERFACES On detachable screw terminal block:
    • Line level input +4dBu max, mono, unbalanced
    • Microphone input, balanced, 18V phantom powered
    • Microphone input, electret, unbalanced, 2.1V bias

      AUDIO OUTPUT INTERFACES On detach. screw terminal block:
    • Audio output (mono), suitable to drive a speaker or a balanced output (exclusive output).Speaker: 1W @8ohms
    • Line out: symmetric/balanced, non-isolated, with DC offset, 10dBu (unbalanced: 4dBu)volume level software controlled
    • 3.5mm headphone output

  • Item Includes:

    • 1x MPI400 device (including detachable screw terminal blocks)
    • 1x Quick Install Guide

  • Warranty:

    • Two years
