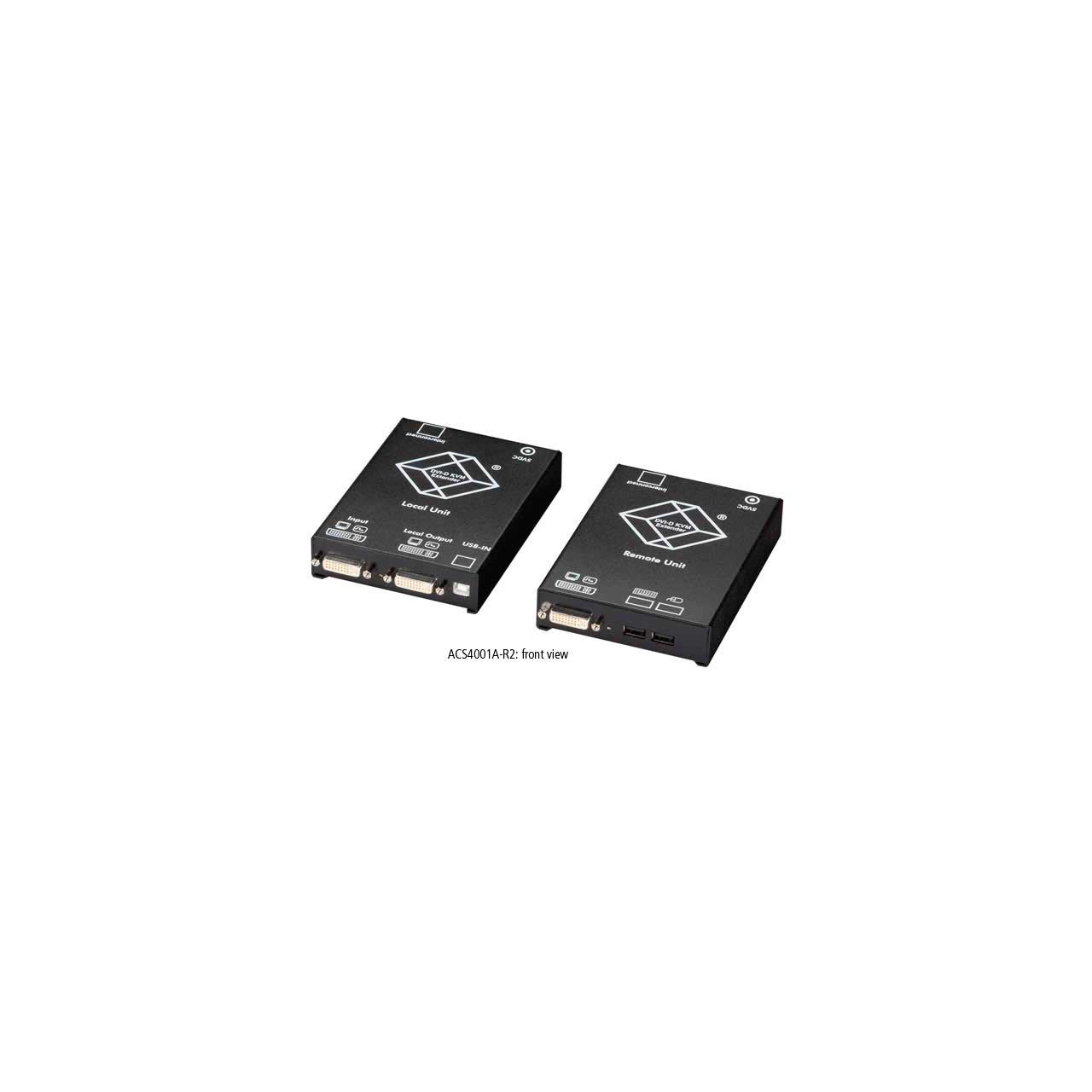

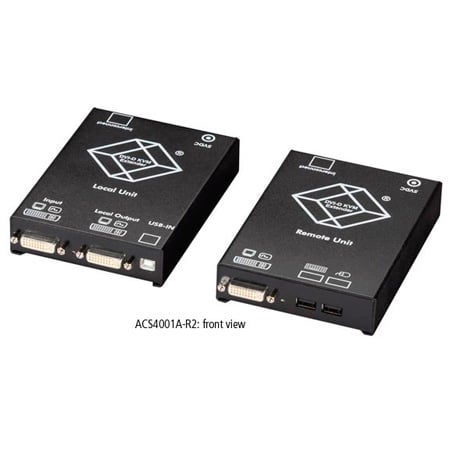

Black Box ACS4001A-R2 ServSwitch Single DVI CATx KVM Extender USB

ITEM #: BBX-ACS4001A-R2 MFG #: ACS4001A-R2

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$1,968.66

Our Price:

$1,699.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ACS4001A-R2 - Overview

Transmit keyboard, mouse, and a DVI-D video signal up to 400 feet over CATx cable. Enables dual access for a single user. Connect a monitor, keyboard, and mouse to the computer and have a KVM console on the remote end. Use your computer at either location!

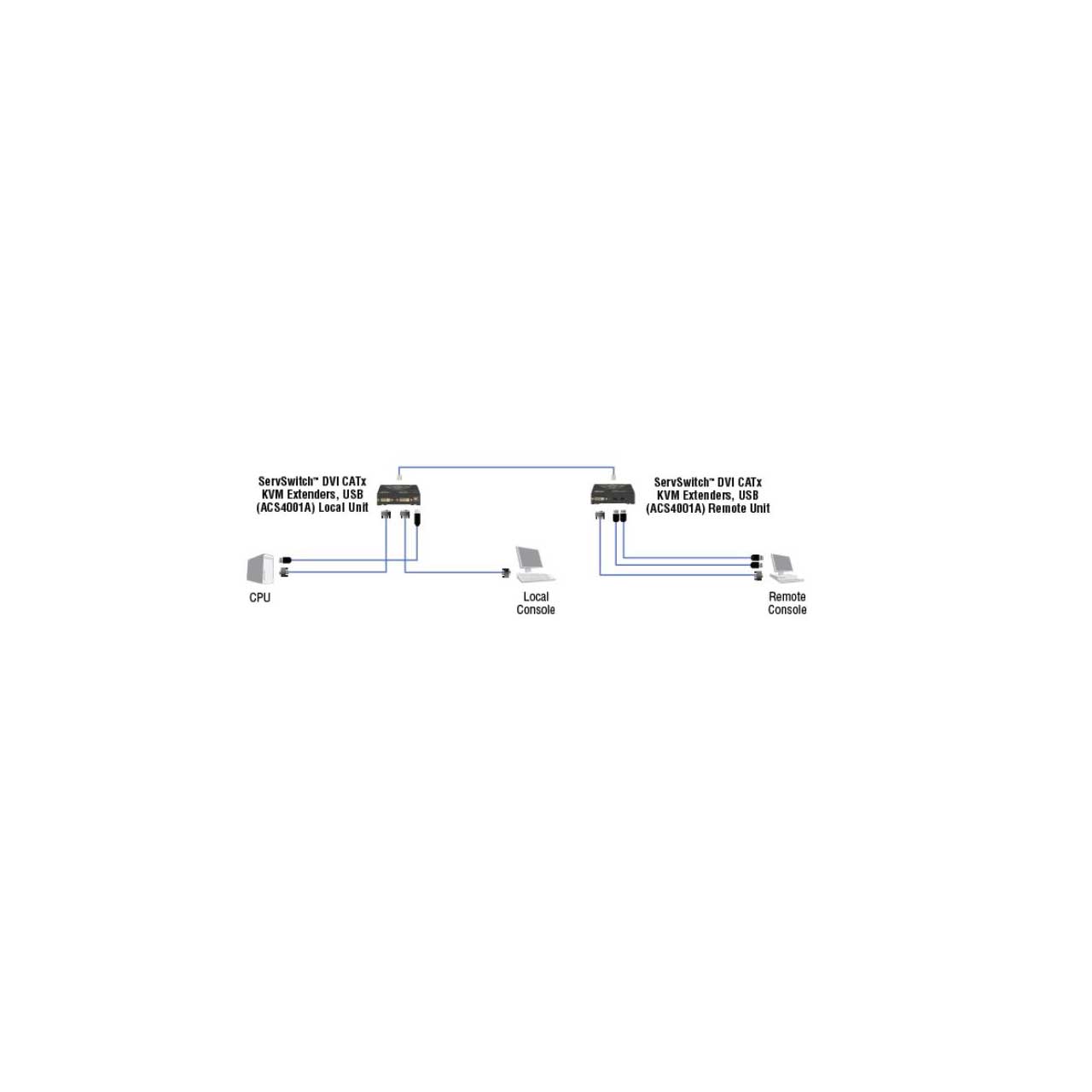

Just connect a keyboard, mouse, and DVI-D monitor directly to the computer on the transmitting end of the link and a KVM console with a DVI-D monitor on the receiving end. This method of dual access enables you to use your computer at either location.

  • Features:

    • Resolution up to 1920 x 1200
    • 18-/21-bit color depth.
    • Uses inexpensive CAT5/5e/6 cable.

  • Specifications:

    • Color 18-/21-bit color depth
    • Distance (Maximum) 24 AWG: 400 ft. (121.9 m);
    • 26 or 28 AWG: 200 ft. (60.9 m)
    • Operating Environment Temperature: 41 to 113° F (5 to 45° C);
    • Humidity: Up to 80% noncondensing
    • Resolution (Maximum) 1920 x 1200 at 60 Hz
    • CE Approval Yes
    • Connectors Local unit: Keyboard and mouse: (1) USB Type B F; Monitor: (2) DVI-D F; Interconnect: (1) RJ-45;
    • Remote unit: Keyboard and mouse: (2) USB Type A F; Monitor: (1) DVI-D F; Interconnect: (1) RJ-45
    • Power 90-240 VAC, 47-63 Hz, autosensing, external, with IEC 320 connector and cord
    • Size Local and remote units: 1.1"H x 4"W x 5.6"D (2.8 x 10.2 x 14.2 cm) each
    • Weight Local and remote units: 1.3 lb. (0.6 kg) each

  • GTIN:

    0822088065340
