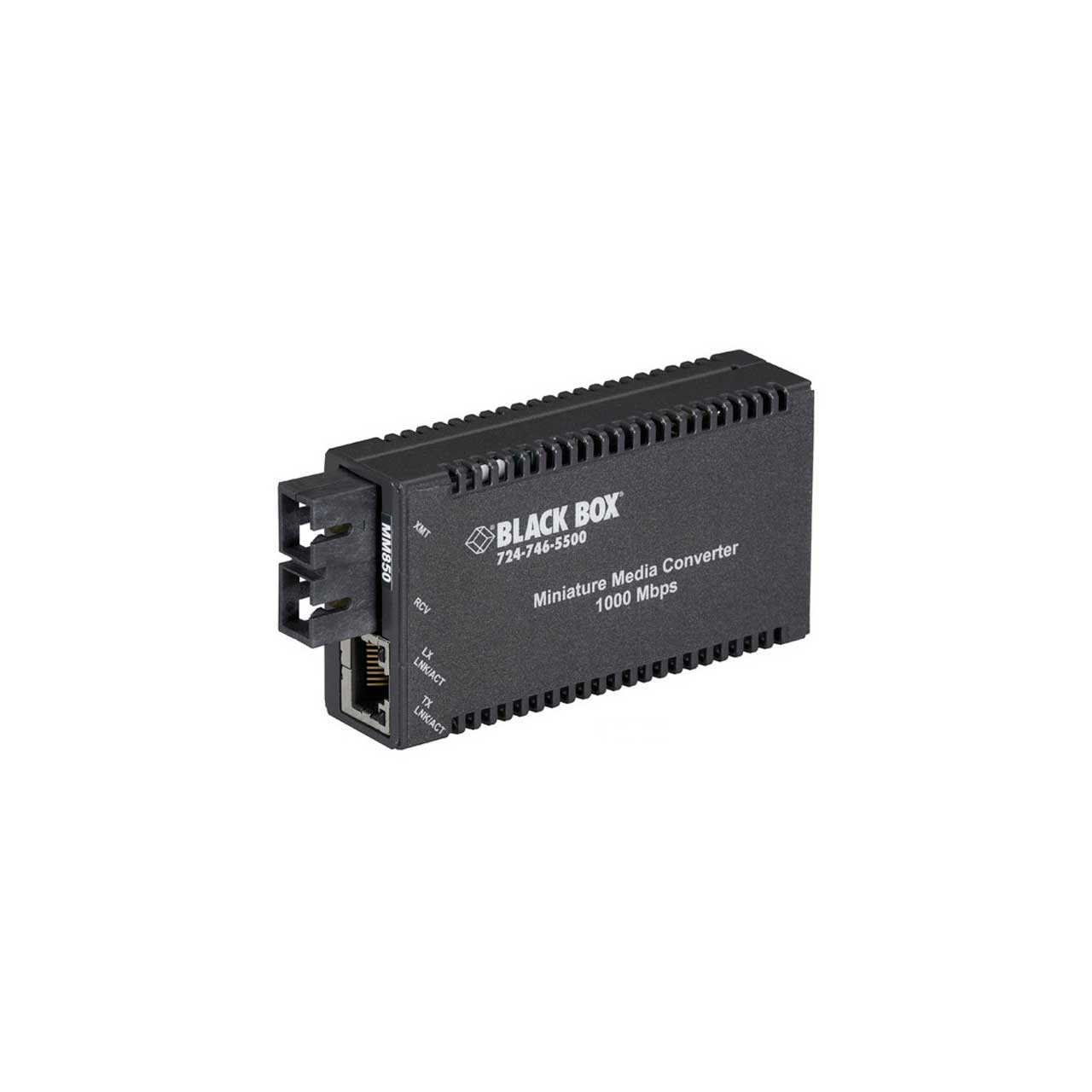

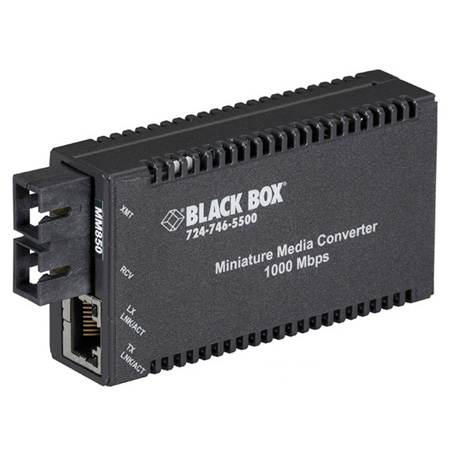

Black Box LGC011A-R2 MultiPower Miniature Media Converter - 1000-Mbps Copper to 1000-Mbps Fiber

ITEM #: BBX-LGC011A-R2 MFG #: LGC011A-R2

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$534.88

Our Price:

$461.89

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


LGC011A-R2 - Overview

Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs. Black Box Multipower Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable, then connect a fiber cable to the converter's other side. That's all there is to it! Best of all, you can tuck these tiny converters unobtrusively behind your PC.

Choose from multimode and single-mode duplex fiber versions. For extra versatility, you can power the Miniature Media Converter through the external AC power supply included with each converter or through the optional rackmount PowerTray (sold separately).

  • Features:

    • Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs
    • Compact size; measures just 0.8"H x 1.8"W x 3.4"D
    • Powered by a universal AC power supply or the optional rackmountable PowerTray
    • Auto MDI/MDI-X means you never need to worry about what kind of cable to use

  • Specifications:

    • Cable Requirements: Twisted pair: CAT5e or above, shielded or unshielded; Multimode fiber: 50-/125-µm or 62.5-/125-µm duplex; Single-mode fiber: 9-/125-µm duplex or single-strand
    • CE Approval: Yes
    • Connectors: (1) RJ-45, with autocross for MDI-II/MDI-X; (1) pair of SC
    • Humidity: 5 to 95%, noncondensing
    • Indicators: LEDs: Per twisted-pair port: (1) TX Link/ACT, (1) FX Link/ACT; Per fiber port: (1) XMT, (1) RCV
    • Operating temperature: +32 to +104°F
    • Power: From the included external 100-240-VAC, 50-60-Hz adapter; From the optional PowerTray (LHC018A-AC-R2) with a 100-240 VAC, 50-60 Hz power supply
    • Size: 0.8"H x 1.8"W x 3.4"D
    • Storage temperature: 0 to 160°F

  • GTIN:

    0822088075974
