Black Box SW1040A CAT6 A/B Switch Latching RJ45 Controlled Dry Contact

ITEM #: BBX-SW1040A MFG #: SW1040A

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Black Box
Free Shipping with $49 Minimum Order

List Price:

$503.95

Our Price:

$435.19

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

SW1040A - Overview

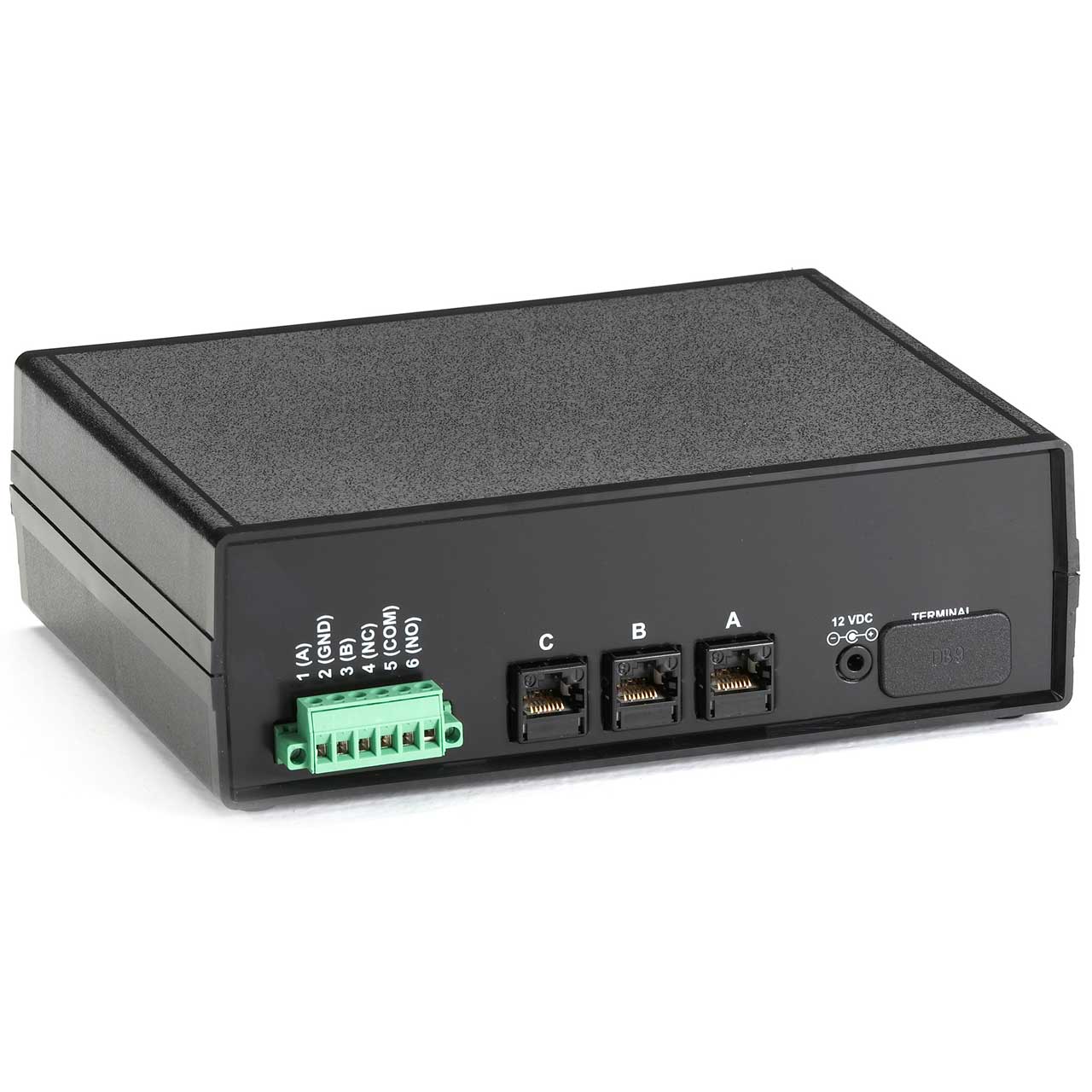

A 6 position terminal strip on the rear of the unit provides remote control capability and accepts external dry contact closures as inputs for remote A/B switching.

  • Features:

    • Durable and reliable. Tested to 1,000,000 cycles

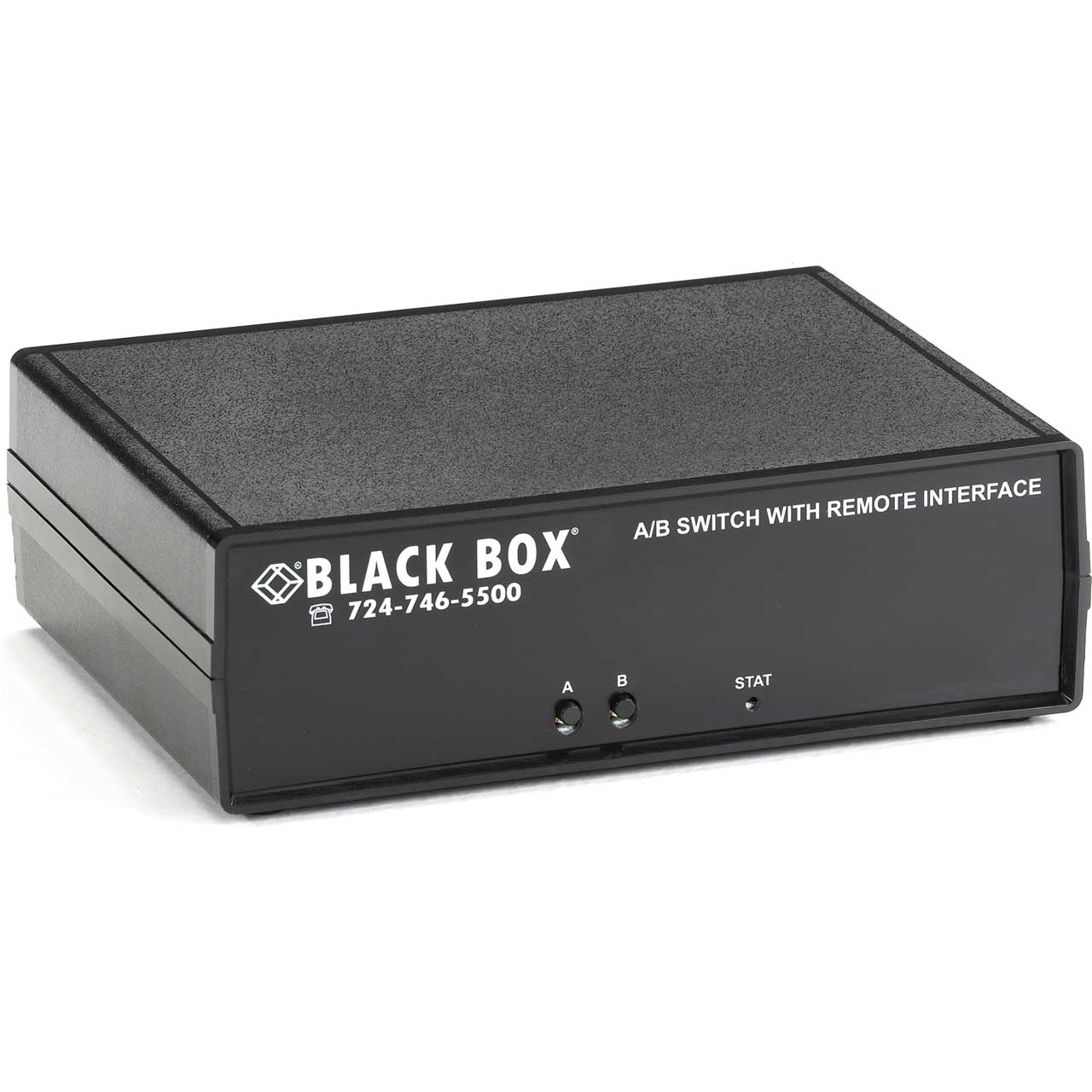

    • Manual control of the switch port supported through A/B push button on the front.
    • Can be switched remotely via dry contact as well.


  • Specifications:

    • Networking
    • Type: Switch
    • Subcategory: Network hubs and switches
    • Form Factor: Desktop
    • Status Indicators: Status

      Interface Provided
    • Interfaces: 3 x LAN RJ-45, Remote control: 1 x 6 pin terminal block

      Power Device
    • Type: External power adapter
    • Nominal Voltage: AC 120/230 V
    • Frequency Required: 50 - 60 hertz

      Dimensions & Weight
    • Width: 6.3 inch
    • Depth: 6.3 inch
    • Height: 2.5 inch
    • Weight: 3.97 lbs


  • GTIN:

    0822088118176
