Black Box TL159A 8 Port RS-232 RJ11 Data Broadcast Device

ITEM #: BBX-TL159A MFG #: TL159A

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$479.60

Our Price:

$414.16

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


TL159A - Overview

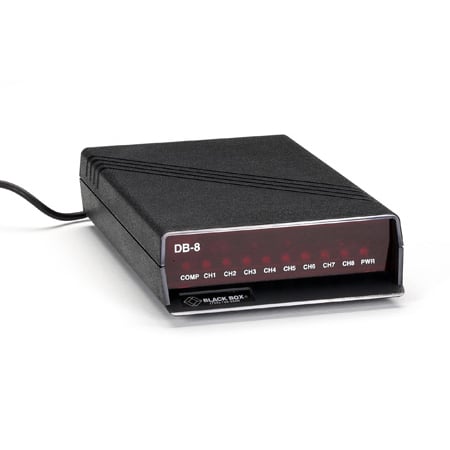

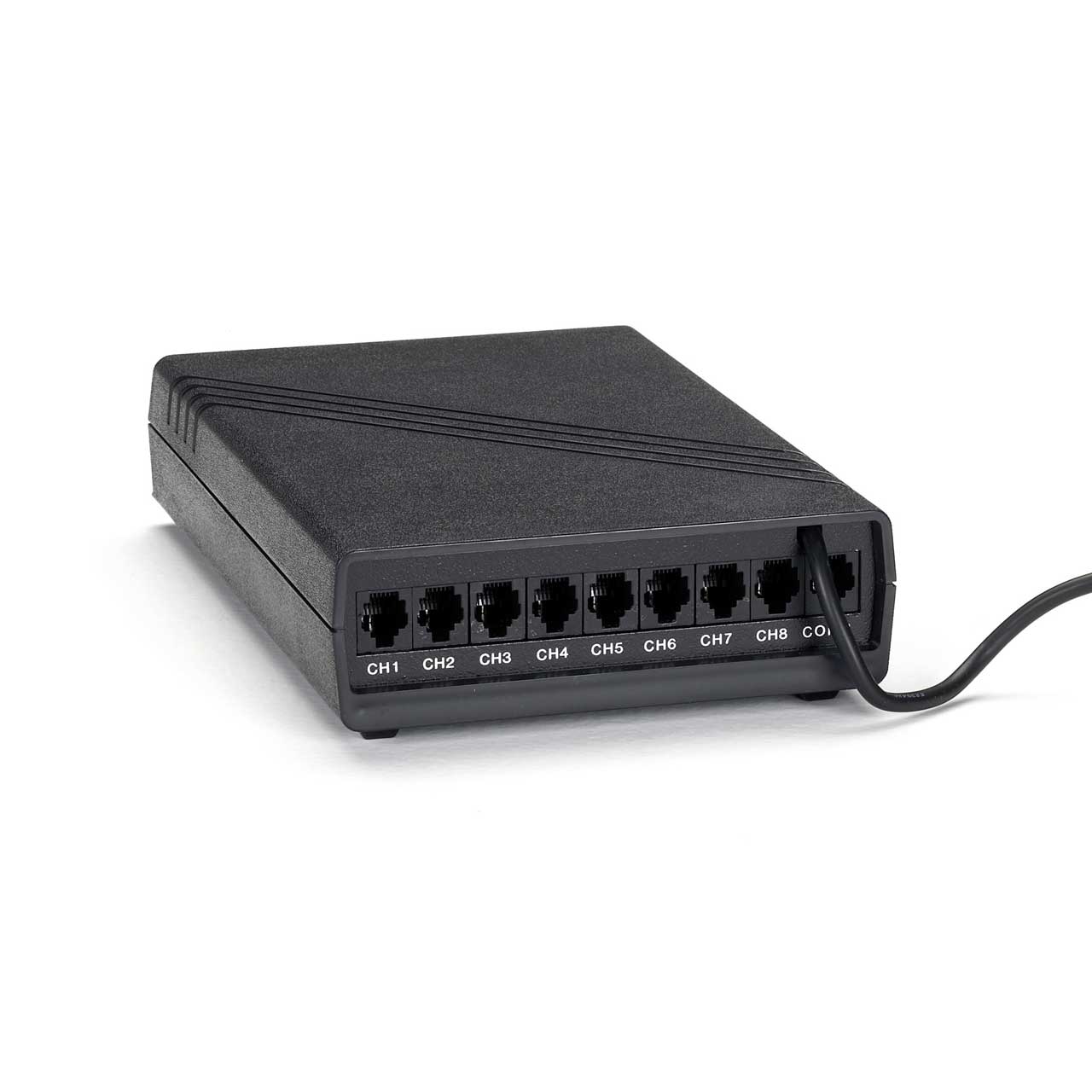

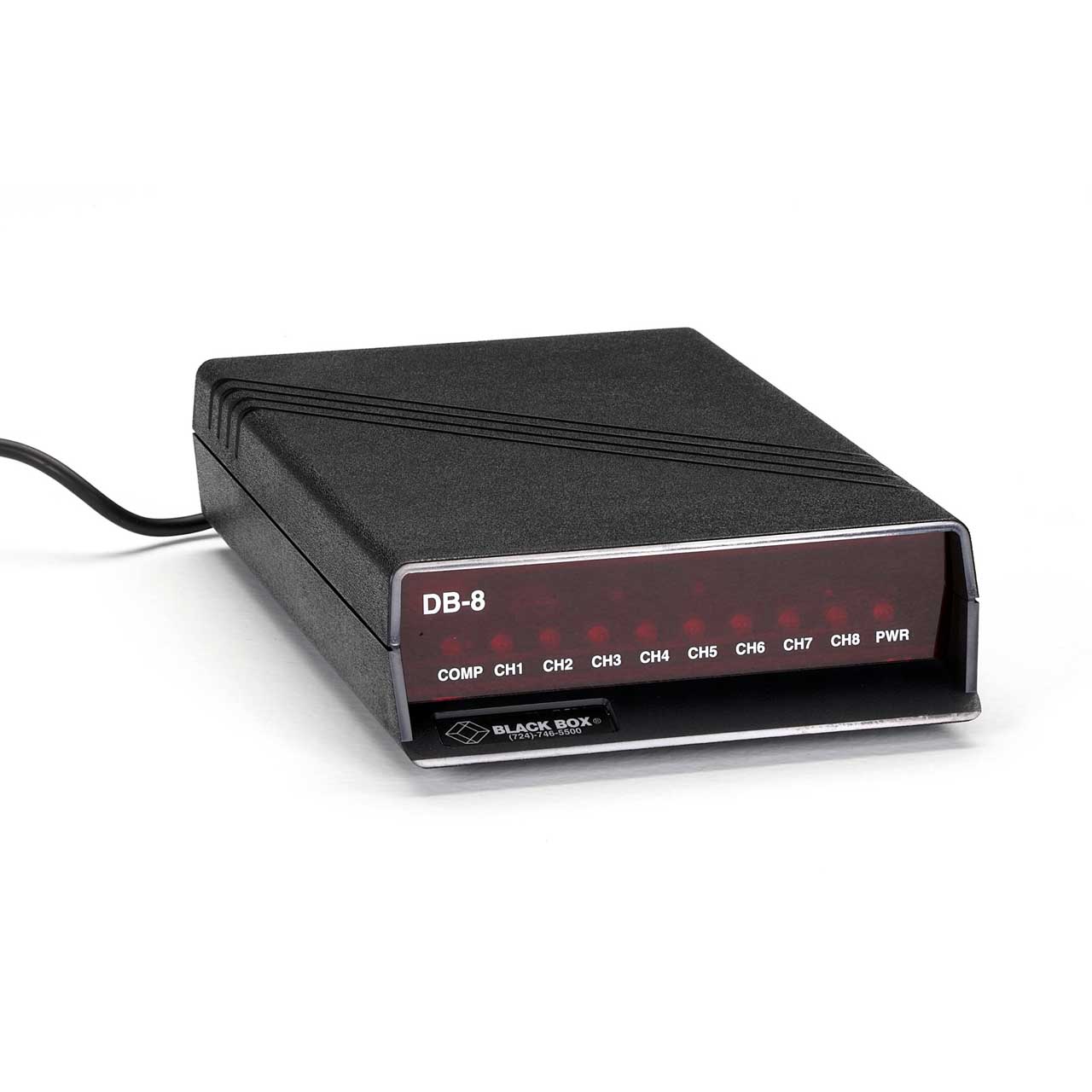

The TL159A by Black Box is an 8 port RS-232 RJ11 data broadcast device. Send async data to as many as eight printers, terminals, PCs, plotters, or other slave devices. All ports are DTE/DCE switch-selectable, and you can put one between your async CPU and up to eight terminals, students see everything on your screen. The TL159A is ideal for polling applications or other controlled environments.

  • Features:

    • All ports are DTE/DCE switch-selectable
    • Put one between your async CPU and up to eight terminals. Students see everything on your screen
    • Ideal for polling applications or other controlled environments
    • DB25 model is rackmountable and enables you to connect each port directly and quickly to slave ports
    • Use RJ-11 version in modular wiring environments. Order an optional RJ Adapter Kit to connect it to premise DTEs equipped with DB25 connectors

  • Specifications:

    • Connectors: TL158A-R4: (9) DB25 F; TL159A: (9) RJ-11
    • Flow Control: Software only, transparent to speed and data
    • Interface: RS-232
    • Power: 115 VAC, 60 Hz
    • Protocol: Async
    • Dimensions (H x W x D): 1.5" x 5.5" x 8.5"
    • Speed: Transparent
    • User Channels: 8
    • Weight: 2.4 lbs.

  • GTIN:

    0822088119227
