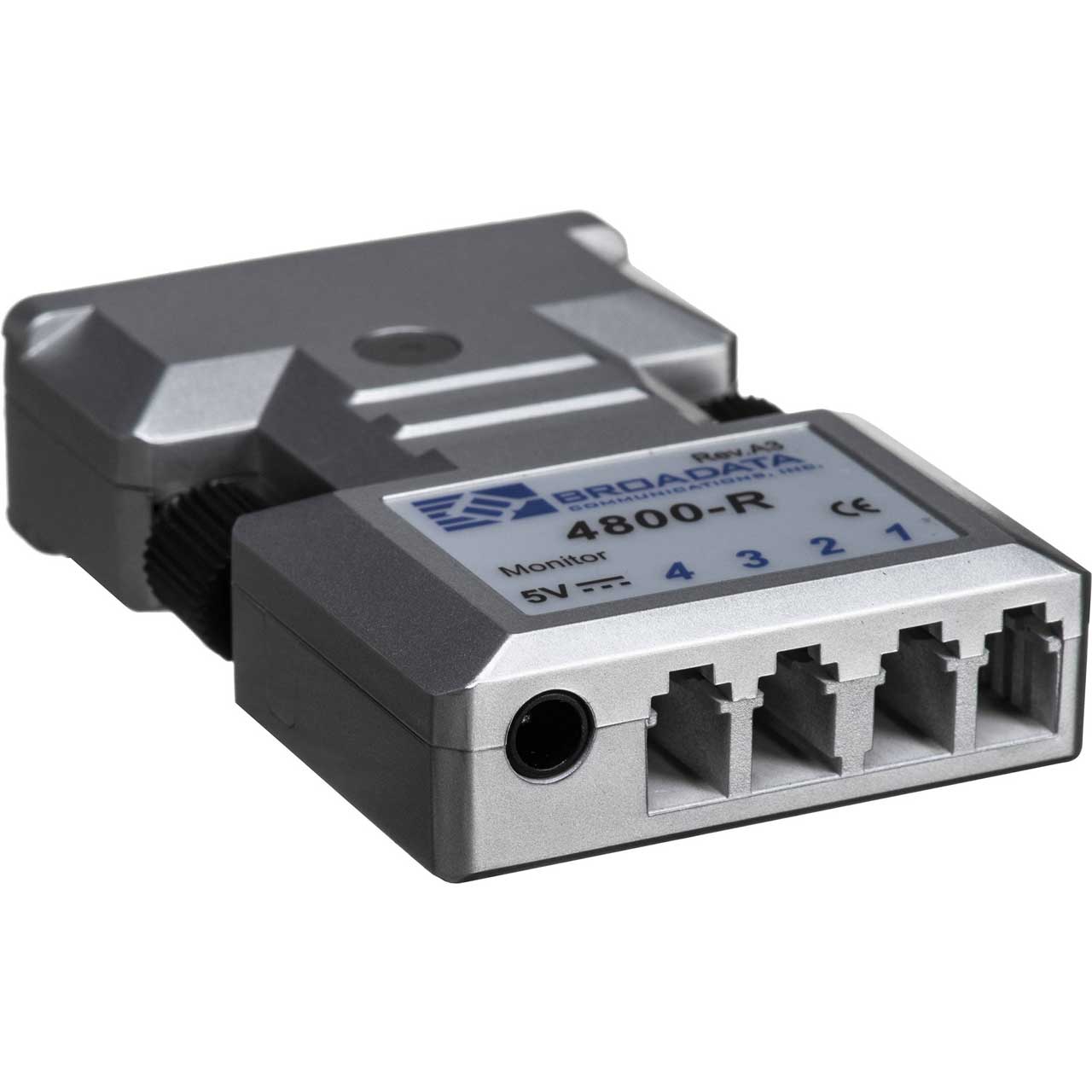

Link Bridge 4800-R-M-LC-WUXGA-1PS DVI Graphics Receiver ONLY

ITEM #: BD-4800-R MFG #: BD-4800-R

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Broadata Communications, Inc.
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$350.00

Our Price:

$345.00

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

BD-4800-R - Overview

The 4800/4802 Series is a high performance, yet affordable, Fiber Optic DVI Extension System that is designed to carry one (1) DVI channel, over long distances through four (4) multimode fibers (4800 Series) or through two (2) multimode fiber (4802 Series). This unique fiber optic system lets your digital flat panel display extend up to 500 m away from host by TMDS digital signal transmission.

No user adjustments are required in the 4800/4802 system due to the use of advanced digital fiber optic transmission technology. This allows for a quick and easy setup, offering trouble-free operation for many years to come. The 4800/4802 system transmits R, G, B, clock signals separately through one individual fiber and can support video resolution up to WUXGA (1920 x 1200).

APPLICATIONS
Remote DVI Transport
Remote Workstation Video/Graphic
Transmission
Remote Flat Panel Display
Digital Signage, Video Wall

  • Features:

    • Complies with Class 1 Laser Eye Safety
    • Requires 4 Fibers for R, G, B, ClockTransmission (4800 Series)
    • Requires 2 Fiber for R, G, B, clockTransmission (4802 Series)
    • Operates up to 165 MHz WUXGA,1920 x 1200, 60 Hz or 1080p HDTVup to 500M (1640 feet)
    • Offers self-EDID programming feature detecting from a display and restoring to an EEPROM in the transmitter just by plugging to the display without any physical DDC connection


  • Specifications:

    • Electrical
    • Signal Format - DVI
    • Graphic Resolution - Up to 1920 x 1200, 60 Hz
    • Distance - 500 m
    • DDC Protocol - Self-EDID programming feature
    • Data Rate - up to 1.65 Gbps (per link)

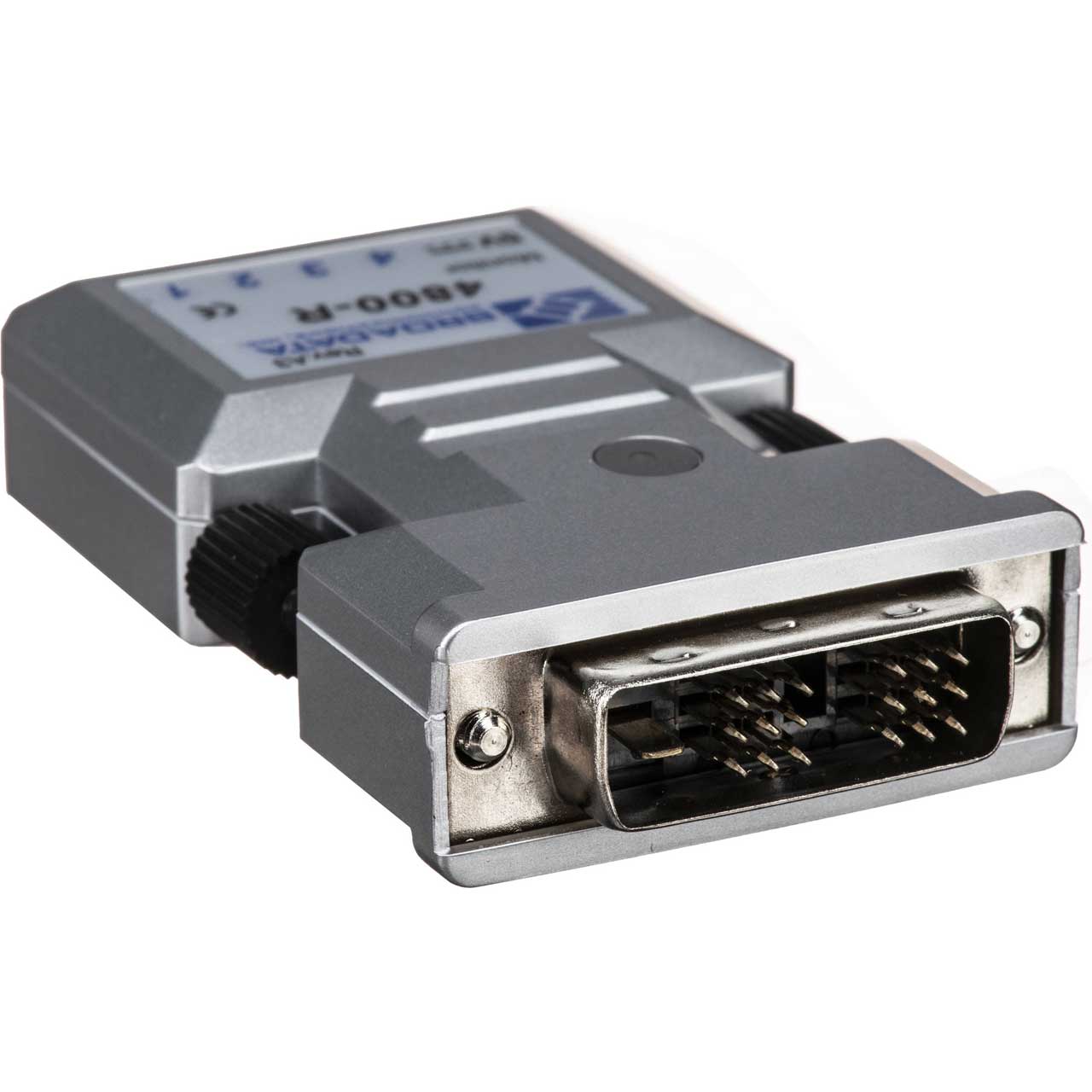

    • Connector - DVI 24-pin plug

      Optical
    • Fiber Type - Multimode
    • Number of Fibers - 4
    • Connector - LC
    • Recommended Fiber - 50/125um Multimode Glass Fiber, 400 MHz Km (min)

      Physical
    • Dimension (H x W x D) - 0.59" x 1.54" x 2.33"
    • Power Level (max.) - +5VDC @ 0.32A
    • Operating Temperature - 0 to +50oC
    • Humidity - 0 to 95% RH, non-condensing
