Brady BMP41-KIT-EL Label Maker Electrical Starter Kit

ITEM #: BDY-BMP41-KIT-EL MFG #: BMP41-KIT-EL

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BDY-BMP41-KIT-EL

BMP41-KIT-EL - Overview

The Brady BMP41-KIT-EL includes the BMP®41 Label Printer, self-laminating labels, repositionable vinyl markers, heat-shrink wire markers and durable vinyl tape for electrical applications.

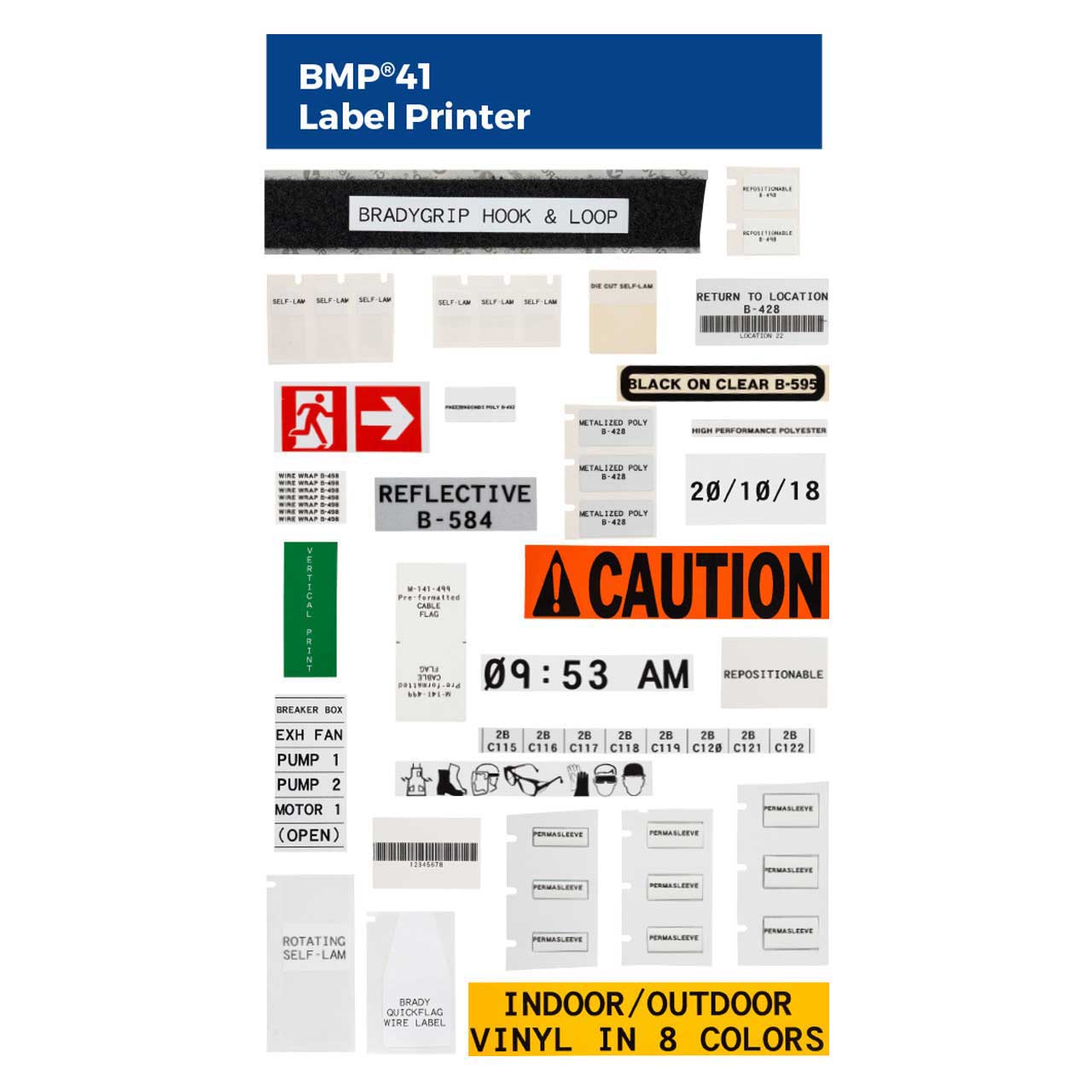

Applications
General Identification - Directional marking, Equipment labeling
Wire and Cable - Sleeves, Self-Lams, Wire Wraps, Flag Labels, Cable Markers
DataCom - Self-Lams, Flag Labels, Patch-Panel and Face Plate labeling
Electrical - Sleeves, Self-Lams, Wire Wraps, Cable Markers, Flag and Raised Panel Labels

  • Features:

    • Enhanced exterior coloring for jobsite visibility
    • Large, clear window to display installed cartridge information
    • Improved product grips for better handling
    • Tested to withstand 4 foot drop for added durability
    • Same great speed, connectivity, auto-formatting, available symbols and extensive label materials
    • Handheld label printer for creating multi-line labels to identify wires, panels, circuit boards and any other industrial items
    • QWERTY keyboard contains letters A to Z, numbers 0 to 9, and backlit LCD graphics display for easier labeling even in low-lit areas
    • Prints in different text sizes ranging from 4 point to 103 point in a single color
    • Label and ribbon ship in self-contained cartridge that requires no calibrating or threading

  • Specifications:

    • Product Features
    • Color: Yellow, Gray
    • Connectivity Options: USB
    • Cutter Type: Single Hand Manual Actuate, Straight Cut, With label retention
    • Display Type: Monocolor LCD Screen
    • Keyboard Type: QWERTY
    • Memory: 48 MB (stores up to 25,000 labels)
    • Stand Alone Printing: Stand-Alone & PC Connect
    • Mode of Operation: Stand-Alone & PC Connect
    • Number of Symbols: 480
    • Plug Type: US
    • Power Supply Voltage: 110 - 240 V
    • Auto Shut-Off / Power Conserve: 10 minutes, User Configurable
    • Recharge Time: 4 hours
    • Special Characters Quantity: 123
    • User Interface Type: Full QWERTY Keyboard
    • Battery Type: Rechargeable NiMH Battery
    • Label/Media Format: Cartridge

      Printing Specifications
    • Barcode Capability: Yes
    • Barcode Symbologies - 2D: More through Brady Workstation
    • Barcode Symbologies - Linear: Code 128, Code 39, More through Brady WorkStation
    • Calibration Required?: Automated through Smart Cell
    • Color Printing Capability: Single Color
    • Font Sizes: 4 - 103 pt
    • Font Styles: Brady Alpine, Brady Fixed Width
    • Label Retention Feature: Yes
    • Maximum Labels per Day: 250
    • Maximum Print Speed: 1.3 in/s
    • Print Resolution: 300 dpi
    • Print Technology: Thermal Transfer
    • On Screen Indicators: Battery Life, Ribbon and label part number recognition, Supply Remaining
    • Device Drop Test & Durability: Resistant to 4-foot drops

      Compatibility
    • Cartridge Printer Series: M Series (M-, MC-, MC1-)
    • Compatible Media: M-, MC-, MC1-
    • Continuous & Die-Cut Materials Supported: Continuous and Die-cut
    • Custom Media Parts Available: No
    • Maximum Label/Tape Width: 1 in
    • Maximum Print Width: 1.0 in
    • Maximum Printed Label Length: 39 in
    • Minimum Label Length: 0.240 in
    • Minimum Liner Width: 0.813 in
    • Maximum Liner Width: 1.31 in
    • Software Compatibility: Brady Workstation, CodeSoft
    • Languages Available: Danish, Dutch, English (US), Finnish, French (France), German, Italian, Norwegian, Portuguese (Portugal), Spanish (Spain), Swedish

      Dimensions
    • Sign Size (H x W): 11.5" x 6"
    • Dimensions: 11.5 in H x 6 in W x 3.5 in D
    • Height: 11.5 in
    • Width: 6 in
    • Depth: 3.5 in
    • Display Size: 2 x 1.4 in
    • Display Size (Imperial): 1.375 x 2.0 in
    • Printer Weight: 2.85 lb
    • Weight: 2.85 lbs

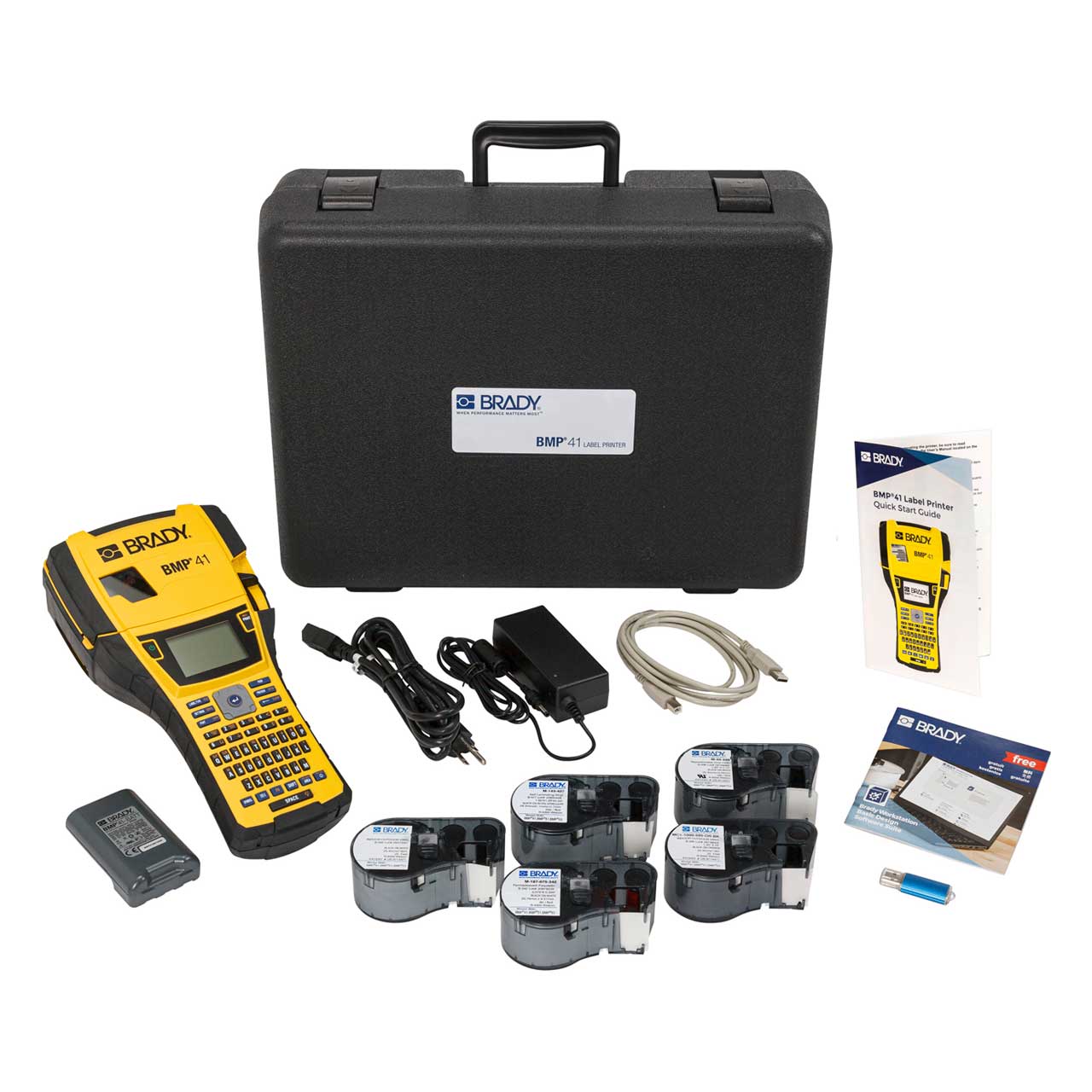

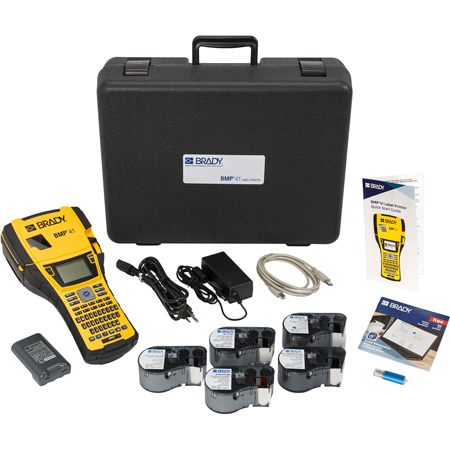

  • Item Includes:

    • 1x AC Adapter/Battery Charger (M-AC-143110)
    • 1x Battery Pack (BMP41-BATT)
    • 1x BMP41 Printer (BMP41)
    • 1x BMP41 Indoor Outdoor Vinyl Labels (MC1-1000-595-WT-BK)
    • 1x Brady CD with Printer Driver
    • 1x CD with Printer User Manual
    • 1x Free Brady Workstation Basic Design Suite Download
    • 1x Indoor Outdoor Orange Vinyl (MC1-1000-595-OR-BK)
    • 1x Permasleeve Heat Shrink Wire Marking Sleeves (M-187-075-342)
    • 1x Printer Hard Case (BMP41-HC)
    • 1x Quick Start Guide
    • 1x Repositionable Vinyl Cloth Wire and Cable Labels (M-48-498)
    • 1x Self Laminating Vinyl Wire and Cable Labels (M-143-427)
    • 1x USB Cable (M-USB-103788)

  • GTIN:

    0754473908928
