Brady BMP51-KIT-VD Label Printer Voice and Data Communications Starter Kit

BMP51-KIT-VD - Overview

• Features:

  • Maximum Label/Tape Width: 1.5 in
  • Color Printing Capability: Single Color
  • Maximum Labels per Day: 500
  • Stand Alone Printing: PC connected & Stand-alone
  • Print Resolution: 300 dpi
  • Print Technology: Thermal Transfer
  • You can carry the BMP®51 Label Printer throughout your facility to quickly and easily make labels on the go
  • Prints on a variety of continuous and pre-sized materials up to 1.5 in. wide that come in hassle-free, top-loading media cartridges
  • Features a 300 dpi print head, a built-in cutter, and a print speed of 1 inch/second
  • Offers three power options: AC Power (included), rechargeable Lithium Ion Battery (included), or 8 AA's (not included)
  • Discounted price already reflected. Discount based on buying kit items individually
  • Pair with the Brady Text Labels mobile app for compatibility with the Fluke Networks Linkware Live Solution


• Specifications:

  • Product Features
  • Application : Component and Equipment Labeling, Facility Identification, Laboratory Labeling, Wire and Cable Labeling
  • Shipped With Battery: Yes
  • Battery mAh Rating: 2200 mAh
  • Battery Weight (metric): 0.67 lb
  • Built-In Label Wizards: Flags, Patch Panel, Terminal Block, Wire Wrap
  • Connectivity Options : Ethernet (optional), USB, WiFi (optional)
  • Cutter Type: Between labels or at end of print job, Manual cut, With label retention
  • Display Type: Monocolor LCD Screen
  • Keyboard Type: QWERTY
  • Memory: 48 MB (stores up to 25,000 labels)
  • Mode of Operation : Stand-Alone & Peripheral Modes
  • Stand Alone Printing : PC connected & Stand-alone
  • Number of Printers in Kit: 1
  • Number of Symbols: 480
  • Plug Type: US
  • Power Supply Voltage: 110 - 240 V
  • Auto Shut-Off / Power Conserve: 10 minutes, User Configurable
  • Recharge Time : 3 hours
  • Special Characters Quantity: 123
  • User Interface Type: Full QWERTY Keyboard
  • Battery Type: Optional AA Battery, Rechargeable Lithium-ion Battery
  • Label/Media Format: Cartridge
  • Supply Remaining Gauge : Yes

    Printing Specifications
  • Barcode Capability: Barcode Capable
  • Barcode Symbologies - 2D: More through Brady WorkStation
  • Barcode Symbologies - Linear: Code 128, Code 39, More through Brady WorkStation
  • Calibration Required? : Automated through Smart Cell
  • Color Printing Capability: Single Color
  • Font Sizes: 4 - 103 pt
  • Font Styles: Brady Alpine, Brady Fixed Width
  • Label Retention Feature : Yes
  • Maximum Labels per Day : 500
  • Maximum Print Speed: 1 in/s
  • Minimum Label Length : 0.240 in
  • Print Resolution: 300 dpi
  • Minimum Liner Width: 0.813 in
  • Print Technology: Thermal Transfer
  • On Screen Indicators: Battery Life, Ribbon and label part number recognition, Supply Remaining
  • Device Drop Test & Durability: Resistant to 6-foot drops

    Compatibility
  • Cartridge Printer Series : M Series (M-, MC-, MC1-)
  • Compatible Media : M-, MC-, MC1-, MFT-
  • Label Material Types: FreezerBondz™ Polyester, Heat-shrink Polyolefin, Metallized Polyester, Nylon Cloth, Paper, Polyester, Polypropylene, Reflective Tape, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth
  • Continuous & Die-Cut Materials Supported: Continuous and Die-cut
  • Custom Labels Available: No
  • Custom Media Parts Available: No
  • Maximum Label/Tape Width: 1.5 in
  • Maximum Print Width: 1.5 in
  • Maximum Printed Label Length: 39 in
  • Maximum Liner Width: 1.81 in
  • Software Compatibility: Brady Workstation, CodeSoft, Express Labels Mobile App
  • Languages Available: Danish, Dutch, English (US), Finnish, French (France), German, Italian, Norwegian, Portuguese (Portugal), Spanish (Spain), Swedish

    Physical
  • Dimensions: 10.3 in H x 6 in W x 3.6 in D
  • Height: 10.3 in
  • Width: 6 in
  • Depth: 3.6 in
  • Display Size: 2.7 x 1.7 in
  • Printer Weight: 2.6 lb
  • Weight: 2.6 lb

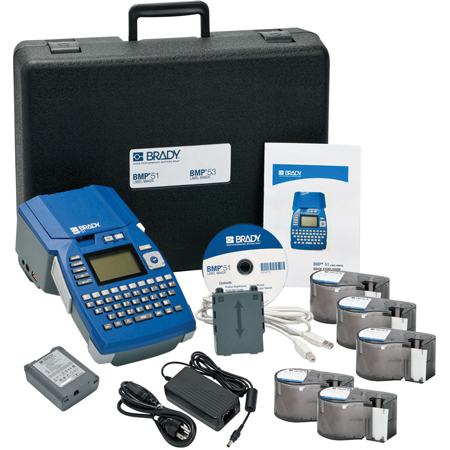

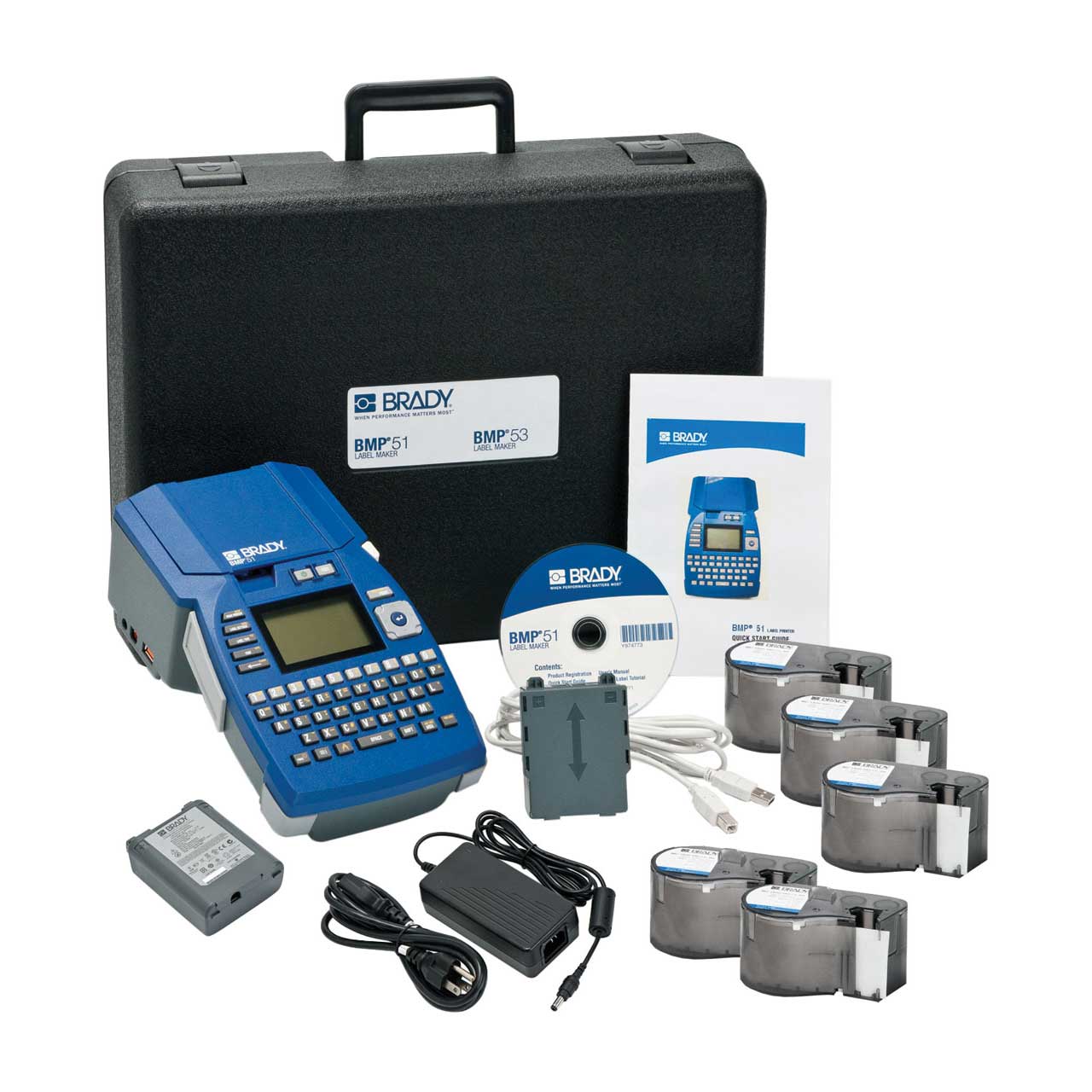

• Item Includes:

  • 1x AC Adapter/Battery Charger (M-AC-143110)
  • 1x BMPr51 Printer (BMP51)
  • 1x Continuous High Tensile Polypropylene Tags (MC-475-412)
  • 1x Continuous Polyester Panel Component Labels (M-90-422)
  • 1x Free Brady WorkStation Basic Design Suite Download
  • 1x Hard Case (M50-HC)
  • 1x Indoor Outdoor Vinyl Labels (MC1-1000-595-YL-BK)
  • 1x Indoor Outdoor Vinyl Labels (MC-1500-595-WT-BK)
  • 1x Li-Ion Battery Pack (BMP-UBP)
  • 1x Product/Driver CD
  • 1x Quick Start Guide
  • 1x Self-laminating Vinyl Wire and Cable Labels (M-51-427)
  • 1x USB Cable (M-USB-103788)


• Warranty:

  • 2 Years
