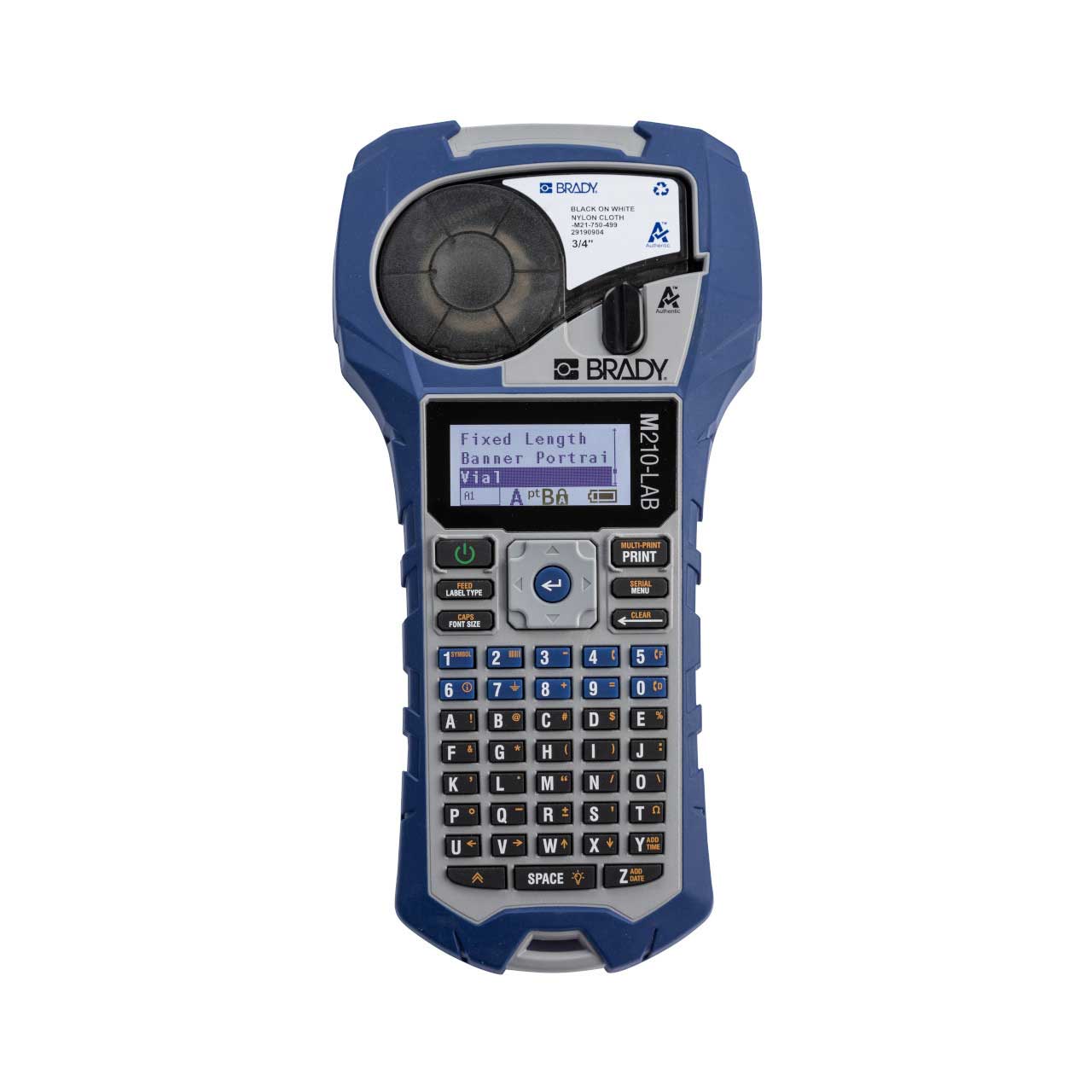

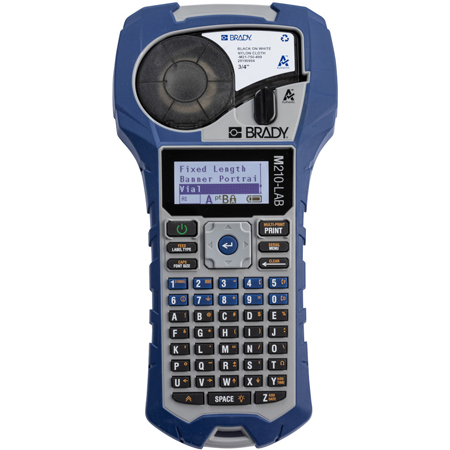

Brady M210-LAB 210 Series Portable Label Printer - Multi-Line

M210-LAB - Overview

• Features:

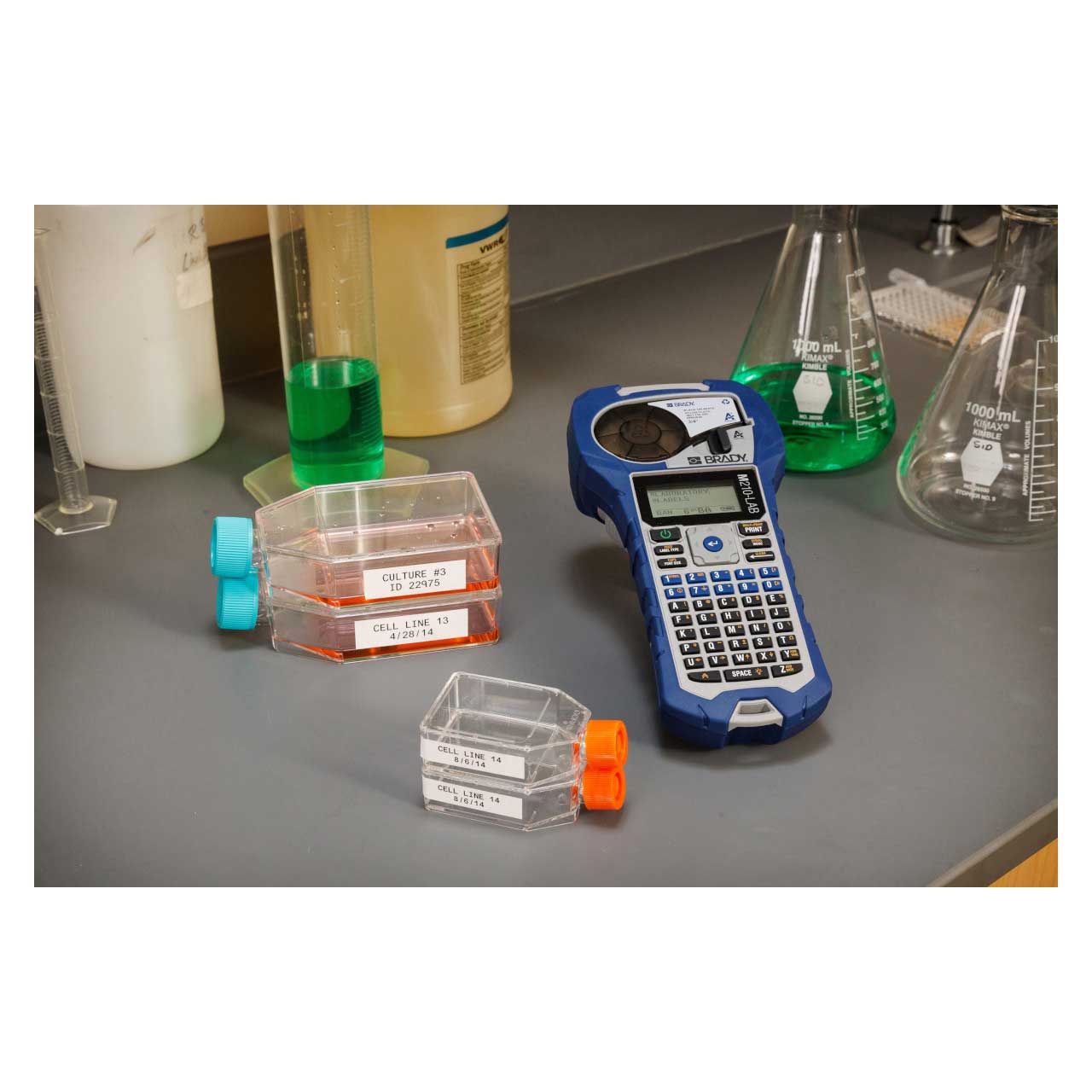

  • Create fast and accurate labels for lab equipment and slides, tubes, beakers, and bottles
  • Save time with built-in label templates with mathematical symbols
  • Be more efficient in low-lit areas with a backlit LCD graphics display
  • Design labels to spec with 6 different text sizes
  • Choose from 90 compatible, easy-to-load cartridges made from 12 material types


• Specifications:

  • Key Characteristics
  • Product Number: 152261
  • UPC: 888434559482
  • UOM: Each
  • Trade Name: M210
  • Brand Name: Brady®
  • Country of Origin: Malaysia
  • HTS Code (Harmonized Tariff Schedule): 8443.32.1050
  • ECCN (Export Commodity Control Number): EAR99

    Dimensions
  • Height: 9.5 in
  • Width: 4.5 in
  • Depth: 2.5 in
  • Display Size: 2 x 1 in
  • Weight: 1.653 lb

    Material Characteristics
  • Color: Blue, Gray

    Product Features
  • Application: Healthcare and Hospital Labeling, Laboratory Labeling
  • Shipped With Battery: No
  • Battery Weight (metric): 0.21 lb
  • Built-In Label Wizards: General, Slide, Tube, Vial
  • Connectivity Options: None
  • Cutter Type: Single Hand Manual Actuate, Straight Cut, With label retention
  • Display Type: Monocolor LCD Screen
  • Keyboard Type: ABC
  • Memory: 16 MB (2 MB available for storage, stores 12 labels)
  • Stand Alone Printing : Stand-alone
  • Number of Symbols: 133
  • Plug Type: US
  • Power Supply Voltage: 110 - 240 V
  • Auto Shut-Off / Power Conserve: 10 minutes
  • Recharge Time: 2.5 hours
  • User Interface Type: ABC Keypad
  • Battery Type: Optional AA Battery, Optional Rechargeable Lithium-Ion Battery

    Printing Specifications
  • Barcode Symbologies - 2D: Data Matrix, QR code
  • Barcode Symbologies - Linear: Code 128, Code 39
  • Calibration Required?: Automated through Smart Cell
  • Color Printing Capability: Single Color
  • Font Sizes: 6 - 40 pt
  • Font Styles: Brady Standard Font
  • Label Retention Feature: Yes
  • Maximum Labels per Day: 100
  • Minimum Label Length: 0.915 in
  • Maximum Print Speed: 0.393 in/s
  • Minimum Liner Width: 0.453 in
  • Print Resolution: 203 dpi
  • Print Technology: Thermal Transfer
  • On Screen Indicators: Battery Life, Ribbon and label part number recognition, Ribbon Remaining, Supply Remaining
  • Device Drop Test & Durability: Resistant to 6-foot drops

    Compatibility
  • Compatible Media: M21-
  • Label Material Types: Heat-shrink Polyolefin, Nylon Cloth, Paper, Polyester, Polypropylene, Self-laminating Polyester, Self-laminating Vinyl, Vinyl
  • Continuous & Die-Cut Materials Supported: Continuous and Die-cut
  • Custom Media Parts Available: No
  • Custom Labels Available: No
  • Maximum Label/Tape Width: 0.75 in
  • Maximum Print Width: 0.63 in
  • Maximum Printed Label Length: 36 in
  • Maximum Liner Width: 0.875 in
  • Languages Available: Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (France), German, Hungarian, Italian, Norwegian, Polish, Portuguese (Portugal), Romanian, Slovak, Slovenian, Spanish (universal), Swedish, Turkish

    Compliance
  • UNSPSC : 45101520
  • Patent Number(s): 6.604.874;6.732.619;US 8.322.937
  • RoHS Compliance Status: Compliant with Directive 2011/65/EU and 2015/863

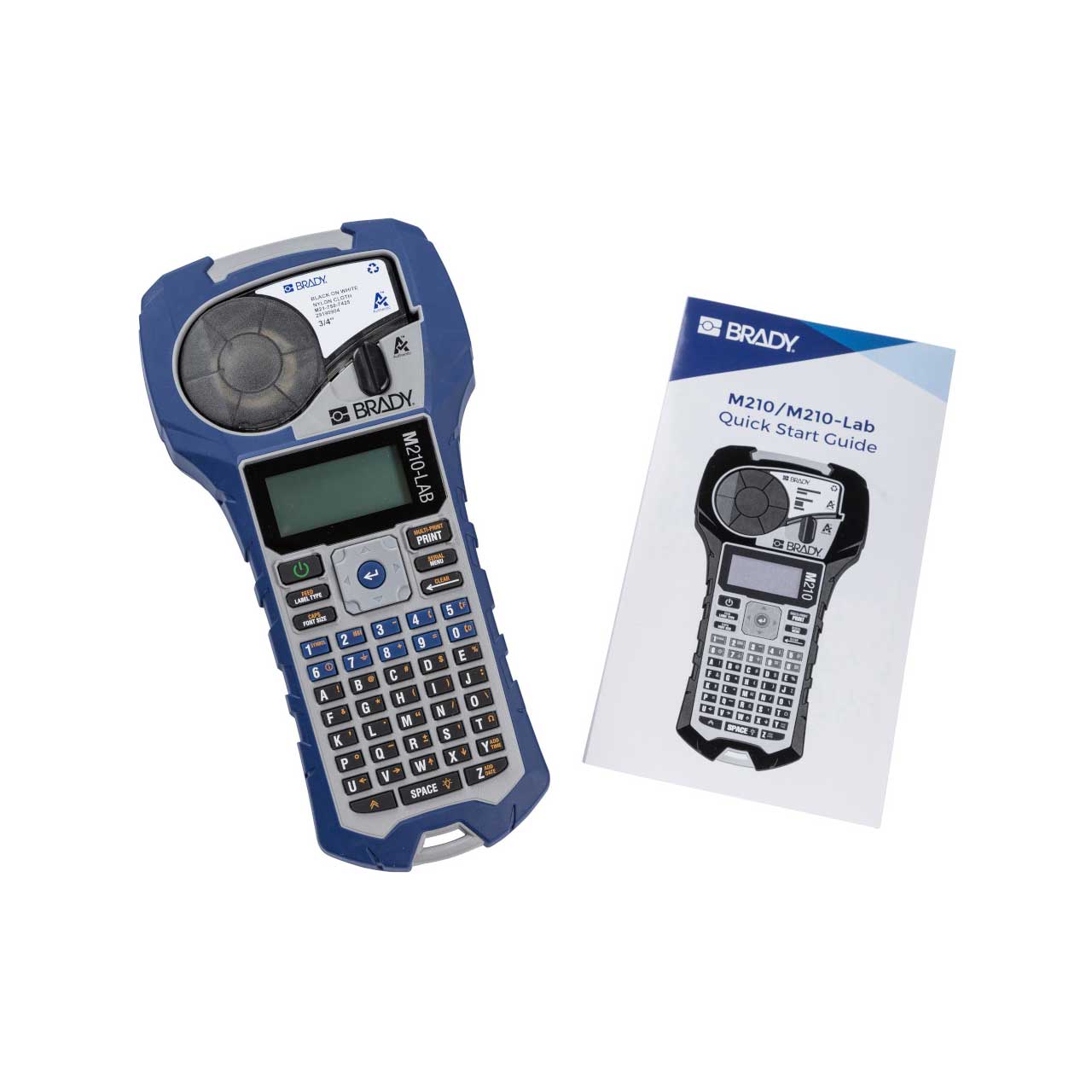

• Item Includes:

  • 1x M21 Series Polypropylene Laboratory Labels (M21-750-7425)
  • 1x Quick Start Guide
  • 1x M210-LAB Label Printer (M210-LAB)


• Warranty:

  • 2 Years
