Brady M510 Portable Industrial Label Printer with Accessories Kit

M510-KIT - Overview

• Features:

  • Create large 1.5" labels with edge-to-edge printing and a wide range of text sizes
  • Print up to 1.5" per second to get work done faster
  • Use the M510 for more applications with 250+ hassle-free drop-in cartridges and 26+ high-performance materials
  • Enter data with more accuracy as you work between an intuitive QWERTY keypad, a separate numeric keypad or a PC
  • Backlit full-color LCD graphics display for easier labeling in low-lit areas
  • Durably designed to withstand 4' drops
  • The rechargeable NiMH battery prints up to 1700 labels on a single charge and the high-capacity Li-ION battery prints 4400 labels on a single charge for all-day power


• Specifications:

  • Height: 3.5"
  • Width: 5.5"
  • Depth: 0"
  • Display Size: 2.8"
  • Weight: 3.05lb
  • Color: Blue, Gray
  • Shipped With Battery: Yes
  • Battery mAh Rating: 2700 mAh
  • Battery Weight: 0.93 lb
  • Built-In Label Wizards: 66 Block, Breaker Box, DesiStrip, Face Plate, Flags, General, Patch Panel, Terminal Block, Vial, Wire Wrap
  • Connectivity Options: USB
  • Cutter Type: Single Hand Manual Actuate, Straight Cut, With label retention
  • Display Type: Color LCD Screen, LCD backlit graphics display
  • Keyboard Type: QWERTY
  • Memory: 512 MB RAM, 256 MB Flash
  • Device Connectivity: PC connected, Stand-alone
  • Number of Symbols: 480
  • Plug Type: US
  • Power Supply Voltage: 110 - 240 V
  • Auto Shut-Off/Power Conserve: 10 minutes, User Configurable
  • Recharge Time: 4 hours
  • Special Characters Quantity: 123
  • User Interface Type: Full QWERTY Keyboard, PC
  • Battery Type: Rechargeable Lithium-ion Battery, Rechargeable NiMH Battery
  • Barcode Symbologies - 2D: Data Matrix, QR code
  • Barcode Symbologies - Linear: Code 128, Code 39, EAN-13, EAN-8, Interleaved 2 of 5, More through Brady WorkStation, UPC-A, UPC-E
  • Calibration Required?: Automated through Smart Cell
  • Color Printing Capability: Single Color
  • Font Sizes: 4 - 170 pt
  • Font Styles: Brady Alpine, Brady Fixed Width
  • Label Retention Feature: Yes
  • Maximum Labels per Day: 1000
  • Minimum Label Length: 0.0"
  • Maximum Print Speed: 1.0"/s
  • Print Resolution: 300 dpi
  • Minimum Liner Width: 0.3"
  • Print Technology: Thermal Transfer
  • On Screen Indicators: Battery Life, Supply Remaining
  • Device Drop Test & Durability: Resistant to 4-foot drops
  • Compatible Media: M4-, M4C-, M5-, M5C-
  • Label Material Types: BradyGripr Polyester, FreezerBondzT Polyester, Heat-shrink Polyolefin, Metallized Polyester, Nylon Cloth, Polyester, Polypropylene, Reflective Tape, Self-laminating Polyester, Self-laminating Vinyl, StainerBondzT Polyester, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth, Water Dissolvable Paper
  • Continuous & Die-Cut Materials Supported: Continuous and Die-cut
  • Custom Labels Available: No
  • Maximum Label/Tape Width: 1.5"
  • Maximum Print Width: 1.4"
  • Maximum Printed Label Length: 39.0"
  • Maximum Liner Width: 1.0"
  • Software Compatibility: Brady Workstation
  • Languages Available: Bulgarian, Chinese (Traditional and Simplified), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (France), German, Italian, Japanese, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish (Mexico), Swedish, Turkish

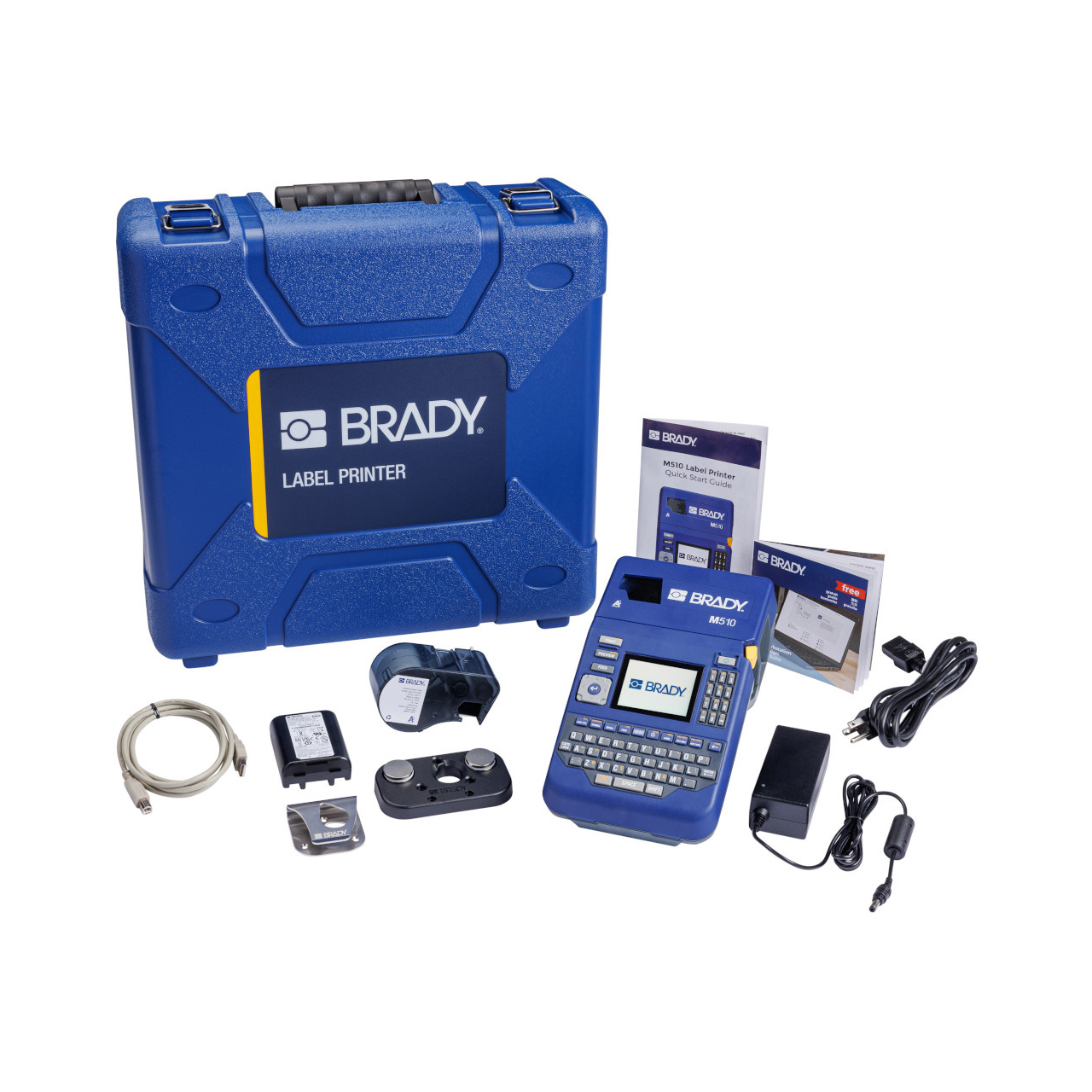

• Item Includes:

  • 1x AC Adapter (M41-51-61-AC)
  • 1x Brady Workstation Basic Design Suite
  • 1x Hard Case (M510-HC)
  • 1x Indoor/Outdoor Vinyl Label Cartridge (M5C-1500-595-WT-BK)
  • 1x M510 Printer
  • 1x Magnet (M51-MAGNET)
  • 1x Quick Start Guide
  • 1x Rechargeable Li-ion Battery Pack (M-LION-BATTERY)
  • 1x Rechargeable NiMH Battery Pack (M-NIMH-BATTERY)
  • 1x USB Cable (M-USB-103788)
  • 1x USB Flash Drive with Driver and User Manual
  • 1x Utility Hook (M51-HOOK)


• Warranty:

  • 2 Year Warranty


• GTIN:

  0888434624326
