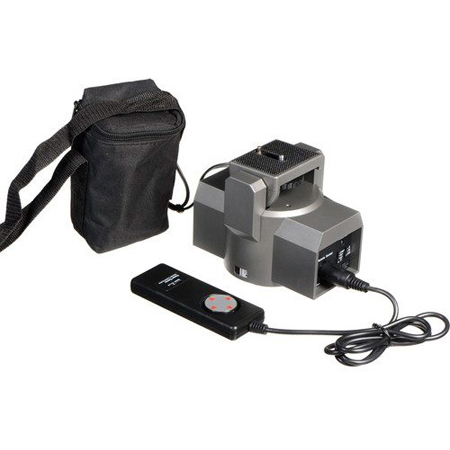

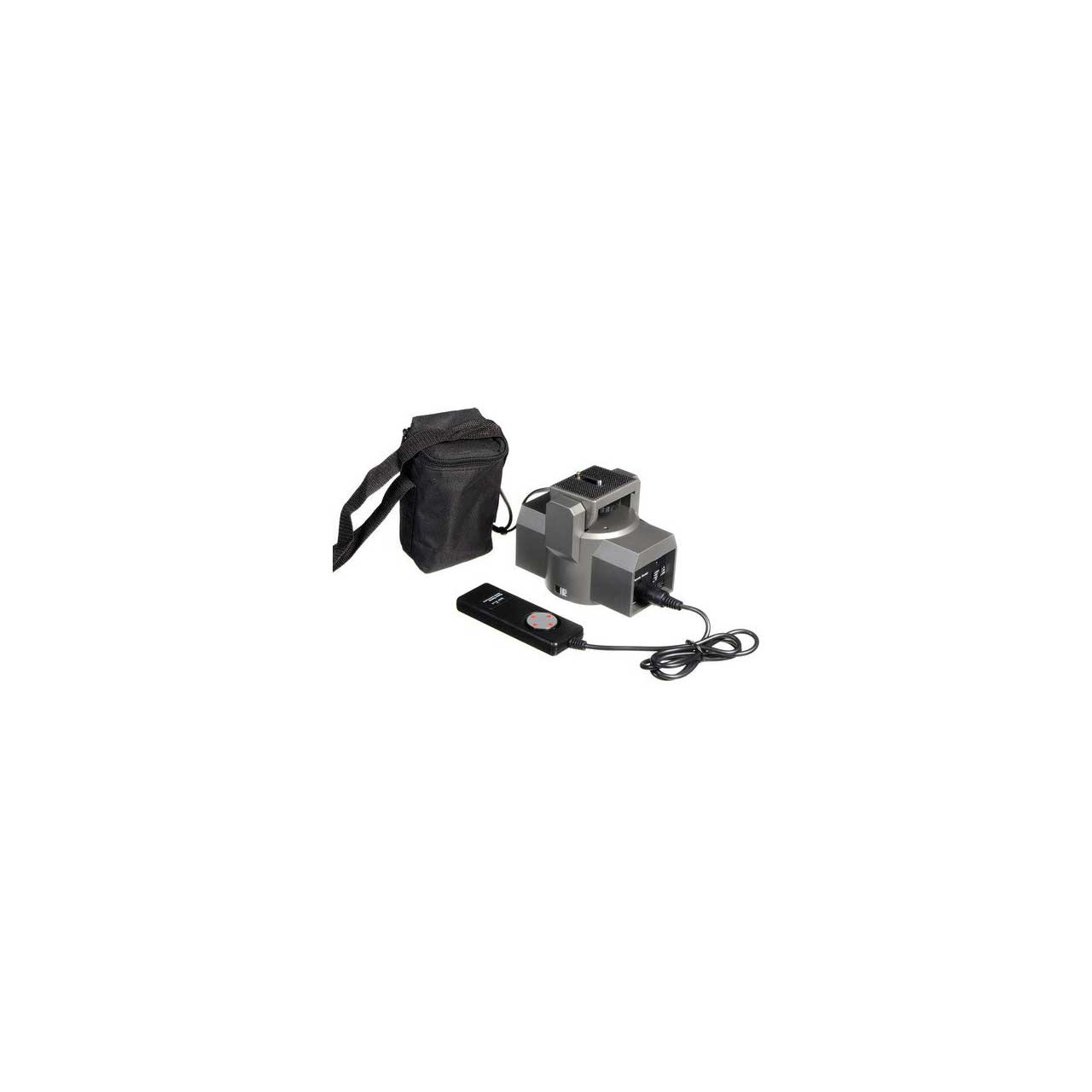

Bescor MP-1B Motorized Pan Head with MP-REMOTE & 90-645 External Extended Power Battery

MP-1B - Overview

• Specifications:

  • Range of Motion
  • The MP-101 has two motors, one each for the pan and tilt functions. The motors operate independently of each other, and can be controlled by the included MP-REMOTE.
  • Tilt Range is -15 to 15° and is set to position using the included MP-REMOTE. (Note - The Tilt axis has no automatic movement functionality.)

    Pan Range
  • 0 to 340°, with the following settings:
  • Auto Mode - 0 to 340°, then returning to 0° cycle repeats
  • 90° Mode - 0 to 90°, then returning to 0° cycle repeats
  • 45° Mode - 0 to 45°, then returning to 0° cycle repeats
  • 0° Mode - Unit pans to 340°, then returns to 0° and parks
  • Note: for Auto, 90° and 45° mode the MP-101 starts by panning to zero before starting its cycle.


  • Remote Operation
  • The included MP-REMOTE can be used to set both pan and tilt position on the MP-101 head. The remote can also be used to control both pan and tilt movement directly, and the speed slider on the remote can vary the speed of the movement from between normal to 3x slower. The speed slider also varies the speed of the pan movement when the head is in Auto, 90°, and 45° mode.

    Power
  • The MP-101 is powered by the included Bescor 90-645 battery, or from the following non-included power sources:
  • 4x AA batteries
  • Bescor PS-260 power supply

    Battery and Charger
  • Bescor 90-645 Battery: The Bescor 90-645 battery is rated at 6V/ 4.5A, and will power the MP-101 for 6-12 hours depending on the load.

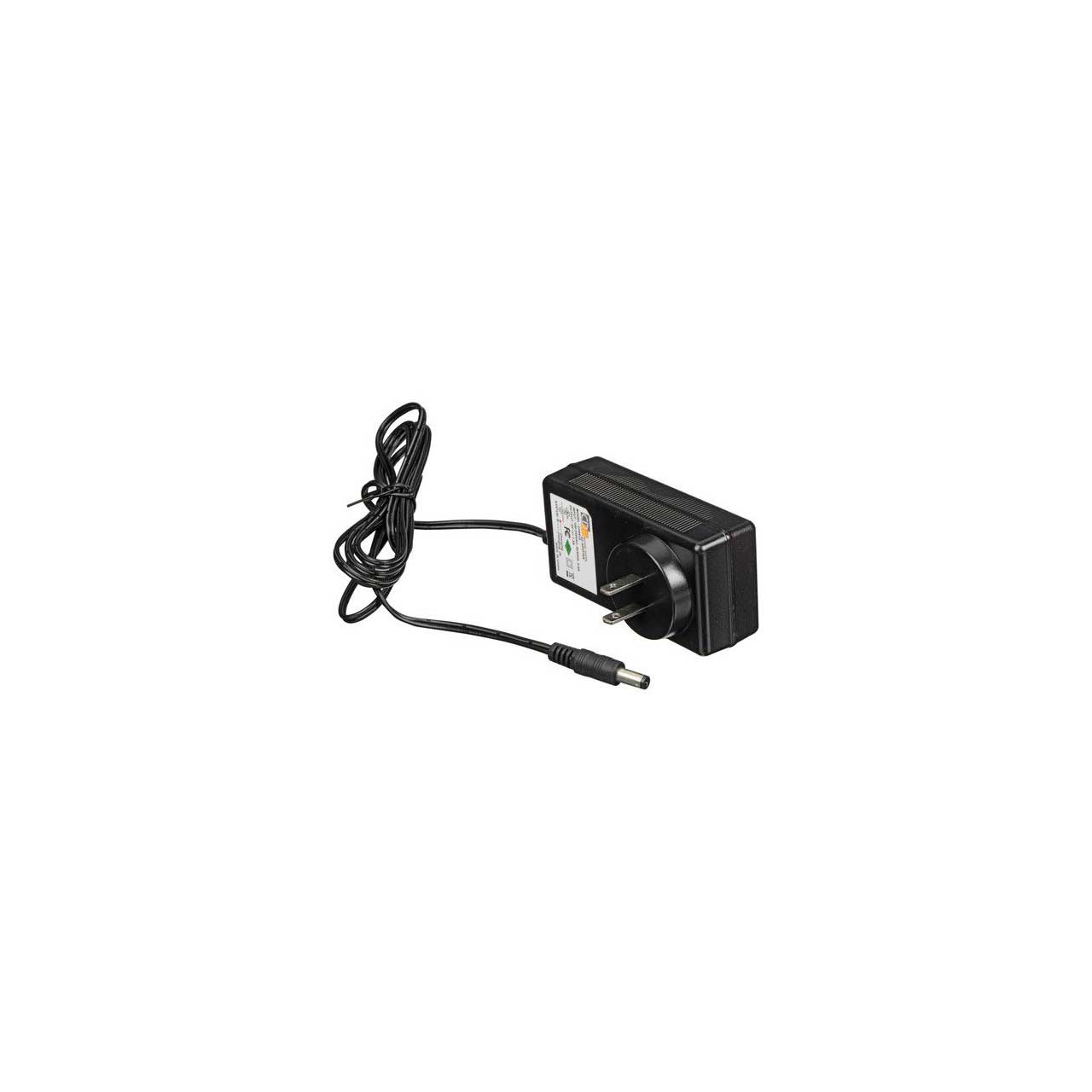

  • Bescor BC-665R Charger: The charger is a standard overnight charger; it is not equipped with an automatic shut off feature. It will charge a fully depleted Bescor 90-645 battery in 8 hours.
