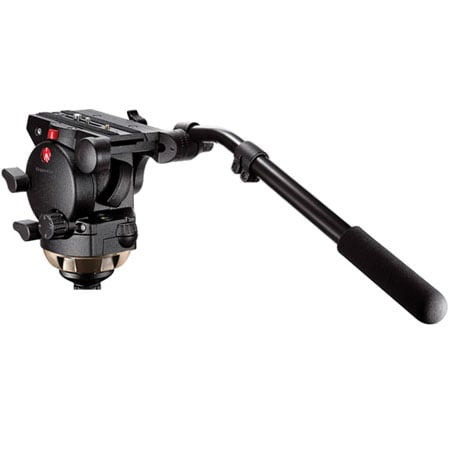

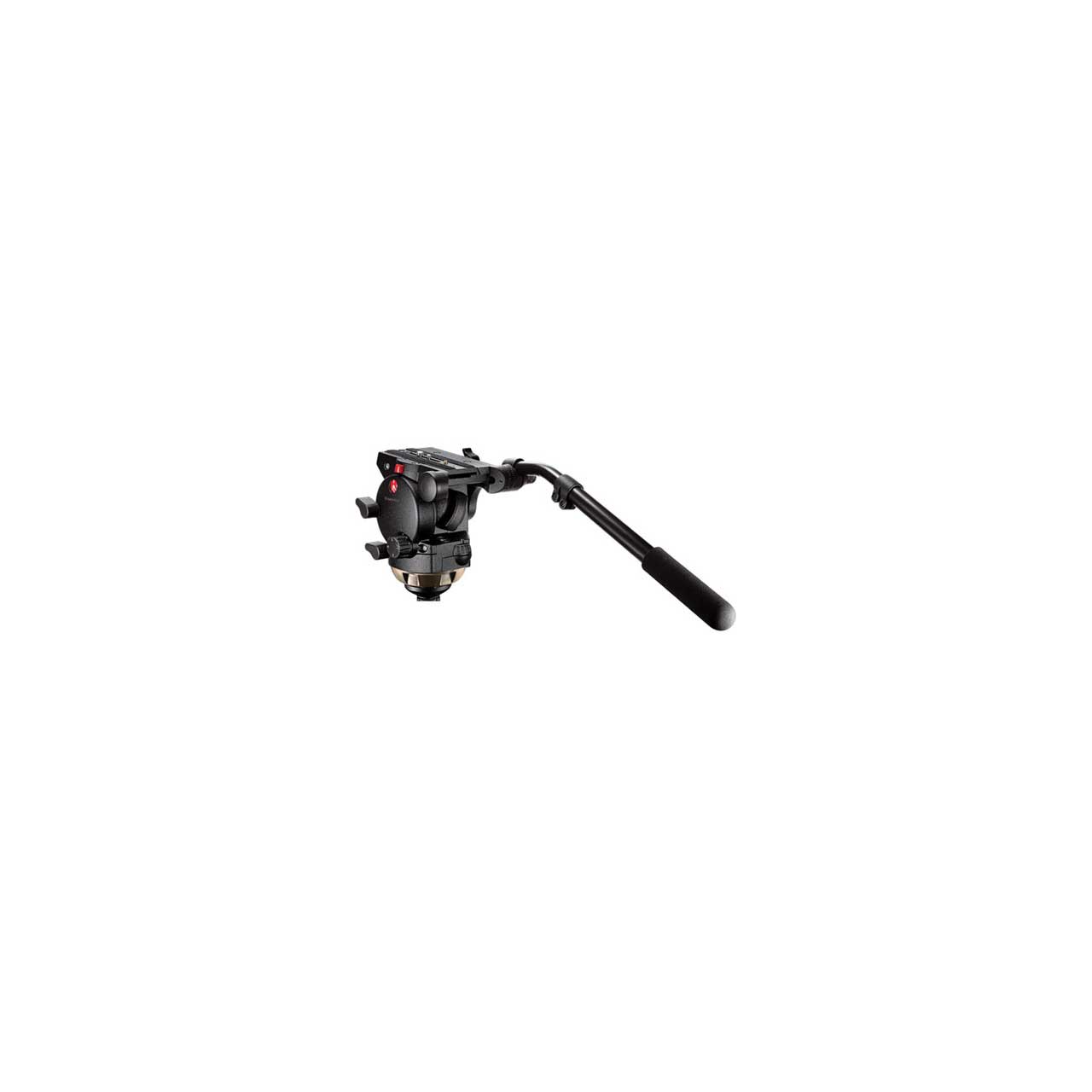

Manfrotto 526 Pro Fluid Video Head w/35lb. Rating & 100mm Half Ball

ITEM #: BG-526 MFG #: 526

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$1,991.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


526 - Overview

The high-end video market, comprised of ENG, EFP and studio use, has a new tool with the introduction of the Manfrotto 526 Pro Fluid Video Head. Manfrotto is now able to provide a top-of-the-line video head that is able to support top weight loads of 35.3lbs.

The 526 offers the most precise fluid system comprised of three step settings for low, medium and high drag levels (numbered 1, 2 and 3), plus the additional no-drag setting (number 0) for such occasions as snap-pans/tilts. Counterbalance is achieved through the single adjustable spring for camera weights between 17.6 and 33.1 lbs. The 526 utilizes many of the heralded features from the 519, such as a replaceable and removable pan arm rosette, large rubber padded knobs and all thecontrols (tilt and pan lock, tilt drag) on the left side so they can be easily found as most camera operators of this class work on the left side of the head. The built-in 100mm half-ball adapts to a number of our tripods with a 100mm receiver, allowing the quick leveling of the camera with the aid of the bright leveling bubble. The 526 ships with one pan arm and the long 3272 plate.

  • Features:

    • Adjustment knobs include: a sliding quick-release knob, interchangeable pan bar rosette, a counterbalance adjustment knob, and tilt & pan locking knob.
    • A spirit level makes for easy adjustments.
    • This model features a pan drag control.
    • This unit features a sliding quick-release plate.
    • It offers a sliding safety-plate release button.

  • Specifications:

    • Weight: 4.6 kg
    • Counterbalance System: Variable Continuous
    • Counterbalance Weight: 8 ? 15 kg
    • Material: Aluminium
    • Bubble Spirit Level (No.): 1
    • Center Of Gravity: 125 mm
    • Safety Payload Weight: 16 kg
    • Top Attachment: 1/4" screw, 3/8" screw
    • Colour: Black
    • Easy Link: No
    • Front Tilt: -70° / +75°
    • Ball Flat: 100 Ball
    • Head Type: Video/Fluid Head
    • Maximum Working Temperature: 60 °C
    • Minimum Working Temperature: -20 °C
    • Pan Bar Included: Yes
    • Pan Drag: 0 plus 3 step
    • Panoramic Rotation: 360 °
    • Plate Type: 357PLV
    • Quick Release: Yes
    • Tilt Drag: 0 plus 3 step
    • Working Height: 15 cm

  • Item Includes:

    • 1x 526 Head
    • 1x 3138 Spreader
    • 1x MBAG120P Bag

  • GTIN:

    0719821260189
