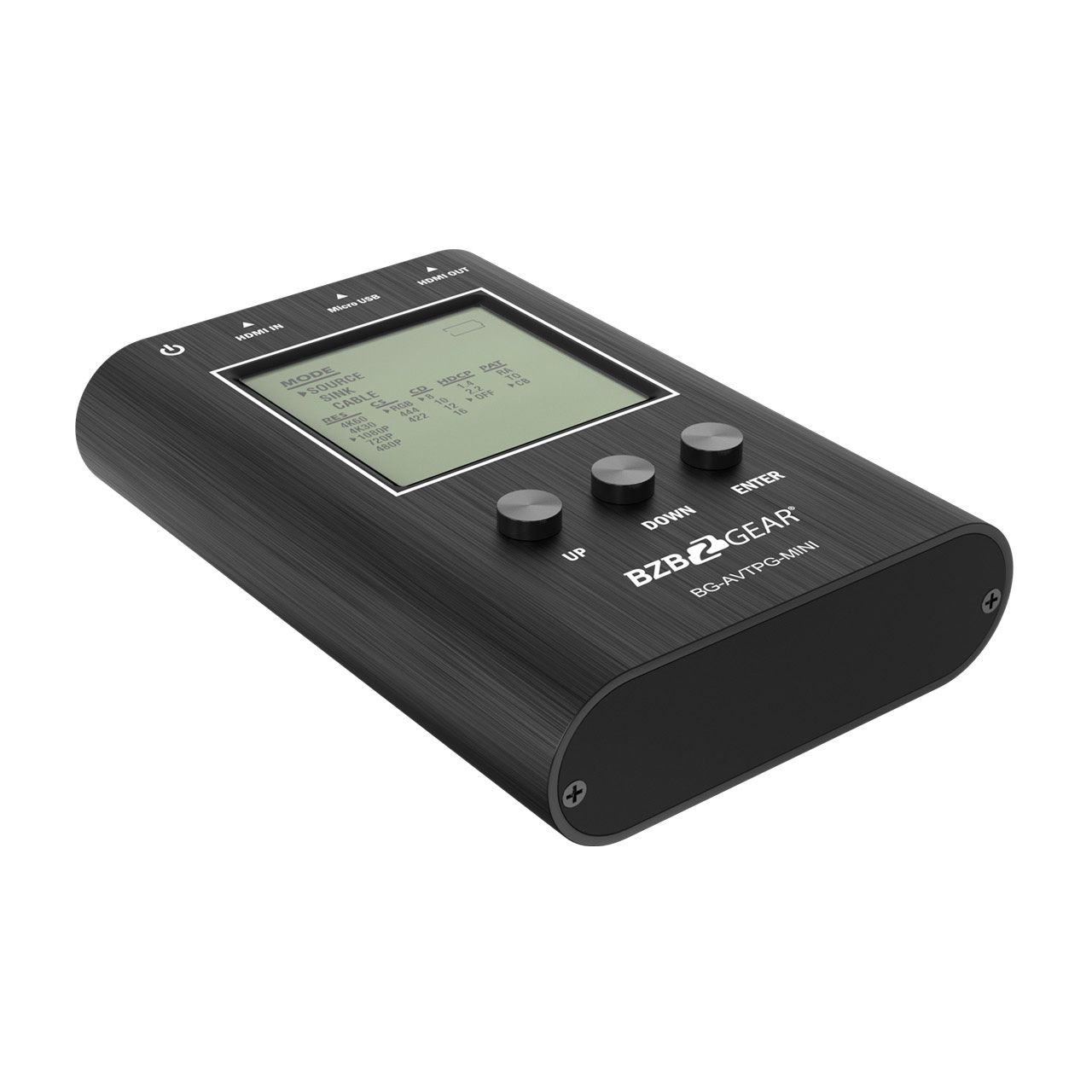

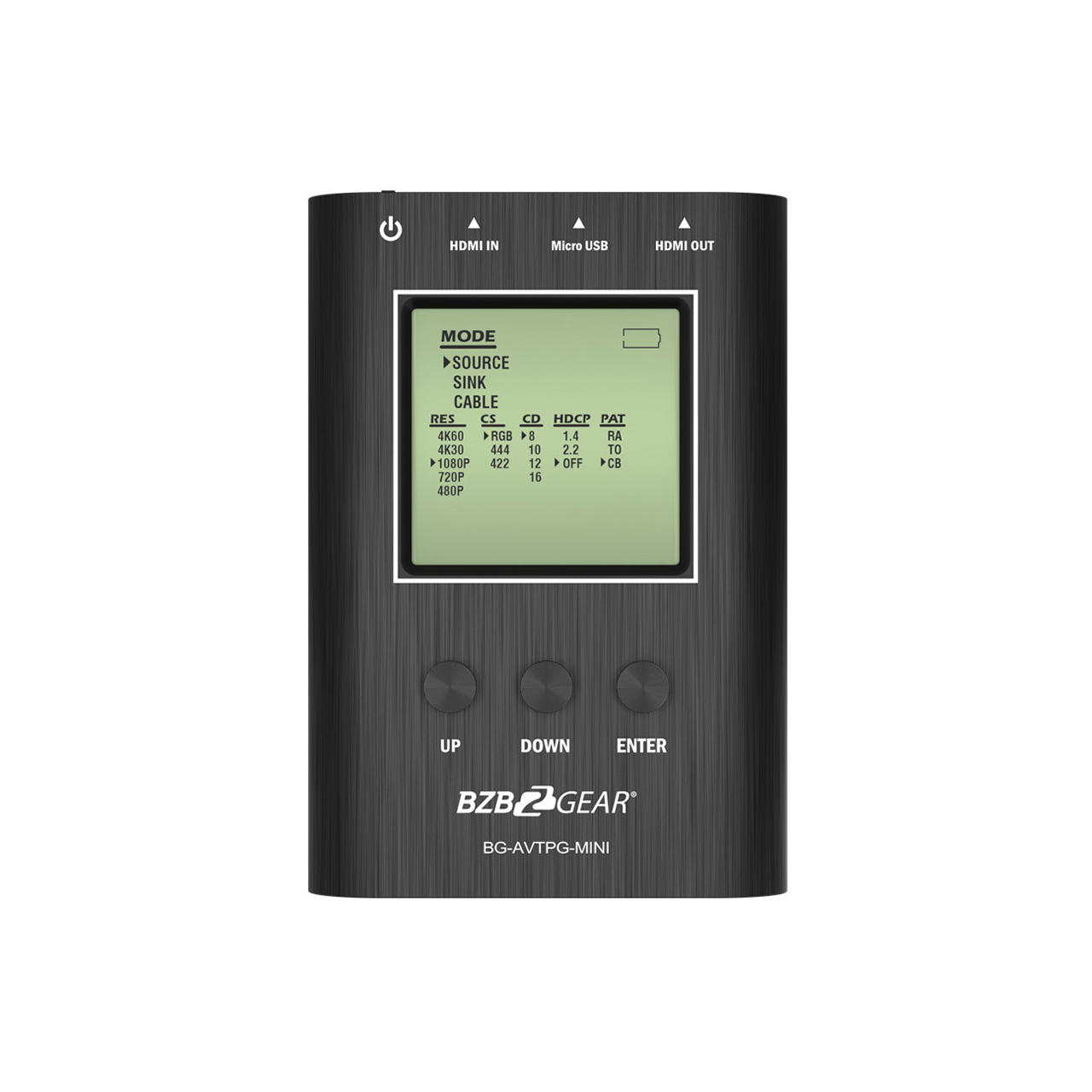

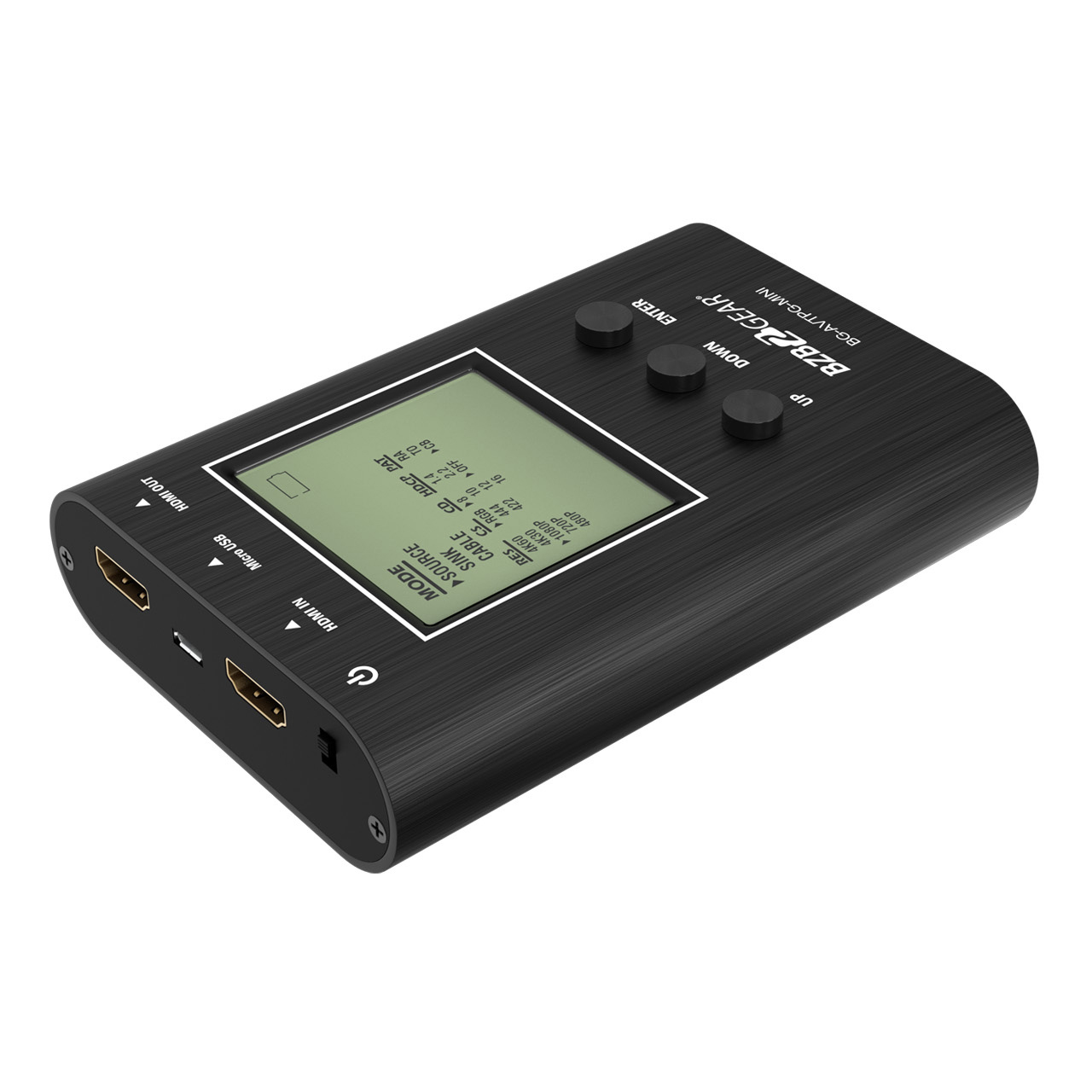

The BZBGEAR BG-AVTPG-MINI is a portable handheld 4K signal analyzer and test pattern generator. Capable of generating and analyzing HDMI signals at resolutions up to 4096x2160@60Hz 4:4:4, This powerful tool provides users with the ability to quickly test and verify HDMI cabling and equipment.

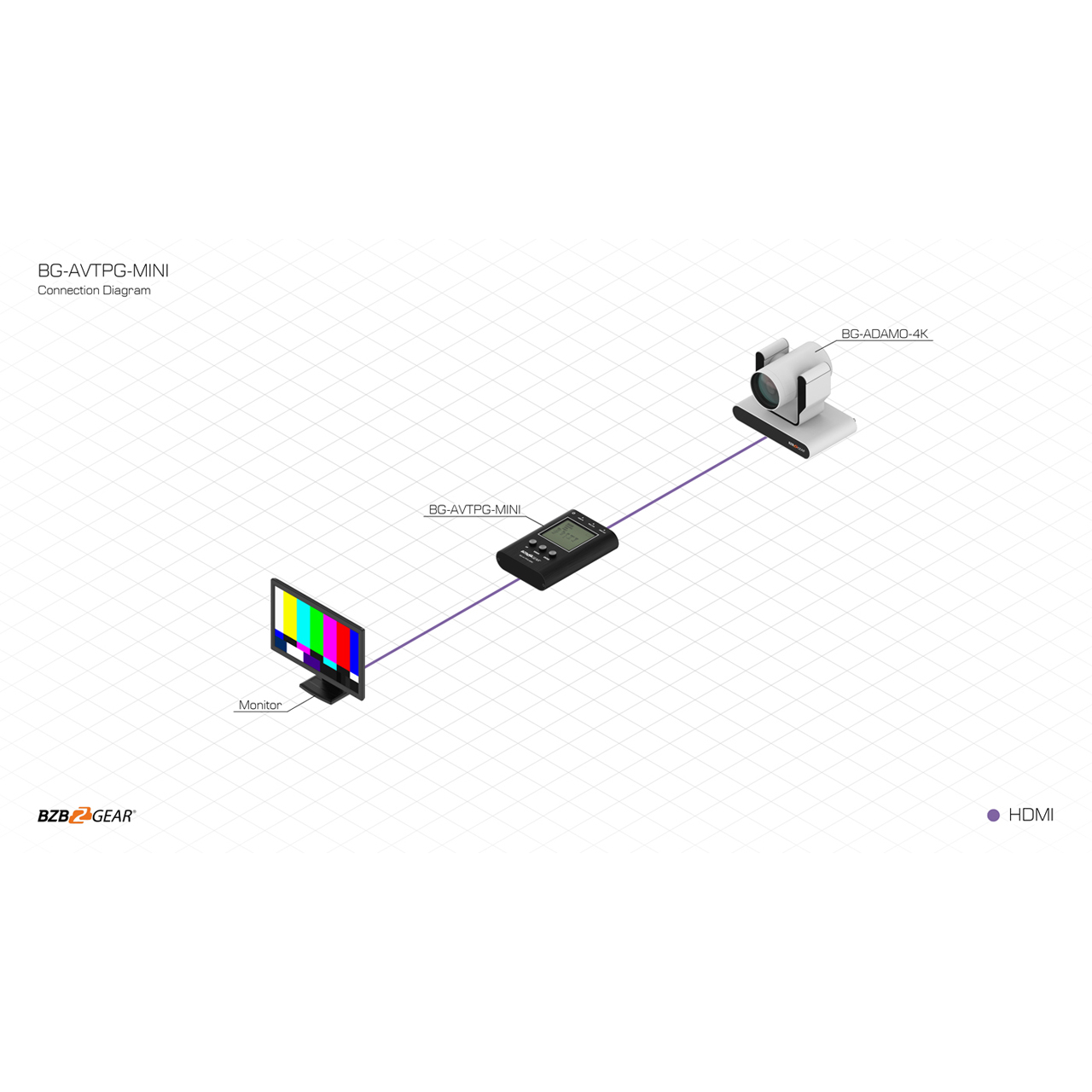

Supports a maximum resolution of 4K2K@60Hz, the BG-AVTPG-MINI can generate and analyze signals with chroma subsampling rates of 4:4:4 8 bit and 4:2:0 16 bit (HDR). This analyzer is HDCP 1.4 and 2.2 compliant, allowing users to test a wide variety of 1080P and 4K HDMI devices. The rechargeable battery provides an operating time of up to three hours. The BG-AVTPG-MINI features three useful video test patterns designed to demonstrate signal quality and stability. The adjustable color depth allows users to test range of the connected equipment’s capabilities. By connecting the HDMI output to the HDMI input, users receive a link quality estimate based on the HDMI 2.0 Character Error Detection.
