BZBGEAR BG-COMMANDER-JR Universal Compact Serial and IP PTZ Camera Joystick Controller (IP/RS232/422)

ITEM #: BG-COMMANDER-JR MFG #: BG-COMMANDER-JR

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$499.00

Availability: In Stock
iAvailability Description Popup


    BG-COMMANDER-JR - Overview

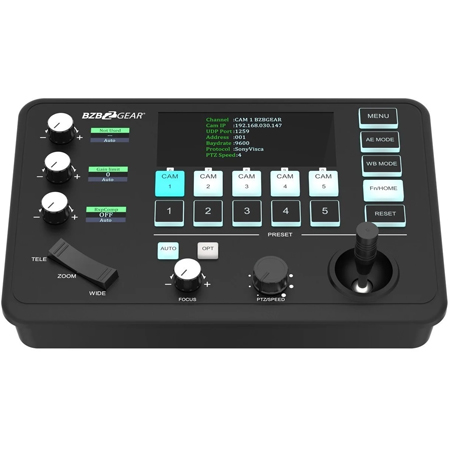

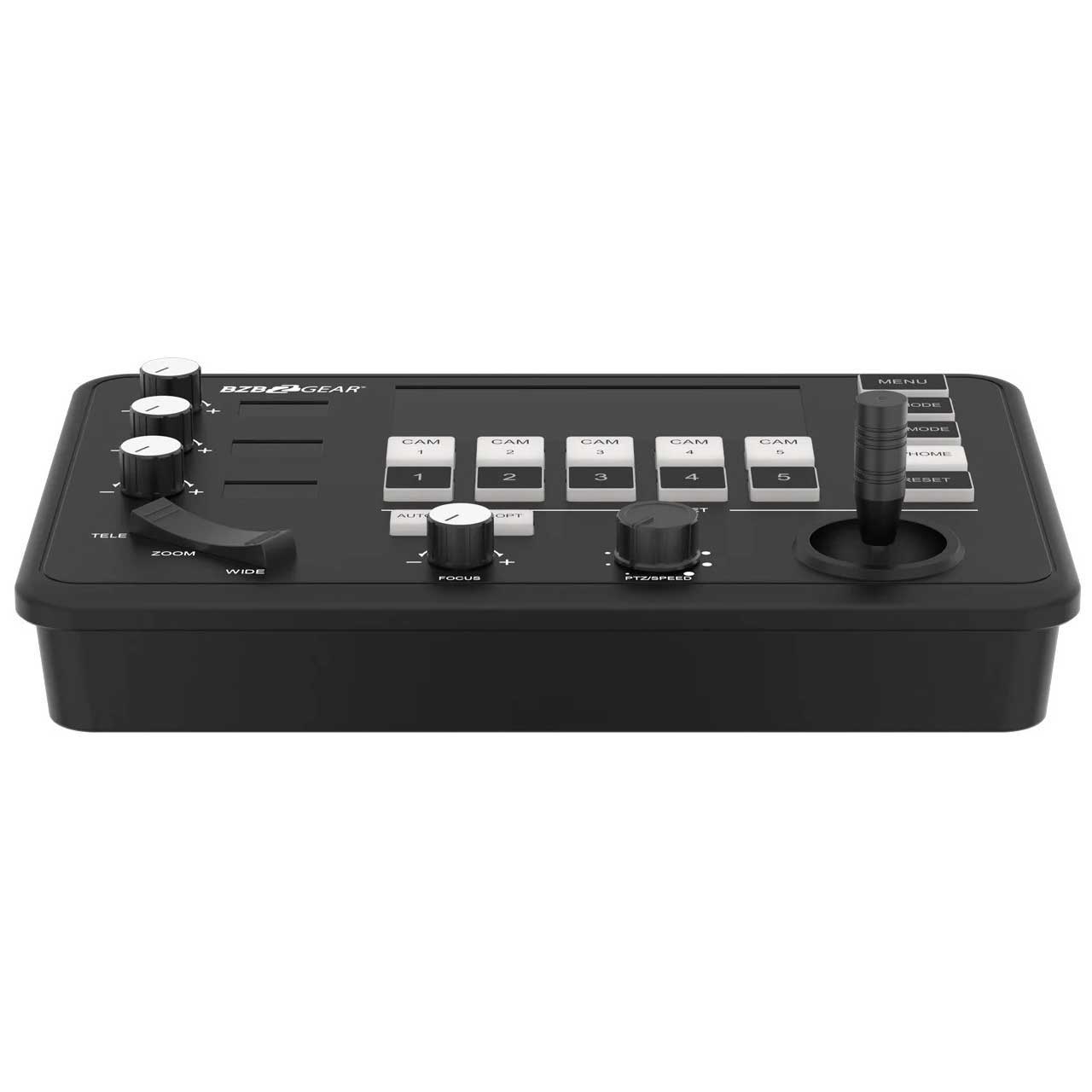

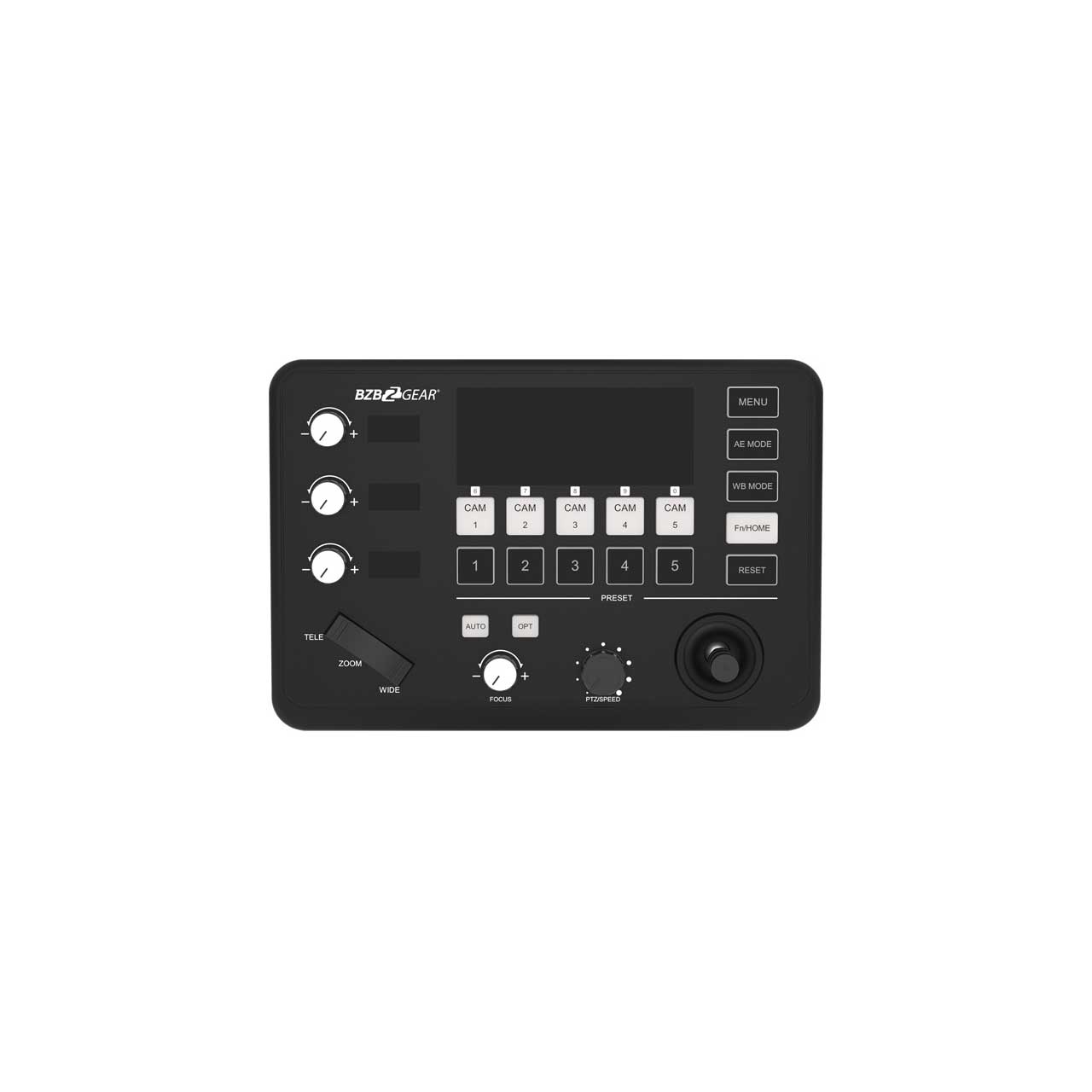

    Introducing the BZBGEAR BG-Commander-Jr, the compact yet powerful professional-grade joystick controller designed to meet the demands of a variety of applications. With its 2-axis joystick and zoom bridge key design, this controller provides refined control, durability, and stability, ensuring smooth and precise camera movement.

    The BG-Commander-Jr sets itself apart with its 7-level PTZ speed control, providing operators with complete control over their camera movements with a visual indicator to show the current speed level. Image parameters such as exposure and gain are easily adjustable with knob-style controls and their own small displays showing current value for easy reference.

    This versatile controller is designed for simultaneous communication and system compatibility, supporting integrated VISCA, UDP, and PELCO P/D control protocols in addition to RS232, RS422/RS485, and IP(UDP) interfaces. Operators can rest assured that the BG-Commander-Jr will seamlessly integrate with their existing ecosystem, providing easy and reliable control.

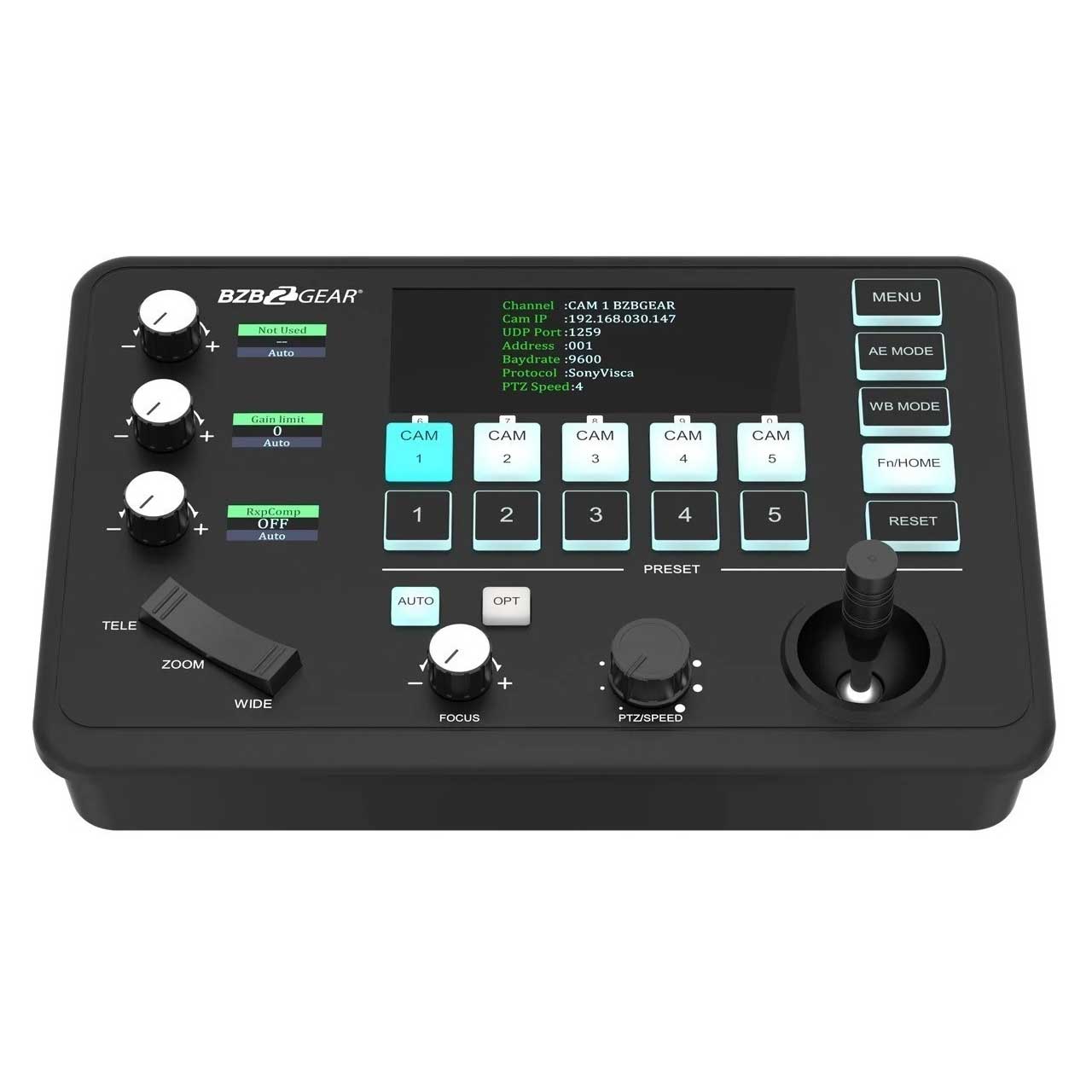

    Real-time preset set, call, and reset functionality is available on the main display screen, making it easy for operators to manage and access presets without interrupting their workflow. The responsive silicone buttons are backlit for a comfortable user experience in low light environments, making this controller ideal for a range of applications, including professional AV systems, broadcasting, education, telemedicine, video conferencing, houses of worship, and more.

    Compact yet powerful, the BG-Commander-Jr is the perfect choice for anyone looking for a professional-grade joystick controller that provides complete control, durability, and compatibility.

    • Features:

      • Compact Design - Portable and can be strategically placed
      • 4 color LED multi-screen display - Review settings at a glance
      • Simplified Controls - Separated Pan/Tilt joystick and zoom keys for better control and reliability
      • Control PTZ Speeds - 7-level PTZ speed control with visual indicator
      • Quick Select - One-button click for auto, manual, and OPT focus modes
      • Flexible Compatibility - Wide compatibility allows for control of most PTZ cameras
      • Password settings available Shows preset set, call, & reset in real-time on the main display screen

    • Specifications:

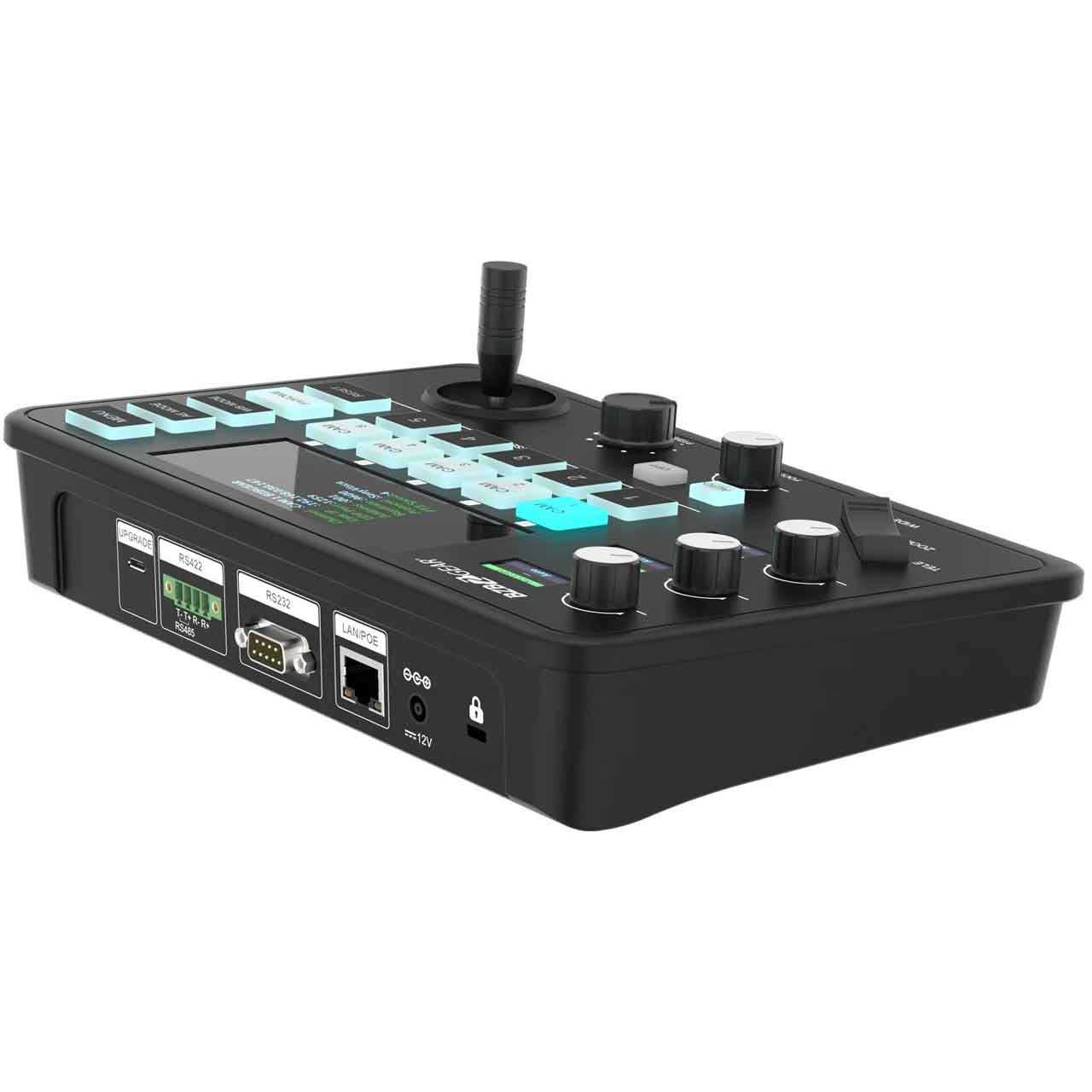

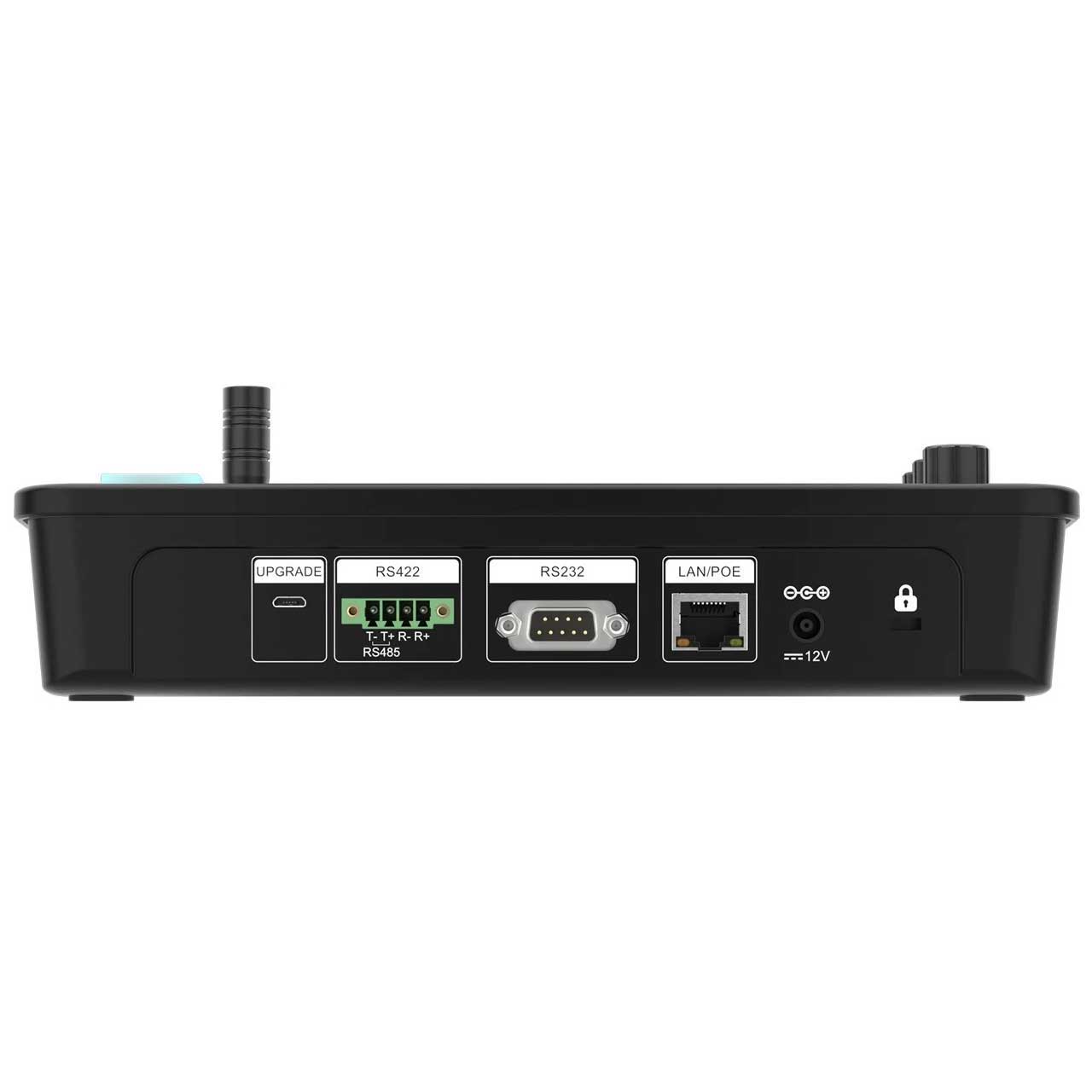

      • Communication and Control Interface
      • RS422/RS485 Interface: Phoenix Contact 4 pin 3.81mm Terminal
      • RS232C Interface: DB9 Male Interface
      • LAN Interface: RJ45 Female Interface
      • Power Supply: JEITA Type 4 Female Interface
      • Upgrade Online: Micro USB Female Interface

        Camera Control and Operation
      • Supported number of cameras: 5
      • Communication Protocol: VISCA, PELCO P/D, UDP
      • Number of LED Displays: 4 Units Color LED Display Screen
      • Number of Camera Channels: 5
      • Variable knobs: 4
      • Joystick: 2-Axis
      • Zoom Mode: Tele-Wide Bridge Keys
      • Buttons: 17 Silicon Button
      • Presets Short keys: 5 Presets per Each channel
      • Focus Mode: Auto/ Manual/ OPT
      • Pan/Tilt Rotation Speed: 7-Level Adjustment
      • Zoom In/Out Speed: 7-Level Adjustment
      • AE Mode: The mode can be switched arbitrarily, and the value can be adjusted
      • WB Mode
      • Camera Menu: One-keys for call

        Control Signal Format
      • Baud Rate: 2400bps, 4800bps, 9600bps, 19200bps, 38400bps
      • Date Bits: 8 Bit
      • Stop Bit: 1 Bit
      • Parity bit: NONE
      • Internet Protocol: UDP / VISCA OVER IP
      • Power Supply and Consumption
      • Rated Voltage: DC 12V
      • Rated Current: 0.3A max
      • Max Power Consumption: 3.6W

        Physical and Misc.
      • Password Privacy Protection: Yes
      • Kingston's Lock Holes: Yes
      • Working Temperature: 32°F ~ 104°F
      • Storage Temperature: -4°F ~ 140°F
      • Working Environment: Indoor
      • Dimensions (L x W x H): 9.6 x 6.5 x 1.9in
      • Gross Weight: 2.43 lbs

    • Item Includes:

      • 1x BG-Commander-Jr
      • 1x 4-pin Phoenix Connector
      • 1x Power Adapter
      • 1x User Manual
