BG-EXH-50UWP-W - Overview

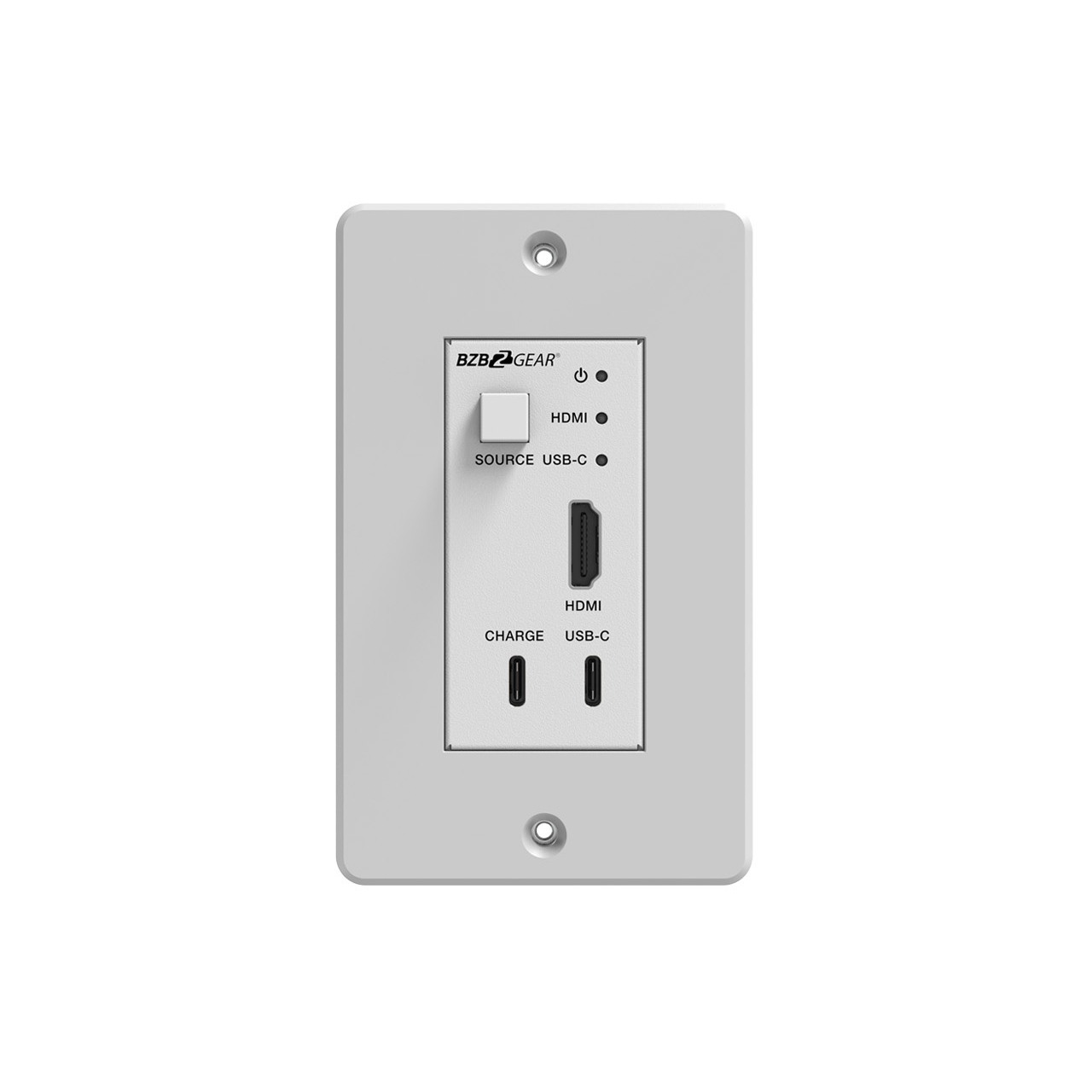

Introducing the BZBGEAR BG-EXH-50UWP-W 18Gbps CAT 164ft Wall Plate Kit, a comprehensive solution for seamless signal transmission and distribution. This kit comprises a USB-C/HDMI Transmitter and a CAT6 to HDMI Receiver, designed to meet the demands of modern AV installations. Enclosed within a sleek one-gang Decora-style enclosure, the wall plate transmitter serves as a versatile 2x1 switcher and CAT transmitter, accommodating HDMI and USB-C inputs.

With support for resolutions up to 4K2K@50/60Hz 4:4:4 and a transmission distance of up to 164ft / 50m via CAT6 output, this kit ensures exceptional visual fidelity and flexibility. Additionally, the BG-EXH-50UWP-W kit supports various HDMI audio formats, HDR, and features a user-friendly interface with automatic/manual input signal selection. Its compatibility with Power Over Cable (POC) further enhances convenience, allowing remote powering from the receiver or other CAT-equipped devices.

Features:
- Compliant with industry standards including HDMI 2.0b, HDCP 2.2, and DisplayPort 1.2a (Adapter required for Display Port)
- HDMI input supports high-speed 18Gbps video bandwidth, while USB-C input supports 5.4Gbps video bandwidth
- CAT6 output extends video transmission distance significantly; up to 164ft / 50m for 4K@24 or 115ft / 35m for 4K@60 444, using a single CAT5e/6 cable
- Compatible with various advanced video technologies including 3D, HDR10, and Dolby Vision
- Supports a wide range of HDMI audio formats, including LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD
- Features Power Over Cable functionality, allowing power transmission from Receiver to Transmitter, simplifying setup and reducing cable clutter
Specifications:
- Technical
- HDMI Compliance: HDMI 2.0b
- HDCP Compliance: HDCP 2.2
- DP Compliance: Display Port 1.2a (Adapter required for Display Port)
- Video Bandwidth:
  - USB-C: 5.4 Gbps
  - HDMI: 18 Gbps
- Video Resolution: 480i - 1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz
- Color Space: RGB, YCbCr 4:4:4/4:2:2, YUV 4:2:0
- Color Depth:
  - 8/10/12-bit (1080P@60Hz)
  - 8-bit (4K@60Hz)
- HDR: Support
- HDMI Audio Formats:
  - LPCM
  - Dolby Digital/Plus/EX
  - Dolby True HD
  - DTS, DTS-EX
  - DTS-96/24
  - DTS High Res
  - DTS-HD Master Audio
  - DSD
- Transmission Distance:
  - Max Distance (4K@24): 164ft (50m) over CAT5e/6
  - Max Distance (4K@60): 115ft (35m) over CAT5e/6
- ESD Protection: Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

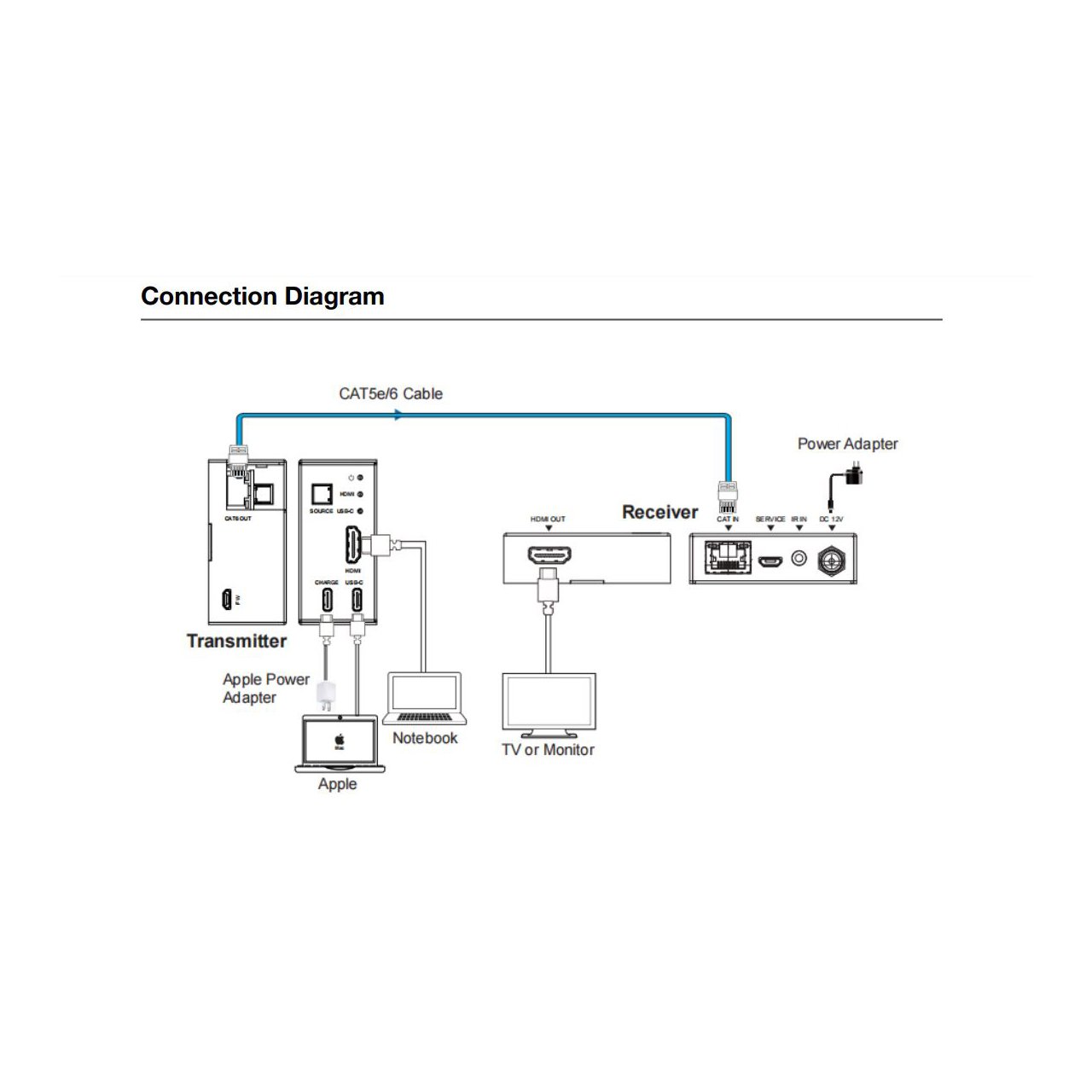

  Connection
- Transmitter Inputs:
  - 1x HDMI Type A (19-pin female)
  - 1x USB-C

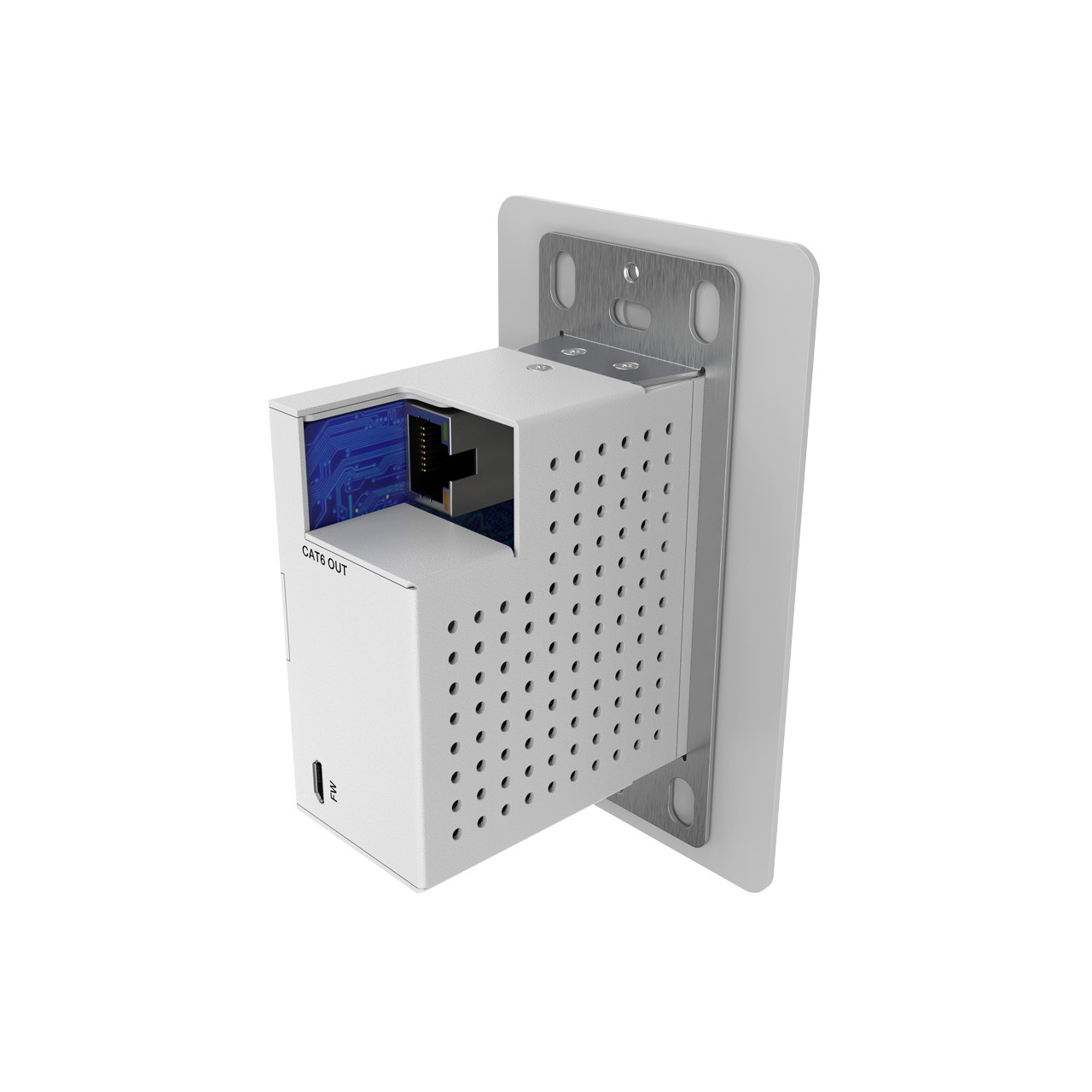

- Transmitter Outputs:
  - 1x HDBaseT Out (RJ45, 8-pin female)
  - 1x USB-C (only for charging)
- Transmitter Control:
  - 1x FW (Micro USB, Update port)

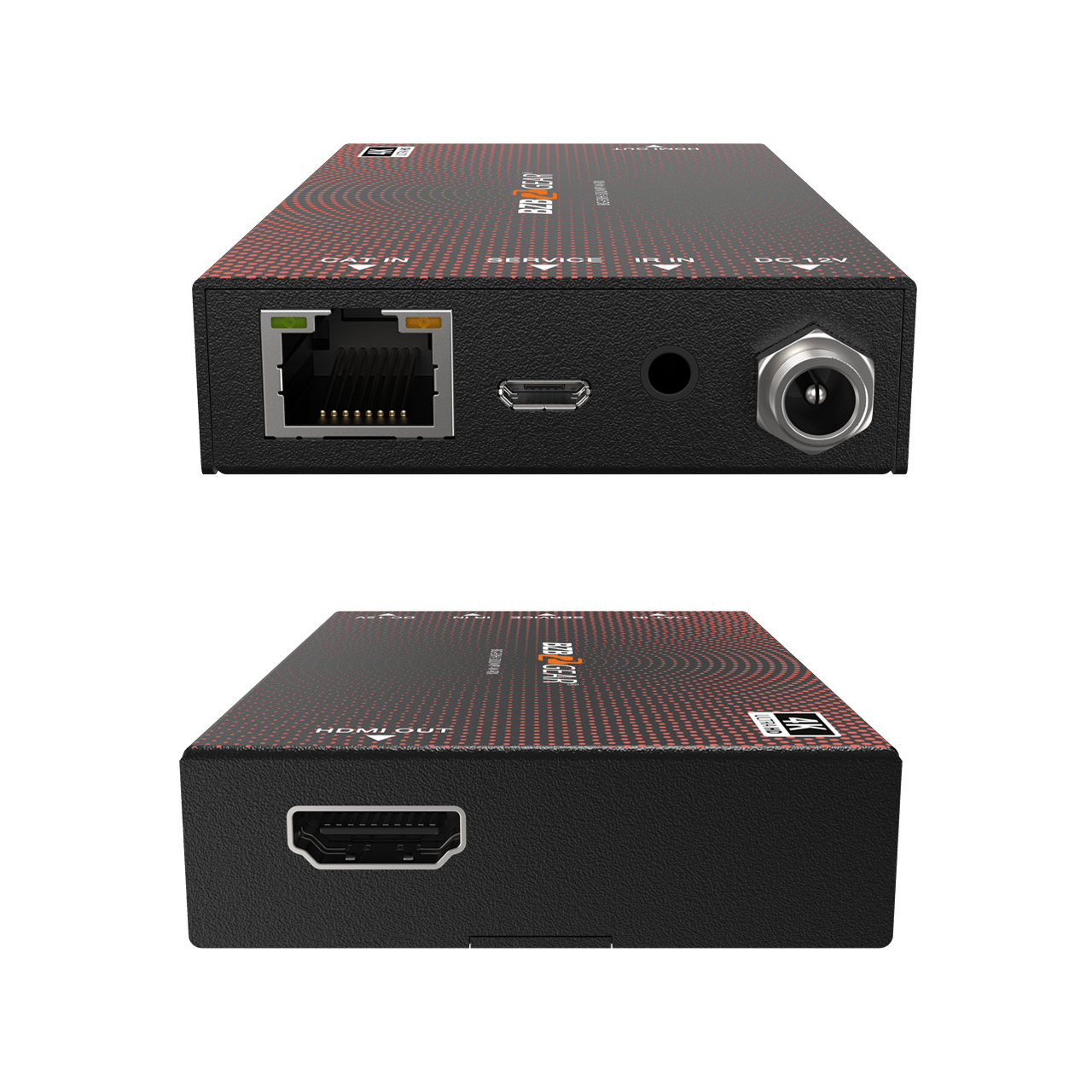

- Receiver Inputs:
  - 1x HDBaseT IN (RJ45, 8-pin female)
- Receiver Output:
  - 1x HDMI OUT (Type A, 19-pin female)
- Receiver Controls:
  - 1x IR IN (3.5mm Stereo Mini-jack)
  - 1x SERVICE (Micro USB, Update port)

  Mechanical
- Housing: Metal Enclosure
- Color: White
- Dimensions (WxDxH):
  - Wall Plate: 1.31" x 2.6" x 2.7" (33.3mm x 65.7mm x 68.7mm)
  - Faceplate: 2.8" x 0.12" x 4.5" (69.9mm x 3mm x 114.3mm)
  - Receiver: 3.5" x 2.4" x 0.71" (88mm x 61mm x 18mm)
- Weight:
  - Wall Plate: 0.43lbs (195g)
  - Receiver: 0.34lbs (155g)
- Power Supply: POE (only from Receiver to Transmitter)
- Power Consumption: Wall plate: 3W (Max), Receiver: 3.72W (Max)
- OperatingTemperature: 32°F - 104°F (0°C - 40°C)
- Storage Temperature: -4°F - 140°F (-20°C - 60°C)
- Relative Humidity: 20% - 90% RH (no condensation)

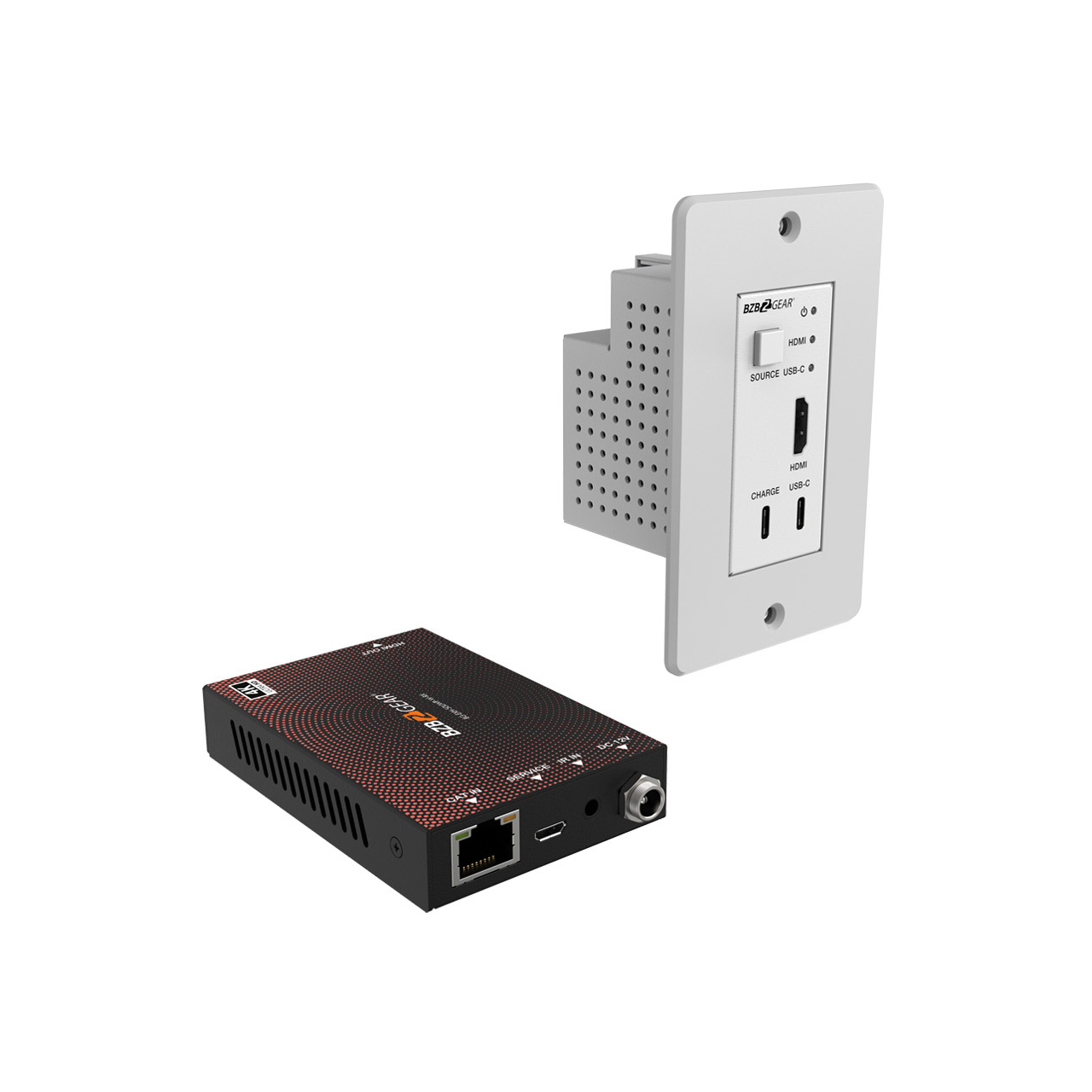

Item Includes:
- 1x 18Gbps CAT 50M with USB-C/HDMI Wall Plate Transmitter
- 1x CAT6 to HDMI receiver
- 1x User Manual
Warranty:
- 3 Year Warranty
