Belden 1305A CatSnake Up-Jacketed Cat 5e U/UTP Tactical Indoor/Outdoor Cable UV Resistant 24 AWG - Black - Per Foot

ITEM #: BL-1305A MFG #: BL-1305A

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1.65

Our Price:

$1.60

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

BL-1305A - Overview

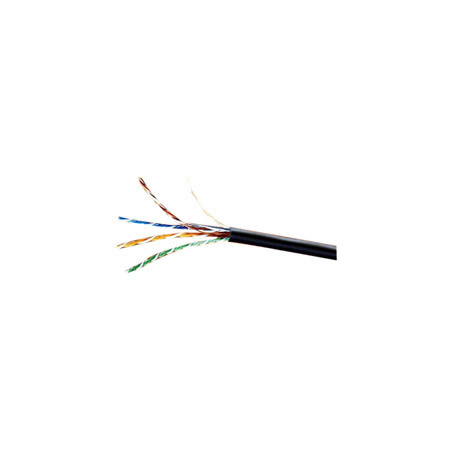

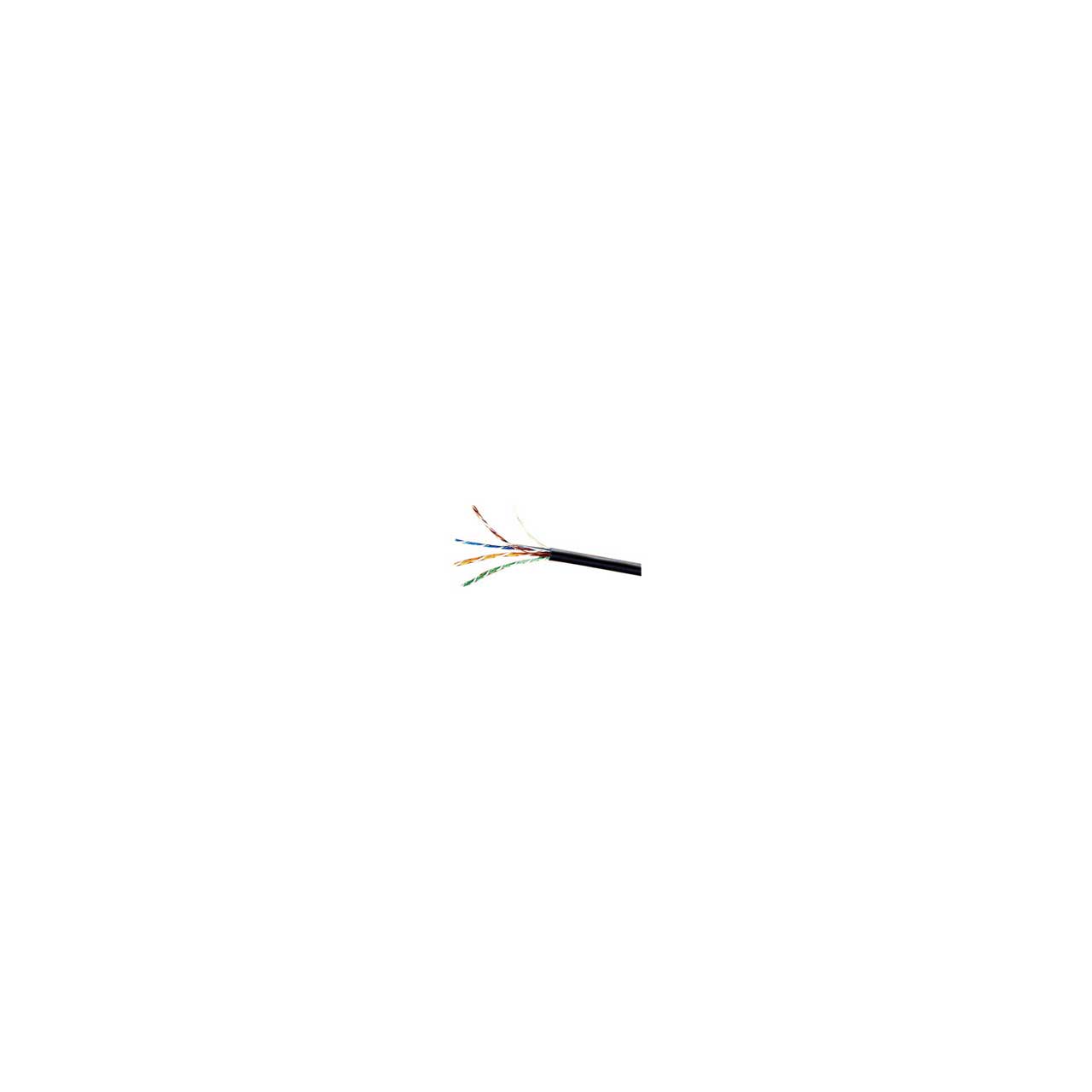

Belden 1305A is a CatSnake® Category 5E U/UTP, Upjacketed Tactical Cable with 4 Bonded-Pairs. It's 24 AWG with Stranded Bare Copper Conductors, an Inner PVC jacket and Outer PVC Jacket.

CatSnake UTP Ethernet Snake Cables offer exceptional AV performance and are extremely rugged and flexible for outdoor use. You'll find them in broadcast trucks, in studios and for portable, professional AV use to send audio over standard Ethernet cable. They're designed to meet the requirements of the latest digital audio formats, they pass UL 1581 -40 degree C cold bend tests and are RJ45 and Neutrik EtherCon® compatible.

Applications
Category 5e Patch
EtherCon® compatible
CobraNet
eSnake
Ethersound
Digital Audio and Control Over Ethernet
PoE/PoE+
Stage Lighting & Sound

  • Features:

    • Built to Last: Withstands repeated pulling, flexing, bending, coiling and crushing during stage and live sound events
    • Excellent Flexibility: Cables have stranded (7x32) conductors and matte-finished Belflex® jackets


  • Specifications:

    • Conductor AWG: 24
    • Conductor Stranding: 7x32
    • Conductor Material: BC - Bare Copper
    • Conductor No. of Pairs: 4
    • Insulation Material: PO - Polyolefin
    • Insulation Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
    • Bonded-Pair: Yes
    • Inner Jacket Material: PVC - Polyvinyl Chloride
    • Inner Jacket Nom. Diameter: 0.236 in (5.99 mm)
    • Inner Jacket Ripcord: No
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Separator: Central Filler
    • Outer Jacket Nom. Diameter: 0.298 in (7.57 mm)
    • Outer Jacket Ripcord: No
    • Overall Cable Diameter (Nominal): 0.298 in (7.57 mm)
    • Frequency Delay [MHz]: 100 MHz
    • Max. Delay: 537.6 ns/100m
    • Max. Delay Skew: 45 ns/100m
    • Nom. Velocity of Propagation (VP) [%]: 70%
    • Non-UL Voltage Rating: 300 V
    • Operating Temp: -20°C To +75°C
    • Installation Temp: 0°C To +50°C
    • Storage Temp: -20°C To +75°C
    • Max. Pull Tension: 40 lbs
    • Bulk Cable Weight: 38 lbs/1000ft
    • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance


  • Item Includes:

    • 1305A Outdoor/UV CatSnake U/UTP Cat 5E 24AWG-Black-Per Ft


  • Warranty:

    • Limited 10 Year Warranty
