Belden 89259 75 Ohm Coax Cable - 500 Foot

ITEM #: BL-89259-500 MFG #: 89259 010500

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order

List Price:

$3,460.00

Our Price:

$3,050.90

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

89259 010500 - Overview

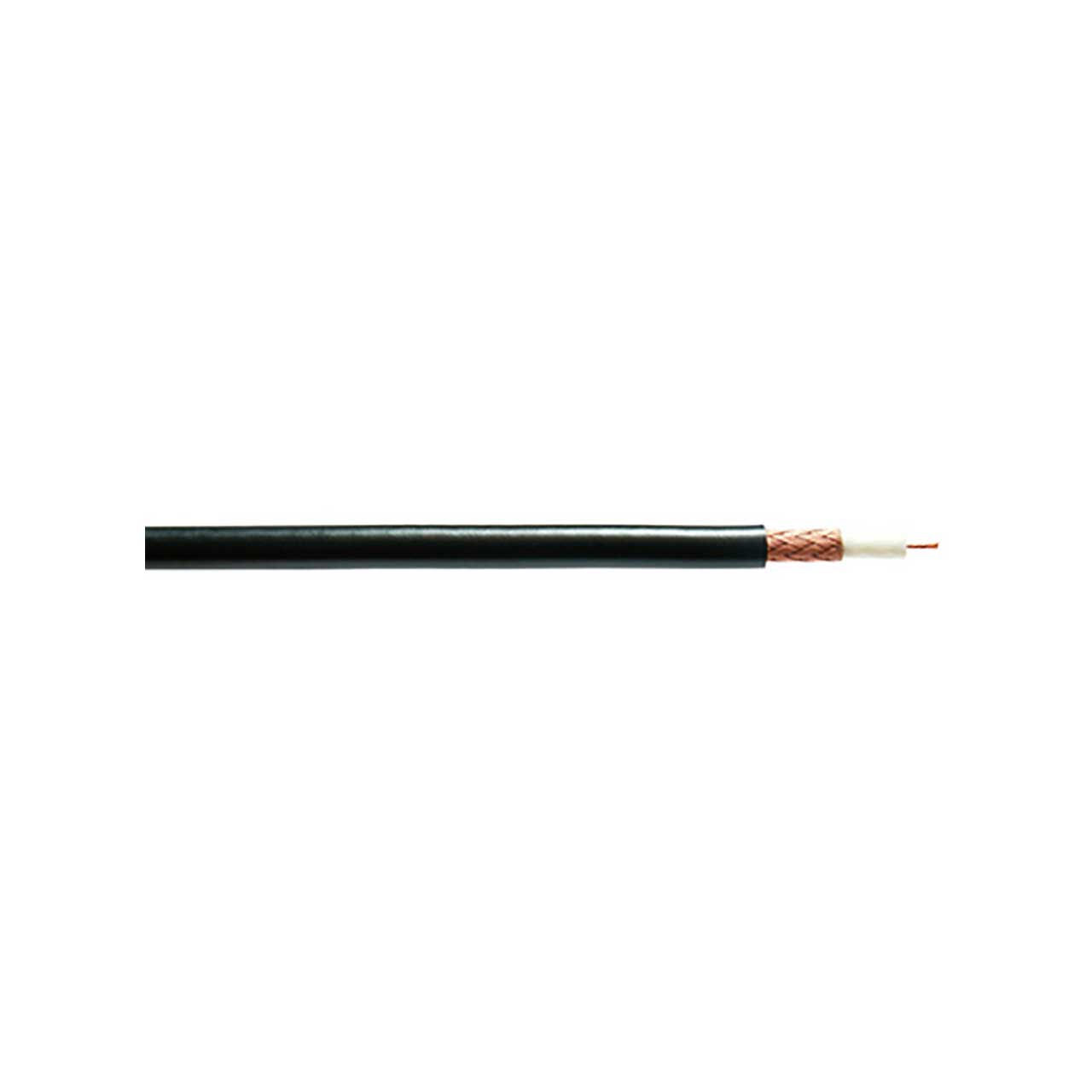

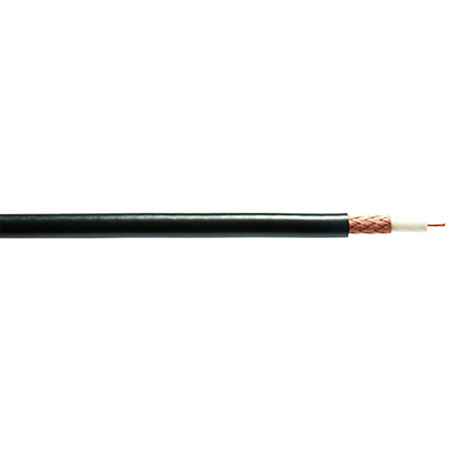

Belden 89259 Coax - 75 Ohm Coax. 22 AWG stranded (7x30) .030" bare copper conductor, plenum, foam FEP insulation, bare copper braid shield (95% coverage), FEP jacket. Suitable for Standard analog video applications.

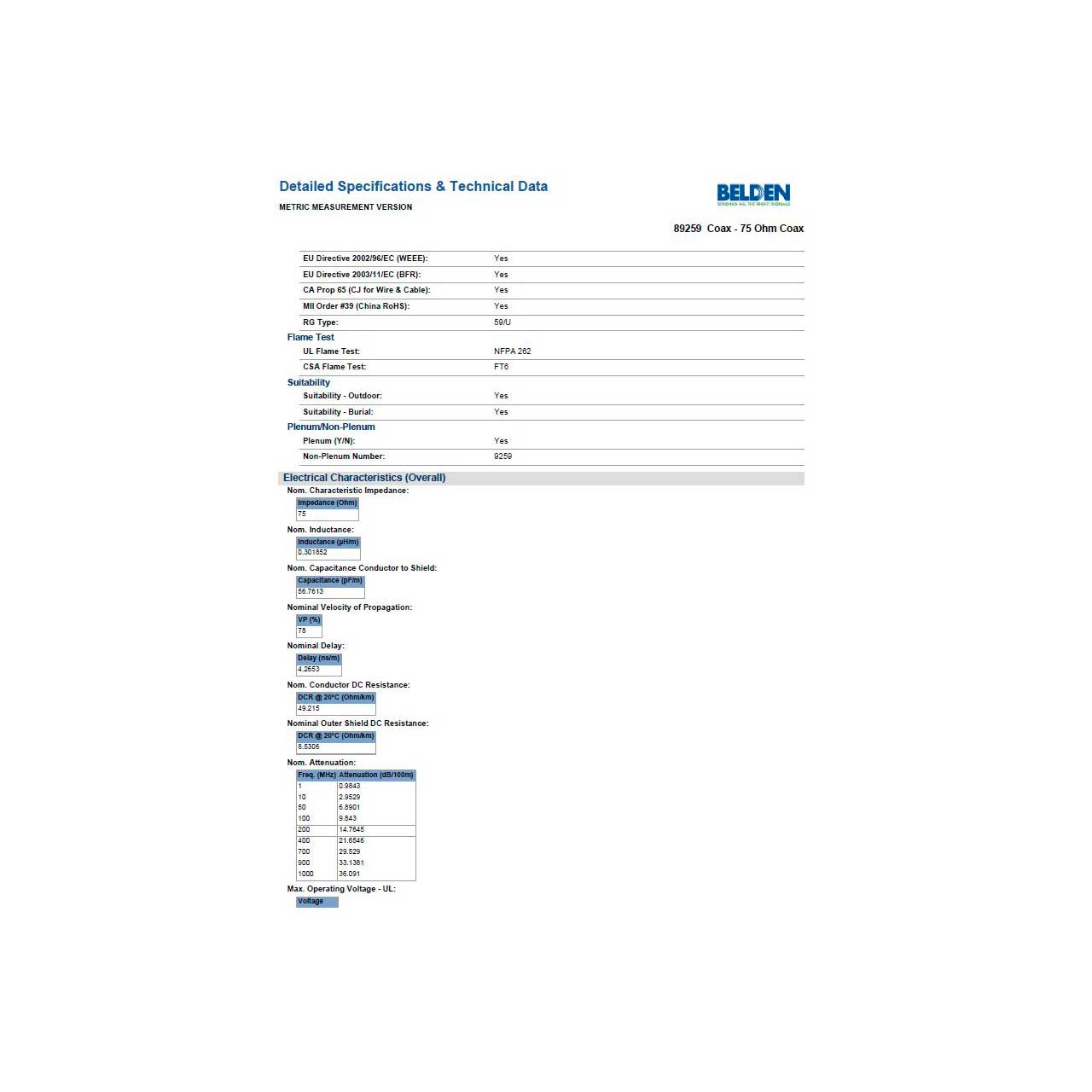

  • Specifications:

    • RG Type: 59
    • AWG: 2
    • Stranding: 7x30
    • Nom. Diameter: 0.029 in
    • Material: BC - Bare Copper
    • UL Voltage Rating: 300 V (CMP)
    • Operating: -70°C to +200°C
    • Installation Min.: 1.9 in
    • Bulk Cable Weight: 34 lbs/1000ft
    • Max. Pull Tension: 52 lbs
    • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, UV Resistance
    • Sustainability: CA Prop 65
    • Flammability / Fire Resistance: NFPA 262
    • NEC / UL Compliance: CMP
    • CEC / C(UL) Compliance: CMP


  • GTIN:

    0612825220831
