Belden 9165 Camera Cable 1000ft

ITEM #: BL-9165-1000 MFG #: 9165 0101000

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$7,323.00

Our Price:

$5,994.29

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

9165 0101000 - Overview

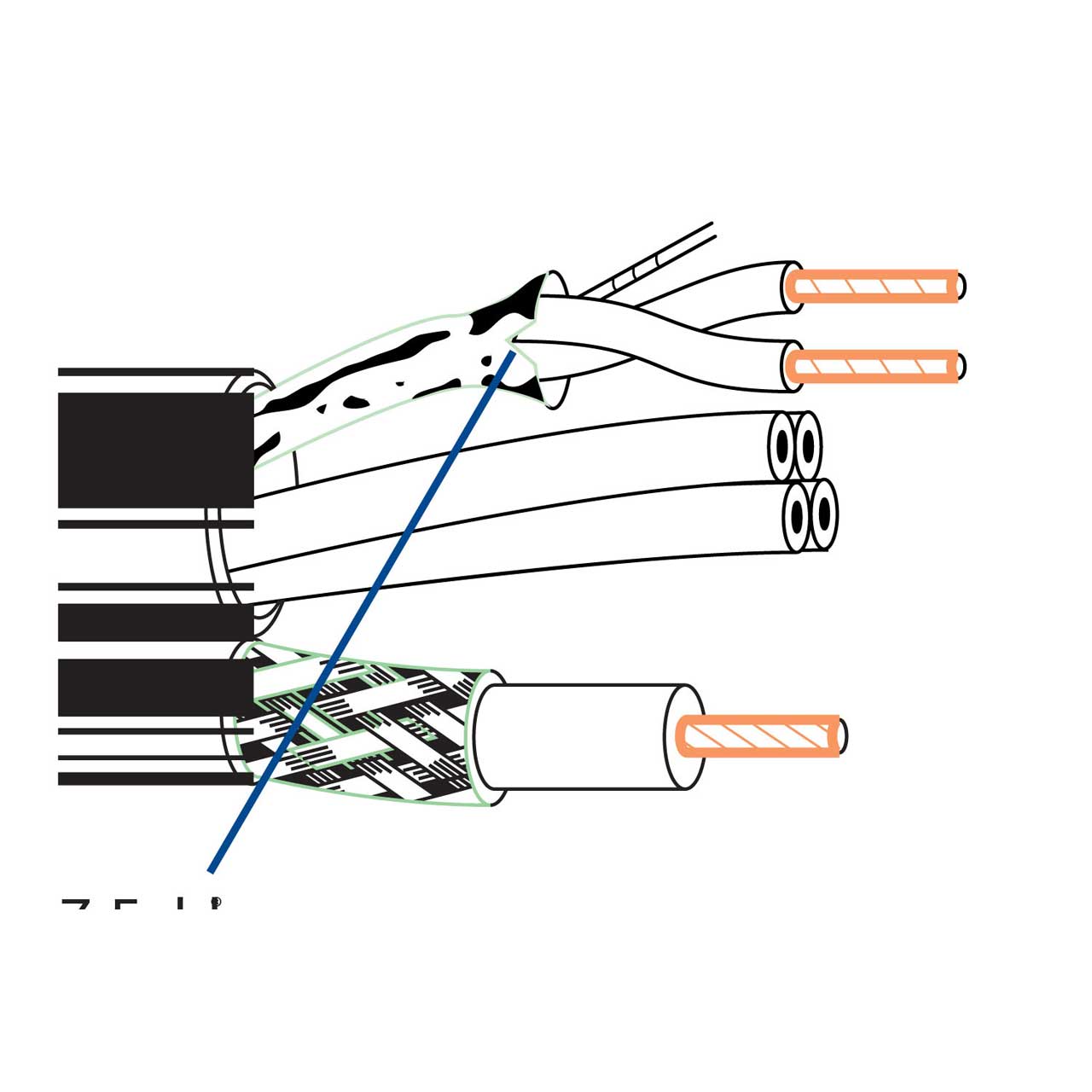

Composite, RG-59 22 AWG BC Coax, stranded (7x30), BC braid 95% coverage, 3 PR 22 AWG TC, stranded (7x30), w/drain wire, PVC jacket.

  • Specifications:

    • Number of Pairs: 3
    • Total Number of Conductors: 4
    • AWG: 22
    • Stranding: 7x30
    • Conductor Material: TC - Tinned Copper
    • Insulation Material: PVC - Polyvinyl Chloride Pair
    • Shield Material: Unshielded
    • Outer Shield Material: Unshielded
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Plenum (Y/N): N
    • Nominal Characteristic Impedance: 75 Ohm / 35 Ohm
    • UL Voltage Rating: 30 V RMS
    • Non-UL Temp Rating: 60°C
    • Operating Temp Range: -30°C To +60°C
    • Bulk Cable Weight: 85 lbs/1000ft
    • Max. Pull Tension: 147 lbs
    • Min Bend Radius/Minor Axis: 3 in
    • NEC/(UL) Compliance: CL2X
    • UL AWM Style Compliance: UL Style 20006
    • RG Type: 59/U Type


  • GTIN:

    0612825225041
