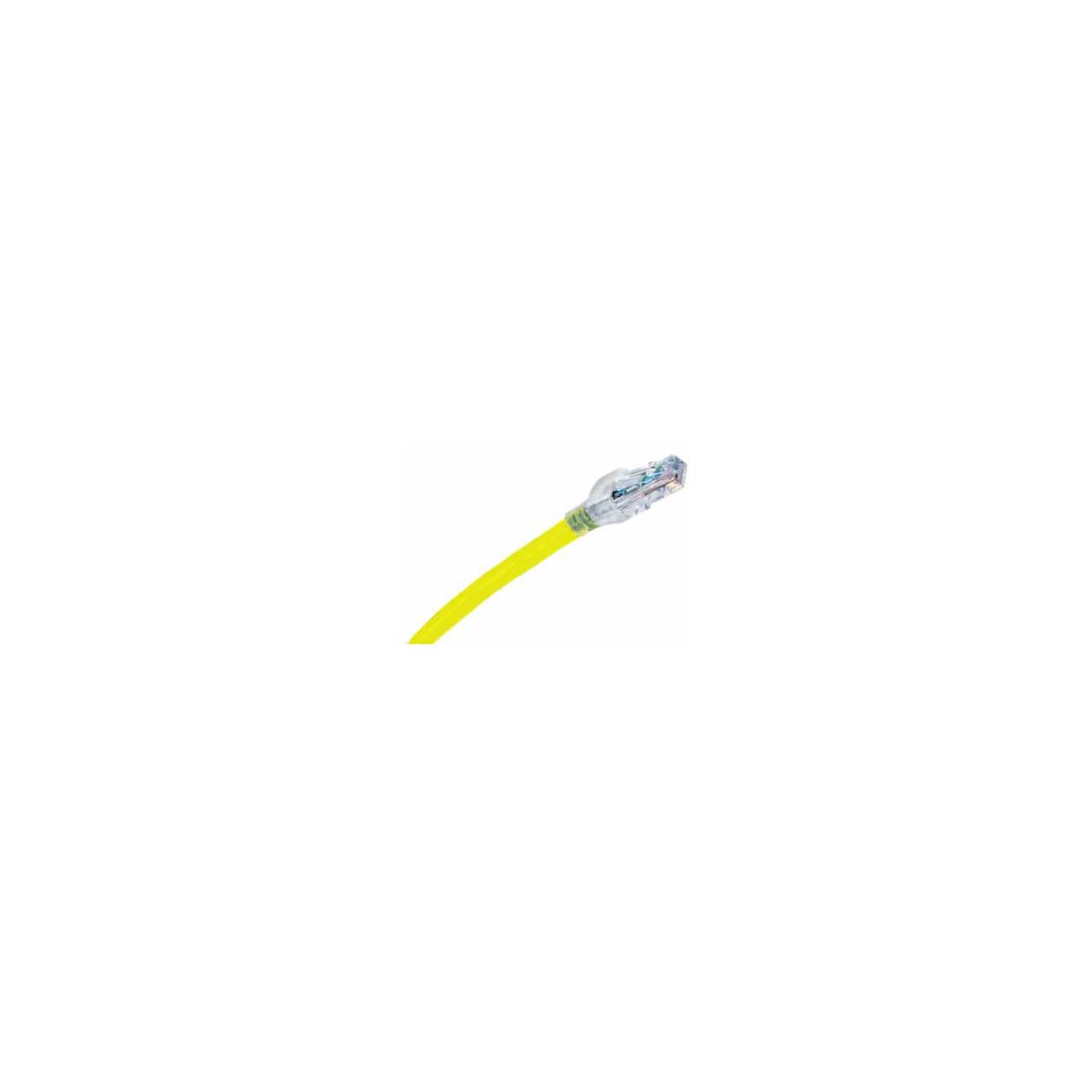

Belden CAD1104015 CAT6A Performance Patch Cord UTP - 4-Pair - 28 AWG Stranded - Yellow - 15-Foot

ITEM #: BL-CAD1104015 MFG #: CAD1104015

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$30.95

Our Price:

$26.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CAD1104015 - Overview

The most common networking cable for home and office users, 10GX Ethernet patch cables connect computers with devices such as cable modems, routers, patch panels, hubs, and switches. The standard boot is a molded bubble design that protects the connector from being damaged during installation.

CAT6A Performance Patch Cord UTP, 4-Pair, 28 AWG Stranded, CMR, T568A/B-T568A/B,Suitable Applications include: TIA Category 6A, ISO Class EA, 10GBASE-T, Support Power over Ethernet (up to 100W), Cisco UPOE (up to 60W) and Power over HDBase-T (up to100W).

  • Specifications:

    • Storage Temperature Range: -40°C To +75°C
    • Installation Temperature Range: 0°C To +60°C
    • Operating Temperature Range: -20°C To +75°C
    • Max. Recommended Pull Tension: 11.250 lbs.
    • Min. Bend Radius (Overall Cable): 0.744 in
    • UL Rating: Riser
    • Other Standards: FCC Part 68, Subpart F, IEC 60603-7
    • EU Directive 2002/95/EC (RoHS): Yes
    • EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2006
    • MII Order #39 (China RoHS): EUP 50
    • Telecommunications Standards: ISO/IEC 11801:2002 Amendment 2, TIA 568.2-D
    • Safety Listing: c(UL)us Listed
    • Other Specification: CEC/C(UL) Voltage Rating: 300 V RMS
