Belden FI3D004P9 FX Plenum OM3 Distribution Fiber Cable - Tight Buffer - 4 Fibers OFNP Non-Unitized Aqua Jacket - 1640FT

Name: Belden FI3D004P9 FX Plenum OM3 Distribution Fiber Cable - Tight Buffer - 4 Fibers OFNP Non-Unitized Aqua Jacket - 1640FT
Brand: Belden
SKU: BL-FI3D004P91640
Price: 1529.14 USD
Availability: PreSale

ITEM #: BL-FI3D004P91640 MFG #: FI3D004P9

Belden

Our Price:

$1,529.14

Add to Wish List Leasing Options

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

FI3D004P9 - Overview

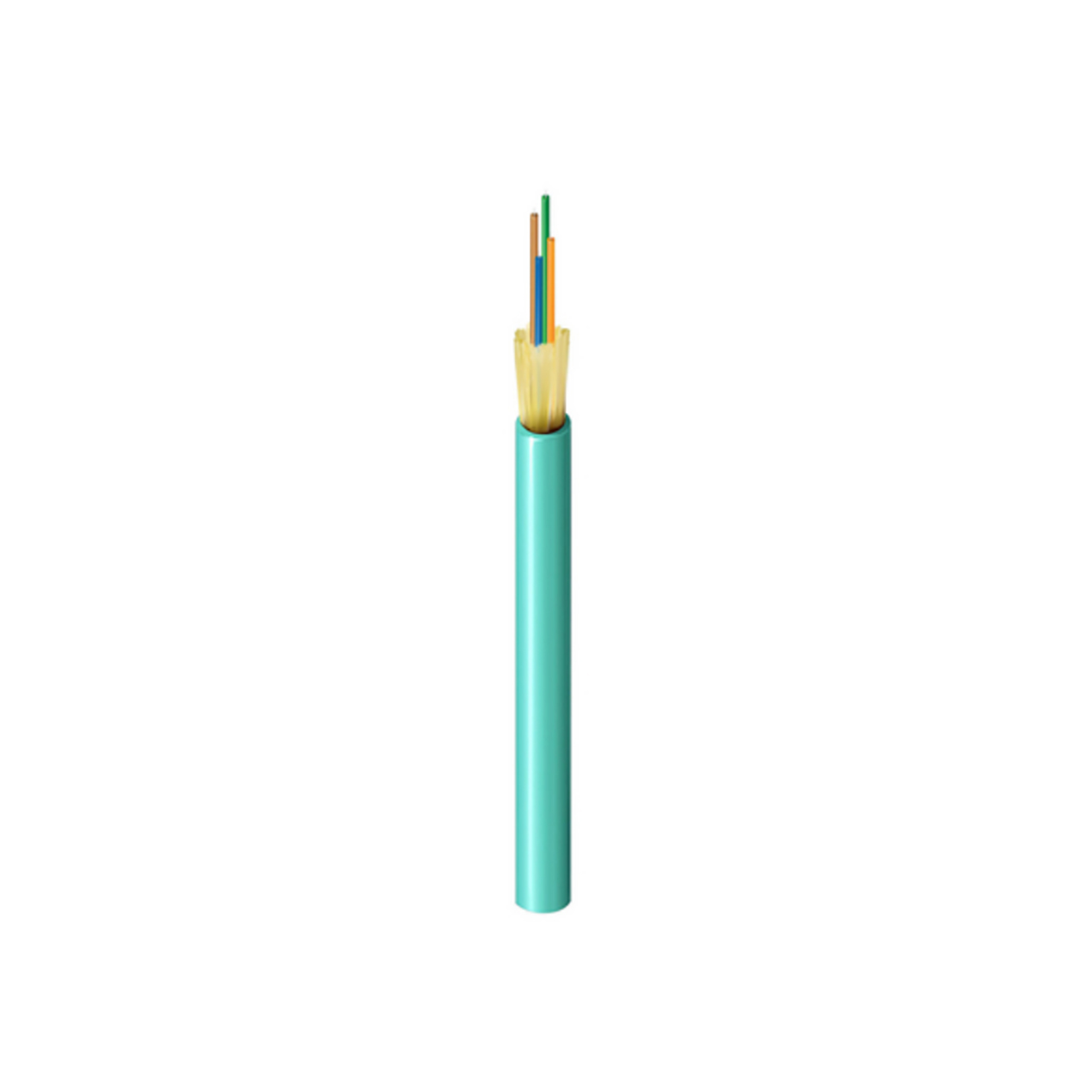

Belden's FI3D004P9 is an OM3 distribution, FX indoor fiber cable with OFNP and tight buffer. This cable features 4 non-unitized fibers and an industry standard aqua jacket.

Specifications:
- Category: Fiber distribution cable
- Suitable Applications: Premise backbone
- Length: 1640' (499.87m)
- Fiber Type: OM3
- Fiber Core Diameter: 50/125μm
- Buffer Material: PVC - Polyvinyl Chloride
- Buffer Diameter: 900μm
- Fiber Count: 4x
- Fiber Color Coding: TIA-598-D
- Strength Member: Aramid Yarns
- Jacket Material: PVC - Polyvinyl Chloride
- Nom. Diameter: 0.174" (4.4mm)
- Color: Aqua
- Number of Ripcords: 1
- Wavelength: 850nm
  - Max. Attenuation: 3.0dB/km
  - 1 Gigabit Ethernet Performance: 3280.8' (1000m)
  - 10 Gigabit Ethernet Performance: 984.3' (300m)
  - Min. Effective Modal Bandwidth (EMB): 2000 MHz.km
  - Min. Overfilled Launch (OFL) Bandwidth: 1500 MHz.km
- Wavelength: 1300nm
  - Max. Attenuation: 1.0dB/km
  - 1 Gigabit Ethernet Performance: 1804.5' (550m)
  - 10 Gigabit Ethernet Performance: --
  - Min. Effective Modal Bandwidth (EMB): --
  - Min. Overfilled Launch (OFL) Bandwidth: 500 MHz.km
- Min. Bend Radius During Installation: 15x Cable OD
- Min. Bend Radius During Operation: 10x Cable OD
- Max. Tensile Strength During Installation: 150lbf (660N)
- Max. Tensile Strength During Operation: 45lbf (200N)
- Crush Resistance: 0.73lbf (100 N/cm)
- Bulk Cable Weight: 15 lbs/kft (22 kg/km)
- Installation Temperature Range: 32°F~140°F (0°C~60°C)
- Operating Temperature Range: 32°F~158°F (0°C~70°C)
- Storage Temperature Range: -40°F~158°F (-40°C~70°C)
- Environmental Suitability: Indoor
- Sustainability: CA Prop 65, Product Lens™, Environmental Product Declaration (EPD) Available
- Flammability/Reaction to Fire: OFNP, FT6
- ICEA Compliance: S-83-596
- European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
- Revision Number: 0.149
- Revision Date: 02-03-2025
Item Includes:
- 1x FI3D004P9 OM3 distribution fiber cable
Warranty:
- 10-Year Limited Warranty
