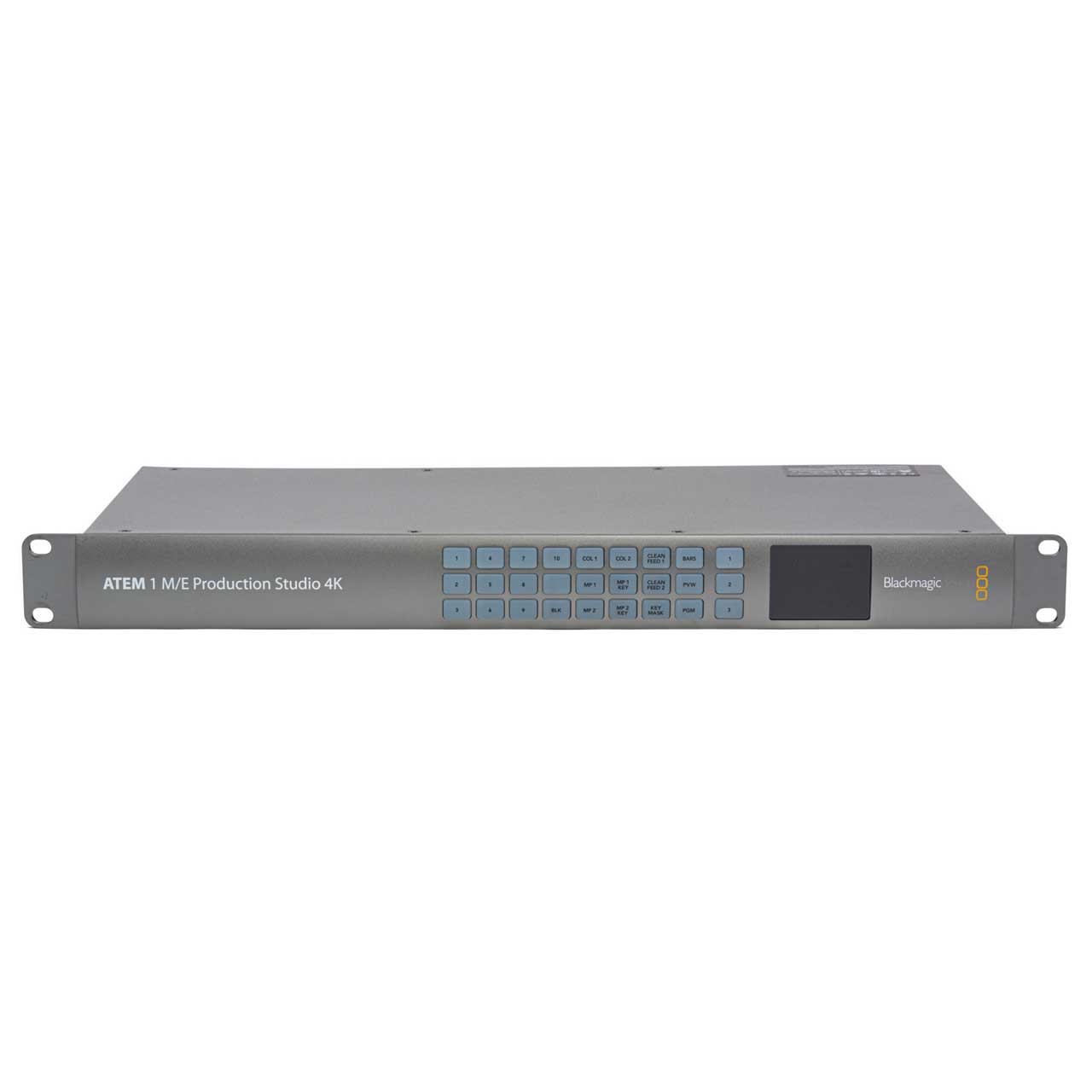

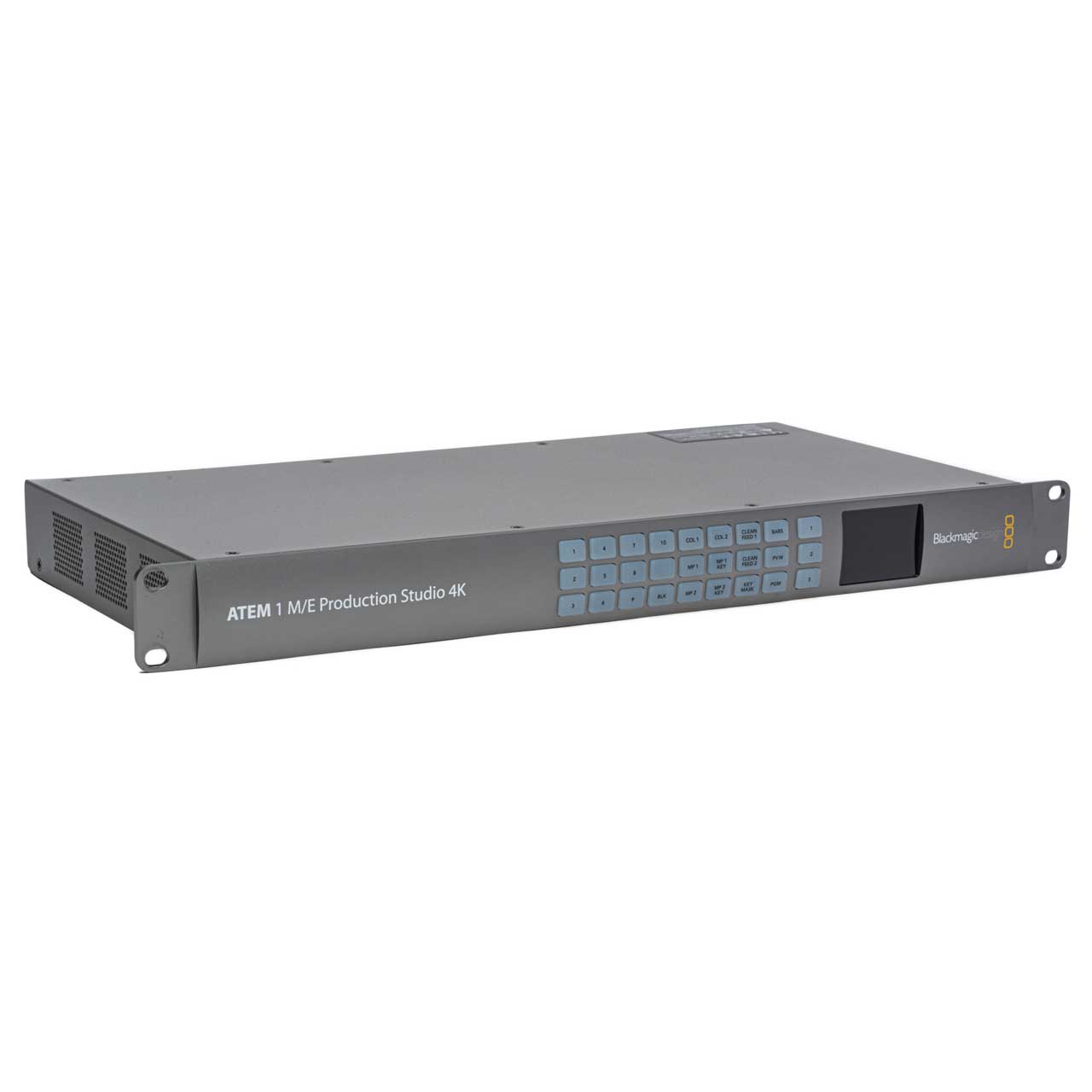

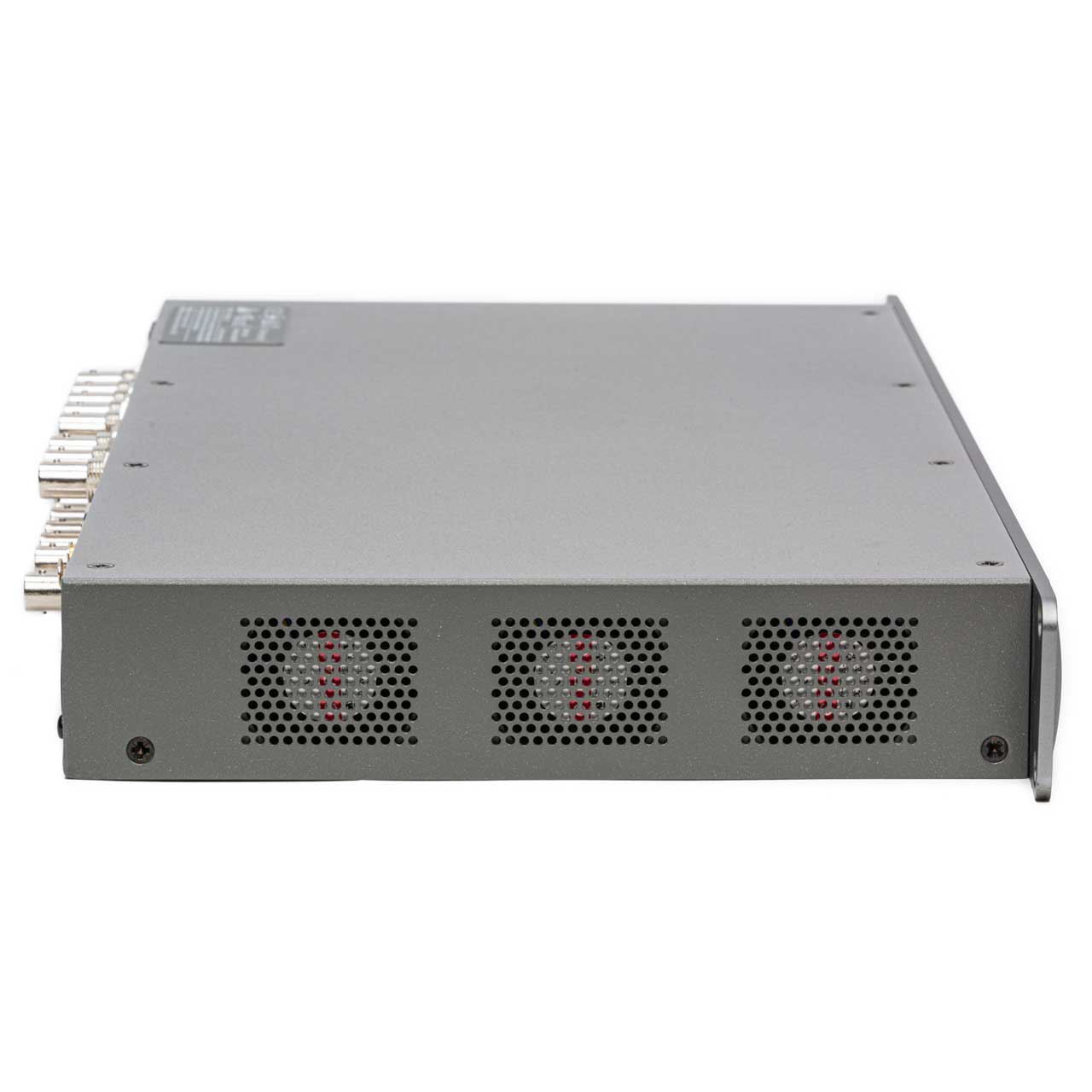

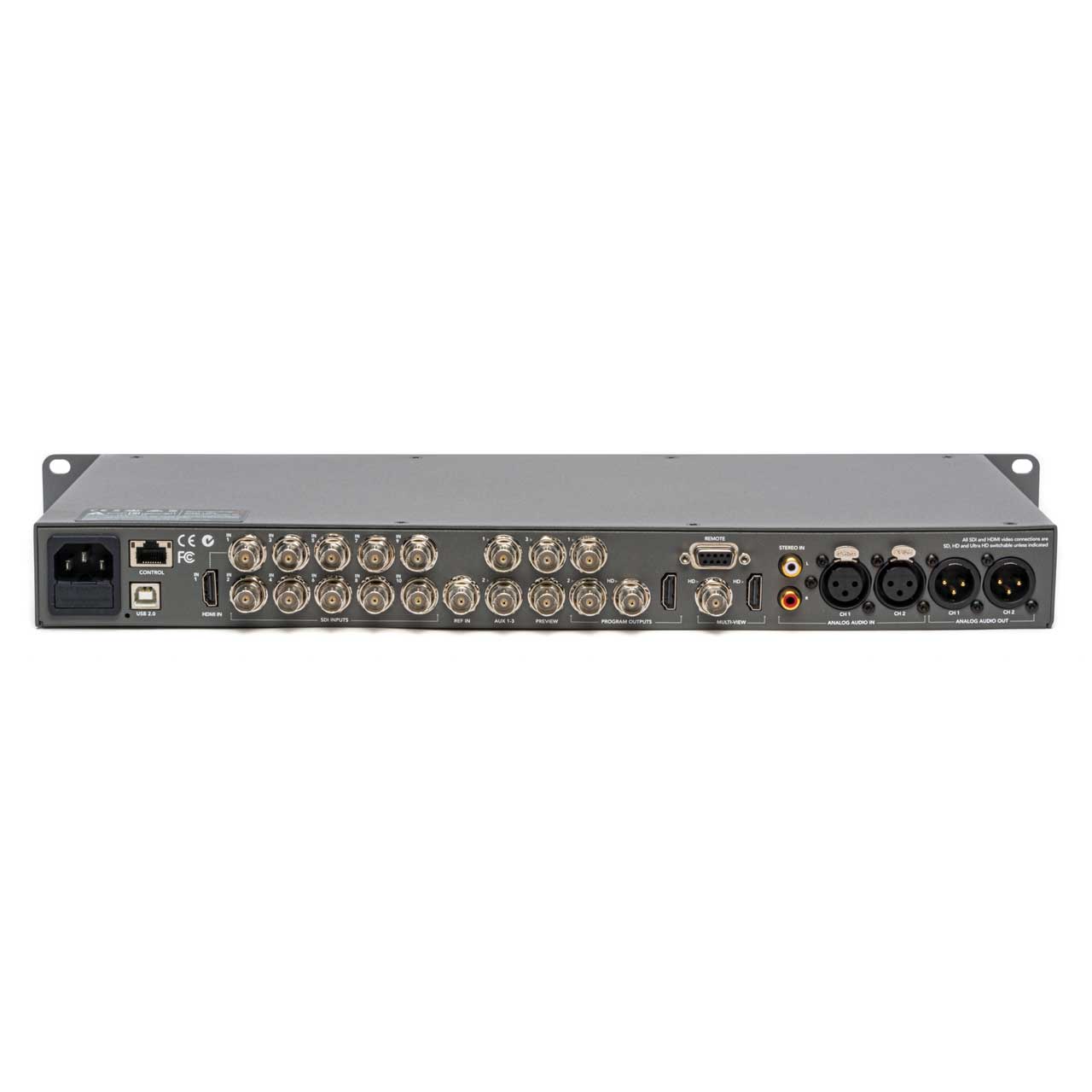

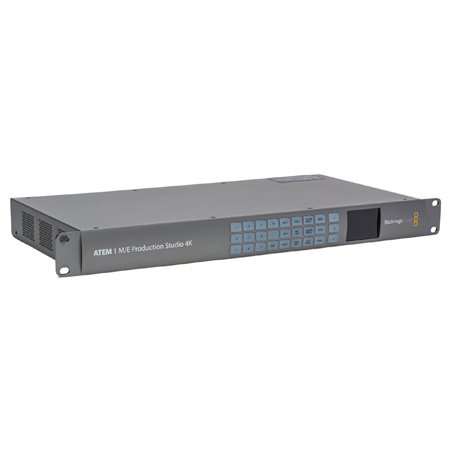

Blackmagic Design ATEM 1 M/E Production Studio 4K Production Switcher - B-Stock (Used)

BMD-ATEM1MEPS4KB - Overview

The World's Most Advanced Live Production Switcher!

• Features:

  • 10 inputs
  • Chroma key
  • Transitions
  • Media pool
  • 4 upstream keyers
  • Downstream keyers
  • Audio mixer
  • Multi view
  • Full motion DVE
  • Stinger transitions
  • Large media pool with full motion clips and 3 auxiliary outputs!


  • Note: This is a B-Stock item. Unit has been used but is fully operational. Does not include the original box.


• Specifications:

  • Total Video Inputs 11 with 10 active.
  • Total Video Outputs 10
  • Total Aux Outputs 3
  • SDI Rates 270Mb, 1.5G, 3G, 6G
  • Total Audio Inputs 2 x XLR. 2 x RCA.
  • Total Audio Outputs 2 x XLR Program.
  • Timecode Connections None
  • Reference Input Tri-Sync or Black Burst.
  • Video Input Re Sync On all 10 inputs.
  • SDI Video Inputs 10 x 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.
  • HDMI Video Input 1 x HDMI type A. 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.
  • Analog Audio Outputs 2 x XLR.
  • SDI Audio Outputs 2 Ch embedded into SDI output on all outputs.
  • SDI Program Outputs 2 x 10-bit SD/HD/Ultra HD 4K switchable.
  • Down Converted SDI Program Output 1 x 10-bit (Ultra HD 4K to HD)
  • SDI Preview Output 1 x 10-bit SD/HD/Ultra HD 4K switchable.
  • Total Multi Views 1
  • SDI Multi View Outputs 1
  • HDMI Multi View Outputs 1
  • Control Panel Connection Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.
  • Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included.)
  • Computer Interface 1 x USB 2.0 port.
  • SD Video Standards 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards 720p50, 720p59.94, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94,1080i50, 1080i59.94
  • Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97
  • SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 424M.
  • Video Sampling 4:2:2.
  • Color Precision 10-bit
  • Color Space REC 601, REC 709, REC 2020.
  • HDMI Input Resolutions for Computers 720 x 480i 59.94Hz, 720 x 576i 50Hz, 1280 x 720 59.94Hz, 1280 x 720 50Hz, 1920 x 1080 50Hz, 1920 x 1080,9.94Hz,3840 x 2160 23.98Hz,3840 x 2160 24Hz,3840 x 2160 25Hz,3840 x 2160 .97Hz.
  • Upstream Keyers 4 with Chroma/Linear/Luma key.
  • Downstream Keyers 2
  • Chroma Keyers 4
  • Linear/Luma Keyers 7
  • Transition Keyer (Stinger/DVE) 1 Stinger, 1 DVE.
  • Total Number of Layers 8
  • Pattern Generators 7
  • Color Generators 2
  • DVE with 3D Borders & Drop Shadow 1
  • Control Panel Compatibility ATEM 1 M/E Broadcast Panel preferred. Compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. Includes ATEM Software Control Panel.
  • Media Players 2
  • Channels Fill and key for each Media Player.
  • Media Pool Still Image Capacity 32 with fill and key.
  • Media Pool Clip Capacity 2 with fill and key.
  • Media Player Clip Length in 720 HD 1600 frames.
  • Media Player Clip Length in 1080 HD 720 frames.
  • Media Player Clip Length in Ultra HD 180 frames
  • Maximum Clip Length in NTSC/PAL 3600 frames.
  • Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF.
  • Media Pool Video File Format TGA Sequence.
  • Media Pool Audio File Format WAV, MP3 and AIFF.
  • Multi View Monitoring 1 x 10 views.
  • Routable Windows 8
  • Windows Source Labels Yes
  • Multi View Video Standard HD
  • Interface Minimum monitor resolution of 1366 x 768.
  • Front Panel Built in LCD monitor for video and 42 LED buttons for Aux switching
