Blackmagic Design CLOUD STORE Network Storage & Built-in Ethernet Switch - 4x 10G / 2x 1G Ports - 320TB

ITEM #: BMD-CLOUDSTR320T MFG #: DWCLDI/CLD320

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$88,995.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DWCLDI/CLD320 - Overview

High Performance Network Storage with Global Sync
The Blackmagic Cloud Store is a very fast high capacity network disk that's designed to handle large media files used on Hollywood feature films. The design uses advanced flash memory so it easily handles lots of simultaneous users. Plus it's extremely easy to set up! With Dropbox live sync, files can be distributed between multiple units globally for very fast local file access, even on lower cost internet connections. Unlike SAN systems, you don't need IT consultants and there are no subscription fees. There's even an HDMI monitor output with real time storage status! All this means you get much better features than discount storage products sold at office supply stores.

Designed for Film and Television
Blackmagic Cloud Store is the perfect network storage solution for any use! But it's perfect for film and television where large media files need to be shared between multiple users for editing, color correction, audio post and VFX work. It even handles massive 12K Blackmagic RAW digital cinema files! Each user gets zero latency and they don't need to store files on their local computer. It's the perfect solution for DaVinci Resolve! Dropbox sync allows multiple disks to be synchronized in different locations globally. Then each location gets the fastest editing experience possible. That's critical for multicam editing where multiple media files are playing simultaneously

Portable and Quiet Design

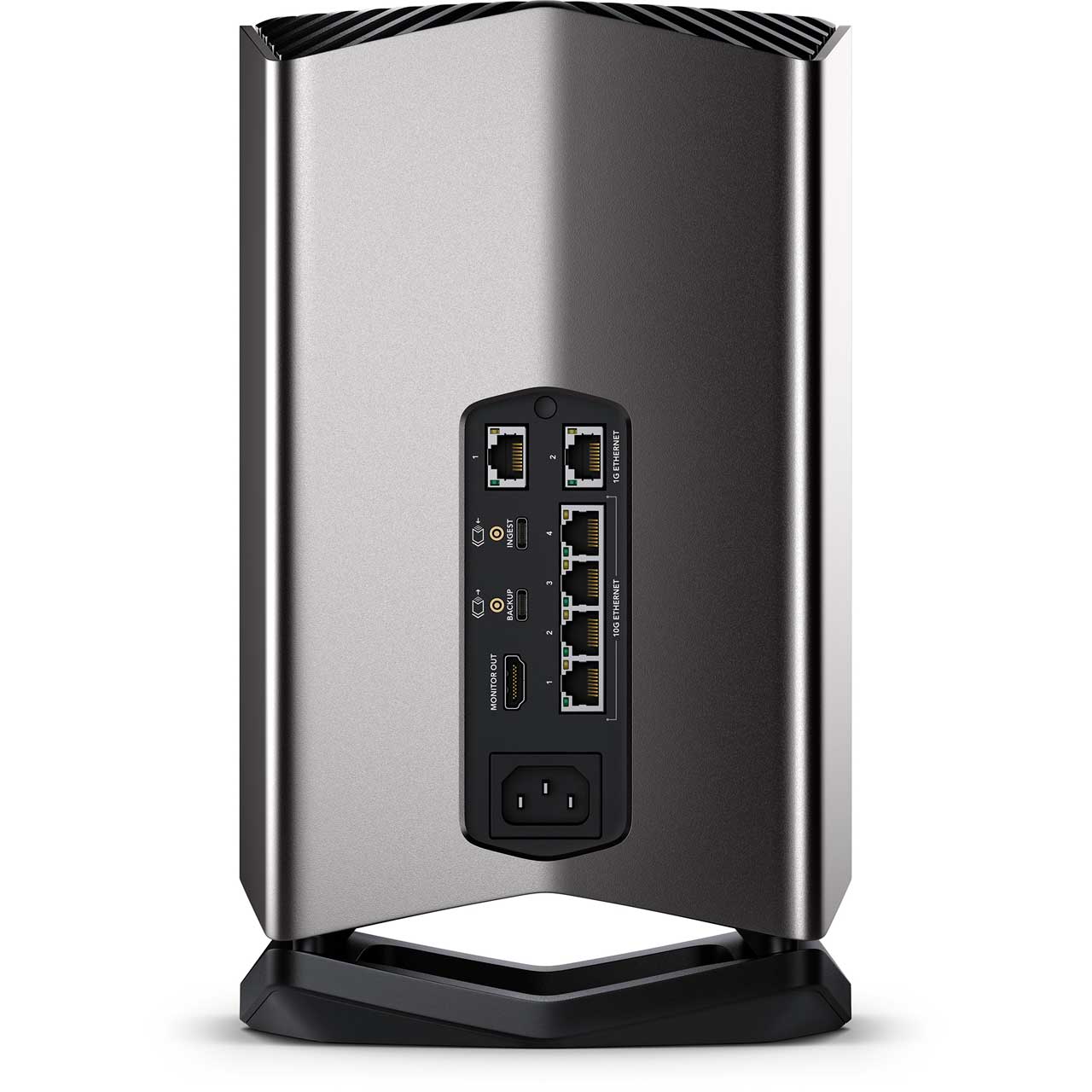

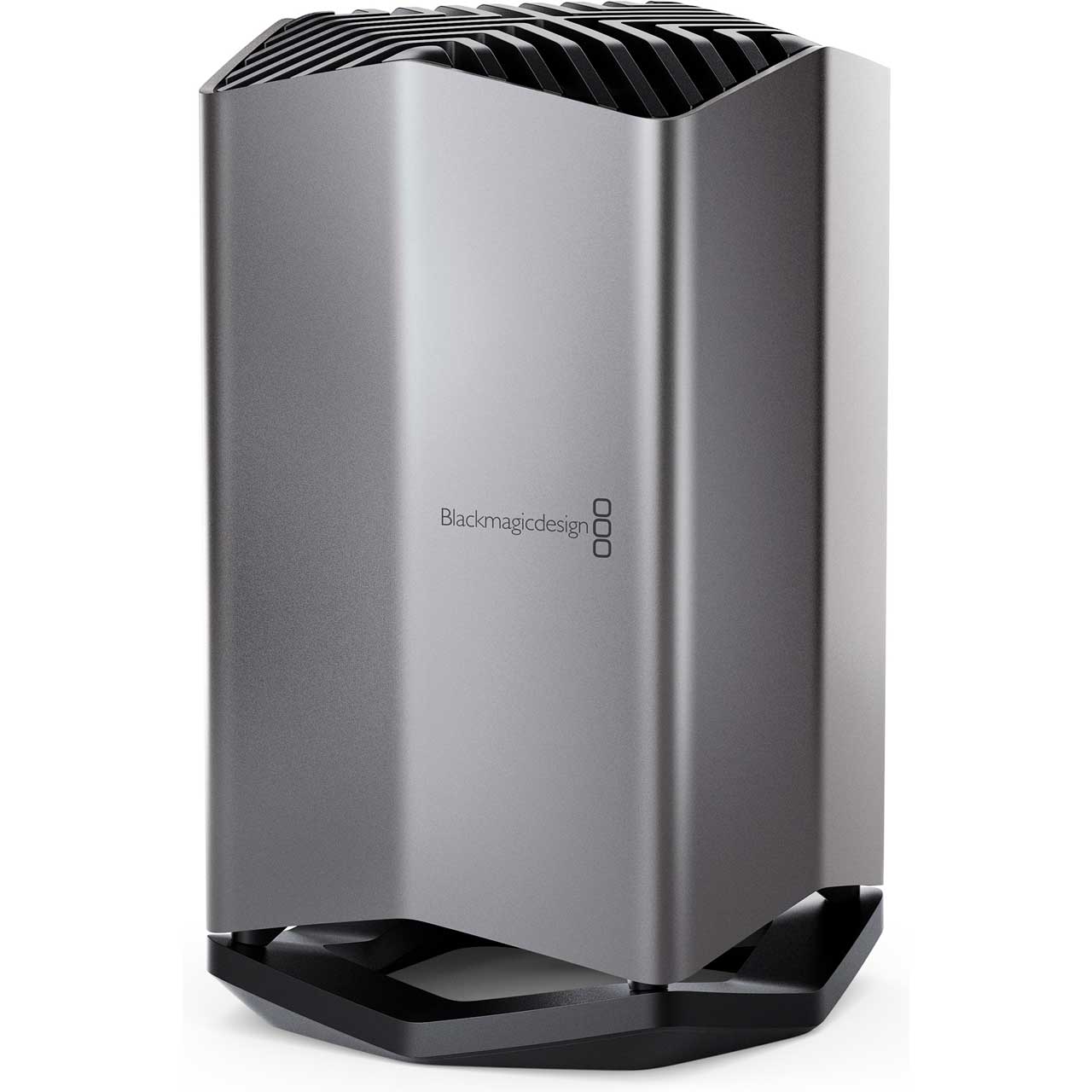

Unlike IT industry storage products that are rack mounted and have loud cooling fans, the Blackmagic Cloud Store is an elegant vertical design that's portable. It's also whisper quiet so it can be used on location. Internally it has an array of flash memory cards working in parallel for speed and data protection. There are even 2 redundant power supplies! The four 10G Ethernet ports operate as a switch so you can connect four separate computers, or they work together using "link aggregation" for a massive 40G Ethernet speed. There is also an HDMI monitoring output so you can watch a live graphic view of the storage operating on a TV or monitor. It can even be maintained and repaired!

Flash Memory Allows Multiple Simultaneous Users
The Blackmagic Cloud Store is available in 20 TB, 80 TB and massive 320 TB models, so you have lots of space for all your business files and video media. With video the standard for information delivery in business, that's enough capacity to store all your media in a single location on your network. M.2 flash memory cards are used for extreme reliability, high access speeds and zero seek times. Plus the M.2 cards are arranged in parallel RAID 5 groups so they can operate much faster than a single card. That ensures massive speed combined with fault tolerance. If a faulty M.2 card is detected, the cloud store will automatically enter read only, so you can still access your files.

Please Note: Devices without Ethernet or only 1G Ethernet ports may use a Thunderbolt to 10G Ethernet Adapter with their Cloud Store.

  • Features:

    • Elegant design with whisper quiet cooling
    • Features 20 TB, 80 TB and 320 TB models
    • Extremely high performance RAID 5 flash memory
    • Sync to Dropbox
    • Includes HDMI monitoring output with live storage status
    • Includes four 10G Ethernet ports with built in switch
    • Supports Ethernet over USB-C connection to computers
    • USB-C ports allow local ingest and backup of files
    • No subscriptions, no licenses and no user data tracking
    • Includes software utility for Mac and Windows platforms

  • Specifications:

    • Connections
    • 10G Ethernet Ports: 4x 100/1000/10G BASE-T
    • 1G Ethernet Ports: 2x 100/1000 BASE-T
    • Ingest USB-C Port: 1x USB 3.0 (up to 5Gb/s). Automatically transfers files from USB drive to Cloud Store
    • Backup USB-C Port: 1x USB 3.0 (up to 5Gb/s). Automatically backs up files from Cloud Store to USB drive
    • HDMI Monitor Outputs: 1
    • Computer Interface: Ethernet for shared file access, configuration and software updates. USB-C for configuration and software updates

      File Sharing Protocol
    • Protocol: SMB
    • Computer Connections: 50 max

      Cloud Synchronization
    • Compatible Services: Dropbox

      Storage
    • Storage Type: M.2 NVMe SSD
    • Total Capacity: 320TB
    • Redundancy: RAID 5 distributed parity
    • External Storage: USB Disks
    • External Storage Format: ExFAT (Windows/Mac) or HFS+ (Mac) file systems

      Displays
    • HDMI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60
    • Monitor Out Displays: Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graphs
    • Status Indicator: Underside white glow indicating normal operation or red glow indicating disk or power supply fault

      Device Control
    • External Control: USB-C or Ethernet for configuration and software updates

      Software
    • Software Included: Blackmagic Cloud Setup Utility, Blackmagic Proxy Generator Lite, Internal software upgrade via Blackmagic Cloud Setup using USB-C port

      Operating Systems
    • Mac 11.1 Big Sur, Mac 12.0 Monterey or later
    • Windows 10 and 11

      Power
    • Power Supply: 2 x internal 100 - 240V AC 50/60Hz
    • Power Inputs: 1 x IEC C14 mains input
    • Power Usage: 400W max.

      Environmental
    • Operating Temperature: 32°to 104° F
    • Storage Temperature: -4° to 140° F
    • Relative Humidity: 0% to 90% non-condensing

  • Item Includes:

    • 1x Blackmagic Cloud Store 320TB

  • Warranty:

    • 12 Month Limited
