Blackmagic Design DV/RES/BBPNLMINI DaVinci Resolve Mini Panel

ITEM #: BMD-DVRESBBPMLMN MFG #: DV/RES/BBPNLMINI

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Blackmagic Design
Free Shipping with $49 Minimum Order

Our Price:

$2,115.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

DV/RES/BBPNLMINI - Overview

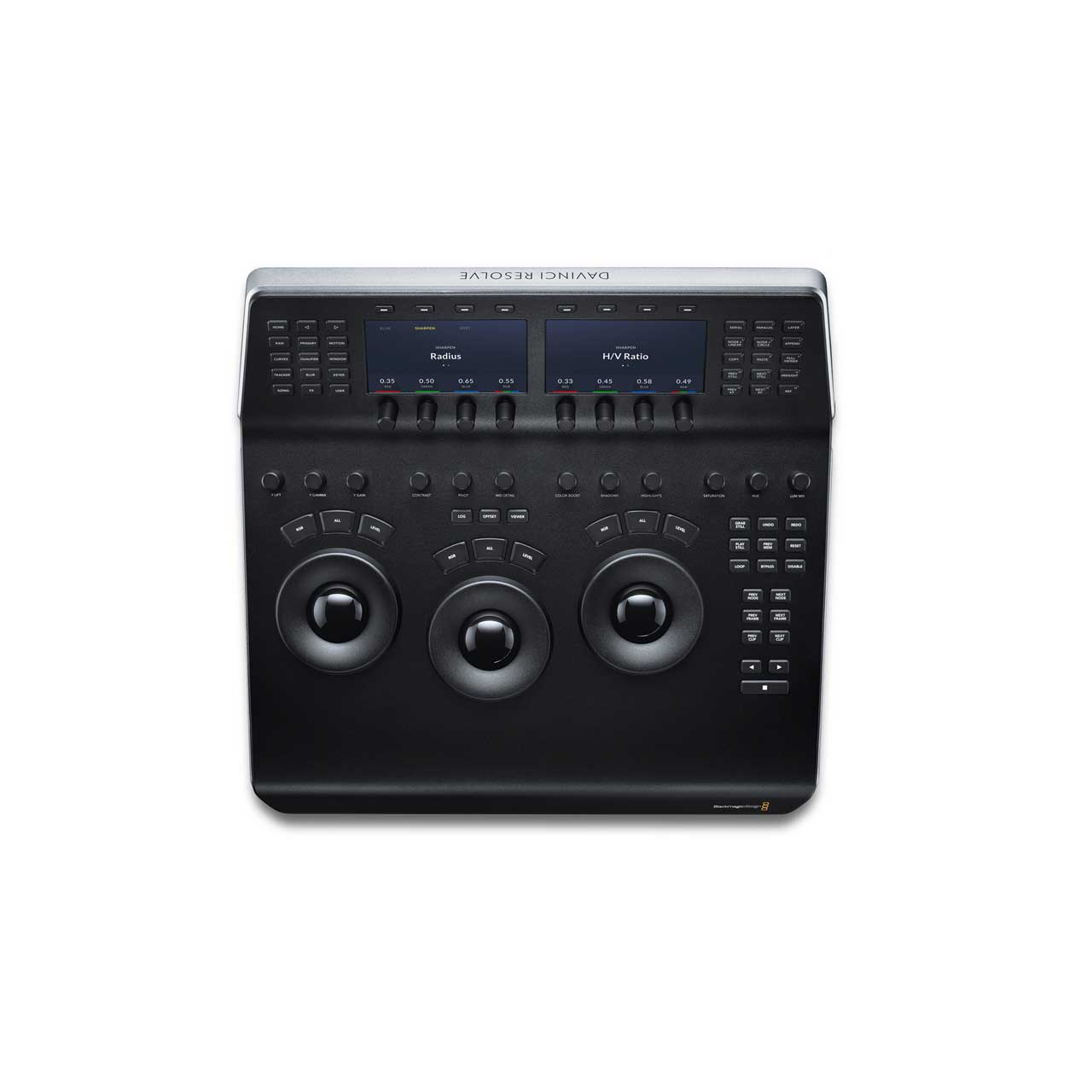

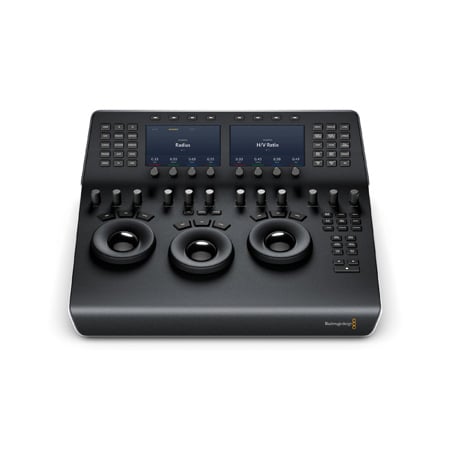

The Blackmgic Design DaVinci Resolve Mini Panel is a compact professional hardware control panel featuring 3 high resolution weighted trackballs, 12 control knobs for essential tools and an upper deck with two 5 inch screens! The DaVinci Resolve Mini Panel has 8 soft knobs and 8 soft buttons, and dedicated keys for switching tools, working with nodes, grabbing stills, navigating the timeline and more!

The Mini Panels two LCD screens allow you to display menus or the parameters of the tools you are working with. Eight customizable soft knobs provide precise control and a quick reset by pushing the knob. Dedicated feature buttons allow you to change tools without needing to use the mouse. The Mini panel incorporates a USB Type-C and Ethernet interface. It is compatible with Mac, Windows, and select Linux systems. You can power the panel via an AC power source, a 4-pin XLR connector, or PoE. For the panel to work with Resolve, your computer must be running DaVinci Resolve 12.5.5 or DaVinci Resolve Studio 12.5.5 or later. An included USB 3.0 Type-A to USB Type-C cable provides backward compatibility for systems that are limited to USB Type-A connectors.

  • Features:

    • Small enough to take with you, so you can bring it to any Resolve system (12.5.5 or later) and do color correction on location or at the editor's suite.
    • Shares basic layout with both Micro and Advanced Panels.
    • Interfaces with and controls software.
    • Three track balls with outer control rings.
    • Log and Offset color-correction selection buttons.
    • Buttons are backlit and light up when actuated.
    • Two LCD display screens for displaying the menu system or the parameters of the tools you are working with.
    • Custom control knobs with 4096 steps per rotation and push button reset.


  • Specifications:

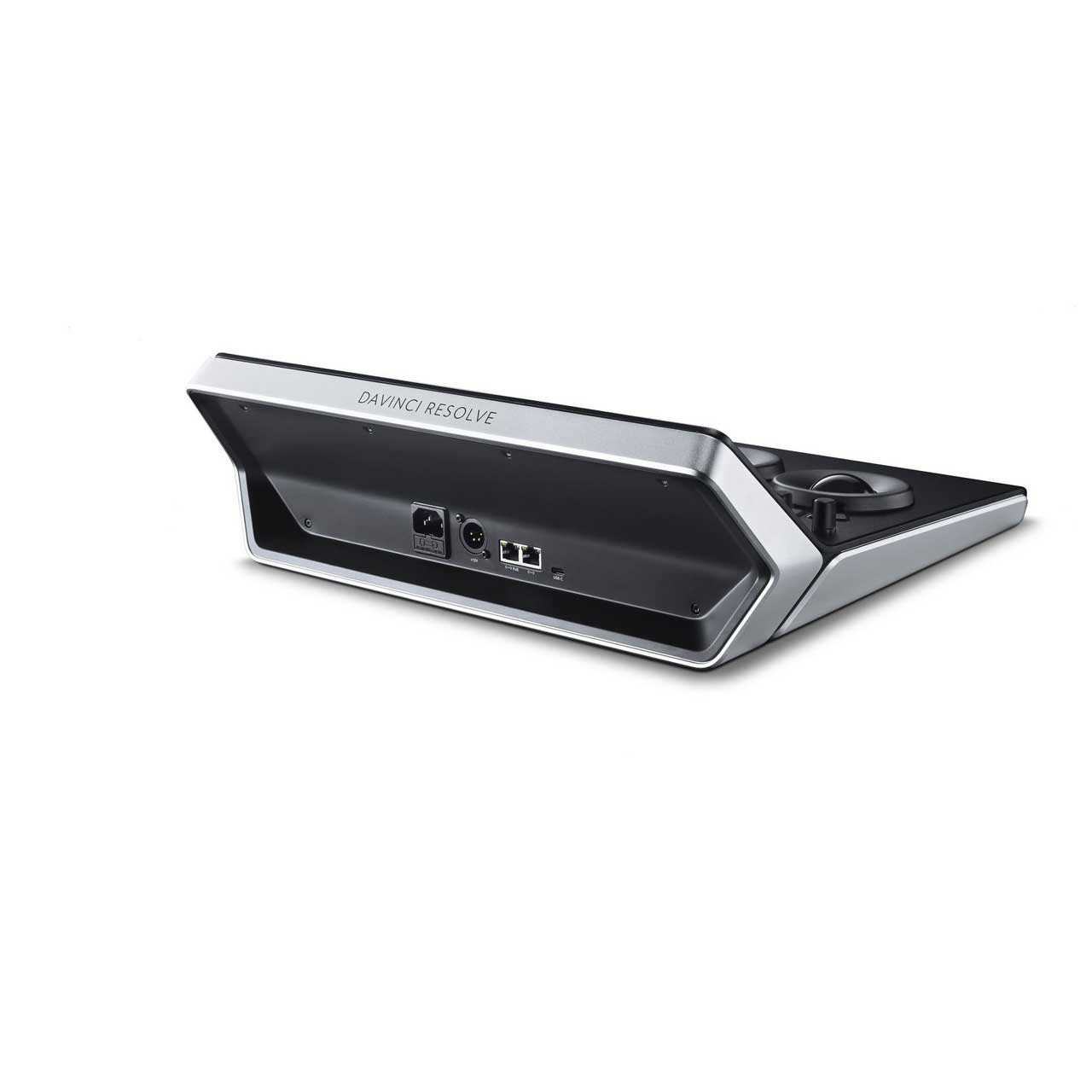

    • Connections
    • Computer Interface: USB Type C.
    • Ethernet: 1 x Ethernet connection supporting 10/100/1000 BaseT with PoE.1 x Ethernet connection supporting 10/100/1000 BaseT.
    • Power: 1 x IEC C14 mains input. 1 x +12V DC 4 pin XLR. 1 x Ethernet with PoE.

      Power Requirements
    • Power Supply: Internal 100 - 240V AC 1.5A 50/60Hz with IEC C14 mains input.
    • Power Usage: 17W max.

      Operating Systems
    • Mac 10.15 Catalina or later. Windows 10, 64-bit. Linux CentOS 7.3 or later.

      Environmental Specifications
    • Operating Temperature: 0° to 40°C (32° to 104°F)
    • Storage Temperature: -20° to 60°C (-4° to 140°F)
    • Relative Humidity: 0% to 90% non-condensing


  • Item Includes:

    • DaVinci Resolve Mini Panel
    • USB 3.0 Type-A to USB Type-C cable
    • DaVinci Resolve Studio License


  • Warranty:

    • 1 Year Limited Manufacturer's Warranty.


  • GTIN:

    9338716004564
