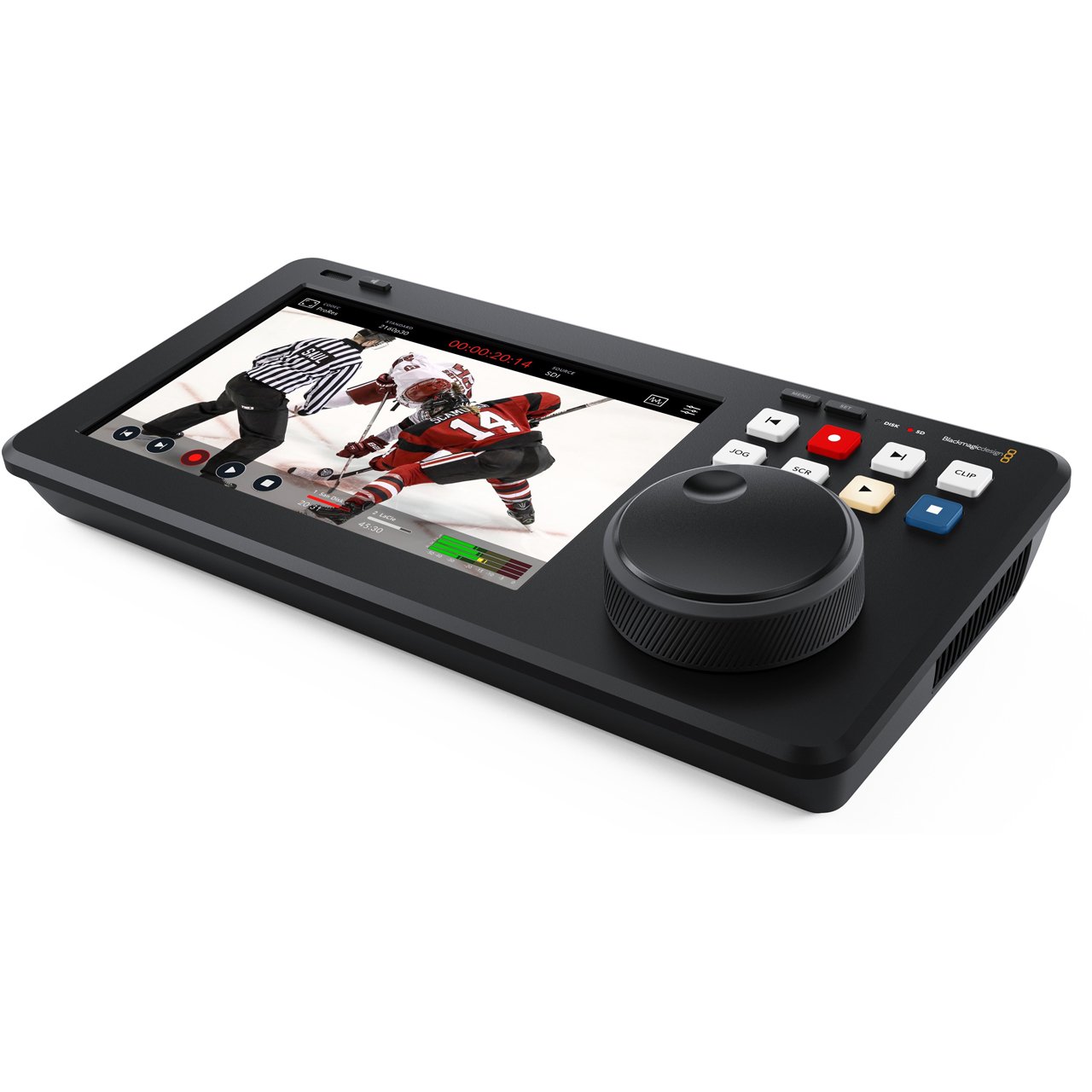

Blackmagic Design HYPERD/PTSKD HyperDeck Shuttle 4K Pro Advanced Recorder and Player - 7 Inch LCD Touchscreen

ITEM #: BMD-HPSHUTTLE4KP MFG #: HYPERD/PTSKD

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$1,645.00

Availability: Preorder
iAvailability Description Popup


HYPERD/PTSKD - Overview

The Desktop HyperDeck that's the perfect live production clip player!

HyperDeck Shuttle is a recorder and player that's designed to be used on the desktop! It's more than a master recorder, as it's also a clip player. The large search dial lets you quickly scroll through media to find the clip you want. Depending on the model, you get support for ProRes, DNx, H.264 and H.265 files in NTSC, PAL, 720p, 1080p, and 2160p video standards. It even has a built in teleprompter! There are models with 12G-SDI and HDMI so you can connect to switchers and cameras. Plus it records to SD cards, UHS-II cards or USB-C disks. The HyperDeck Shuttle 4K Pro model has 10G Ethernet and internal M.2 storage, so it can share media on your local network or record to network storage.

The Blackmagic Design HyperDeck Shuttle 4K Pro is an advanced recorder and player with a large 7" LCD touchscreen for monitoring and scopes. The large search dial and broadcast controls are perfect for scrolling through media to find the media you want to play. 12G-SDI connections allow you to connect to professional broadcast equipment. Supports HDMI 4K, H.264, H.265, ProRes or DNx files, HD proxies, scopes, 3D LUT and network recording via fast 10G Ethernet.

The Elegantly Designed Professional Broadcast Deck

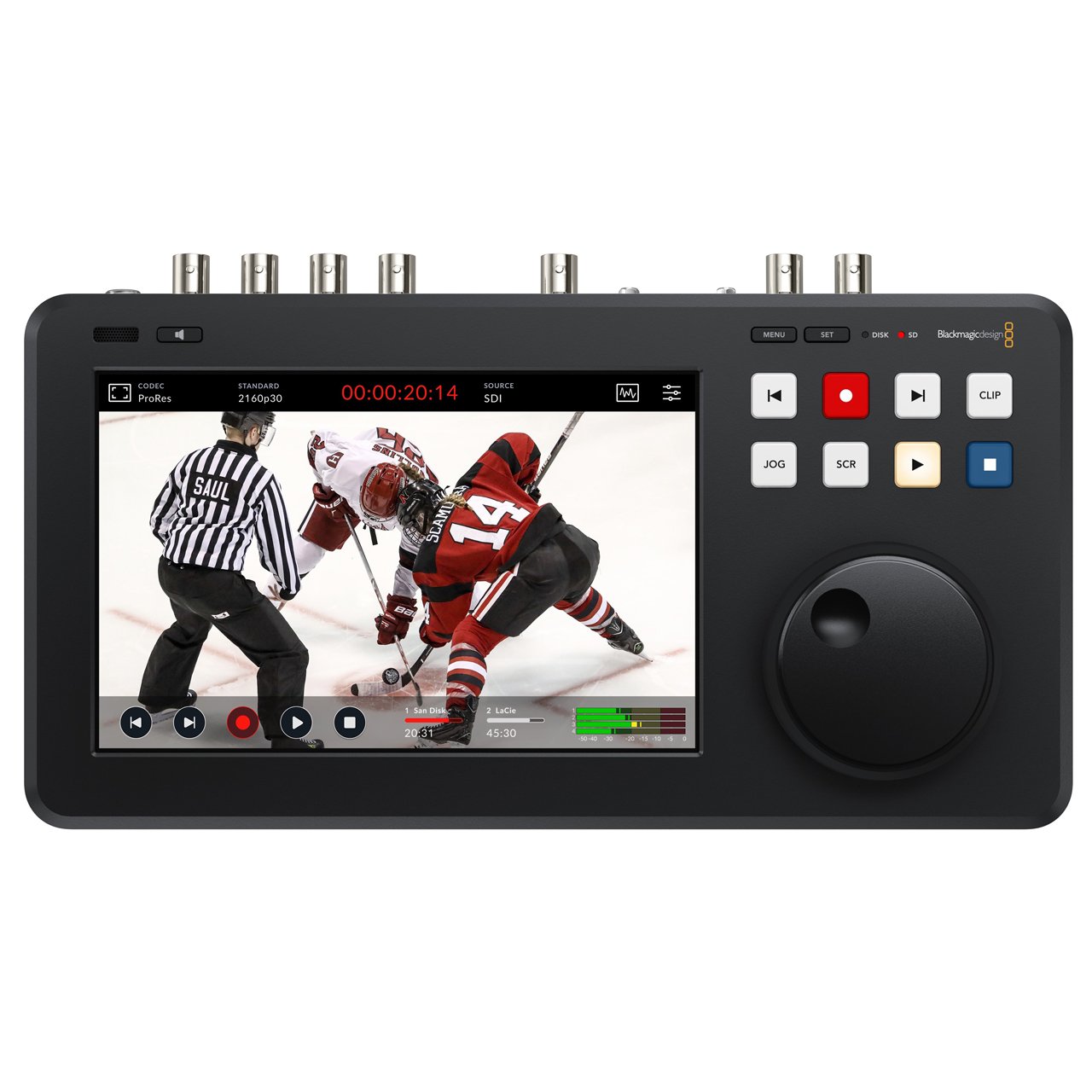

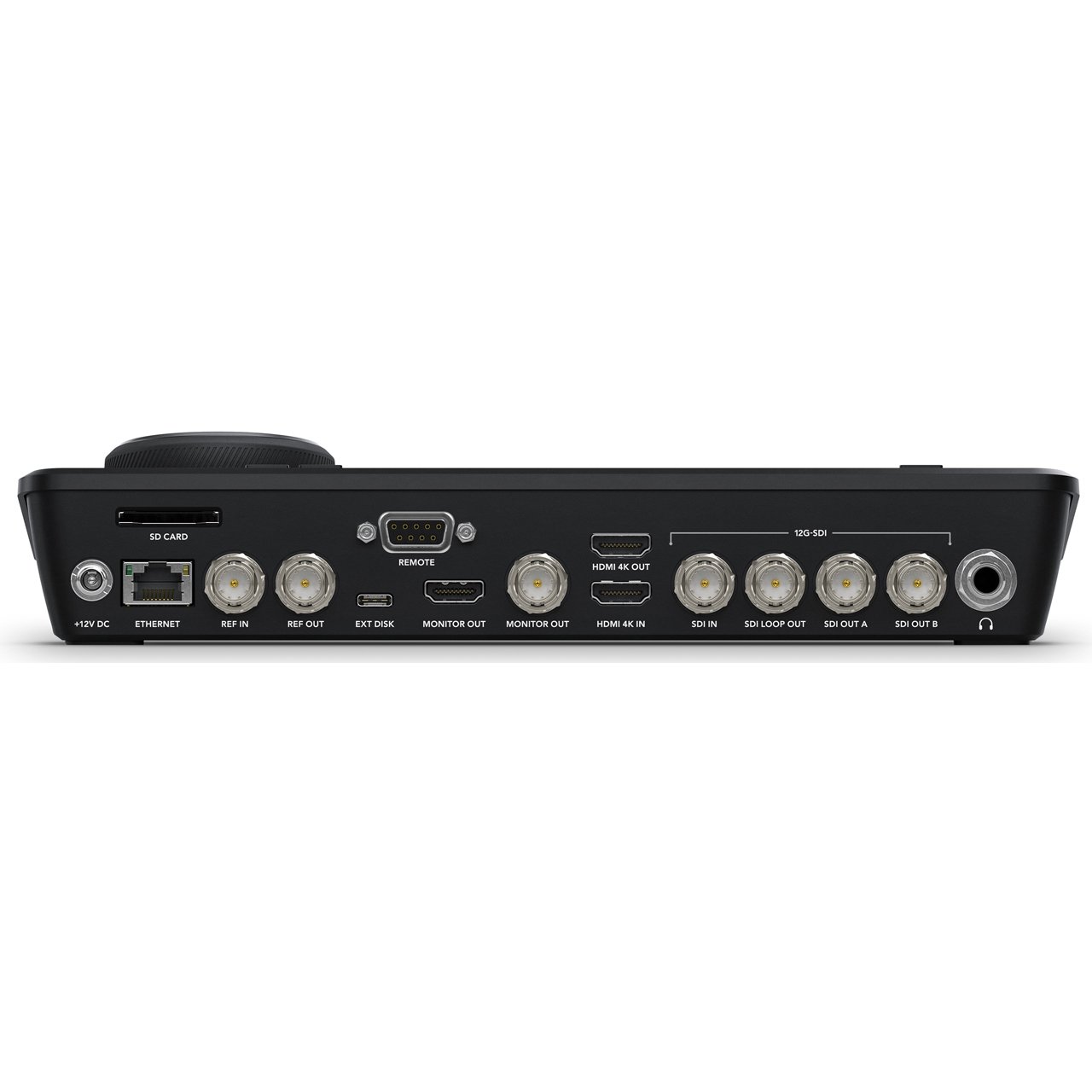

HyperDeck Shuttle is perfectly designed for the desktop. This means the front panel can be operated with a single hand! The gentle angle allows your hand to rest on the search dial, and the control buttons are positioned under your fingertips. Scrolling media is fast as the machined metal search dial has a natural inertia, and the soft rubber surface feels nice to the touch. That's perfect when you're searching through lots of media. The HyperDeck Shuttle 4K Pro model boasts a large 7" LCD screen for live monitoring, complete with a "heads up display" overlay. Plus, it features full menus with all the deck settings! The rear panel includes all video, audio and network connections.

  • Features:

    • Perfect for Live Production Mastering and Clip Playback!
    • Built in 7" Monitor for Fast Touch Control
    • Traditional Broadcast Deck Controls
    • Record to Internal or External Network Storage
    • Supports SD Cards and UHS-II Cards
    • Record to External USB-C Media Disks
    • Popular ProRes, DNx, H.265 and H.264 Files
    • Powerful Video and Control Connections

  • Specifications:

      Connections
    • SDI Video Inputs: 1
    • SDI Loop Outputs: 1
    • SDI Video Outputs: 2
    • SDI Monitor Outputs: 1
    • SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G
    • HDMI 2.0 Video Inputs: 1
    • HDMI 2.0 Video Outputs: 1
    • HDMI Monitor Outputs: 1
    • Built in Speaker: Mono
    • Audio Output: 1x 6.35mm headphone jack
    • Screen: 7" LCD
    • Reference Input: 1x BNC In, Tri-Sync or Black Burst
    • Reference Output: 1x BNC Out
    • SDI Audio Inputs/Outputs: 64 channels embedded audio
    • HDMI Audio Inputs/Outputs: 8 channels embedded audio
    • Remote Control: 1x RS-422 In
    • Recorder Configuration: Via user interface on HDMI Out or Blackmagic HyperDeck Ethernet Protocol
    • Ethernet: 1x 10Gb/s RJ-45 connector supporting 1000/10G BASE-T
    • External Recording: 1x USB-C 3.1 Gen 1 (up to 5Gb/s) for external disk recording
    • Computer Interface: 1x USB-C for software updates

      Standards
    • SD Video: 525i59.94 NTSC, 625i50 PAL
    • HD Video: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    • 2K DCI Video: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
    • Ultra HD Video: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
    • 4K DCI Video: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 424M
    • SDI Metadata Support: Television standard 24-bit, 48 kHz sample rate
    • Supported HDMI Formats: 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60, 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
    • Audio Sampling: Television standard 24-bit, 48 kHz sample rate
    • Video Sampling: 4:2:2 YUV
    • Color Precision: REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied to SDI monitor out
    • HDR Support: Hybrid Log-Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
    • Multi Rate Support: Auto detection of SD, HD, 6G-SDI and 12G-SDI

      Media
    • Cache Recording: Slot for optional M.2 PCIe NVMe card for cache recording up to 16Gb/s. 60mm 80mm and 110mm supported
    • Media:
      - 1x SD card slot
      - 1x USB-C 3.1 Gen 1 expansion port for external recording of SD, HD, 2K DCI, Ultra HD and 4K DCI

      Scopes
    • Scopes: Waveform, RGB Parade, Vector and Histogram scopes in broadcast quality 10-bit
    • Viewing Modes: Picture in picture, picture overlay with opacity control. Waveform and RGB parade with standard and HDR graticules and Vector with zoom

      Teleprompter
    • Multi Rate Support: Outputs 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p defaulting to the highest rate
    • Supported File Formats: Rich text (.rtf) with support for most rich text formatting. Plain text (.txt)

      Power Requirements
    • Power Supply: 1x Locking 5.5mm barrel 12V DC In for external power supply or battery use
    • Power Usage: 60W max

      Environmental
    • Operating Temperature: 32°F - 104°F
    • Storage Temperature: -4°F - 140°F
    • Relative Humidity: 0% - 90% non-condensing

  • Item Includes:

    • 1x HyperDeck Shuttle 4K Pro
    • 1x 12V universal power supply with international socket adapters

  • Warranty:

    • 1 Year Limited Warranty
