Blackmagic Design HYPERD/AVIDA03/7 Video Assist 7 Inch 3G Portable Monitor/Recorder for SDI or HDMI Cameras

ITEM #: BMD-HYPERAVIDA-7 MFG #: HYPERD/AVIDA03/7

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$565.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


HYPERD/AVIDA03/7 - Overview

Transform Your Camera with Video Assist!

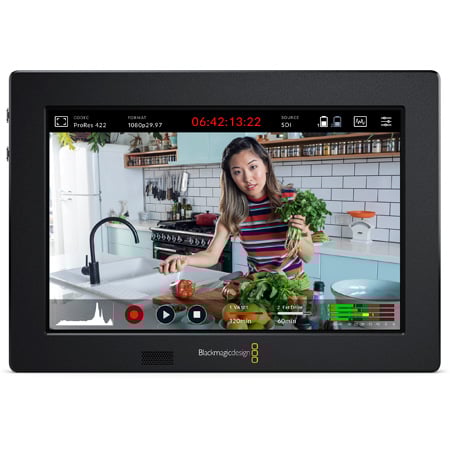

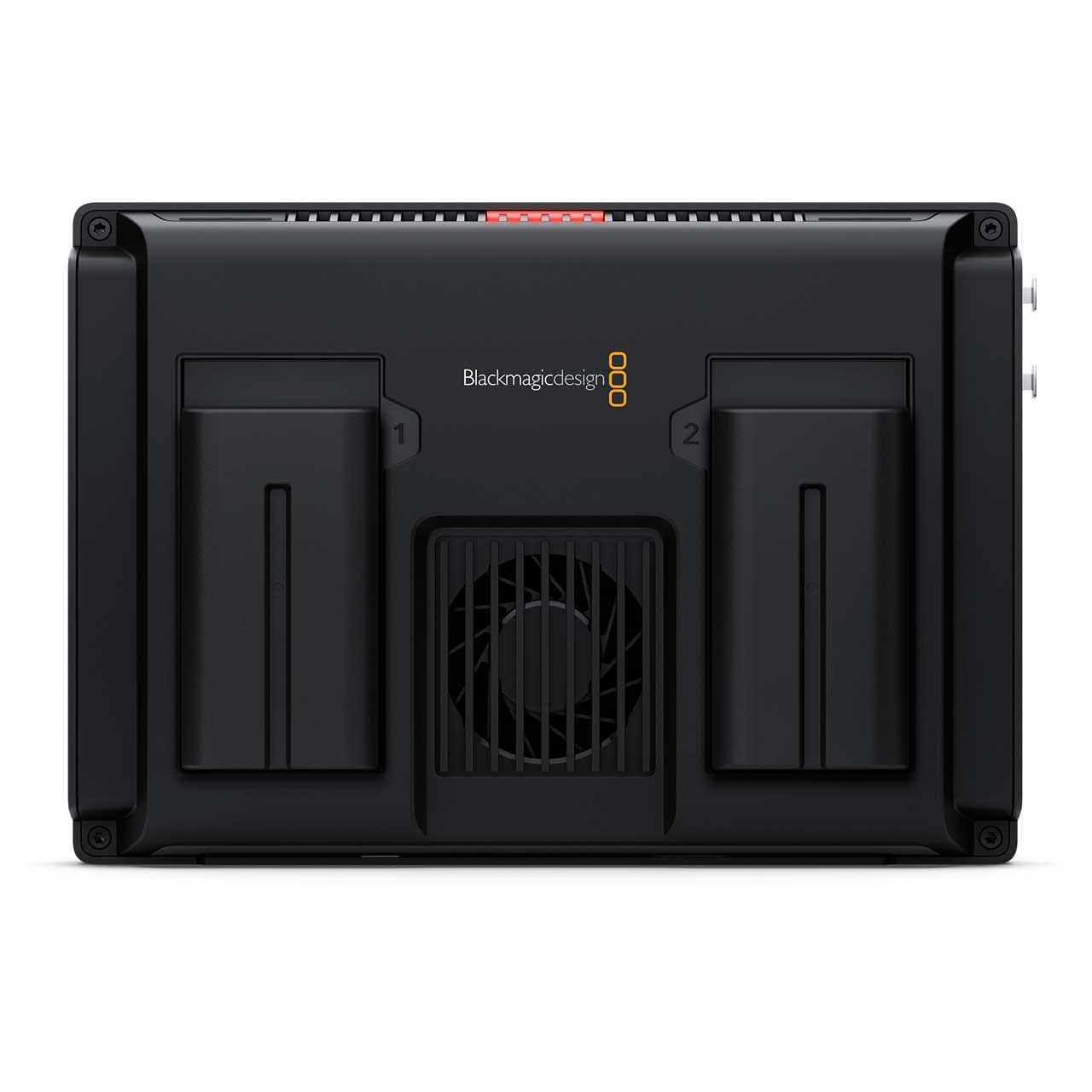

The Blackmagic Design Video Assist 7 inch 3G is a portable monitor, a professional recorder, a portable scope and a fantastic camera viewfinder solution! You can also add better quality record codecs and a larger monitor to any SDI or HDMI camera! The new design has innovations such as 4 built in scopes, enhanced focus assist features, a tally indicator and built in 3D LUTs. The Video Assist 7 inch 3G support formats up to 1080p60 and the new design also has L-Series batteries for longer life. The larger 7 inch model has 2 SD Card slots so recording can continue when a card becomes full. There are also 2 mini XLR audio inputs with phantom power so you can connect and record direct from professional microphones. The Blackmagic Design Video Assist 7 inch 3G really is 4 products in one!

With large and bright 5 and 7 inch touchscreens, Video Assist makes it incredible easy to frame shots and accurately focus. The touchscreen displays critical information while you're shooting including the timecode, transport control, audio meters and a histogram for exposure. You can also customize the LCD to add or remove overlays such as current filename, focus peaking, zebra, false color, frame guides, 3D LUTs and more. 3D LUTs support allows monitoring shots with the desired color and look, plus you can even "bake in" the LUT if you want to record it into the file. If you're using Blackmagic RAW, the 3D LUT is only added into the metadata so it can be disabled in post production.

  • Features:

    • Transforms camera usability with Video Assist
    • Customize your touchscreen tools and features
    • Upgrade to better recording for digital cameras
    • Large HDR monitor with easy touch controls
    • Built-in scopes ensure compliance to standards
    • Load custom 3D LUTs to recreate film looks
    • Direct metadata entry for faster editing
    • Professional multi channel SDI and Analog audio
    • Localized for 11 popular languages
    • Works with the world's most popular video software

  • Specifications:

    • Connections
    • SDI Video Inputs: 1x Micro BNC
    • SDI Video Outputs: 1x Micro BNC
    • SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
    • HDMI 2.0a Video Inputs: 1
    • HDMI 2.0a Video Outputs: 1
    • Analog Audio Inputs: None, embedded audio only
    • Analog Audio Outputs: 1x 3.5mm headphone jack
    • Built in Speaker: Mono
    • Screen Dimensions: 7" 1920 x 1200
    • Screen Brightness: 2500nits
    • Screen Color: P3 wide color gamut
    • SDI Audio Inputs: 16 channels embedded via 12G-SDI
    • SDI Audio Outputs: 16 channels embedded via 12G-SDI
    • HDMI Audio Inputs: 8 channels embedded via HDMI 2.0a
    • HDMI Audio Outputs: 8 channels embedded via HDMI 2.0a
    • Remote Control: 1x 2.5mm LANC for Record Start and Stop

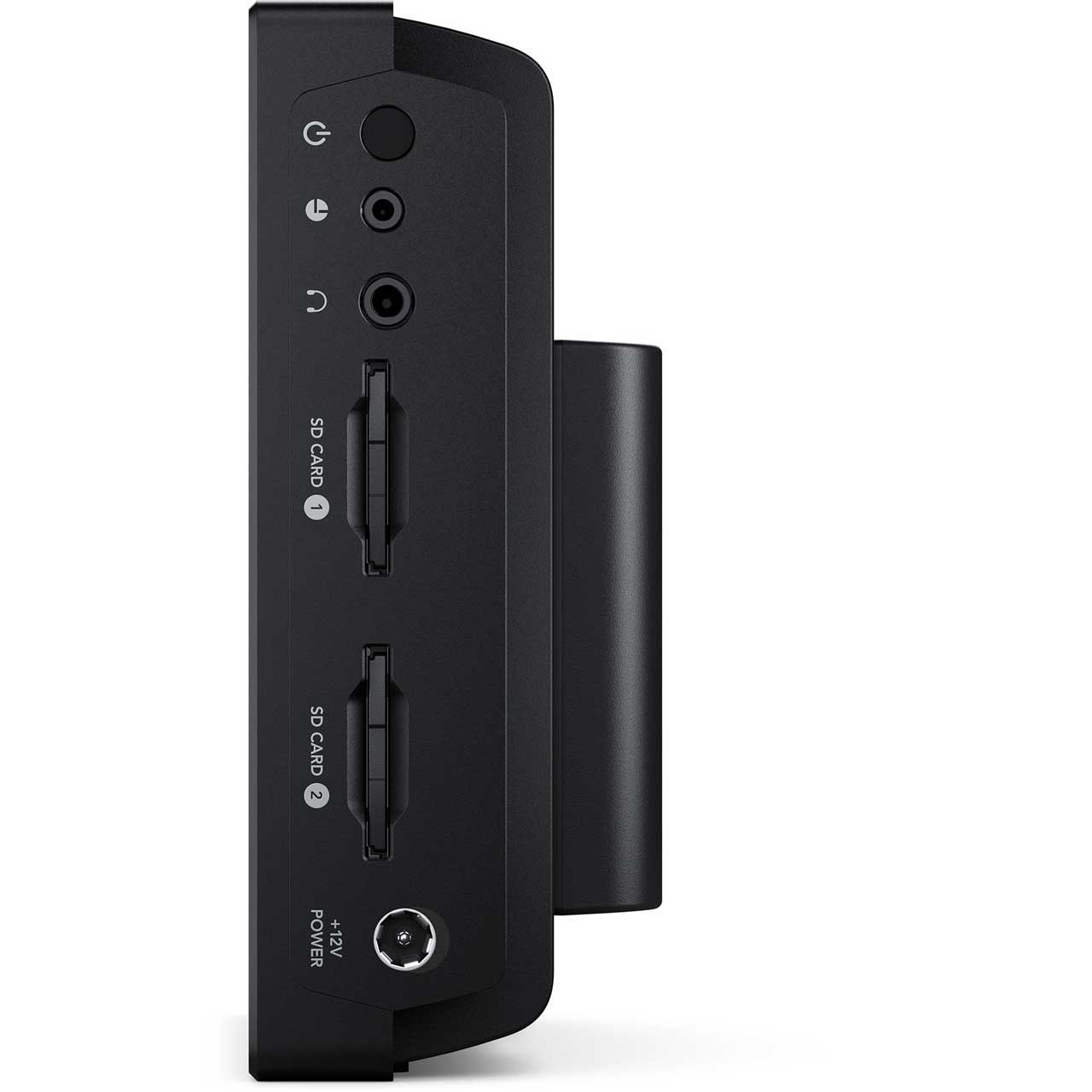

    • SD Interface: Dual UHS-II SD slots
    • Storage Type: Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards. Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.
    • Computer Interface: 1x USB Type C 3.1 Gen 1 for firmware and streaming, webcam out, initial setup, software updates and Video Assist Utility software control.

      SDI Video Standards
    • SD Video Standards: 525i59.94 NTSC,625i50 PAL
    • HD Video Standards: 720p50,720p59.94, 720p60,1080p23.98,1080p24,1080p25,1080p29.97,1080p30,1080p50,1080p59.94,1080p60,1080PsF23.98,1080PsF24,1080PsF25,1080PsF29.97, 1080PsF30,1080i50,1080i59.94,1080i60
    • 2K Video Standards: 2Kp23.98 DCI,2Kp24 DCI,2Kp25 DCI,2KPsF23.98 DCI,2KPsF24 DCI,2KPsF25 DCI
    • Ultra HD Video Standards: 2160p23.98,2160p24,2160p25,2160p29.97,2160p30,2160p50,2160p59.94,2160p60
    • 4K Video Standards: 4Kp23.98 DCI,4Kp24 DCI,4Kp25 DCI
    • SDI Compliance: SMPTE 259M,SMPTE 292M,SMPTE 296M,SMPTE 425M,SMPTE 2084
    • SDI Metadata Support: HD RP188
    • Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
    • Video Sampling: 4:2:2 YUV
    • Color Precision: 10-bit
    • Color Space: REC 601, REC 709, REC 2020
    • HDR Support: HDR10, Hybrid Log Gamma
    • Multiple Rate Support: SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s, 3 Gb/s, 6 Gb/s and 12 Gb/s
    • SDI RAW: Blackmagic RAW

      HDMI Video Standards
    • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
    • HD Video Standards: 720p50,720p59.94,720p60,1080p23.98,1080p24,1080p25,1080p29.97,1080p30,1080p50, 080p59.94,1080p60, 1080i50,1080i59.94,1080i60
    • Ultra HD Video Standards: 2160p23.98,2160p24,2160p25,2160p29.97,2160p30,2160p50,2160p59.94,2160p60
    • 4K Video Standards: 4Kp23.98 DCI,4Kp24 DCI,4Kp25 DCI
    • HDMI Color Precision: 10-bit
    • HDR Support: HDR10, Hybrid Log Gamma
    • Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

      Media
    • Media: 2x UHS-II SD for Ultra HD, compatible with regular SD for HD recording. USB Type-C 3.1 Gen 1 for external drive recording.
    • Media Type: SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards

  • Item Includes:

    • 1x Blackmagic Design Video Assist 7 inch 3G
    • 1x Universal power supply with international adapters
    • 1x Blackmagic Design OS Software Included

  • Warranty:

    • 12 Month Limited Manufacturer's Warranty.

  • GTIN:

    9338716006414
