PortaCom 2000 is a flexible, high performance wired intercom built smart and simple so it won't knock a hole in your budget. For the price of many single channel systems, PortaCom gives two channels, delivering powerful, low-noise, broadcast quality sound. The PortaCom 2000 system tailors to your needs as it is expandable to fit your situation. Two channels offers the advantage of extensive communication, so you won't get tangled in crosstalk. A director can cue cameras or talent on one channel and a lighting or sound crew on the other channel. Coaches on offense can call plays at the same time their defensive coaches are reviewing strategy, while the head coach communicates back & forth with both of them.
The main components include a power console, belt packs and headsets. Station-to-Station communication is made using standard microphone cable with 3-pin XLR connectors. The PC-2000 power console has four outputs and can be expanded and configured in a variety of ways using the B3-2000 branch boxes. Start with a basic two person system and expand step by step all the way up to a 20 person system - all running from a single AC power supply over standard mic cable.
PC-2000 Power Console
The PC-2000 has a power switch, an AC power input, and four 3-pin XLR output jacks. It can power up to 20 BP-100 belt packs.

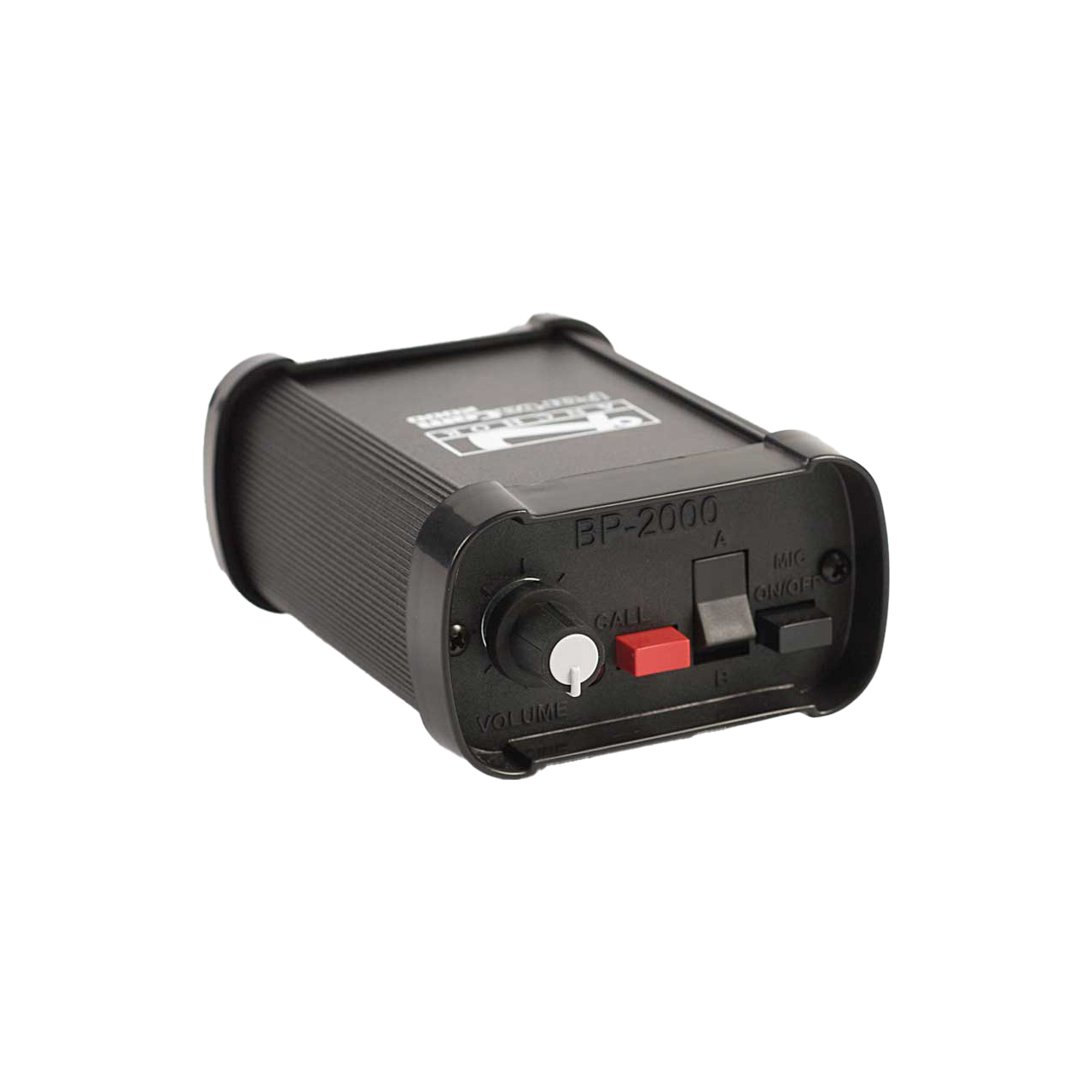

BP-2000 Belt Pack
The bottom of the BP-2000 has a female 3-pin XLR female input (line) connector and 4-pin XLR male headset connector. Power is supplied via the line cable connected to the PC-2000.
H-2000 and H-2000S Headsets
Both the H-2000 (dual earpiece) and H-2000S (single earpiece) headsets are equipped with noise cancelling microphones that reduces background noise for clearer communication.
Operation
1. Plug headset connector into 4-pin XLR on belt pack.
2. Plug AC adapter into standard 110V AC outlet and it's output connector into the PC-2000.
3. Using standard mic cables, connect BP-2000 belt packs to the PC-100 power console in desired configuration as detailed in previous specification.
4. Turn PC-2000 switch on.
5. Adjust headset boom so mic is close to mouth.
6. Adjust headset listening volume on belt pack.
7. Use channel switch to select between channel A and B.
All COM Systems Include: PC-2000 Power Console, H-2000 Dual Earpiece Headsets, HC-1600P Standard Carry Case, BP-2000 Belt Packs and EX-50M 50 Ft. Extension Cables. (Included Belt Pack & Extension Cable Quantities are Equivalent To Number of Headsets and Branch Boxes in System).
All COM-FC Systems Include: PC-2000 Power Console, H-2000 Dual Earpiece Headsets, BP-2000 Belt Packs (equivalent to number of headsets) and HC-1600P Carrying Case with Foam Inserts. (No Cables Included).
