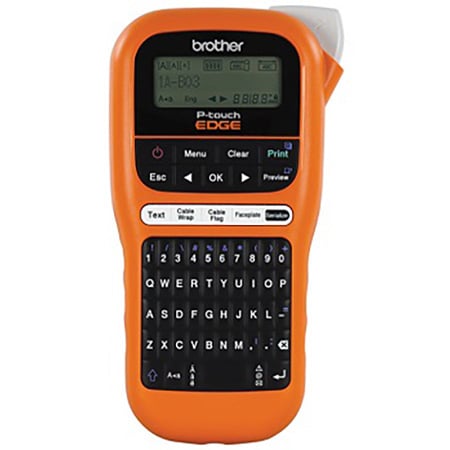

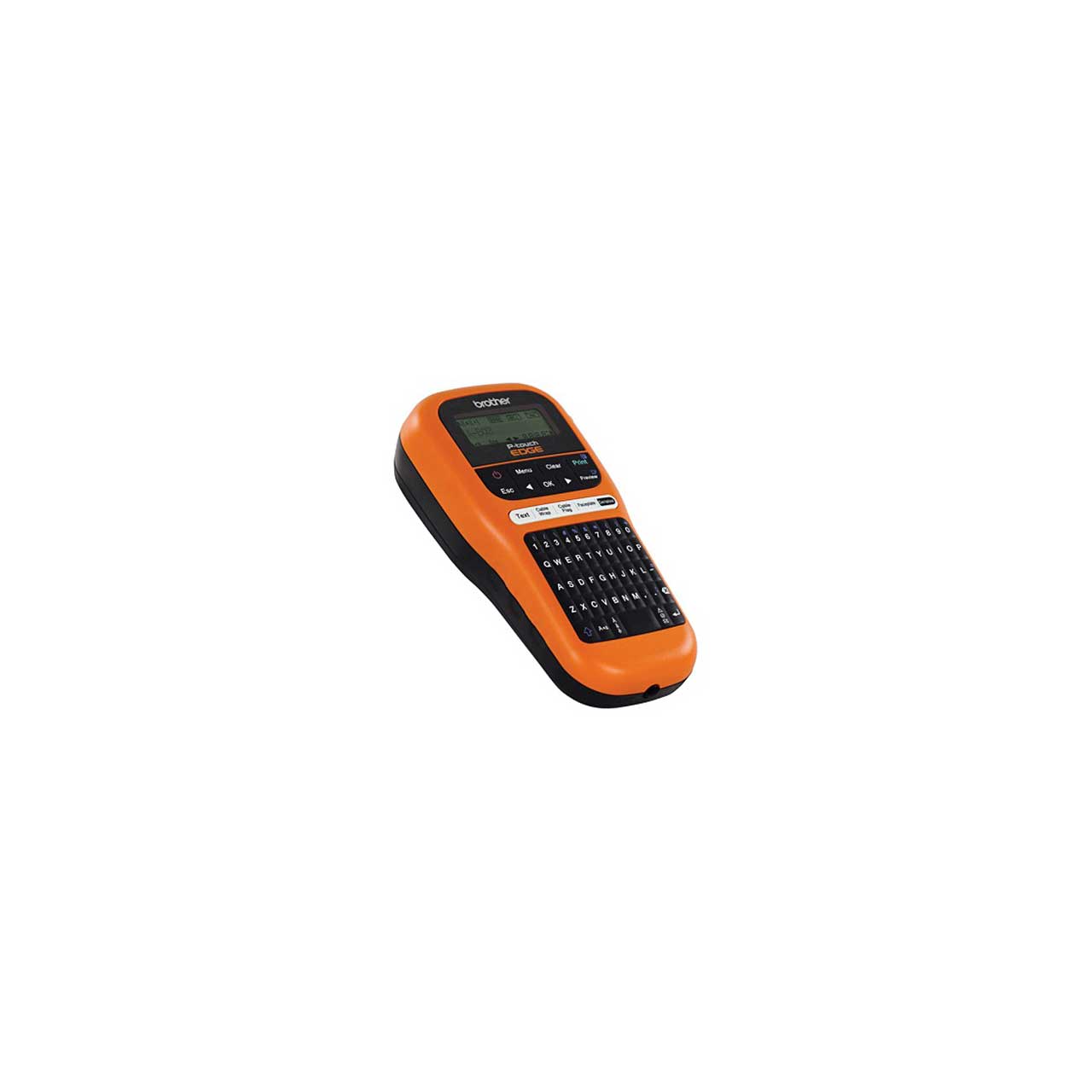

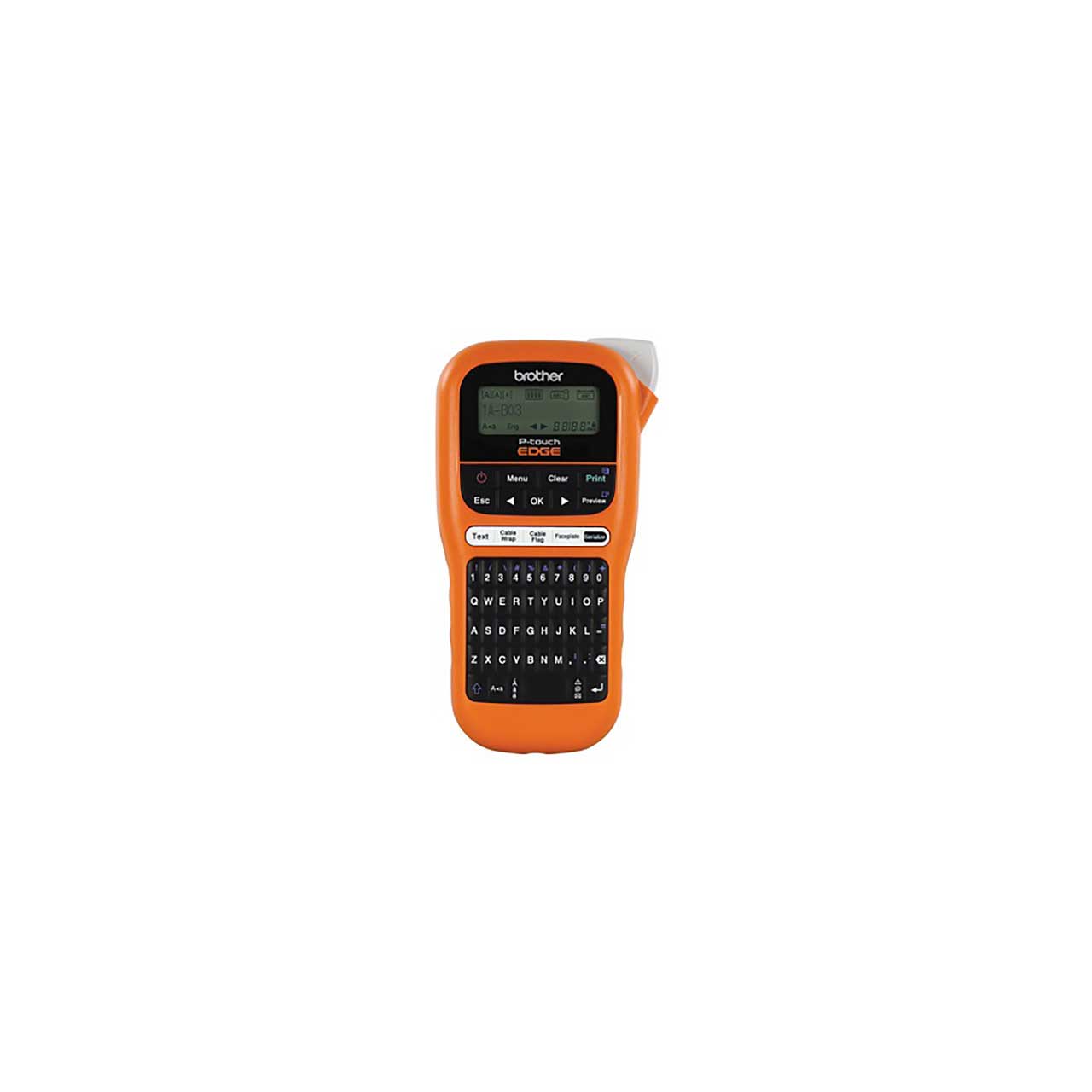

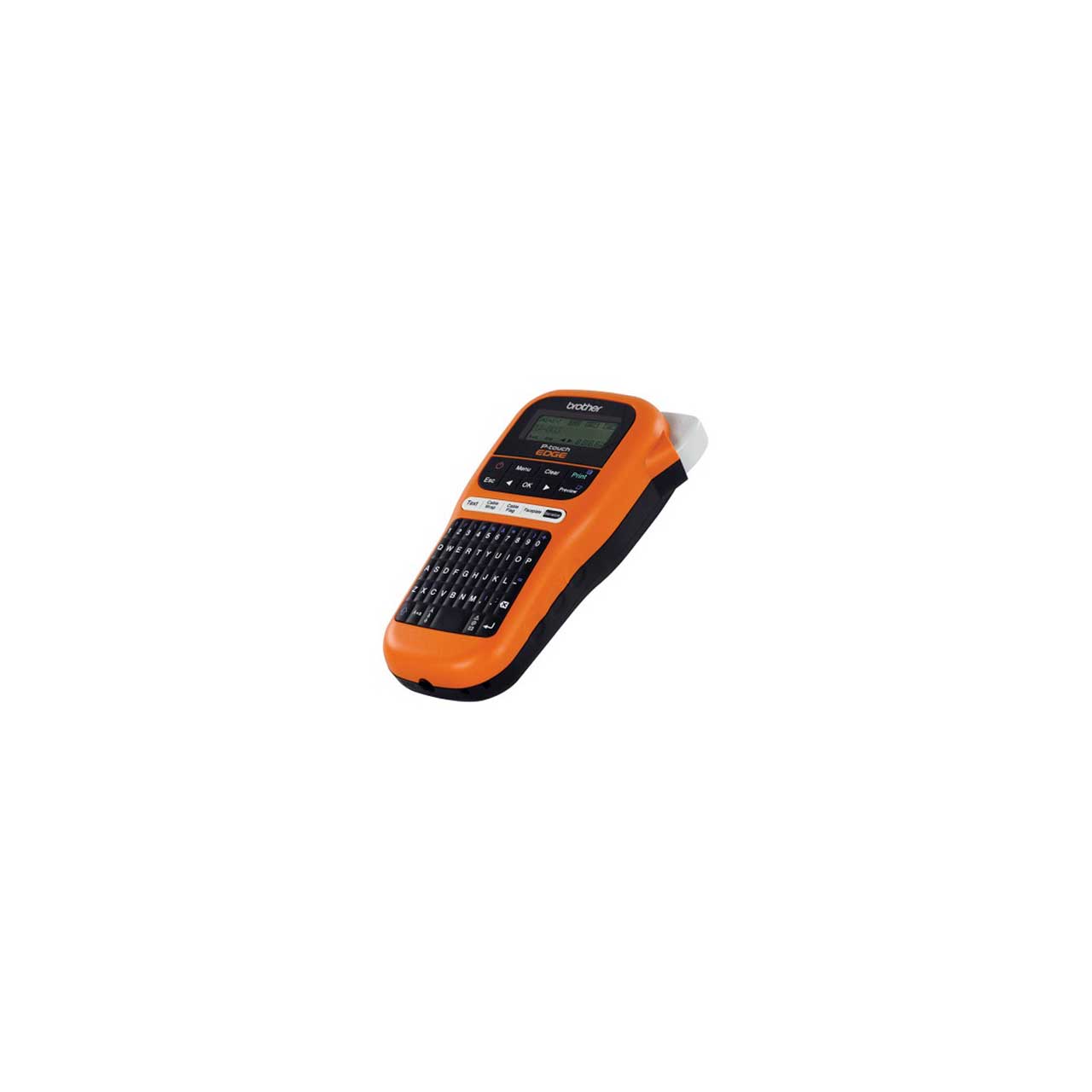

Brother P-Touch PT-E110 Industrial Handheld Labeling Tool Kit

PTE110 - Overview

• Features:

  • Standalone label printing system comes as a kit at the price of just an industrial labeling system
  • Intuitive label application keys - Simple menus for common applications with smart technology help reduce key strokes and time to print the right looking label
  • Compact size and light weight - Weighs under 1 lb. and is easy to carry onto every job site
  • QWERTY keyboard - Entering data is as natural and intuitive as texting or sending a message
  • Smart media sensing technology automatically picks the right layout settings to just type and print a label
  • Easy to use serialization - Helps save time printing single or multiple labels with serialized data
  • Large LCD display with application icons - Provides at-a-glance information to confidently know you are printing the right type of label
  • Wrist strap helps prevent dropping labeling tool - Dropped object prevention when working at heights is critical for worker safety
  • Produces high quality and extremely durable laminated labels that can withstand abrasion, fading, extreme temperatures, chemicals, moisture and other harsh conditions
  • Uses HGe and TZe tapes - All in one, drop in cartridge design helps ensure you get the best print quality and makes replacing media virtually trouble free
  • 2 years limited exchange warranty - Helps assure operational confidence and reliability, and helps minimize down time


• Specifications:

  • Hardware
  • Model Type: Industrial Handheld
  • Tape Family: HGe, TZe
  • Tape Sizes: 3.5mm, 6mm, 9mm, 12mm
  • Tape Length: 26.2'
  • Tape Technology: Laminated Thermal Transfer
  • Tape Type: Standard Laminated, Flexible ID, Extra Strength Adhesive , Non-Laminated Iron-on Fabric, Acid Free
  • LCD Display: Graphic 15 characters x 1 line (128 x 16 dots)
  • Backlight: No
  • Maximum Print Resolution: 180 x 180 dpi (7 x 7 dots/mm)
  • Maximum Print Speed: 20 mm/sec (battery or optional AC adapter)
  • Keyboard: QWERTY
  • Cutter: Manual - User Replaceable (Optional TC-4)
  • Batteries: 6 "AAA" Alkaline (not included)
  • Power Supply: Optional (6) AAA Size Alkaline Batteries or AD-24ES Adapter
  • AC Adapter: AD-24ES (Optional) - 9VDC / 100-120VAC 50/60 Hz
  • Interface: None


    Software
  • Number of Fonts: 1
  • Font Sizes: Small, Medium, Large
  • Number of Font Styles: 9
  • Font Styles: Normal, Bold, Outline, Shadow, Italic, Italic Bold, Italic Outline, Italic Shadow, Vertical
  • Built-in Symbols: 200 Industrial
  • Max. Print Height: 9.0 mm
  • Maximum Print Lines: 2
  • Multi-Block: No
  • Label Length Setting: Yes
  • Auto Incrementation: Up to 50 Alpha-Numeric Characters
  • Auto Numbering: Up to 50 Alpha-Numeric Characters
  • Vertical Printing: Yes
  • Mirror Printing: No
  • Rotate Printing: Yes
  • Text Insert: Yes
  • Text Framing/Fill Pattern: Yes (1 kind) / No
  • Multi-copy Print: up to 9 copies
  • Memory: Yes (9 labels)
  • Date/Time Stamp: No
  • Built-in Designs/Templates: 3 Label Application Functions: Faceplate, Cable Wrap & Flag
  • Auto Formats: Yes
  • Internal Fonts: Helsinki
  • Barcodes (Stand-alone mode): No


    Physical
  • Housing Dimensions: 4.4" w x 8.0" h x 2.3" d
  • Housing Weight: 0.88 lbs. (without tape and batteries)
  • Housing Color: Orange and Black
  • Warranty: 2 year limited exchange warranty
  • UPC Code: 012502647300


• Item Includes:

  • Carrying Case
  • Wrist Strap
  • One 0.35" (9mm) x 26.2' (8m) Black on White Laminated Flexible ID "TZe" tape
  • User's Manual
  • Warranty and Product Registration Sheet


• GTIN:

  0012502647300
