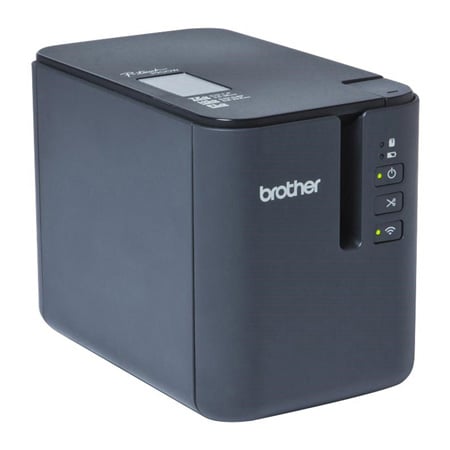

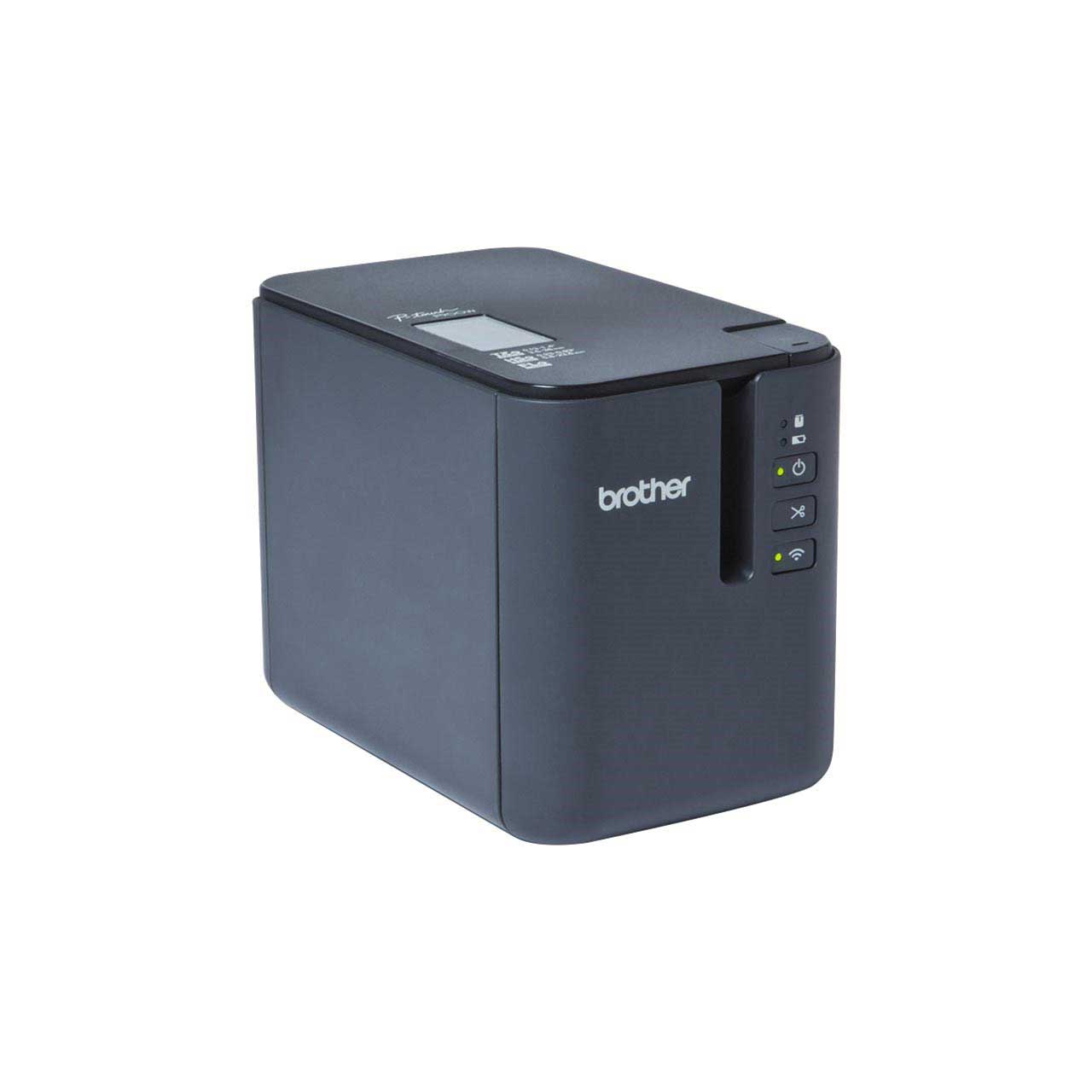

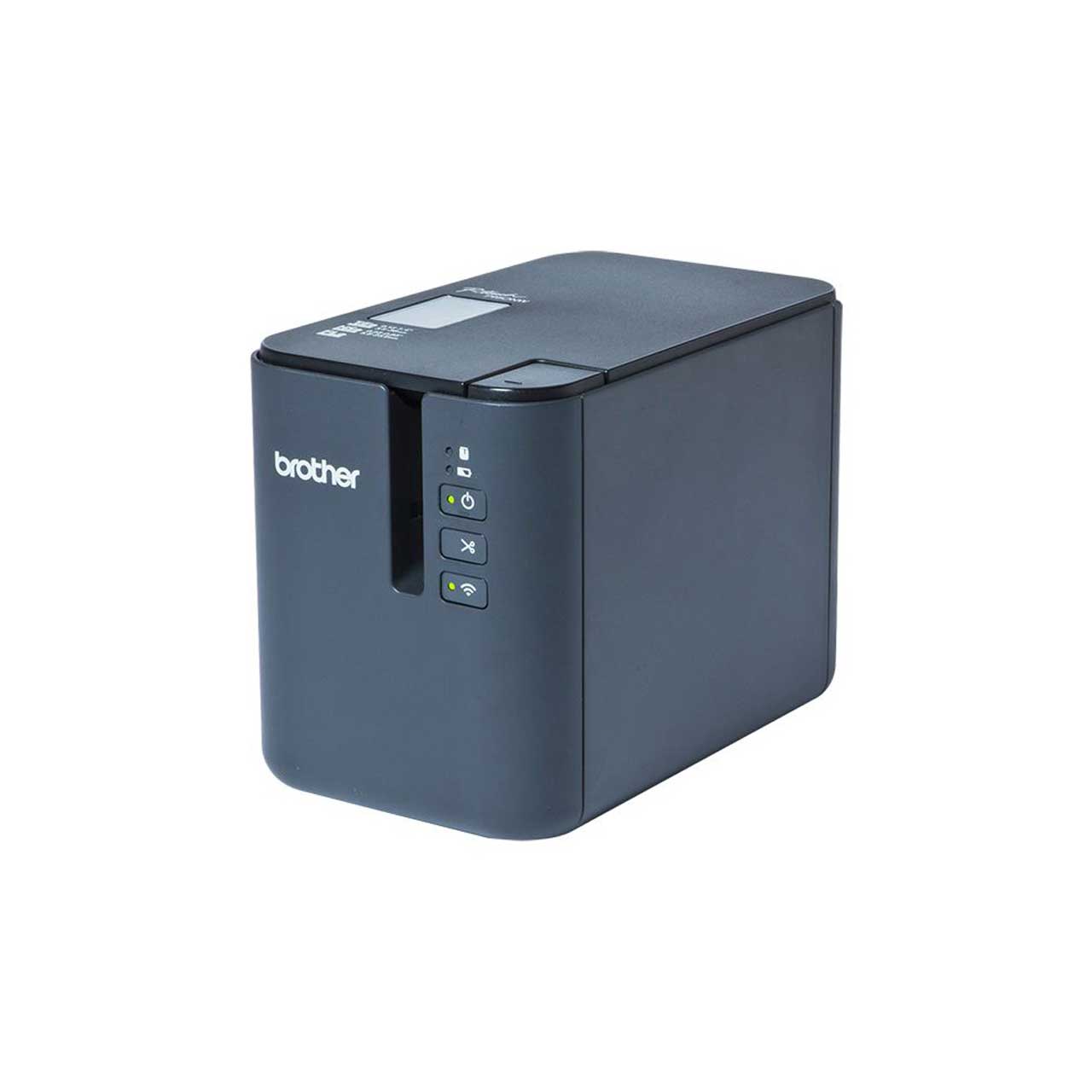

Brother PT-9800PCN Wireless Powered Network Laminated Label Printer

PTP950NW - Overview

• Features:

  • Wi-Fi, Ethernet, USB, Host USB, Serial & Optional Bluetooth (PA-BI-002) Interfaces - Versatile Wireless and Wired Connectivity Options
  • Produce Premium Quality, UL Certified¹ Laminated Labels On-Demand - Virtually Eliminates the Need to Purchase Pre-Printed Labels From a Converter for Custom and Short Run Labels
  • Infrastructure, Adhoc and Direct Wireless Wi-Fi Communications - Connect Directly to a Windows Computer, iOS and Android Smartphone or Tablet
  • Larger Print Head Prints up to 32mm High on 36mm Wide Tape at 360 dpi Printing Resolution - Prints Larger, Easy to Read Labels with Smooth Curves that Help Eliminate Jagged and Pixilated Images, Including Very Small Characters and Graphics
  • Automatic Dual Blade Cutting Mechanism - Pre-Print Strip of Easy to Peel labels as an Alternative to Sheets and Rolls of Die Cut Labels
  • Future Proof Optional Accessories: Li-ion Rechargeable Battery (PA-BT-4000LI), Battery Base (PA-BB-002), Touch Panel & Display (PA-TDU-003) and Bluetooth v2.1 (PA-BI-002) - Make Printer Configuration Purchasing Decision on Current Requirements, Optional Accessories are User Installable After Deployment
  • Printer Includes AC Adapter and Easy to Use, Advanced Label Design Software, UL Certified Tape and Cables - Comes With Everything you Need to Help you Design and Print Premium Quality Laminated Labels
  • Prints Laminated Labels up to 3.1 ips - Print Speed is up to 4x Faster Than Other Brother Models and is Ideal for Work in Progress (WIP) and Higher Volume Labeling Applications
  • Template Mode Printing and Downloadable Databases, Optional Touch Panel & Display (PA-TDU-003) - Easy to Develop Solutions to Print Standalone, From Scanning a Barcode or Connected to an Industrial Device (ex: PLC or Tester)
  • Uses HGe/TZe/HSe Tape - All in One, Drop in Cartridge Design Helps Ensure you Get the Best Print Quality and Makes Replacing Media Virtually Trouble Free
  • Small Footprint, only 4.7" wide x 5.7" high x 7.6" deep - Ideal for Use on Crowded Bench Tops, Limited Work Space and Even on Carts
  • 2 Year "At your side" Limited Warranty - Helps Assure Operational Confidence and Reliability, and Helps Minimize Down Time


• Specifications:

  • Model Type: Industrial Powered Network Label Printer
  • Tape Family: HGe, TZe, HSe
  • Tape Sizes: 3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm, 36mm
  • Tape Length: 8m (26.25')
  • Tape Technology: Laminated Thermal Transfer
  • Tape Types: High Grade, Standard & Extra-Strength Adhesive, Flexible ID, Heat Shrink Tube, Tamper-Evident, Iron-On Fabric, Acid Free, Non-Laminated
  • LCD Display: Optional Touch Panel Display (PA-TDU-003)
  • Backlight: Optional Touch Panel & Display (PA-TDU-003)
  • Maximum Print Resolution: 360 x 720 dpi (14 x 28 dots/mm)
  • Maximum Print Speed: HGe/TZe Tape: Up to 3.15 ips (80 mm/sec)
  • Keyboard: Optional Touch Panel Display (PA-TDU-003)
  • Cutter: Automatic (Built-In) Cutter: Full-Cut mode and Crack and Peel mode
  • Batteries: Optional Li-ion Rechargeable Battery (PA-BT-4000LI), Requires Optional Battery Base (PA-BB-002)
  • Operation Mode: Computer Connected (GDI Printer, Template), Connected to Host Peripheral (USB or Serial)
  • Printer Emulation: Raster, ESC P, Text (Template/Form Mode)
  • ENERGY STAR certified: Yes
  • Control Panel: On/Off, Feed/Cut, Wi-Fi On/Off
  • Power Switch: Digital
  • Power Supply: 120-240VAC 60/50 Hz
  • AC Adapter: AD-9100ESA (Included)
  • Handle: None
  • Preview Key: None
  • Interface: Wi-Fi WLAN (802.11b/g/n), LAN (10/100 Base-TX), USB 2.0, Host USB, Serial (RS-232C), Optional Bluetooth v2.1 (PA-BI-002)
  • Near Field Communication: None
  • Mobile Device Printing App: Mobile Cable Label Tool, Mobile Transfer Express
  • Mobile Device Compatibility: iOS 3.0 or Later, Android 1.6 or Later
  • Housing Dimensions: 4.7" x 7.6" x 5.7"
  • Housing Weight: 3.3 lbs
  • Housing Color: Black


• Item Includes:

  • One 0.94"x26.2' Black on White Extra-Strength Adhesive Laminated "TZe" Tape (TZeS251)
  • USB interface cable
  • P-touch Editor software and printer drivers (Online)
  • AC Adapter/Power Cord
  • Quick Start Guide


• Warranty:

  • 2 Years


• GTIN:

  0012502642992
