Bosch DICENTIS Conference System Charger for 5 DCNM-WLIION Batteries

Name: Bosch DICENTIS Conference System Charger for 5 DCNM-WLIION Batteries
Brand: Bosch Communications
SKU: BSH-DCNM-WCH05
Price: 1386.00 USD
Availability: PreSale

ITEM #: BSH-DCNM-WCH05 MFG #: DCNM-WCH05

Bosch Communications

Our Price:

$1,386.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

DCNM-WCH05 - Overview

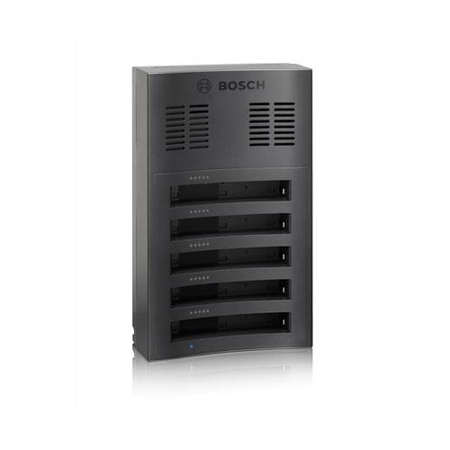

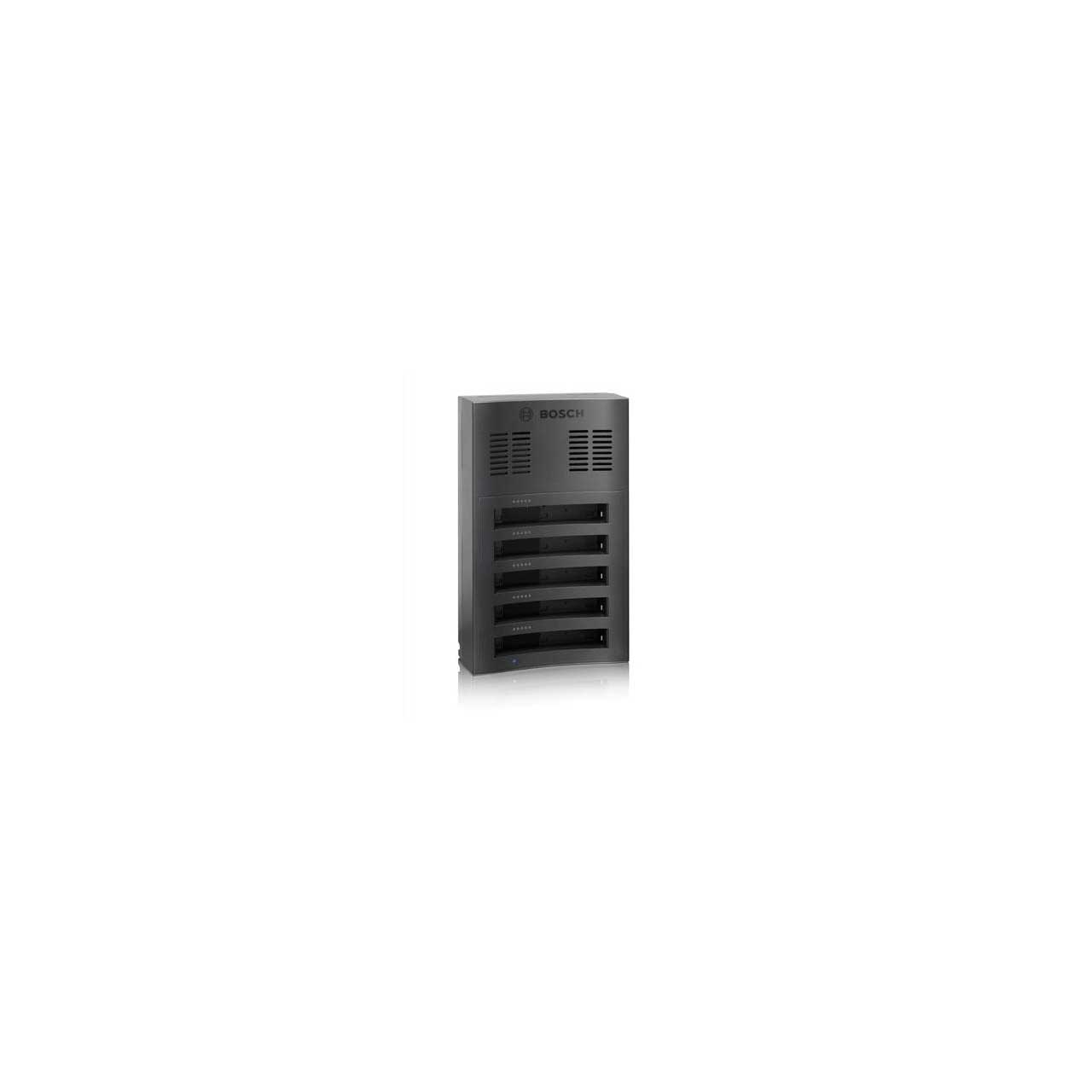

This Bosch DCNM-WCH05 charger can simultaneously charge up to 5 DCNM-WLIION Battery Packs. The charging status of each Battery Pack is shown on individual charge capacity LED indicators. The Battery Packs can be left in the Charger when fully charged. This has no impact on charging level and lifetime of the Battery Packs. The Charger is intended for wall mounting.

The loop-through mains power supply sockets allow a maximum number of chargers to be connected in series so that they can share the same mains power supply outlet:

A maximum of 2 chargers can be connected in series for 100-127 Vac, 50-60 Hertz regions at 10A.
A maximum of 5 chargers can be connected in series for 220-240 Vac, 50-60 Hertz regions at 10A.

Features:
- Simultaneous charging of up to 5 Battery Packs
- Individual Battery Pack charging capacity indicators
- Recharges from empty in less then 3 hours
- Auto-ranging power supply, 100–240 Vac
- Loop-through mains power supply connectors
Specifications:
- Supply Voltage: 100-240 Vac +/- 10 %50/60 Hz
- Maximum power consumption: 300 W
- Dimensions (HxWxD): 13.4 x 7.6 x 3.2 (340 x 195 x 82mm)
- Weight (without batteries): 3.97Lbs (1.8kg)
- Color: Traffic black (RAL 9017)
- Operating Temperature: 41° to 113°F (5° to 45°C)
- Storage and Transport Temperature: -4° to 158°F (-20° to +70°C)
- Relative Humidity: < 95 %, > 5 %
Item Includes:
- 1x DCNM-WCH05 Charger for 5 Battery Packs
- 1x EU power cord
- 1x US power cord
Warranty:
- 3 years
