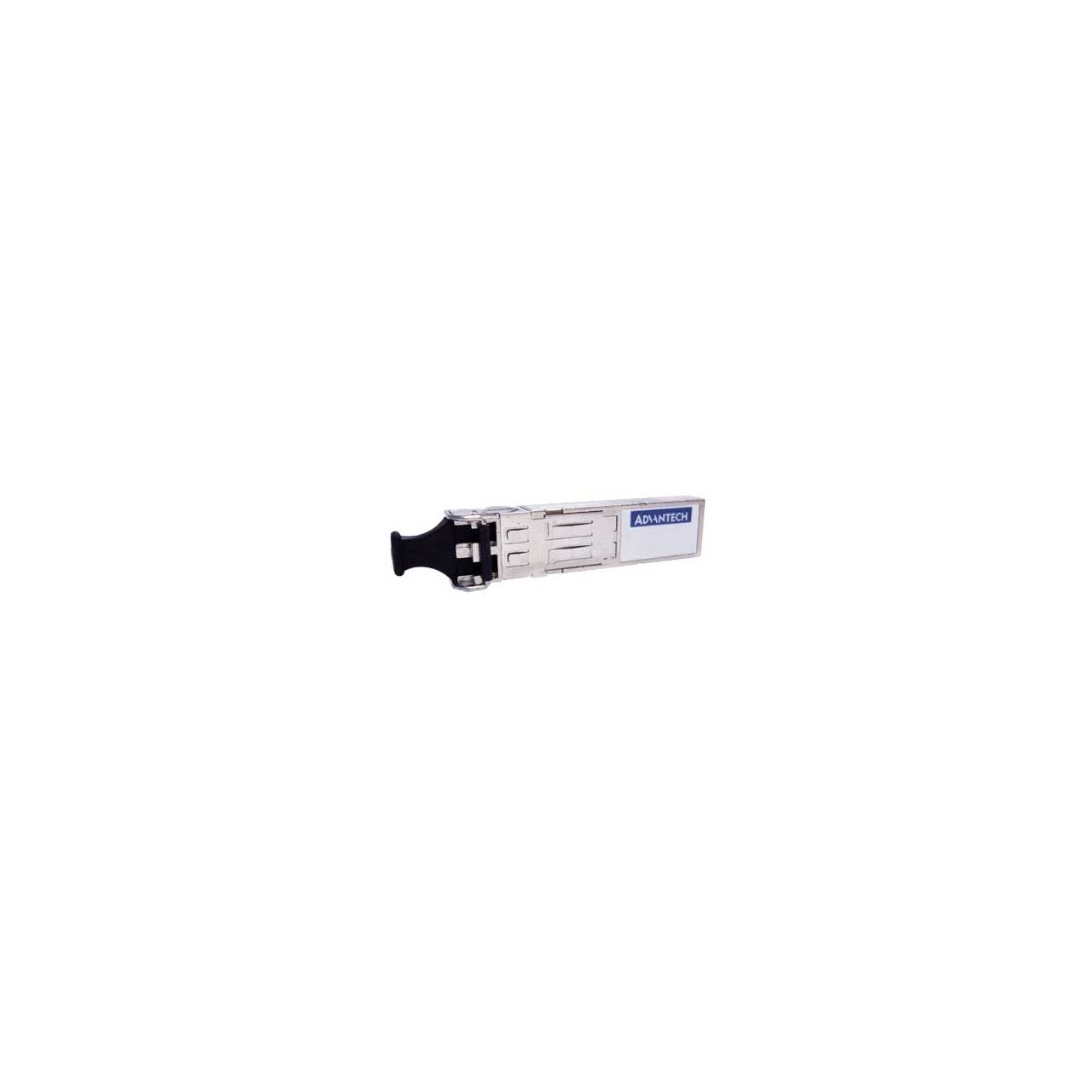

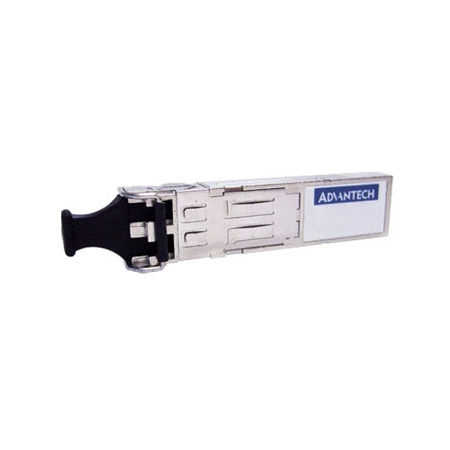

Bosch PRAESENSA Single Mode Fiber Transceiver for PRAESENSA Power Supply and Ethernet Switch - Covers up to 10 km

PRA-SFPLX - Overview

• Features:

  • Industry standard small form-factor pluggable (SFP)
  • Immovable lock design
  • Hot pluggable
  • Duplex LC connector
  • Full duplex speed support


• Specifications:

  • Supply voltage: 3.3 V
  • Power consumption: 0.7 W
  • Speed: IEEE 802.3z, 1000BASE-LX
  • Transmitter power: -3 to -9.5 dBm
  • Receiver sensitivity: < -20 dBm
  • Connection: Hot swappable, locking
  • Connector type: Dual LC
  • Wave length: 1310 nm
  • Fiber length: < 10 km (32,821 ft)
  • Optical fiber: Single-mode
  • Core size: ITU-T G.652 SMF
  • Operating Temperature: -40 to 185 °F
  • Storage and Transport Temperature: -40 to 185 °F
  • Dimensions (WxHxD): .33 x .53 x 2.2 In
  • Weight: .17 lbs


• Item Includes:

  • 1x SFP fiber transceiver


• GTIN:

  0800549891714
