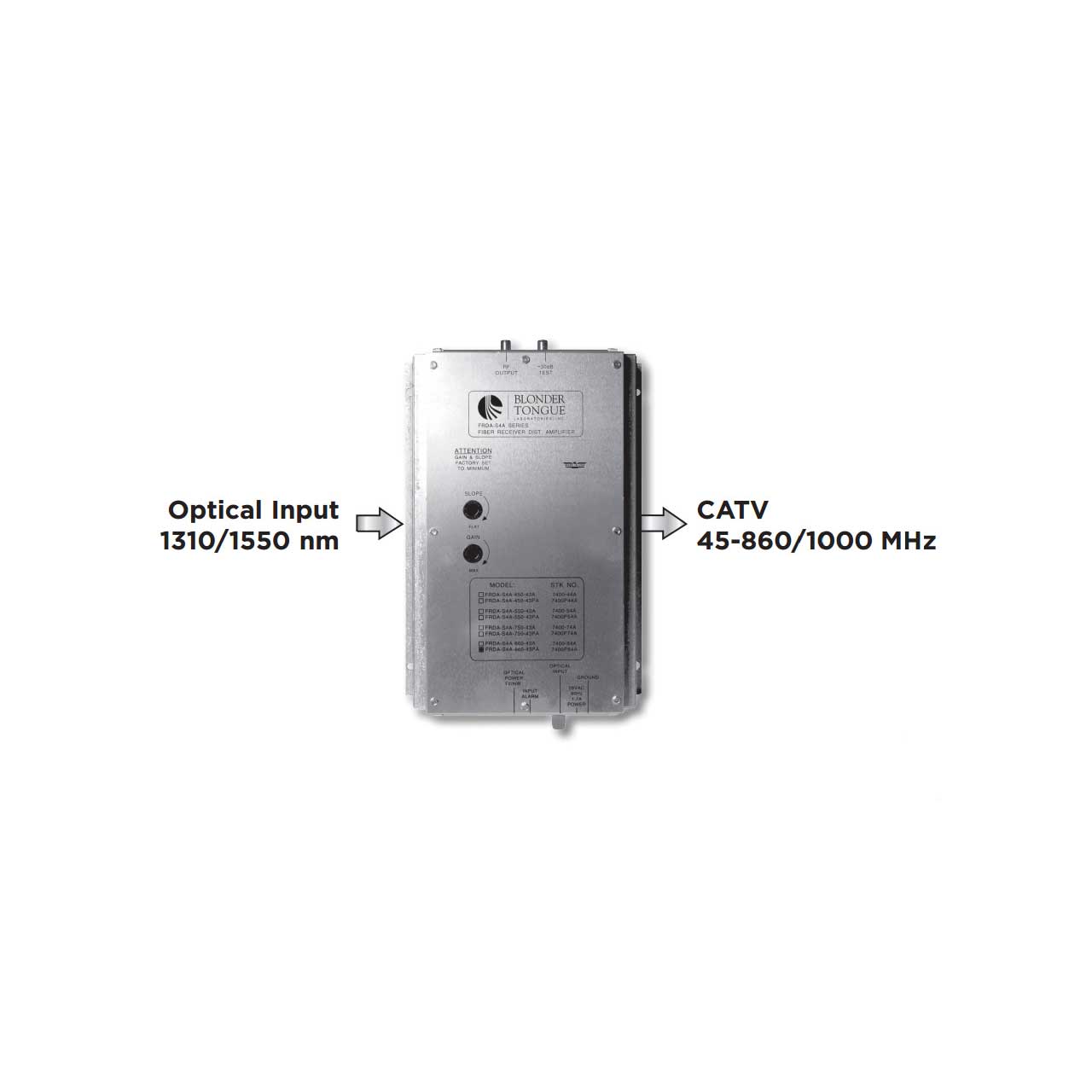

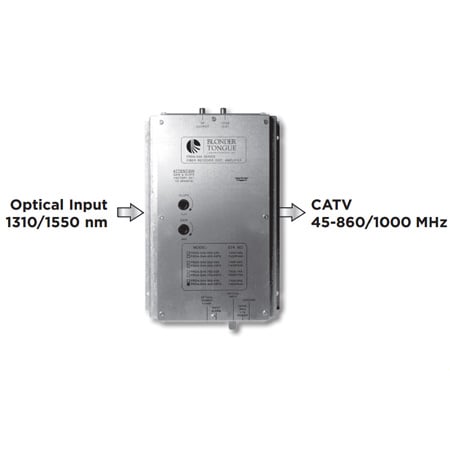

Blonder Tongue FRDA-S4A-1000-SC Fiber Optic Receiver/RF Distribution Amplifier 45-1000 MHz/Single Mode/ SC/APC Connector

ITEM #: BT-FRDAS4A1000SC MFG #: FRDA-S4A-1000-SC

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,380.00

Our Price:

$1,048.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


FRDA-S4A-1000-SC - Overview

The FRDA is a fiber optic receiver module, integrated with a broadband distribution amplifier (BIDA). The FRDA is used as a launch amplifier in a coaxial distribution sub-system, fed from a single mode broadband fiber network. The FRDA's optical receiver section provides exceptional CNR performance at low optical input levels. This feature is also a cost saving one, since it permits the use of lower power optical transmitters. The FRDA has two RF bandwidths available, 860 MHz and 1000 MHz, and features power doubling hybrid amplifier technology for high RF output levels and low distortion. The FRDA operates with the FIBT Series of transmitters as well as those from other leading manufacturers.

  • Features:

    • 860 MHz and 1000 Mhz (1 GHz) power doubling hybrid models
    • LED for optical input status
    • Gain and slope controls
    • Exceptional CNR performance at low optical input levels
    • Optical input power jack scaled 1V/mW provides precise measurement capability using DC voltmeter

  • Specifications:

    • Optical Receiver
    • Bandwidth: 45 to 1000 MHz
    • Bandpass Flatness: 1 dB P/V
    • Operating Wavelength: 1310/1550 nm
    • Optical Input Range: -3 to +3.0 dBm
    • Carrier Noise Ratio(CNR):
    • -1 dBm input, 40 Channel Load: 54 dB
    • -1 dBm input, 79 Channel Load: 53 dB
    • -1 dBm input, 110 Channel Load: 52 dB

    • Distribution Amplifier
    • Impedance (All Ports): 75 Ω
    • Return Loss Input: 16 dB
    • Return Loss Output: 16 dB
    • Test Port Level: -30, +/-2 dB
    • Gain Control Range: 10 dB
    • Slope Control Range: 8 dB
    • Channel Loading: 110
    • Flatness: +/-0.75 dB
    • Output Level: 34/42 dBmV
    • Composite Triple Beat (CTB): -60 dB
    • Composite Second Order (CSO): -58 dB
    • Hum Modulation: -70 dB

    • General
    • Dimensions (W x H x D): 7.25" x 3.25" x 10.25" (184mm x 83mm x 260mm)
    • Weight: 5.75 lbs. (2.61 kg)
    • Operating Temperature Range: -20 to +45 °C
    • Number Of Hybrids: 2
    • Hybrid Technology: Power Doubling

    • Power Supply Requirements: 117 VAC, 60 Hz, 28 W

    • Connectors
    • Optical Input: FC/APC or SC/APC (Model dependent)
    • RF Output and Test Ports: "F" Female

    • Indicators
    • Power: LED, Green
    • Optical Input Alarm: LED, Tri-colored
