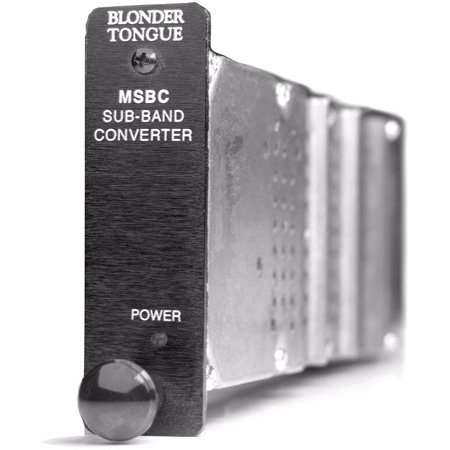

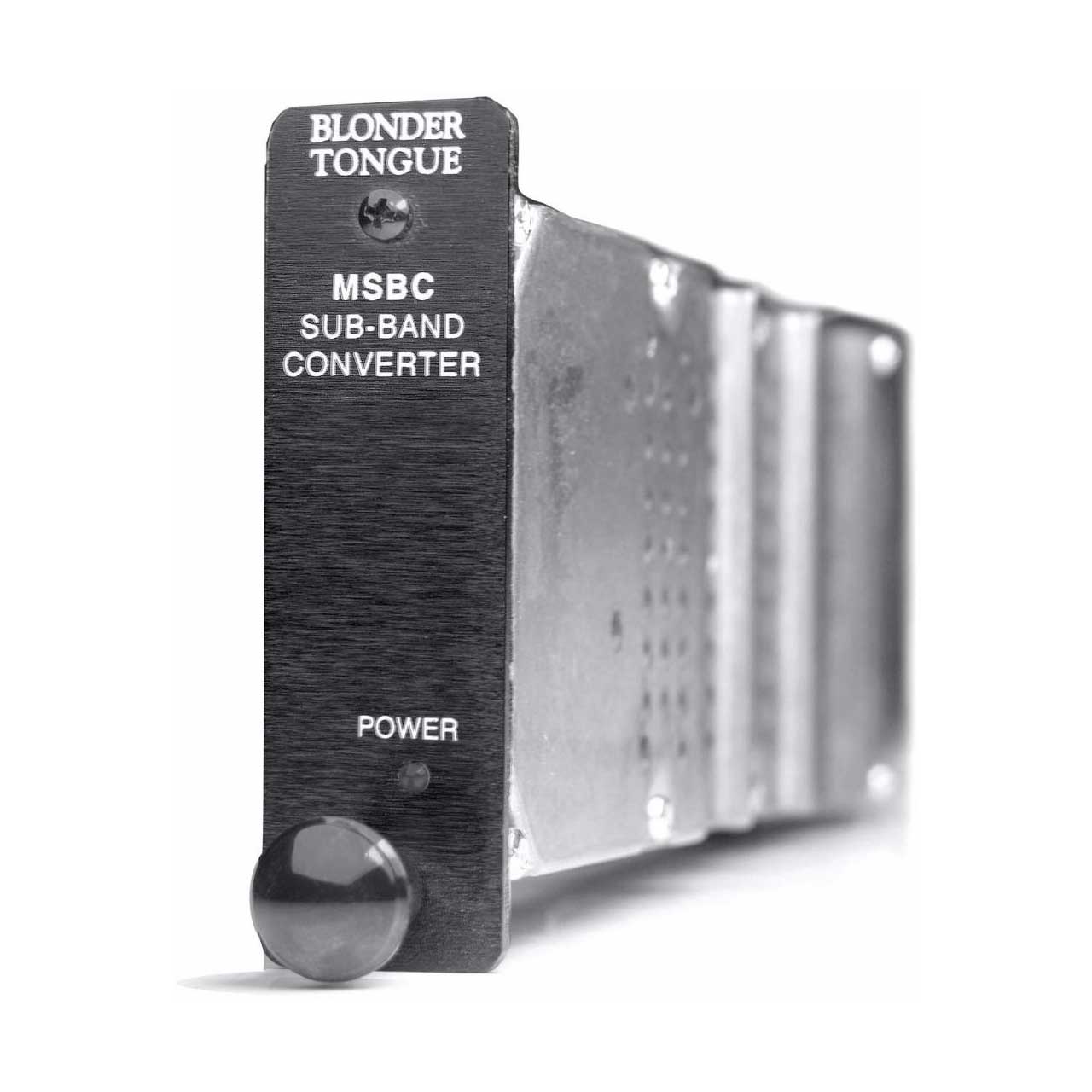

Blonder Tongue MSBC Agile HE-12 Series Demodulator

MSBC - Overview

• Features:

  • Up-coverts entire sub-band to channels 7-13
  • 3 dB coversion gain
  • Die cast chassis provides unsurpassed RFI shielding


• Specifications:

  • Input Frequency Range: 5.75-47.75 MHz (Channels T7-T13)
  • Output Frequency Range: 174-216 MHz (Channels 7-13)
  • Recommended Input Level Range: 0 to +20 dBmV
  • Conversion Gain: 3 dB
  • Flatness: 1.5 dB P/V
  • LO Frequency accuracy @ 25 deg. C: +/- 500 Hz
  • Intermod Distortion: -60 dBc (In band Ch. 7-13 @ 0 to + 20 dBmV input)
  • Input/Output Impedance: 75 Ohm
  • Return Loss: Input: 15 dB/ Output: 17 dB
  • Electrical: 12 VDC, 100 mA 1.2 Watts
  • Dimensions: 1.15 x 3.5 x 7.5 in.
  • Weight: 13.5 oz.
  • Temperature Range: 0 to 50 degrees C
  • Connectors (Rear)
  • Sub-Band Input: "F" Type Female
  • RF Output: "F" Type Female
  • Power: Locking Header 3 Pin
  • Indicators (Front) Power: Green LED
